This user's guide describes operation of the TPA3156D2EVM (evaluation module). The user's guide also
provides design information, such as a schematic, BOM, and PCB layout.
1
.....................................................................................................................
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
3
3.1
3.2
3.3
1
2
3
4
TPA3156D2EVM Schematic
1
2
3
4
5
6
SLOU499 - October 2017
Submit Documentation Feedback
..........................................................................................................
..................................................................................
................................................................................................
................................................................................................
..................................................................................
.................................................................................................
............................................................................................................
...........................................................................................
.................................................................................
.............................................................................................
.....................................................................................
List of Figures
.............................................................................................................
.............................................................................................
.........................................................................................
..............................................................................................
List of Tables
...........................................................................................
........................................................................................................
..............................................................................
...............................................................................
......................................................................................................
Copyright © 2017, Texas Instruments Incorporated
TPA3156D2EVM User's Guide
Contents
....................................................................
..........................................................................
...................................................................
User's Guide
SLOU499 - October 2017
TPA3156D2EVM User's Guide
2
3
3
3
3
3
4
4
4
5
6
6
8
11
2
6
7
11
2
3
4
5
5
8
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPA3156D2EVM
Summary of Contents for Texas Instruments TPA3156D2EVM
-
Page 1: Table Of Contents
User's Guide SLOU499 – October 2017 TPA3156D2EVM User’s Guide This user’s guide describes operation of the TPA3156D2EVM (evaluation module). The user’s guide also provides design information, such as a schematic, BOM, and PCB layout. Contents ......................Hardware Overview ........................Operation .................. -
Page 2: Hardware Overview

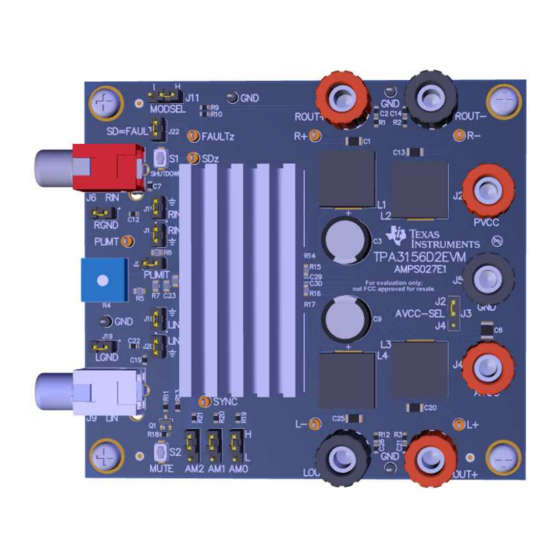

Hardware Overview The TPA3156D2EVM demonstrates the integrated circuit, TPA3156D2, from TI. The TPA3156D2 is an efficient, 70-W (per channel), stereo, digital-amplifier, power stage for driving two bridge-tied speakers or a single parallel bridge-tied load (PBTL). This document covers EVM specifications and design documentation. -
Page 3: Operation
Operation This chapter describes the power supply and system interfaces of the TPA3156D2EVM board. Information regarding handling and unpacking, absolute operating conditions, and a description of the factory default switch and jumper configurations are also provided. The following is a step-by-step guide to configuring the TPA3156D2EVM for device evaluation. -
Page 4: Inputs And Outputs
This section contains the recommended settings for stereo, single-channel, and mono output. Table 3 lists the settings for a single-ended input with auto recovery, PLIMIT, and BTL (stereo output). Table 3. TPA3156D2EVM Setting 1 (Stereo Output) Setting Description J6 (RIN) -
Page 5: Separate Pvcc And Avcc Supply Support
Operation www.ti.com Table 4 lists the settings for a single-ended input with auto recovery, PLIMIT, and BTL (single-channel output). Table 4. TPA3156D2EVM Setting 1 (Single-Channel Output) Setting Description J6 (RIN) No audio input J9 (LIN) L channel audio input JP1 (GNDR+) and JP3 (GNDR–) set to IN R channel off JP4 (GNDL+) and JP6 (GNDL–) set to OUT... -
Page 6: Board Layout, Bill Of Materials, And Schematic
Board Layout, Bill of Materials, and Schematic TPA3156D2EVM Board Layouts Figure 2 Figure 3 show the board layouts for the EVM. Copyright © 2017, Texas Instruments Incorporated Figure 2. TPA3156D2EVM Top Overlay TPA3156D2EVM User’s Guide SLOU499 – October 2017 Submit Documentation Feedback... -
Page 7: Tpa3156D2Evm Bottom Overlay
Board Layout, Bill of Materials, and Schematic www.ti.com Figure 3. TPA3156D2EVM Bottom Overlay SLOU499 – October 2017 TPA3156D2EVM User’s Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 8: Bill Of Materials (Bom)
J5, J7, J10 Binding post, black, TH 11.4 × 27.2 mm 7007 Keystone PC Mount Phono jack- RCA jack, red, R/A, TH Keystone red, TH TPA3156D2EVM User’s Guide SLOU499 – October 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 9 Board Layout, Bill of Materials, and Schematic www.ti.com Table 6. TPA3156D2EVM BOM (continued) Alternate Alternate Designator Quantity Value Description Package Reference Part Number Manufacturer Part Number Manufacturer PC Mount Phono jack- RCA jack, white, R/A, TH Keystone white, TH J15, J16,...
- Page 10 Board Layout, Bill of Materials, and Schematic www.ti.com Table 6. TPA3156D2EVM BOM (continued) Alternate Alternate Designator Quantity Value Description Package Reference Part Number Manufacturer Part Number Manufacturer Two 70-W, class-d amplifiers Texas Texas with low idle power dissipation, DAD0032A TPA3156D2DADR...
-
Page 11: Tpa3156D2Evm Schematic
Board Layout, Bill of Materials, and Schematic www.ti.com TPA3156D2EVM Schematic Figure 4 shows the schematics for the TPA3156D2EVM. Copyright © 2017, Texas Instruments Incorporated Figure 4. TPA3156D2EVM Schematic SLOU499 – October 2017 TPA3156D2EVM User’s Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
