This user's guide describes the operation of the evaluation module (TPA3244EVM, rev. B) for the
TPA3244 40-W Continuous/100-W Peak Stereo PurePath™ Ultra-HD Analog Input Power Stage. The
user's guide also provides design information, which includes schematic, BOM, and PCB layout. For
questions and support, go to the E2E forums (e2e.ti.com).
The main contents of this document are:
•
Hardware descriptions and implementation
•
Design information
Related documents:
•
TPA3244 data sheet (SLASEC6)
spacer
1
1.1
1.2
1.3
1.4
1.5
2
2.1
TPA3244EVM Setup
2.2
2.3
3
3.1
3.2
3.3
4
5
5.1
5.2
TPA3244EVM Board Dimension
5.3
Bill of Materials
5.4
TPA3244EVM Schematic
1
2
Type-2 Filter for BD or AD Modulation
3
TPA3244EVM LC Filter Cutoff Frequency
4
TPA3244EVM Connections
5
TPA3245EVM THD + N vs Output Power 30 V, BTL 4 Ω, 600 kHz
6
TPA3244EVM Top Composite Assembly
7
TPA3244EVM Bottom Composite Assembly
8
TPA3244EVM Board Dimension
9
TPA3244EVM Schematic 1
10
TPA3244EVM Schematic 2
SLVUAT5 - November 2016
Submit Documentation Feedback
..........................................................................................................
............................................................................................
.................................................................................
............................................................................................
........................................................................................................
...............................................................................................
...........................................................................................
...............................................................................
..............................................................................
....................................................................................
..........................................................................................................
...................................................................................
................................................................................
....................................................................................................
........................................................................................
................................................................................................................
....................................................................................
...............................................................................
................................................................................................
...............................................................................
.........................................................................................
...............................................................................................
...............................................................................................
Copyright © 2016, Texas Instruments Incorporated
TPA3244 Evaluation Module
Contents
............................................................
....................................................
.........................................................
....................................................................
.......................................................................
List of Figures
................................................
...........................................................................
User's Guide
SLVUAT5 - November 2016
TPA3244 Evaluation Module
3
3
4
4
5
5
7
7
7
8
10
10
12
13
14
15
15
17
18
21
3
5
6
7
14
15
16
17
21
22
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPA3244
Summary of Contents for Texas Instruments TPA3244
-
Page 1: Table Of Contents
This user’s guide describes the operation of the evaluation module (TPA3244EVM, rev. B) for the TPA3244 40-W Continuous/100-W Peak Stereo PurePath™ Ultra-HD Analog Input Power Stage. The user’s guide also provides design information, which includes schematic, BOM, and PCB layout. For questions and support, go to the E2E forums (e2e.ti.com). - Page 2 .................... SE 4.0 Default Jumper States ......................Bill of Materials Trademarks PurePath is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 3: Hardware Overview

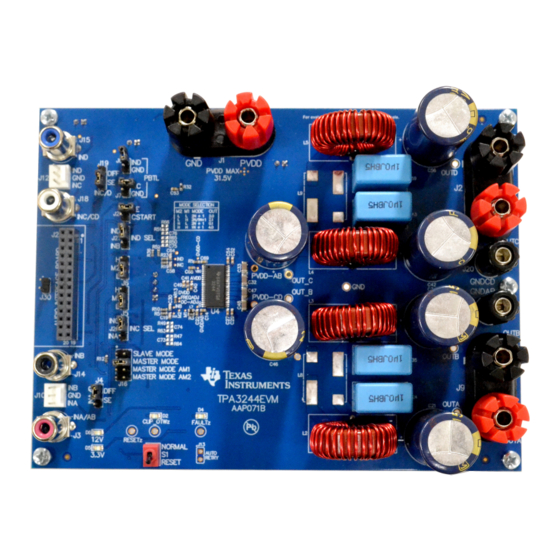

Hardware Overview The TPA3244EVM PurePath™ Ultra-HD evaluation module demonstrates the TPA3244DDW integrated circuit from Texas Instruments. The TPA3244DDW is a high-performance, high-power, class-D amplifier that enables true premium sound quality with high-efficiency class-D technology. It features an advance integrated feedback design and high-speed gate driver error correction (PurePath Ultra-HD), which enables ultra-low distortion across the audio band and superior audio quality. -
Page 4: Tpa3244Evm Frequency Adjust
For differential input operation, J4 or J19 jumpers are set to the DIFF position, and the TPA3244EVM uses the NE5532 to buffer the differential input signal to the differential inputs of the TPA3244. The input RCA jack, J3, is used to provide INA, RCA jack J14 provides INB, RCA jack J18 provides INC, and RCA jack J15 provides IND with differential inputs. -
Page 5: Tpa3244Evm Clip Overtemperature And Fault Indicators
TPA3244EVM Clip Overtemperature and Fault Indicators The TPA3244EVM is equipped with LED indicators that illuminate when the FAULT or CLIP_OTW pin goes low. See Table 2 and the TPA3244 data sheet (SLASEC6) for more details. Table 2. Fault and Clip Overtemperature Status FAULT CLIP_OTW Description Overtemperature (OTE) or overload (OLP) or undervoltage (UVP). - Page 6 Hardware Overview www.ti.com This filter has the following frequency response under the loading conditions listed in Figure Figure 3. TPA3244EVM LC Filter Cutoff Frequency TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 7: Tpa3244Evm Setup
• Two 2–8 Ω (approximately 200 W) speaker and resistor loads • Four speaker/banana cables • RCA input cables • Analog output audio source SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 8: Hardware Default Setup Btl (2.0)
(BLUE) and input D (BLACK) and set J4 and J19 jumper positions to DIFF. • Power up the power supply once all the connections are made correctly and the 3.3-V and 12-V LEDs (GREEN) illuminate. TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 9 Using a smart phone, tablet, or PC with headphone to RCA cable, audio streaming via headphone jack can begin once the EVM is powered up correctly with jumpers in their default state. Start the media player of your choice and enjoy the enhanced audio performance the TPA3244 provides as a quick check of the setup.
-
Page 10: Using The Tpa3244Evm In Different Output Configurations
OUTB. • Set J19 jumper position to DIFF. • Connect left (stereo) channel input to female RCA jack input C/CD (WHITE) for OUTC speaker. TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 11 DIFF. NOTE: OUTC and OUTD are the single-ended output channels and OUTA and OUTB are the BTL channel for 2.1 operations. SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 12: Pbtl (0.1) Output Operation
RCA male jack to female RCA jack input B (YELLOW) and set J4 jumper position to DIFF. NOTE: INA and INB are the inputs for PBTL and INC and IND are grounded for PBTL operation. TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 13: Single-Ended (Se) Output (4.0) Operation
• Connect input to female RCA jack input D (BLACK) for OUTD speaker. NOTE: The performance of the TPA3244EVM/TPA3244 is dependent on the power supply. Design the power supply with margins that can deliver the needed power. In low-frequency applications, additional bulk capacitance may be needed. Replacing the bulk capacitors on the TPA3244EVM with more capacitance may be necessary, depending on the power supply used. -
Page 14: Optional Inductors
The plot in Figure 5 shows THD + N vs. output power for the TPA3245EVM (Pad-Up version of the TPA3244) using the standard toroid inductors and the Coilcraft UA8013-AL (7 µH) and UA8014-AL (10 µH). MA5172-AE 10 PH UA8013-AL 7 PH Dual Inductor UA8014-AL 10 PH Dual Inductor 0.01... -
Page 15: Board Layouts, Bill Of Materials, And Schematic
Board Layouts, Bill of Materials, and Schematic TPA3244EVM Board Layouts Figure 6 Figure 7 illustrate the board layouts for the EVM. Figure 6. TPA3244EVM Top Composite Assembly SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 16 Board Layouts, Bill of Materials, and Schematic www.ti.com Figure 7. TPA3244EVM Bottom Composite Assembly TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
- Page 17 Figure 8 illustrates the TPA3244EVM board dimensions 160 mm × 120 mm (image represented here is not actual size). Figure 8. TPA3244EVM Board Dimension SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 18: Bill Of Materials
MACHINE SCREW PAN PHILLIPS M3 M3 Screw RM3X8MM 2701 APM HEXSEAL H6, H7, H8, H9, H10 Standoff, Hex,25mm Length, M3, Aluminum Standoff M3 24438 Keystone TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 19 0603 CRCW06031K00FKEA Vishay-Dale 9.10k RES, 9.10 k, 1%, 0.1 W, 0603 0603 RC0603FR-079K1L Yageo America RES, 360, 5%, 0.063 W, 0402 0402 CRCW0402360RJNED Vishay-Dale SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
- Page 20 TP12, TP13, TP14 TP15, TP16, TP17, Testpoint Test Point, 0.45mm hole size TP_H0.45P0.75 Texas Instruments TP18, TP19, TP20, TP21, TP22, TP23, TP24, TP25, TP26, TP27, TP28 TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 21: Tpa3244Evm Schematic 3
10µF 10µF 0.1uF 0.1uF <- ROUTED GROUND TO AGND ON DUT (Pins 10/11) Copyright © 2016, Texas Instruments Incorporated Figure 9. TPA3244EVM Schematic 1 SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 22 FAULT FAULT CLIP_OTW FAULT Orange RESET-SW 1µF 0.1uF MONITORS 3.30k TPS3802K33DCKR 0.1uF RESET Copyright © 2016, Texas Instruments Incorporated Figure 10. TPA3244EVM Schematic 2 TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
- Page 23 0.1uF LM2940IMP-12/NOPB 3.3V Green 3.3V +12V 3.3V OUTPUT OUTPUT 10µF 100µF TLV1117-33IDCY 3.3V Copyright © 2016, Texas Instruments Incorporated Figure 11. TPA3244EVM Schematic 3 SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
