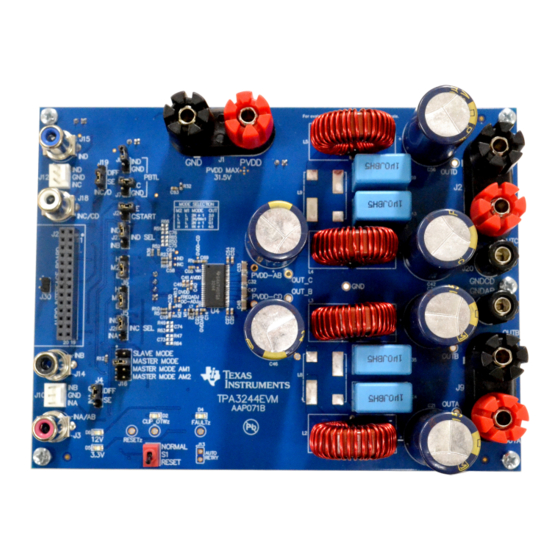

This user's guide describes the operation of the evaluation module (TPA3244EVM, rev. B) for the
TPA3244 40-W Continuous/100-W Peak Stereo PurePath™ Ultra-HD Analog Input Power Stage. The
user's guide also provides design information, which includes schematic, BOM, and PCB layout. For
questions and support, go to the E2E forums (e2e.ti.com).
The main contents of this document are:
Hardware descriptions and implementation
Design information
Related documents:
TPA3244 data sheet (SLASEC6)
spacer
1
1.1
1.2
1.3
1.4
1.5
2
2.1
TPA3244EVM Setup
2.2
2.3
3
3.1
3.2
3.3
4
5
5.1
5.2
5.3
5.4
1
2
3
4
5
6
7
8
TPA3244EVM Board Dimension
9
10
SLVUAT5 - November 2016
Submit Documentation Feedback
All manuals and user guides at all-guidesbox.com
..........................................................................................................
............................................................................................
.................................................................................
............................................................................................
........................................................................................................
...............................................................................................
...........................................................................................
...............................................................................
..............................................................................
....................................................................................
..........................................................................................................
...................................................................................
................................................................................
....................................................................................................
........................................................................................
................................................................................................................
....................................................................................
...............................................................................
................................................................................................
...............................................................................
.........................................................................................
...............................................................................................
...............................................................................................
Copyright © 2016, Texas Instruments Incorporated
TPA3244 Evaluation Module
Contents
............................................................
....................................................
.........................................................
....................................................................
.......................................................................
List of Figures
................................................
...........................................................................
User's Guide
SLVUAT5 - November 2016
TPA3244 Evaluation Module
3
3
4
4
5
5
7
7
7
8
10
10
12
13
14
15
15
17
18
21
3
5
6
7
14
15
16
17
21
22
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPA3244EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPA3244EVM

  • Page 1: Table Of Contents

    SLVUAT5 – November 2016 TPA3244 Evaluation Module This user’s guide describes the operation of the evaluation module (TPA3244EVM, rev. B) for the TPA3244 40-W Continuous/100-W Peak Stereo PurePath™ Ultra-HD Analog Input Power Stage. The user’s guide also provides design information, which includes schematic, BOM, and PCB layout. For questions and support, go to the E2E forums (e2e.ti.com).
  • Page 2 .................... SE 4.0 Default Jumper States ......................Bill of Materials Trademarks PurePath is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 3: Hardware Overview

    SE (4.0) output channel configurations. The NE5532 is a high-performance audio op amp designed to allow TPA3244DDW operation with differential or single-ended input signals to the EVM with differential inputs yielding the optimal performance. The TPA3244EVM is a complete 2-V analog input 2 ×...
  • Page 4: Tpa3244Evm Frequency Adjust

    The TPA3244EVM supports both differential and single-ended inputs. For single-ended inputs, J4 or J19 jumpers are set to the SE position, so that the TPA3244EVM uses the NE5532 to convert the single- ended input signal to differential to properly drive the differential inputs of the TPA3244. The input RCA jack, J3, is used to provide INA inputs and RCA jack J14 is used to provide INB inputs.
  • Page 5: Tpa3244Evm Clip Overtemperature And Fault Indicators

    All manuals and user guides at all-guidesbox.com Hardware Overview www.ti.com TPA3244EVM Clip Overtemperature and Fault Indicators The TPA3244EVM is equipped with LED indicators that illuminate when the FAULT or CLIP_OTW pin goes low. See Table 2 and the TPA3244 data sheet (SLASEC6) for more details.
  • Page 6: Tpa3244Evm Lc Filter Cutoff Frequency

    Hardware Overview www.ti.com This filter has the following frequency response under the loading conditions listed in Figure Figure 3. TPA3244EVM LC Filter Cutoff Frequency TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 7: Tpa3244Evm Setup

    All manuals and user guides at all-guidesbox.com TPA3244EVM Setup www.ti.com TPA3244EVM Setup This section describes the TPA3244EVM hardware setup and connection. TPA3244EVM Setup Figure 4 illustrates the TPA3244EVM connections. Figure 4. TPA3244EVM Connections Hardware Requirements The following hardware is required for this EVM: •...
  • Page 8: Hardware Default Setup Btl (2.0)

    Set power supply to 30 V (14- to 31.5-V range) and current to 10 A (5- to 14-A range). Do not power up until all connections are completed. • Connect power supply to TPA3244EVM positive terminal to PVDD (RED) and negative terminal to GND (BLACK). •...
  • Page 9 EVM is powered up correctly with jumpers in their default state. Start the media player of your choice and enjoy the enhanced audio performance the TPA3244 provides as a quick check of the setup. SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 10: Using The Tpa3244Evm In Different Output Configurations

    Using the TPA3244EVM in Different Output Configurations www.ti.com Using the TPA3244EVM in Different Output Configurations The TPA3244EVM can be configured for four different output operations. The 2.0 BTL configuration is the default setup of the TPA3244EVM described in Section 2.3. The remaining three configurations are 2.1 BTL plus two single-ended (SE) outputs, 0.1 PBTL output, and 4.0 single-ended (SE) outputs.
  • Page 11 All manuals and user guides at all-guidesbox.com Using the TPA3244EVM in Different Output Configurations www.ti.com • Connect right (stereo) channel input to female RCA jack input D (BLACK) for OUTD speaker. • For single-ended subwoofer (mono) input, connect RCA male jack to female RCA jack input A/AB (RED) and set J4 jumper positions to SE.
  • Page 12: Pbtl (0.1) Output Operation

    All manuals and user guides at all-guidesbox.com Using the TPA3244EVM in Different Output Configurations www.ti.com PBTL (0.1) Output Operation Configure the EVM as follows for PBTL operations: Table 6. PBTL Default Jumper States Jumper Setting Comment PVDD to 15-V Buck 12-V LDO to 12-V terminal 3.3-V LDO to 3.3-V terminal...
  • Page 13: Single-Ended (Se) Output (4.0) Operation

    • Connect input to female RCA jack input D (BLACK) for OUTD speaker. NOTE: The performance of the TPA3244EVM/TPA3244 is dependent on the power supply. Design the power supply with margins that can deliver the needed power. In low-frequency applications, additional bulk capacitance may be needed. Replacing the bulk capacitors on the TPA3244EVM with more capacitance may be necessary, depending on the power supply used.
  • Page 14: Optional Inductors

    Optional Inductors The TPA3244EVM includes component pads for optional output inductors L8 and L9. These pads fit Coilcraft inductors UA8013-AL (7 µH) and UA8014-AL (10 µH). These dual-core inductors provide extremely high performance in a small footprint to help shrink the solution size and cost. If using L8 and L9, make sure to de-solder L2, L3, L4, and L5 first.
  • Page 15: Board Layouts, Bill Of Materials, And Schematic

    Board Layouts, Bill of Materials, and Schematic TPA3244EVM Board Layouts Figure 6 Figure 7 illustrate the board layouts for the EVM. Figure 6. TPA3244EVM Top Composite Assembly SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 16: Tpa3244Evm Bottom Composite Assembly

    All manuals and user guides at all-guidesbox.com Board Layouts, Bill of Materials, and Schematic www.ti.com Figure 7. TPA3244EVM Bottom Composite Assembly TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 17: Tpa3244Evm Board Dimension

    Board Layouts, Bill of Materials, and Schematic www.ti.com TPA3244EVM Board Dimension Figure 8 illustrates the TPA3244EVM board dimensions 160 mm × 120 mm (image represented here is not actual size). Figure 8. TPA3244EVM Board Dimension SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright ©...
  • Page 18: Bill Of Materials

    MACHINE SCREW PAN PHILLIPS M3 M3 Screw RM3X8MM 2701 APM HEXSEAL H6, H7, H8, H9, H10 Standoff, Hex,25mm Length, M3, Aluminum Standoff M3 24438 Keystone TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 19 0603 CRCW06031K00FKEA Vishay-Dale 9.10k RES, 9.10 k, 1%, 0.1 W, 0603 0603 RC0603FR-079K1L Yageo America RES, 360, 5%, 0.063 W, 0402 0402 CRCW0402360RJNED Vishay-Dale SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 20 TP12, TP13, TP14 TP15, TP16, TP17, Testpoint Test Point, 0.45mm hole size TP_H0.45P0.75 Texas Instruments TP18, TP19, TP20, TP21, TP22, TP23, TP24, TP25, TP26, TP27, TP28 TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 21: Tpa3244Evm Schematic

    All manuals and user guides at all-guidesbox.com Board Layouts, Bill of Materials, and Schematic www.ti.com TPA3244EVM Schematic The schematics for TPA3244EVM are illustrated in Figure 9 through Figure To DUT 22pF 10µF INA-RCA 18.0k RCA INPUT 10.0k 10.0k 10µF 22pF...
  • Page 22: Tpa3244Evm Schematic 2

    FAULT FAULT CLIP_OTW FAULT Orange RESET-SW 1µF 0.1uF MONITORS 3.30k TPS3802K33DCKR 0.1uF RESET Copyright © 2016, Texas Instruments Incorporated Figure 10. TPA3244EVM Schematic 2 TPA3244 Evaluation Module SLVUAT5 – November 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 23: Tpa3244Evm Schematic

    0.1uF LM2940IMP-12/NOPB 3.3V Green 3.3V +12V 3.3V OUTPUT OUTPUT 10µF 100µF TLV1117-33IDCY 3.3V Copyright © 2016, Texas Instruments Incorporated Figure 11. TPA3244EVM Schematic 3 SLVUAT5 – November 2016 TPA3244 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 24 All manuals and user guides at all-guidesbox.com STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
  • Page 25 All manuals and user guides at all-guidesbox.com FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 26 All manuals and user guides at all-guidesbox.com 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿6丁目24番1号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
  • Page 27 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
  • Page 28 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
