Page 1: Table Of Contents
List of Tables ................... TPA3136D2EVM Specifications ......................Power Requirements ....................TPA3136D2EVM Setting 1 ....................TPA3136D2EVM Setting 2 ....................TPA3136D2EVM Parts List SLOU444A – May 2016 – Revised May 2016 TPA3136D2 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 2: Hardware Overview
The TPA3136D2 EVM customer evaluation module demonstrates the TPA3136D2 integrated circuit from The TPA3136D2 is a 10-W (per channel) efficient stereo digital amplifier power stage for driving 2 bridge- tied speakers. This document covers EVM specifications and design documentation that includes schematics, a parts list, and layout design. -
Page 3: Operation
On opening the TPA3136D2EVM package, ensure that the following item is included: • 1 piece TPA3136D2EVM board using one TPA3136D2 If this item is missing, contact the Texas Instruments Product Information Center nearest you to inquire about a replacement. Power Supply Setup A single power supply is required to power up the EVM. -
Page 4: Inputs And Outputs
(setting R6 = 0 Ω disable Plimit function) J12 (SD = FAULT) set to IN Auto recover mode J13 (PBTL) set to OUT PBTL mode TPA3136D2 Evaluation Module SLOU444A – May 2016 – Revised May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 5: Board Layouts, Bill Of Materials, And Schematic

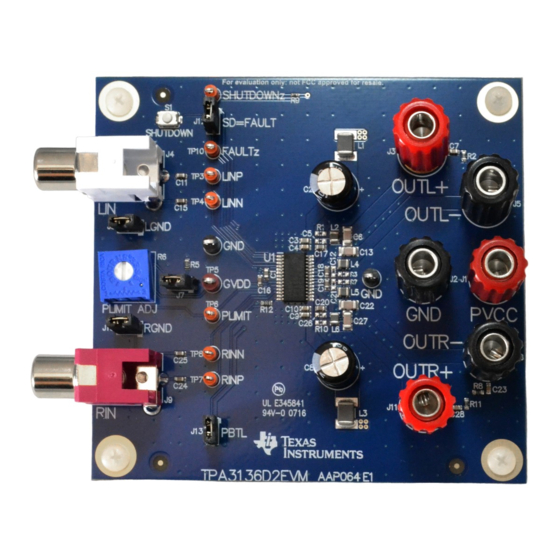

Figure 2 Figure 3 illustrate the EVM board layouts. Figure 2. TPA3136D2EVM Top Composite Assembly Figure 3. TPA3136D2EVM Bottom Composite Assembly SLOU444A – May 2016 – Revised May 2016 TPA3136D2 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 6: Bill Of Materials
Test Point, Compact, Red, TH Red Compact Testpoint 5005 Keystone 15-W Filter-Free Stereo Class-D Audio Power Amplifier With PWP0028E TPA3136D2PWP Texas Instruments Speakerguard, PWP0028E TPA3136D2 Evaluation Module SLOU444A – May 2016 – Revised May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 7: Tpa3136D2Evm Schematic
SHUTDOWN PVCC 10.0 100k SHUTDOWNz FAULT TP10 SD=FAULT PBTL FAULTz Copyright © 2016, Texas Instruments Incorporated Figure 4. TPA3136D2EVM Schematic SLOU444A – May 2016 – Revised May 2016 TPA3136D2 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 8 NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (May 2016) to A Revision ......................Page ........................• Changed board image. Revision History SLOU444A – May 2016 – Revised May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
