CREE LIGHTING VG Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed including
the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before installation or
servicing.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local electrical code.
If you are not familiar with these codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local. Si vous
n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un électricien
qualifié.
3. DO NOT lift luminaire by the power leads.
4. Pendant kit is NOT supplied with luminaire.
SAVE THESE INSTRUCTIONS FOR FUTURE
TO INSTALL:
1
Water Shield
Luminaire
2
1 of 2
REFERENCE
3
Water Shield
Slots
Latch
Pendant Kit
(Supplied by
Customer)
Pendant Mount
Bracket
Slots
Luminaire
Clips

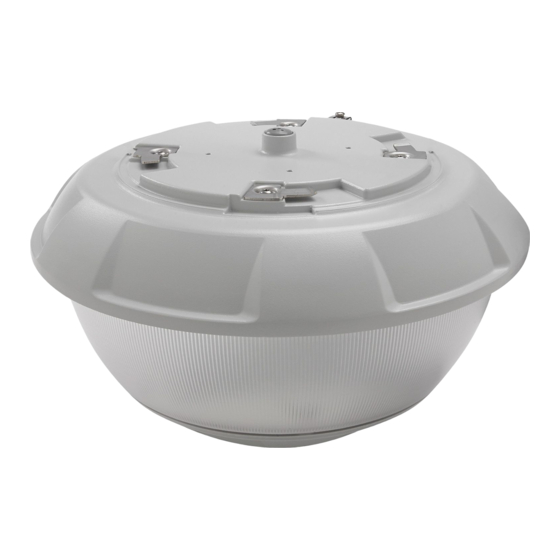

VG Series
LED Parking Luminaire
Pendant Mount (PD)
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION

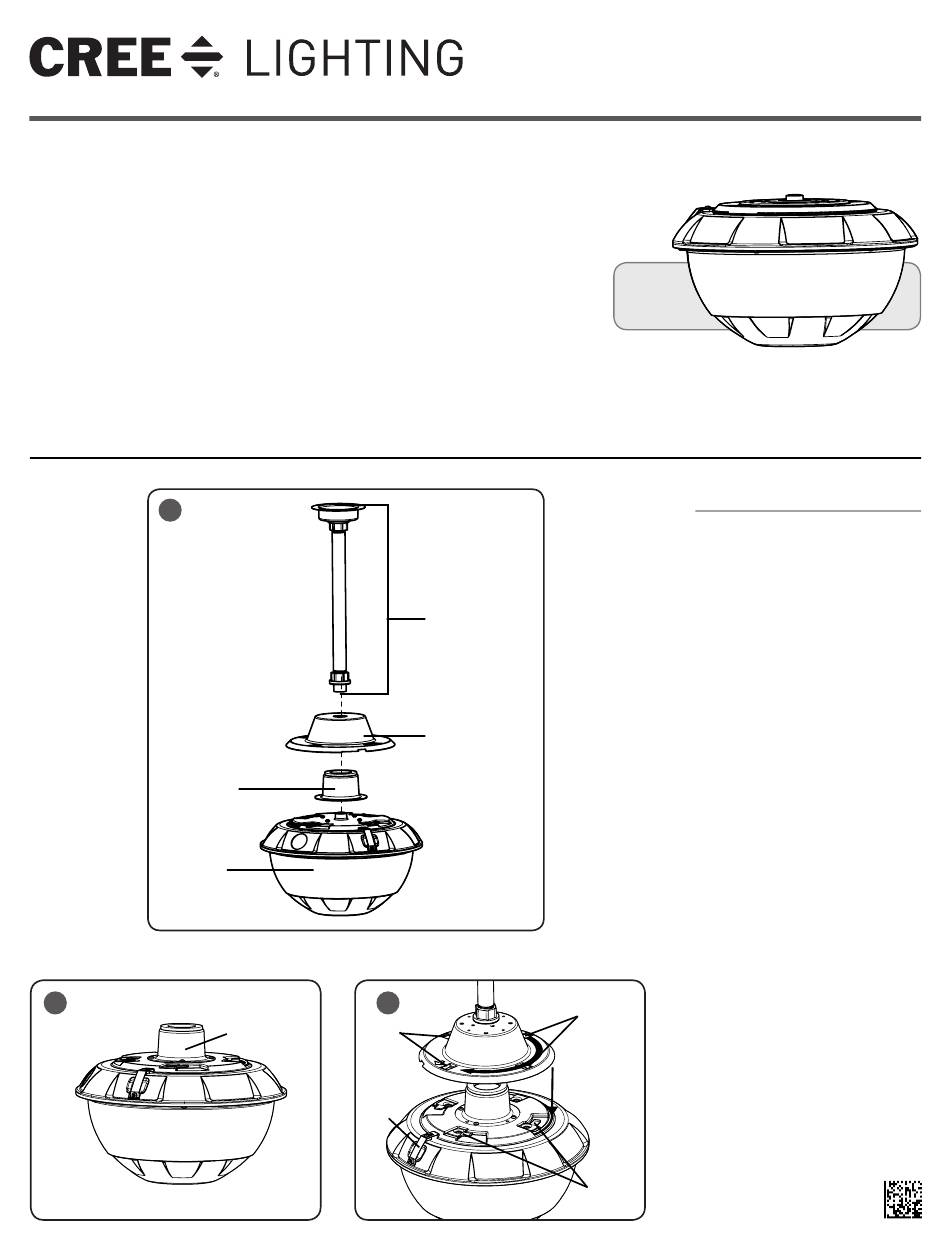

LUMINAIRE INSTALLATION
STEP 1:
Feed luminaire leads through the
Water Shield and attach the Water
Shield to the luminaire using (4)
supplied #8 screws. See
Figure 1 and 2.
STEP 2:
Attach Pendant Mount Bracket to
customer supplied pendant kit. See
Figure 1.
STEP 3:
Feed luminaire leads thru Pendant
Mount Bracket and customer supplied
pendant kit. See
Figure 1.
STEP 4:
Position the arrow on the Pendant
Mount Bracket to point towards the
recessed area nearest to the latch on
the luminaire. See Figure 3.
STEP 5:
Attach Pendant Mount Bracket and
customer supplied pendant kit to
luminaire by engaging the clips on
the luminaire with the slots on the
Pendant Mount Bracket and rotate
until latch locks securely. See
Figure 3.
NOTE: May require extra pressure on
Pendant Mount Bracket to engage
luminaire clips into slots.
NOTE: If the Pendant Mount Bracket
slots become deformed during
installation, slightly reopen the slots
back up using a screwdriver to ensure
proper install of luminaire.
