Supero SUPERSERVER 5010E User Manual

Super micro computer user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

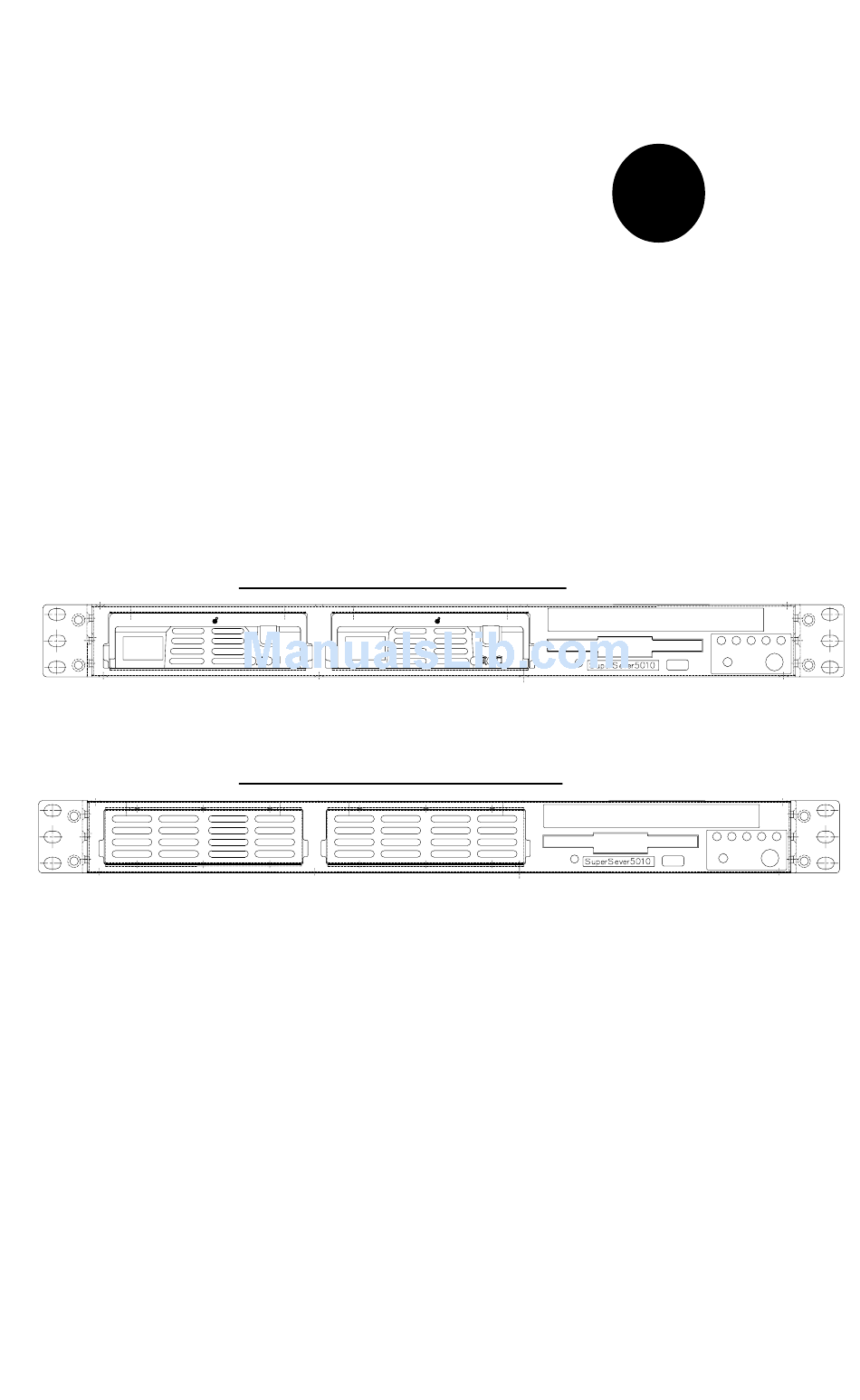

S
S
UPER
SuperServer 5010H
SuperServer 5010H
SuperServer 5010H
SuperServer 5010H
SuperServer 5010H
S
R
UPER
SuperServer 5010E
SuperServer 5010E
SuperServer 5010E
SuperServer 5010E
SuperServer 5010E
USER'S MANUAL
UPER
S
ERVER
Revision 1.1
5010H/5010E
S
R
UPER
®

Advertisement

Table of Contents
loading

Related Manuals for Supero SUPERSERVER 5010E

Summary of Contents for Supero SUPERSERVER 5010E

  • Page 1 UPER UPER ERVER SuperServer 5010H SuperServer 5010H SuperServer 5010H SuperServer 5010H SuperServer 5010H UPER SuperServer 5010E SuperServer 5010E SuperServer 5010E SuperServer 5010E SuperServer 5010E USER’S MANUAL 5010H/5010E UPER Revision 1.1 ®...
  • Page 2 Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

  • Page 3: Preface

    The SuperServer 5010H/5010E is a high-end single processor 1U rackmount server based on the SC810 1U rackmount server chassis and the Super 370SSR+ (for the 5010H), or the 370SSE+ (for the 5010E) mainboard. The 370SSR+/370SSE+ mainboard supports single Pentium III FCPGA 600 MHz- 1GHz processors and Celeron FCPGA/PPGA 300-700 processors and up to 512 MB SDRAM main memory.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5010H/5010E. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the 370SSR+/370SSE+ mother- board, including the locations and functions of connectors, headers, jump- ers, DIP switches and IRQs.
  • Page 5 Preface...

  • Page 6: Table Of Contents

    Choosing a Setup Location ... 2-2 Rack Precautions ... 2-2 Server Precautions ... 2-2 Installing the SuperServer 5010H/5010E into a Rack ... 2-3 Identifying the Sections of the Rack Rails ... 2-3 Installing the Chassis Rails ... 2-4 Installing the Rack Rails ... 2-4 Installing the Server into the Rack ...
  • Page 7 Power ... 3-3 SCSI Drive Carrier LEDs (5010H) ... 3-3 Power Supply Switch ... 3-3 Motherboard LED ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Chapter 5: Advanced Motherboard Setup Handling the 370SSR+/370SSE+ Motherboard ...
  • Page 8 5010H/5010E UPER ERVER Wake-On-LAN ... 5-19 Jumper Settings ... 5-20 Explanation of Jumpers ... 5-20 Front Side Bus Speed ... 5-20 CMOS Clear ... 5-21 Speaker Enable/Disable ... 5-21 Onboard LAN Enable/Disable (5010H) ... 5-22 LVD Channel A SCSI Termination Enable/Disable(5010H) ... 5-22 LVD Channel B SCSI Termination Enable/Disable(5010H) ...
  • Page 9 Event Log Configuration ... 7-15 Chipset Setup ... 7-16 PCI PnP Setup ... 7-24 Power Setup ... 7-28 Boot Setup ... 7-34 Boot Device Priority ... 7-34 Hard Disk Drives ... 7-35 Removable Devices ... 7-35 ATAPI CD-ROM Drives ... 7-35 Security Setup ...
  • Page 10 5010H/5010E UPER ERVER User's Manual Notes...

  • Page 11: Chapter 1: Introduction To The Superserver 5010H/5010E

    SuperServer 5010H/ 5010E. (www.supermicro.com) In addition to the mainboard and chassis, various hardware components may have been included with your SuperServer 5010H/5010E, as listed below. One (1) 370-pin Pentium III FCPGA or one Celeron FCPGA/PPGA proces...

  • Page 12: Server Chassis Features

    SC810 chassis. System Power When configured as a SuperSever 5010H/5010E, the SC810 chassis in- cludes a 200W power supply. SCSI Subsystem (5010H only) The SCSI subsystem supports two 80-pin SCA Ultra160 SCSI hard drives.

  • Page 13: Cooling System

    COM port (the other is internal), two USB (Exter- nal) headers (5010H only), PS/2 mouse and keyboard ports, a graphics port and two Ethernet ports. (See Figure 1-1.) 5010E 5010H External SCSI (5010H only) Rear of chassis...

  • Page 14: Mainboard Features

    5010H/5010E UPER ERVER Mainboard Features At the heart of the SuperServer 5010H/5010E lies the 370SSR+/370SSE+, a single processor motherboard designed to provide maximum performance. Below are the main features of the 370SSR+/370SSE+. Chipset Overview Intel’s 815E chipset is made up of three main components: the Graphics and Memory Controller Hub (GMCH), the I/O Controller Hub (ICH) and the Firm- ware Hub (FWH).

  • Page 15: Pci Expansion Slots

    Number Generator (RNG) for stronger encryption, digital signing and secu- rity protocols. The FWH stores the system BIOS and video BIOS to eliminate a redundant nonvolatile memory component. Processors The 370SSR+/370SSE+ supports single 370-pin Pentium III FCPGA 600 MHz- 1 GHz and Celeron FCPGA/PPGA 300-700 MHz processors with Front Side Bus Speeds of 133/100/66 MHz.

  • Page 16: Other Features

    5010H/5010E UPER ERVER Onboard Controllers/Ports An onboard IDE controller supports one floppy drive and up to four UDMA/100 hard drives or ATAPI devices. COM port, two USB ports, PS/2 mouse and keyboard ports, a video (Graph- ics) port and two LAN (NIC) ports which back each other up in case one port loses connection.

  • Page 17: Contacting Supermicro

    CONTACTING SUPERMICRO Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 E-mail: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web site: www.supermicro.com European Office Address: Super Micro Computer B.V.
  • Page 18 5010H/5010E UPER ERVER Manual NOTES...

  • Page 19: Chapter 2: Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 5010H/5010E. It should be situated in a clean, dust-free area that is well ventilated.

  • Page 20: Choosing A Setup Location

    5010H/5010E UPER ERVER Choosing a Setup Location: - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Installing The Superserver 5010H/5010E Into A Rack

    Rack This section provides information on installing the SuperServer 5010H/5010E into a rack unit. If the 5010H/5010E has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 22: Installing The Chassis Rails

    Manual Installing the Chassis Rails: Position the fixed chassis rail sections you just removed along the side of the 5010H/5010E chassis making sure the five screw holes line up. Note that these two rails are left/right specific. Screw the rail securely to the side of the chassis (see Figure 2-2).

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation assembly securely to the rack using the brackets provided. Attach the other assembly to the other side of the rack, making sure that both are at the exact same height and with the rail guides facing inward. Installing the Server into the Rack: You should now have rails attached to both the chassis and the rack unit.

  • Page 24: Installing The Server Into A Telco Rack

    Manual Installing the Server into a Telco Rack: If you are installing the SuperServer 5010H/5010E into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 25: Checking The Motherboard Setup

    Checking the Motherboard Setup After you install the 5010H/5010E in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made. 1. Accessing the inside of the 5010H/5010E (see Figure 2-5): First, release the retention screws that secure the unit to the rack.
  • Page 26 5010H/5010E UPER ERVER Figure 2-5A. Accessing the Inside of the SuperServer 5010H Cover Release Buttons PCI Riser Card Retention Rail 370SSR+ Motherboard Blower Fan SCSI Drive CD-ROM Drive Floppy Drive Manual (with SCSI Installed) Top Chassis Cover (Removed) Cover Recess...
  • Page 27 Chapter 2: Server Installation Figure 2-5B. Accessing the Inside of the SuperServer 5010E (with IDE Installed) Blower Fan IDE Drive System Memory CD-ROM Drive Control Panel Floppy Drive 5010E...

  • Page 28: Checking The Drive Bay Setup

    5010H/5010E UPER ERVER 6. Check all cable connections and airflow: Make sure all power and data cables are properly connected and not blocking the airflow. Also, check the air seals for damage. the blower fan and beneath the frame cross section that separates the drive bay area from the motherboard area of the chassis.
  • Page 29 Chapter 2: Server Installation 5. Supplying power to the system: The last thing you must do is to provide input power to the system. Plug the power cord from the power supply unit into a high-quality power strip that offers protection from electrical noise and power surges. It is recommended that you use an uninterruptible power supply (UPS).
  • Page 30 5010H/5010E UPER ERVER Manual Notes 2-12...

  • Page 31: Chapter 3: System Interface

    Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 32: Control Panel Leds

    Indicates network activity on LAN2 when flashing. NIC1 NIC1: Indicates network activity on LAN1 when flashing. HDD: Indicates IDE channel activity. 5010E, this light indicates CD-ROM drive activity when flashing. Manual You should also check to make sure On the SuperServer 5010H/ The air seals are...

  • Page 33: Power

    A SAF-TE compliant backplane is needed to activate the red LED to indicate a drive failure. optional on the 5010H/5010E.) If one of the SCSI drives fail, you should be notified by your system management software. Please refer to Section 6- 4 for instructions on replacing failed SCSI drives.
  • Page 34 5010H/5010E UPER ERVER DA1 (SCSI LED) Indicator (5010H only) DA1 (SCSI LED) Indicator (5010H only) DA1 (SCSI LED) Indicator (5010H only) DA1 (SCSI LED) Indicator (5010H only) DA1 (SCSI LED) Indicator (5010H only) There is one SCSI LED Indicator (DA1) on the motherboard. When illumi- nated, it indicates that SCSI is active.

  • Page 35: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5010H/5010E from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 36: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: Keep the area around the SuperServer 5010H/5010E clean and free of clutter. The SuperServer 5010H/5010E weighs approx. 25 lbs. (11.8 kg.) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 37: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. The following measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.
  • Page 38 5010H/5010E UPER ERVER Manual Notes...

  • Page 39: Chapter 5: Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install the 370SSR+/370SSE+ motherboard into the SC810 chassis, connect the data and power cables and install add-on cards. also described. A layout and quick reference chart are on pages 5-12 and 5-13.

  • Page 40: Motherboard Installation

    Motherboard Installation This section explains the first step of physically mounting the 370SSR+ (5010H), 370SSE+(5010E) into the SC810 chassis. Following the steps in the order given will eliminate the most common problems encountered in such an installation. reverse order.

  • Page 41: Connecting Cables

    Connecting Cables Now that the motherboard is installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the flow of cooling air that moves through the system from front to back.

  • Page 42: Connecting The Control Panel

    5010H/5010E UPER ERVER Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-1 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides.

  • Page 43: I/O Ports

    I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the colors and locations of the various I/O ports. Mouse (Green) Keyboard COM1 Port (Purple) (Turquoise) Ports (Black) Note: The COM2 Port is a header on the motherboard, located behind the mouse/keyboard ports.
  • Page 44 Attaching heat sinks to the processors: One passive heat sink has been included with your SuperServer 5010H/ 5010E. Secure the heat sink to the processor with a suitable thermal compound to best conduct the heat from the processor to the heat sink.

  • Page 45: Installing Memory

    Installing Memory CAUTION! Exercise extreme care when install- ing or removing DIMM modules to prevent any possible damage. in the manner described in Step 2 below. Memory support: The 370SSR+/SSE+ supports 64MB/128MB/256MB/512 MB unbuffered SDRAM in three 25-degree DIMMs. PC133 and PC100 memory are both supported at their respective speeds.

  • Page 46: Adding Pci Cards

    5010H/5010E UPER ERVER Adding PCI Cards 32-bit PCI slot: The 370SSR+/370SSE+ has one 32-bit MHz 5V PCI slot available. A riser card designed specifically for using this slot in a 1U rackmount chassis is included with your system. This riser card allows an installed PCI card to sit at a 90 degree angle so it can fit inside the chassis.
  • Page 47 Chapter 5: Advanced Motherboard Setup Figure 5-5. 5V, 32-bit 33 MHz Riser Card PCI Riser Card CPU Socket 370SSR+ Motherboard Memory Modules 5010H PCI Riser Card CPU Socket Memory Modules 370SSE+ Motherboard 5010E Figure 5-6. Adding PCI Cards...
  • Page 48 5010H/5010E UPER ERVER Figure 5-7A. Super 370SSR+ Layout MOUSE J32, J33 370 FCPGA/PPGA LAN1 LAN2 Manual (not drawn to scale) 8.6" ATX POWER Processor GMCH BATTERY 4xAGP PCI 1 PCI 2 PCI 3 PCI 4 5-10 ICH2...
  • Page 49 370SSR+ Quick Reference (for 5010H) Jumpers Description JBT1 CMOS Clear JP11/12 Front Side Bus Speed JP31 LAN2 Enable/Disable JP32 Speaker En/Disable JP35 LAN1 Enable/Disable JPA1 SCSI Ch A Termination JPA2 SCSI Ch B Termination JPWAKE Keyboard Wake-Up Connectors Description COM1/COM2 COM1/COM2 Serial Port Connector CPU/CH/OH FAN CPU/Chassis/Overheat Fan Headers...
  • Page 50 5010H/5010E UPER ERVER Figure 5-7B. Super 370SSE+ Layout MOUSE J32, J33 370 FCPGA/PPGA LAN1 LAN2 Manual (not drawn to scale) 8.6" ATX POWER Processor GMCH BATTERY 4xAGP PCI 1 PCI 2 PCI 3 PCI 4 5-12 12" ICH2...
  • Page 51 370SSE+ Quick Reference (5010E only) Jumpers Description JP11/12 Front Side Bus Speed JP31 LAN2 Enable/Disable JP32 Speaker En/Disable JP33 LAN1 Enable/Disable JPWAKE Keyboard Wake-Up Connectors Description COM1/COM2 COM1/COM2 Serial Port Connector CPU/CH/OH FAN CPU/Chassis/Overheat Fan Headers J1, J2, J3 Memory (DIMM) Slots...

  • Page 52: 5-8 Connector Definitions

    5010H/5010E UPER ERVER 5-8 Connector Definitions Power Supply Connector The primary power supply connec- tor on the 370SSR+/370SSE+ is designated as ATX POWER. This is a 20-pin connector. ATX power supply cable to J29 by aligning the tab on the connector.

  • Page 53: Power Led

    Power LED The Power LED connection is lo- cated on pins 15 and 16 of JF1. When illuminated, this LED indi- cates that power is applied to the system. There is also a 3-pin header for the Power LED located at J50.

  • Page 54: Overheat Led

    5010H/5010E UPER ERVER (JOH) Overheat LED Pins 7 and 8 of JF1 are for the Overheat LED, which provides you with advanced warning of chas- sis overheating. This LED will also illuminate if the blower fan fails, which will cause the chassis tem- perature to rise.

  • Page 55: Fan Headers

    Universal Serial Bus (USB) Two External Universal Serial Bus connectors (USB0 and USB1) are located on J32, J33, and two Inter- nal USB headers (USB2, USB3) are located on J43, J51. Refer to the tables on the right for pin defi- nitions.

  • Page 56: Atx Ps/2 Keyboard And Mouse Ports

    5010H/5010E UPER ERVER ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the PS/2 mouse are located on J30. See the table on the right for pin definitions. (The mouse port is above the keyboard port. See Fig- ure 5-8.)

  • Page 57: Wake-On-Ring

    Wake-On-Ring The Wake-on-Ring (JWOR) header allows your computer to receive and be "woken up" by an incoming call when in the suspend state. Refer to the table on the right for pin definitions. The 370SSR+/ 370SSE+ meets the PCI 2.2 stan- dard, which provides the PME function to support WOR and WOL.

  • Page 58: Jumper Settings

    5010H/5010E UPER ERVER Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used to choose between optional set- tings. Jumpers create shorts be- tween two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 59: Cmos Clear

    CMOS Clear Refer to the table on the right for setting JBT1 to clear CMOS. ways remove the AC power cord from the system before clearing CMOS. Speaker Enable/Disable Jumper JP32 allows you to enable or disable the onboard speaker. Refer to the table on the right for jumper settings.

  • Page 60: Lvd Channel A Scsi Termination Enable/Disable(5010H)

    5010H/5010E UPER ERVER LVD Channel A SCSI Termination Enable/Disable (5010H only) Jumper JPA1 allows you to enable or disable termination for the LVD Channel A SCSI con- nector. The normal (default) position is open to enable SCSI termination. See the table on the right for jumper settings.

  • Page 61: Floppy Connector

    5-10 Floppy/Hard Disk and SCSI Connections Be aware of the following when connecting the floppy and hard disk drive cables: • A red mark on a wire typically designates the location of pin 1. • A single floppy disk drive ribbon cable has 34 wires and two connectors to provide for two floppy disk drives.

  • Page 62: Ultra160 Scsi Connectors

    5010H/5010E UPER ERVER 68-pin Ultra160 SCSI Connectors (JA1, JA2, JA3) Connector Contact N u m b e r Manual Ultra160 SCSI Connectors Refer to the table below for pin definitions for the Ultra160 SCSI connec- tors located at JA1, JA2 and JA3.

  • Page 63: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC810 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintainance is a Philips screwdriver.

  • Page 64: Control Panel

    5010H/5010E UPER ERVER 5010E Screws (3 on each side) Rack Unit Retention UPER 5010H Figure 6-1. Chassis Front Views Figure 6-2. Chassis Rear View Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the motherboard to provide you with system status indications.

  • Page 65: System Fans

    System Fans One 10-cm blower fan provides all the cooling needed for the Super- Server 5010H/5010E. An optional 4-cm fan can also be installed into the chassis cross section just above the ribbon cable to the JA1 SCSI connector on the motherboard. The chassis includes air seals under the...

  • Page 66: Drive Bay Installation/Removal

    SuperServer 5010H. CD-ROM/Floppy Disk Drive: For installing/removing the CD-ROM or floppy disk drive, you will need to gain access to the inside of the 5010H/5010E by removing the top cover of the chassis. Proceed to the "CD-ROM and Floppy Drive Installation" section later in this chapter for instructions.

  • Page 67: Scsi Drive Installation

    SCSI Drive Installation (5010H only) Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays. For this reason, even empty carriers without SCSI drives installed must remain in the chassis.
  • Page 68 5010H/5010E UPER ERVER Installing/removing hot-swap SCSI drives: Two SCSI drive bays are located in the front of the chassis, making them easily accesible for installation and removal. These SCSI drives are hot- swap units, meaning they can be installed and removed without powering down the system.

  • Page 69: Cd-Rom And Floppy Drive Installation

    The top cover of the chassis must be opened to gain full access to the CD- ROM and floppy drive bays. The CD-ROM drive must have a "slim" profile to fit into the 5010H/5010E. First, release the retention screws that secure the unit to the rack.

  • Page 70: Power Supply

    UPER ERVER Power Supply The SuperServer 5010H/5010E has a single 200 watt power supply. This power supply has an auto-switching capability, which enables it to automatically sense and operate with either 110 or 220 volt inputs. A power on/off switch is located at the back of the power supply.
  • Page 71 Chapter 6: Advanced Chassis Setup Figure 6-6. Chassis Rear View 5010E Power Supply I/O Ports (see Figure 1.1) PCI Slot 5010H External High Density SCSI Connector(5010H only)
  • Page 72 5010H/5010E UPER ERVER Manual Notes 6-10...

  • Page 73: Chapter 7: Bios

    Introduction This chapter describes the AMIBIOS for the 5010H/5010E. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 74: Bios Features

    UPERSERVER 5010H/5010E User's Manual BIOS Features • Supports Plug and Play V1.0A and DMI 2.3 • Supports Intel PCI (Peripheral Component Interconnect) (PME) local bus specification • Supports Advanced Power Management (APM) specification v 1.1 • Supports ACPI • Supports Flash ROM AMIBIOS supports the LS120 drive made by Matsushita-Kotobuki Electronics Industries Ltd.

  • Page 75: The Main Bios Setup Menu

    The Main BIOS Setup Menu Press the <Delete> key during the POST (Power On Self Test) to enter the Main Menu of the BIOS Setup Utility. All Main Setup options are described in this section. The Main BIOS Setup screeen is displayed below. BIOS SETUP UTILITY Main Advanced Chipset PCIPnP Power Boot Security Exit AMIBIOS Version...

  • Page 76: Advanced Bios Setup

    UPERSERVER 5010H/5010E User's Manual Advanced Chipset Setup Choose Advanced BIOS Setup from the AMIBIOS Setup Utility main menu with the Left/Right arrow keys. the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub screen for that item. Advanced BIOS Setup options are displayed by highlighting the option using the arrow keys.
  • Page 77 Chapter 7: AMIBIOS CPU Overheat Warning This option allows you to Enable or Disable a system overheat warning signal, used to notify you in the event of a dangerous rise in heat levels. CPU Overheat Warning This option allows you to specify the temperature threshold that, when exceeded, will trigger the overheat warning alarm.

  • Page 78: Super Io Configuration

    UPERSERVER 5010H/5010E User's Manual Super IO Configuration After selecting the settings for "Health Monitor Features",use the Up/Down arrow keys to select the "SuperIO Configuration" line. When the "SuperIO Configuration" line is highlighted, hit "ENTER" to display its menu. Advanced Configure Winbond627t Port(s)and Parallel P...
  • Page 79 Serial Port2 Mode This option specifies Serial Port2 Mode. The settings for this item include Normal, IRDA1.6ms, IRDA311.6, ASKIR, ASKIR500, ASKIRDem, ASKIRD500. Parallel Port Address This option specifies the I/O address used by the parallel port. The settings for this item include Disabled, 378, 278 and 3BC. Select your setting and then press "Enter".

  • Page 80: Ide Configuration

    UPERSERVER 5010H/5010E User's Manual Power Loss Control This option determines how the system will react when power is reapplied after being lost unexpectedly. The settings are Always Off loses power unexpectedly, the computer system will keep power off until the power button is pressed), Always On (if the system loses power unex-...
  • Page 81 Chapter 7: AMIBIOS Type This option sets the type of device that the AMIBIOS attempts to boot from after AMIBIOS POST is completed. The settings include Not installed, Auto, CDROM and ARMD. The "Auto" setting allows BIOS to automatically detect the presence of the IDE controller.
  • Page 82 UPERSERVER 5010H/5010E User's Manual tect the DMA Mode. Select SWDMA0 through SWDMA2 to set single word DMA0 through DMA2. Select MWDMA0 through MWDMA2 to set Multi-word DMA0 through DMA2. Select UDMA0 trhough UDMA4 to set Ultra DMA0 through Ultra DMA4.

  • Page 83: Floppy Configuration

    Chapter 7: AMIBIOS Hard Disk Write Protect This item allows the user to prevent the hard disk from being overwritten. The options are Enabled or Disabled. Enabled allows the drive to be used normally; read, write and erase functions can all be performed. Disabled prevents the hard disk from being erased.

  • Page 84: Boot Settings Configuration

    UPERSERVER 5010H/5010E User's Manual Boot Settings Configuration Quick Boot This option allows the BIOS to skip certain tests that are normally performed on boot up. You can disable the option to speed up boot time. The settings are Disabled and Enabled.
  • Page 85 Chapter 7: AMIBIOS System Keyboard This option is to let the system know if a keyboard is Present or Absent. Primary Display This option specifies the type of monitor display you have installed on the system. The settings are Absent, VGA/EGA, Color 40 x 25, Color 80 x 25 and monochrome.
  • Page 86 UPERSERVER 5010H/5010E User's Manual be used to slow the computer system down or to troubleshoot error mes- sages. Write-Thru: This option allows the computer system to use the internal CPU L1 cache as Write-Through cache. Write-Through cache is slower than Write-Back cache. It performs write operations to the internal L1 CPU cache and system memory simultaneously.Write-Back...

  • Page 87: Event Log Configuration

    Chapter 7: AMIBIOS Event Log Configuration Event Logging This option Enables or Disables the logging of events. You can use this screen to select options for the Event Log Configuration Settings. You can access sub screens to view the event log and mark all events as read. Use the up and down arrow keys to select an item, and the plus (+) and minus (-) keys to change the option setting.

  • Page 88: Chipset Setup

    UPERSERVER 5010H/5010E User's Manual Chipset Setup Choose Chipset Setup from the AMIBIOS Setup Utility main menu. The screen is shown below. All Chipset Setup options are described following the screen. You can use this screen to select options for the GHCH Configuration.
  • Page 89 Chapter 7: AMIBIOS Internal Graphics Mode Select This option selects the mode for the internal graphics mode. Settings in- clude Disabled, Enabled; 512 KB and Enabled; 1 MB. Enabled; 1MB: This option allows the Internal Graphic controller to allocate 1 MB of system memory for video display use.
  • Page 90 UPERSERVER 5010H/5010E User's Manual Init Display Cache Memory This option allows the Initial Display cache memory to be adjusted. The setting are Enabled and Disabled. Paging Mode Control This option allows the paging mode controls to be adjusted to either Close or Open.
  • Page 91 Chapter 7: AMIBIOS System Memory Frequency This option allows the system memory frequency to be adjusted. The set- tings are 100 MHz (for PC100 memory), 133 MHz (for PC133 memory) and Auto, which allows the system memory frequency to auto select itself SDRAM Refresh This option sets the refresh rate for the system memory.
  • Page 92 UPERSERVER 5010H/5010E User's Manual DRAM Page Closing Policy The settings for this option are Close and Open. Memory Hole Some ISA cards may require specific areas of memory to function. This can be done by choosing the 15 MB - 16 MB option to reserve the area.
  • Page 93 Chapter 7: AMIBIOS SMBus Controller The settings for this option are Enabled and Disabled. LPC 4Eh-4Fh Decode This option allows the LPC 4Eh-4Fh to be set. The settings are Disabled and Enabled. DMA-0 Type DMA-1 Type DMA-2 Type DMA-3 Type DMA-4 Type DMA-5 Type DMA-6 Type...
  • Page 94 UPERSERVER 5010H/5010E User's Manual Processor Serial Number Intel includes a serial number in their processors to act as a unique system identifier. For privacy reasons, you can disable the release of this identifier. The settings for this option are Disabled and Enabled. Disabled: This set- ting restricts all access to the CPU serial number from your CPU.
  • Page 95 Chapter 7: AMIBIOS C000, 16k Shadow C400, 16k Shadow C800, 16k Shadow CC00, 16k Shadow D000, 16k Shadow D400, 16k Shadow D800, 16k Shadow DC00, 16k Shadow These options specify how the 16 KB of video ROM at each of the above addresses is treated.

  • Page 96: Pci Pnp Setup

    UPERSERVER 5010H/5010E User's Manual PCI PnP Setup Choose PCI/PnP Setup from the AMIBIOS Setup main menu. All PCI/PnP options are described in this section. The PCI/PnP Setup screen is shown below. Main Advanced Chipset PCIPnP Plug & Play O/S Reset Config Data...
  • Page 97 Chapter 7: AMIBIOS PCI Latency Timer This option specifies the latency timing of the PCI clocks for all PCI devices. Settings include 32, 64, 96, 128, 160, 192, 224 and 248 PCI clocks. Allocate IRQ to PCI VGA This option lets you allocate an interrupt request (IRQ) to the PCI VGA adapter card (if used).
  • Page 98 UPERSERVER 5010H/5010E User's Manual Legacy USB Support This option allows Legacy USB support. The settings are Disabled, En- abled and Auto. Disabled prevents the use of any USB device in DOS or during system boot. Enabled allows the use of USB devices during boot and while using DOS.
  • Page 99 Chapter 7: AMIBIOS DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7 Each of the above list of DMA channel setting options can be set to Avail- able and Reserved. Available means the specified DMA channel is avail- able for use by PCI/PnP devices.

  • Page 100: Power Setup

    UPERSERVER 5010H/5010E User's Manual Power Setup Choose Power Setup from the AMIBIOS Setup main menu. All Power Setup options are described in this section. below. Main Advanced Chipset ACPI Aware O/S Suspend to RAM Support Repost Video on S3 Resume...
  • Page 101 Chapter 7: AMIBIOS ACPI Aware O/S This option allows the system to utilize Intel's ACPI (Advanced Configuration and Power Interface) specification. Settings are No and Yes. DOS®, Windows 3.x®, Windows 95 and Windows NT® are examples of non-ACPI aware operating systems. Windows 98®, Windows ME, and Windows 2000®...
  • Page 102 UPERSERVER 5010H/5010E User's Manual Suspend Power Saving Type The settings for this option are C2 and S1. The C2 setting allows the CPU (microprocessor) to be put in a low power state. In this state, incoming interrupts wake-up the CPU (microprocessor) to process them (I/O APIC).
  • Page 103 Chapter 7: AMIBIOS Green PC Monitor Power State This option specifies the power state that a green PC-compliant monitor enters when BIOS places it in a power saving state after the specified period of display inactivity has expired. The settings include Standby, Sus- pend and Off.
  • Page 104 UPERSERVER 5010H/5010E User's Manual THRM Throttle Ratio THRM throttling is used to lower power consumption and reduce heat. The settings include 87.5%, 75.0%, 62.5%, 50%, 37.5%, 25% and 12.5%. Intruder Sel This option allows you to set the Intruder SEL setting to SCI or SMI. SCI stands for System Control Interrupt.
  • Page 105 Chapter 7: AMIBIOS TCO Logic SMI Enable This allows the system to generate a System Management Interrupt when a century rollover occurs. The settings for this option Disabled and Enabled. RTC Resume This allows you to direct the system to resume operation at a predetermined time by using the real-time clock.

  • Page 106: Boot Setup

    UPERSERVER 5010H/5010E User's Manual SMBUS Resume This allows you to wake up the system from a System Management Bus device. The settings for this option Disabled and Enabled. LAN Wake-Up This allows you to wake up LAN1 and LAN2 from a System Management Bus device.

  • Page 107: Hard Disk Drives

    2nd Boot Device The settings for the 2nd Boot Device are Removeable Device, Hard Drive, ATAPI CDROM, Onboard LAN1Option and Onboard LAN2 Option. 3rd Boot Device The settings for the 3rd Boot Device are Removeable Device, Hard Drive, ATAPI CDROM, Onboard LAN1Option and Onboard LAN2 Option. Hard Disk Drives Use this screen to view the hard drives that have been auto-detected or entered manually on your system.

  • Page 108: Security Setup

    UPERSERVER 5010H/5010E User's Manual Security Setup Choose Security Setup from the AMIBIOS Setup main menu. All Security Setup options are described in this section. The Security Setup screen is shown below. Main Advanced Chipset Supervisor Password User Password > Change Supervisor Password >...

  • Page 109: Change Supervisor Password

    Change Supervisor Password This option allows you to change a supervisor password that was entered previously. Change User Password This option allows you to change a user password that was entered previ- ously. Clear User Password Use this option to clear the user password so that it is not required to be entered when the system boots up.

  • Page 110: 7-10 Exit Setup

    UPERSERVER 5010H/5010E User's Manual 7-10 Exit Setup Choose Exit Setup from the AMIBIOS Setup main menu. All Exit Setup op- tions are described in this section. The Exit Setup screen is shown below. Main Advanced Chipset > Exit Saving Changes >...

  • Page 111: Load Optimal Defaults

    Load Optimal Defaults Highlighting this setting and then pressing <Enter> provides the optimum performance settings for all devices and system features. Load Failsafe Defaults Highlighting this setting and then pressing <Enter> provides the safest set of parameters for the system. cally.
  • Page 112 UPERSERVER 5010H/5010E User's Manual Notes 7-40...
  • Page 113 Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes & Messages During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 114 5010H/5010E UPER ERVER AMI BIOS Error Beep Codes Beep Error Message Code 1 beep Refresh 2 beeps BIOS ROM file absent 3 beeps Base 64KB memory failure 4 beeps Flash program successful 5 beeps Media read error 6 beeps Keyboard...

  • Page 115: Appendix Bamibios Post Checkpoint Codes

    AMIBIOS POST Checkpoint Codes When AMIBIOS performs the Power On Self Test, it writes diagnostic codes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h.
  • Page 116 5010H/5010E UPER ERVER B-2 Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard floppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next.
  • Page 117 B-3 Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition.
  • Page 118 5010H/5010E UPER ERVER Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Configuring the monochrome mode and color mode settings next.
  • Page 119 Checkpoint Code Description The amount of memory above 1 MB has been found and verified. Checking for a soft reset and clearing the memory below 1 MB for the soft reset next. If this is a power on situation, going to checkpoint 4Eh next. The memory below 1 MB has been cleared via a soft reset.
  • Page 120 5010H/5010E UPER ERVER Checkpoint Code Description The DMA page register test passed. Performing the DMA Controller 1 base register test next. The DMA controller 1 base register test passed. Performing the DMA controller 2 base register test next. The DMA controller 2 base register test passed. Programming DMA controllers 1 and 2 next.
  • Page 121 Checkpoint Code Description The programming after WINBIOS Setup has completed. Displaying the power on screen message next. The first screen message has been displayed. The <WAIT...> message is displayed. Performing the PS/2 mouse check and extended BIOS data area allocation check next. Programming the WINBIOS Setup options next.
  • Page 122 5010H/5010E UPER ERVER Checkpoint Code Description Returned after setting the RS-232 base address. Performing any required initialization before the Coprocessor test next. Required initialization before the Coprocessor test is over. Initializing the Coprocessor next. Coprocessor initialized. Performing any required initialization after the Coprocessor test next.
  • Page 123 B-4 Bus Checkpoint Codes The system BIOS passes control to different buses at the following checkpoints: Checkpoint Code Description Initializing the different bus system, static, and output devices, if present. Initialized bus input, IPL, and general devices, if present. Displaying bus initialization error messages, if any. Initializing bus adaptor ROMs from C8000h through D8000h.
  • Page 124 5010H/5010E UPER ERVER Manual Notes B-10...

  • Page 125: Appendix C: List Of Figures

    Description I/O Shield Identifying the Sections of the Rack Rails Installing Chassis Rails Installing the Server into a Rack Installing the Server into a Telco Rack Accessing the Inside of the SuperServer 5010 Control Panel Header Pins I/O Ports FCPGA Socket: Empty and with Processor Installed Heat Sink Installation Procedures Side View of DIMM Installation into Slot 3.3V and 5V Riser Cards...
  • Page 126 5010H/5010E UPER ERVER Manual Notes...

  • Page 127: Appendix D: System Specifications

    Appendix D: System Specifications Appendix D System Specifications Processors One 370-pin Intel Pentium III FCPGA 600 MHz - 1 GHz or a Celeron FCPGA/PPGA 300-700 MHz CPU with a 133 or 100 MHz FSB Memory Capacity 3 DIMM slots to support a maximum of 512 MB SDRAM DIMM Sizes 128 MB / 256 MB / 512 MB SDRAM modules supported SCSI Controller (5010H only)
  • Page 128 5010H/5010E UPER ERVER Manual PCI Expansion Slot One (1) onboard 32-bit 33 MHz (5V) PCI slot (*Default-- bundled with a 32-bit 33 MHz 5V Riser Card) Power Supply Type: 1 x 200W with +3.3V, +5V, +12V, -5V and -12V main DC outputs and a 5V standby output.
