Summary of Contents for Fichtelbahn ReadyHUB

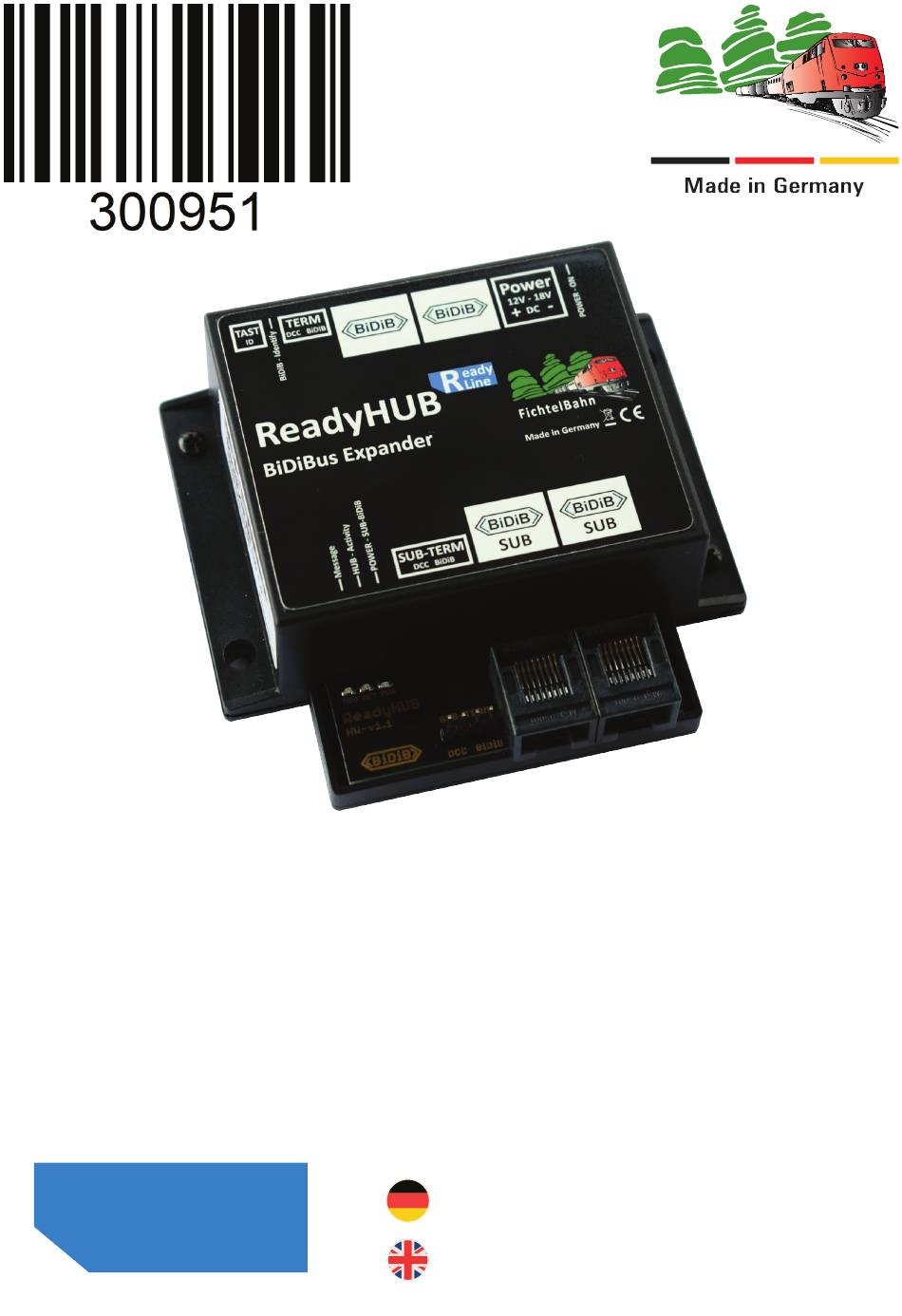

  • Page 1 FichtelBahn Handbuch / Manual ReadyHUB eady Deutsch ........ 2 - 17 Line English ........ 18 - 33...
  • Page 2: Table Of Contents

    Online Dokumentation Eine Druckausgabe verliert in der heutigen Zeit schnell Ihre Aktualität und hat mehr den Zweck der Grundinformation zu diesem Produkt. Auf der FichtelBahn-Webseite finden Sie im Downloadbereich dieser Baugruppe immer die aktuelle Ausgabe dieses Handbuches. Die Versionsnummer in der Fußzeile zeigt Ihnen den aktuellen Stand.
  • Page 3: Einstieg

    Aufwand zur Beseitigung von Störungen. Bestimmungsgemäßer Gebrauch Der ReadyHUB ist für den Einsatz im Modellbau, insbesondere in digitalen Modell- bahnanlagen, entsprechend den Bestimmungen dieser Anleitung vorgesehen. Jeder andere Gebrauch ist nicht bestimmungsgemäß und führt zum Verlust des Garantiean- spruchs.
  • Page 4: Technische Daten

    0 … +60 °C Umgebungstemperatur bei Lagerung -10 … +80 °C Zulässige relative Luftfeuchtigkeit max. 85 % Abmessung Gehäuse 100mm x 90mm x 34mm Gewicht Handbuch ReadyHUB Seite 4 © 2019 FichtelBahn Handbuch Version 1.0 Technische Änderungen und Irrtümer vorbehalten...
  • Page 5: Den Readyhub Anschließen

    Line FichtelBahn 04. Den ReadyHUB anschließen B1 B2 E1 E2 Anschluss der Stromversorgung (Gleichspannung 12V-18V) BiDiB-Schnittstelle (Main-Ebene) Anschlüsse an Zentrale und weitere BiDiB-Knoten Die beiden Anschlüsse sind intern miteinander verbunden und können daher gleichwertig verwendet werden. Abschluss-Jumper für die DCC-Terminierung (Main-Ebene) Abschluss-Jumper für die BiDiB-Terminierung (Main-Ebene)
  • Page 6 / Schaltnetzteil mit 12V - 18V Gleichspannung. Beachten Sie die Polarität der Baugruppe - in der Skizze mit rot (+) und blau (-) markiert. Der Strom kann vom ReadyHUB in den BiDiBus (SUB-Ebene) eingespeist werden, um andere Module ohne 12V-18V lokale Versorgung zu versorgen.
  • Page 7 FichtelBahn 04.2 Anschluss an den BiDiBus (Main-Ebene) Der ReadyHUB verfügt über zwei parallele BiDiBus-Buchsen (B1/B2), mit denen er über ein Patchkabel an einer beliebigen Stelle im BiDiBus platziert und angeschlossen werden kann. In der nachfolgenden Abbildung wird der ReadyHUB innerhalb des BiDiBus platziert.
  • Page 8 Line FichtelBahn In der nächsten Abbildung wurde der ReadyHUB als letzter Teilnehmer am BiDiBus platziert. In diesem Fall müssen die beiden Abschluss-Jumper für die BiDiB und DCC Terminierung am ReadyHUB gesteckt werden..Abschluss-Jumper intern gesetzt ... bis zu 32 Teilnehmer...
  • Page 9 Auch hier ist zu beachten, dass immer der erste und letzte Busteilnehmer mit einem Abschluss-Jumper abgeschlos- sen werden muss. Die beiden Abbildungen zeigen, dass der ReadyHUB an jeder Stelle innerhalb der SUB-Ebene platziert werden kann. Es können auch noch weitere ReadyHUB-Baugruppen in der Main- und SUB-Ebene platziert werden.
  • Page 10: Identify-Funktion

    PC-Steuerungsprogramme nutzen diese Funktion zum automatischen Anlernen von neuen Baugruppen in dessen Konfigurationseinstellungen. Die Funktion kann in beiden Richtungen ausge- löst werden (Baugruppe <-> PC-Tool). Wird auf dem ReadyHUB die Taste gedrückt, dann färbt sich im Knoten-Baum (Tool BiDiB- Wizard) der zugehörige Eintrag von grün auf rot.
  • Page 11 Reflexionen zu verhindern. Man spricht auch davon, dass man den Kommunikationsbus abschließen muss. Der Abschlusswiderstand von 120 Ohm ist Bestandteil jeder BiDiB-Baugruppe und wird mit dem Stecken des Jumpers aktiviert. Handbuch ReadyHUB Seite 11 © 2019 FichtelBahn Handbuch Version 1.0...
  • Page 12 Es können je Ebene mehrere HUBs zum Einsatz kommen und eine neue Ebene aufspannen. Tipp: Verwenden Sie für jede neue Ebene eine andere Farbe des RJ45-Patchkabel oder arbeiten Sie mit einer erkenntlichen Markierung an den Verbindungen. Handbuch ReadyHUB Seite 12 © 2019 FichtelBahn Handbuch Version 1.0 Technische Änderungen und Irrtümer vorbehalten...
  • Page 13: Led - Anzeige

    Line FichtelBahn 07. LED - Anzeige 07.1 Betriebszustände Power-ON LED schnelles Flimmern ReadyHUB ist in Betrieb Doppelblinker Anmeldung am Bus wurde abgewiesen (siehe „08. Fehlersuche“ auf Seite 14) BiDiB-Identify LED keine Verbindung zum BiDiBus dauerhaftes Leuchten mit dem BiDiBus verbunden schnelles Blinken Identify - Funktion aktiv (siehe „05.
  • Page 14: Fehlersuche

    07.2 Fehlerzustände beim Baugruppenstart 10x schnelles Blinken (1, 2, 3) Power-ON LED, BiDiB-Identify LED, Message LED kein Bootloader gefunden / kein Firmware-Update möglich (kontaktieren Sie den FichtelBahn - Support) Dauerblinker (1, 2, 3) Power-ON LED, BiDiB-Identify LED, Message LED EEPROM fehlerhaft (führen Sie ein Firmware-Update aus, siehe „09. Firmware-Update“ auf Seite 15)
  • Page 15: Firmware-Update

    Doppelklick auf dem Eintrag „ReadyHUB“ im Knotenbaum aus. Im rechten Fenster wird anschließend der ReadyHUB-Knoten geladen und angezeigt. Klicken Sie auf die Schaltfläche „Firmware aktualisieren“ (2.), es öffnet sich ein neues Fenster. Hier definieren Sie den Pfad zu dem Firmware ZIP-File (3.), das Sie über unsere Webseite herunterladen können.
  • Page 16: Supportfall Und Weitere Hilfe

    Im Knotenbaum des Tool „BiDiB-Wizard“ erscheint jetzt eine neue Baugruppe mit der Bezeichnung „ReadyHUB Bootloader“ (1.). Hierbei handelt es sich um eine Absicherungsebene mit der Sie erneut das Funktionsupdate (siehe „09. Firmware- Update“ auf Seite 15) ausführen können.
  • Page 17: Garantieerklärung

    11. Garantieerklärung Für das Produkt gewähren wir freiwillig 2 Jahre Garantie ab Kaufdatum des Erstkun- den bei FichtelBahn, maximal jedoch 3 Jahre nach Ende der Serienherstellung des Produktes. Die Garantie besteht neben den gesetzlichen Gewährleistungsansprüchen, die dem Verbraucher gegenüber dem Verkäufer zustehen. Der Umfang der Garantie umfasst die kostenlose Behebung der Mängel, die nachweisbar auf von uns verarbeite-...
  • Page 18 A printed manual is outdated very quickly in modern times and serves mainly as a quick introduction to the product. The most recent version of this manual can be found in the download section of the FichtelBahn webpage. The version number in the footer shows the current version.
  • Page 19: Introduction

    Designated Use The normal use of the ReadyHUB is for model making especially digital model railways according to this manual. Every improper use leads to loss of warranty. Package Contents...
  • Page 20: Technical Data

    Permissible relative humidity max. 85 % Dimensions casing 100mm x 90mm x 34mm 3.94 in x 3.54 in x 1.34 in Weight 85g / 3oz Manual ReadyHUB Page 20 © 2019 FichtelBahn Manual Version 1.0 Technical changes and errors reserved...
  • Page 21: Connecting The Readyhub

    Line FichtelBahn 04. Connecting the ReadyHUB B1 B2 E1 E2 Terminals for the power supply (DC 12V-18V) BiDiB interface (main layer) connection to command station and further BiDiB nodes Both sockets are internally connected and can be used equally.
  • Page 22 12V-18V DC. Be careful to check the polarity of the module – marked red (+) and blue (-) in the sketch. The power can be fed into the BiDiBus (SUB layer) by the ReadyHUB to supply other modules without 12V-18V local supply.
  • Page 23 In the fol- lowing figure the ReadyHub has been placed within the BiDiBus. Therefore the termination jumper has to be removed from the ReadyHUB (find further information about termination of the BiDiBus in Chapter “06.
  • Page 24 Line FichtelBahn The next figure shows the ReadyHUB as last module of the BiDiBus. In this case both termination jumpers for BiDiBbus and DCC termination have to be fitted on the ReadyHUB..termina�on jumper set internally ... up to 32 modules termina�on jumper...
  • Page 25 STATE EXT.STOP The first and last module of the bus needs to be terminated as well. The ReadyHUB can be placed at any position within the SUB layer illustrated by the two figures. Additional ReadyHUB modules can be placed in the Main and SUB layer.
  • Page 26: Identify Function

    The function can be triggered on both sides (module <-> computer tool). If the button on the ReadyHUB is pushed the matching entry in the tree view (tool BiDiB- Wizard) changes its colour from green to red. With this approach the correct module can be selected even if there is a greater number of modules and the Unique-ID is not known.
  • Page 27 Line FichtelBahn 06.2 What is a BiDiB-Unique-ID? For working with the BiDiBus all BiDiB modules must have an Unique-ID which can be found as a label on the casing of the ReadyHUB. Part number Date of produc�on Product number Serial number The Unique-ID is a unique identifier.
  • Page 28 It is possible to use several HUBs per layer to create a new layer. Tip: For each layer use different coloured RJ45 patch cables or work with other markings on the plugs. Manual ReadyHUB Page 28 © 2019 FichtelBahn Manual Version 1.0...
  • Page 29: Led Indictation

    Line FichtelBahn 07. LED indictation 07.1 Operating Modes Power-ON LED Fast flicker ReadyHUB is operating normally Double flash Bus logon has been rejected (see “08. Troubleshooting” on page 30) BiDiB-Identify LED No connection to the BiDiBus Permanent on Connected to the BiDiBus Fast flashing Identify function active (see “05.
  • Page 30: Troubleshooting

    08. Troubleshooting 08.1 SUB bus power faulty (LED flashes) The ReadyHUB supplies the SUB layer with 12V bus power. If this voltage drops below 11V this fault is indicated by a flashing Power-SUB-BiDiB LED (5). This fault can have to possible reasons: 1.
  • Page 31: Firmware-Update

    Click on the button „Firmware update“ (2.). In the new window choose the firmware zip file (3.), hich can be loaded from the FichtelBahn website. Tick the check box (4.), for the desired firmware and proceed by clicking „Start” (5.). During the update process the Message-LED of the ReadyHUB module is lit.
  • Page 32: Support Case And Further Help

    (A). In the tree view appears a new module with the name „ReadyHUB Bootloader” (1.). This is a safety function to redo the function update (see „09. Firmware Update“ on page 31).
  • Page 33: Warranty Information

    This product is in compliance with the requirements of the German packing regulations “VerpackG” from 01/01/2019. VerpackG number: DE2189339488295 Manual ReadyHUB Page 33 © 2019 FichtelBahn Manual Version 1.0 Technical changes and errors reserved...
  • Page 34 Line FichtelBahn Handbuch ReadyHUB Seite 34 © 2019 FichtelBahn Handbuch Version 1.0 Technische Änderungen und Irrtümer vorbehalten...
  • Page 35 Line FichtelBahn Manual ReadyHUB Page 35 © 2019 FichtelBahn Manual Version 1.0 Technical changes and errors reserved...
  • Page 36 © 2019 FichtelBahn Am Dummersberg 26 Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie D-91220 Schnaittach FichtelBahn der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen in jeglicher Form bedürfen der Tel.: +49 9153 9703051 schriftlichen Genehmigung durch FichtelBahn. support@fichtelbahn.de Technische Änderungen vorbehalten.
