Summary of Contents for Technogym Synchro Forma

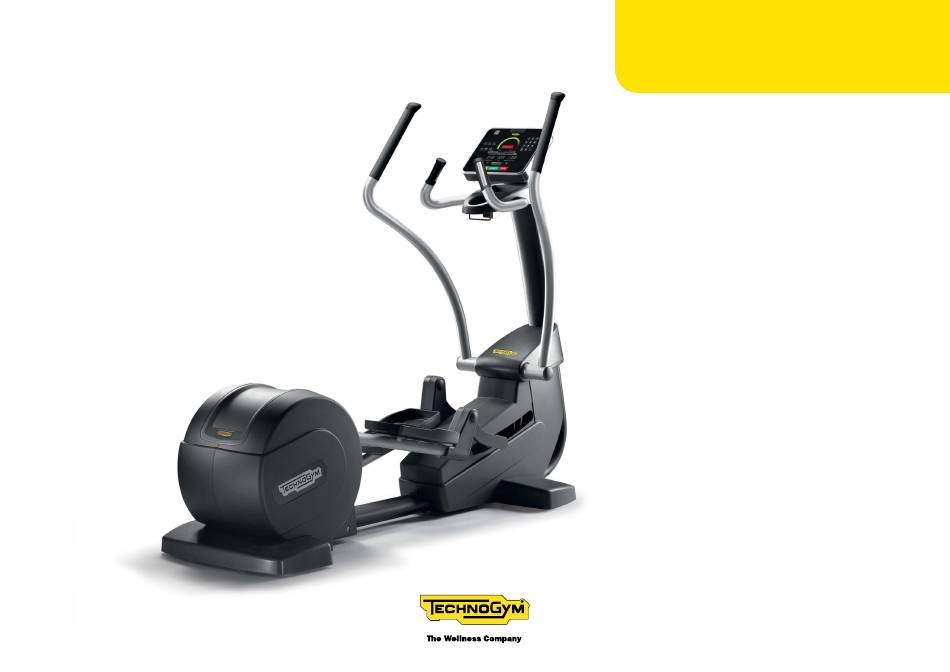

- Page 1 SYNCHRO FORMA User manual...
-
Page 2: Table Of Contents
Levelling ......................13 Electrical connection ..................14 Switching on and off ..................15 Maintenance ....................16 Changing the fuses ..................18 Easily solved problems ................19 Technical Support Service ................21 Storage ......................22 Scrapping .......................22 Monitoring the heart rate ................23 Using Synchro Forma ...................25 SYNCHRO FORMA... -
Page 3: Important Safety Instruction
You are advised to investigate and inform yourself about any health related actions and choices you make. Synchro Forma is intended for commercial use. Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit. - Page 4 Do not operate where aerosol (spray) products are being used or where oxygen is being administered. To disconnect, turn all controls to the off position, then remove plug from outlet. Warning Connect the equipment to a properly grounded outlet only. See grounding instructions. SAVE THESE INSTRUCTIONS SYNCHRO FORMA...
-
Page 5: Personal Safety
Before starting any exercise you are advised to read the whole manual thoroughly and get to know the equipment’s controls. Synchro Forma can be used only after having a medical check-up for the specific type of exercise to be carried out and in compliance with Technogym’s stated use conditions. - Page 6 Technogym's written authorization or for failure on your part to use, operate and maintain the products as set out in this User Manual.
-
Page 7: Manufacturer And Equipment Identification
Place of manufacture Description of product Electrical specifications Tells you to consult the User manual Serial number and date of manufacture Product model Technogym S.p.A. -Cesena (FC) Made in Italy SYNCHRO FORMA Model no. DBK0EB Maximum User’s Weight: 180kg Electric Class: I... -
Page 8: Technical Data
Technical data Synchro Forma Power supply 100÷240 Vac 50/60 Hz Power input 65 VA max Fuses 2 x 3.15 A (F) Weight of equipment 148 kg (326 lb) Maximum user weight 160 kg (353 lb) User heigh for which performance 155 cm÷205 cm (6"÷8") -
Page 9: Description Of The Equipment
Bases (6): support the equipment frame and components. Water bottle holder (7): where you can place water bottles during workout. Object holder (8): for placing magazines, books or tablets and other electronic devices. Tablets can be firmly fixed as shown in the figure. SYNCHRO FORMA... -
Page 10: Safety Devices And Warnings
C - Main switch: turns the equipment’s power on and off. D - The label for attachment to the power supply cable states the electrical specifications for the cable. SYNCHRO FORMA... -
Page 11: Place Of Usage
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter. Do not expose the equipment to direct sunlight. Do not install the equipment in areas with high humidity levels, for example close to swimming pools, whirlpools or saunas. SYNCHRO FORMA... -
Page 12: Moving The Equipment
Given the weight of the equipment, we recommend that more than one person be involved in lifting it. When lifting or moving the equipment, do not take hold of the platforms, levers or the control panel as hand holds. SYNCHRO FORMA... -
Page 13: Levelling
Use the two front feet and the central foot to level the equipment: loosen the lock nut (B); screw the front feet (A) in or out until the frame is in a stable position; tighten up the lock nut (B) after adjusting. SYNCHRO FORMA... -
Page 14: Electrical Connection
Do not modify the plug provided with the product; if it will not fit in the outlet, have a proper outlet installed by a qualified electrician. 05149018 SYNCHRO FORMA... -
Page 15: Switching On And Off
Warning The switch is for turning the equipment on and off but does not isolate it completely from the mains voltage, even in the “0” position (off). For complete isolation you must unplug the power supply plug. SYNCHRO FORMA... -
Page 16: Maintenance
Replace defective and worn components immediately, or alternatively remove the equipment from service. For maintenance actions not described in this manual, call in the Technogym Technical Service. Cleaning and looking after the equipment The equipment should always be kept clean and free of dust, in accordance with normal hygiene and sanitary rules. - Page 17 Warnings The routine maintenance, adjustment and lubrication jobs must be performed by the Technogym Technical Support Service. Before starting any job, turn the equipment off by switching the switch to the "0" position and unplug the power cable from the wall socket.
-
Page 18: Changing The Fuses
Changing the fuses Warnings The fuses must be changed by the Technogym Technical Support Service. Before changing the fuses, switch the equipment off by switching the switch to 0 and unplug the power cable plug from the wall socket. Remove the fuse holder, to the right of the switch, by pushing the lever. -
Page 19: Easily Solved Problems
Contact the Technogym Technical Support Service. Equipment doesn’t switch on Installation problems with the power supply cable Check the connection. To replace the blown fuse with a spare contact Technogym Burnt-out fuses Technical Support Service. The main switch is off. - Page 20 Dampen the inside of the chest band with water. Damaged transmitter. Change the chest band. Warning There are high voltages inside the motor compartment, therefore the guard must be removed by authorised personnel only; only authorised personnel can carry out internal repairs. SYNCHRO FORMA...
-
Page 21: Technical Support Service
Via Calcinaro 2861, 47521 Cesena Italy on-site servicing tel: +39 0547 56047 supply of original spare parts. http://www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: equipment model, date of purchase, serial number, precise description of the problem. -
Page 22: Storage
Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste. -
Page 23: Monitoring The Heart Rate
The sole function of the heart rate monitor is to display the heart rate during exercise and cannot be used for medical cardiac diagnoses of any kind. The heart rate shown on the display is purely indicative and cannot be considered absolutely certain. SYNCHRO FORMA... - Page 24 Combined use of fats and sugars. Significant improvement of aerobic efficiency. Prevalent use of fats and increased use of sugars. Moderate improvement of aerobic efficiency. Prevalent use of fats and little use of sugars. Limited improvement of aerobic efficiency. SYNCHRO FORMA...
-
Page 25: Using Synchro Forma
Using Synchro Forma Warning Synchro is to be used solely for its intended purpose, i.e. for aerobic exercise of the legs and arms. Any other use of the equipment is to be considered improper and therefore dangerous. Step onto the equipment from one side and put one foot on each pedal.Grasp one of the fixed handgrips with one hand, and with the other set a program on the control panel. - Page 26 SynchroForma_uk-AD 0SM00750...
