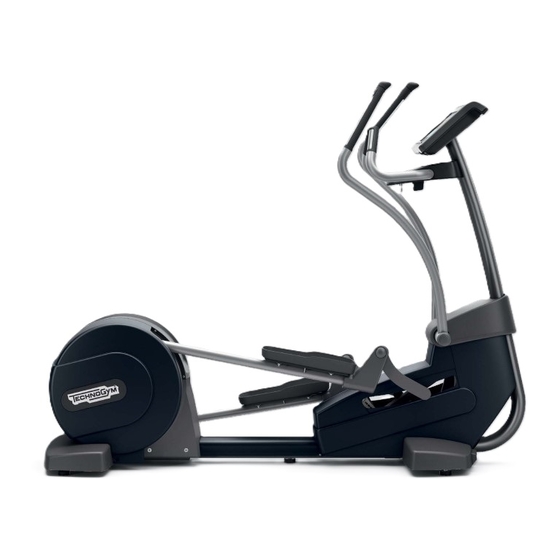

- Page 1 E XCITE, ENGAGING C ARDIO SYNCHRO User manual...
-
Page 2: Table Of Contents
Routine maintenance .................. 21 Changing the fuses (mains powered version) ..........23 Recharging the battery (battery-powered version) ........24 Troubleshooting .....................25 Technical assistance ..................27 Storage ......................28 Disposal ......................29 Switching on and off ..................32 Monitoring the heart rate ................34 Using the equipment ..................37 Synchro Excite... -
Page 3: Important Safety Instruction
Any other use is to be considered improper and therefore dangerous. Do not use attachments not recommended by Technogym. Never operate the equipment if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. In this case, contact the Technogym Technical Support service. - Page 4 To disconnect, turn all controls to the off position, then remove plug from outlet. SAVE THESE INSTRUCTIONS Warnings Do not connect a device with load exceeding 7A. Risk Of Electric Shock. Do Not Disconnect Under Load. Do not connect to a circuit operating at more than 150V to Ground. Synchro Excite...
-
Page 5: Personal Safety
Keep all electrical components, such as the power cable and I/0 switch, away from liquids to prevent shock. Maintain the equipment in good working condition. If there are signs of wear, contact the Technogym Technical Support service. Do not attempt to service the equipment yourself other than the maintenance instructions found in the user manual. - Page 6 Do not set anything on the casing or control panel. Technogym is not responsible for any damages due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the product’s environment, rust or corrosion as a result of the product’s location, alterations or modifications without Technogym’s written authorization or for failure on your part to use, operate and maintain the products...
-
Page 7: Manufacturer And Equipment Identification
10/15 S/N DE583U15000001 The Synchro is a commercial device, designed for use in residential and professional environments. It is a class SA device, pursuant to ISO EN 20957-1. Equipment marked with the code DE58M... is intended for medical use and has been designed and manufactured for use in doctors' surgeries, hospitals, clinics and gyms, for muscle treatment and rehabilitation. -
Page 8: Description Of The Equipment
Pedals (G): the special configuration of the pedals permit the ankles to work under optimum conditions. Tray (H): for standing the water bottle or other useful items on during the workout. Reading stand (L): for standing magazines or books on. Synchro Excite... -
Page 9: Technical Data
Technical data Mains powered Synchro Battery-powered Synchro Power supply 100÷240 Vac 50/60 Hz Mains power input 65 VA max (160 VA max with Unity) Fuses 2 x 3,15A (F) Maximum braking power 500 W at 120 spm 500 W at 120 spm... - Page 10 Technical data 2042 mm 752 mm (30") (80") 1609 mm (63") Synchro Excite...
-
Page 11: Accessories
E Cloth for cleaning F Two replacement fuses (2 x 3.15A (F) (mains powered version) The charger comes with the battery-powered version. Charger electrical specifications: Input 100÷240 Vac 0,8 A 50/60 Hz Output 15 V dc 24W Class II Synchro Excite... -
Page 12: Safety Devices And Warnings
In the mains powered version: B Main switch: turns the equipment’s power on and off. C Fuses: they protect the equipment’s electrical parts. When the current reaches an excessive value, the fuses melt thus protecting the internal electronics. Synchro Excite... - Page 13 D The label affixed to the frame under the control panel states the electrical specifications. E The label, which can be affixed close to the main switch, states safety indications. D The label which can be affixed to the power supply cable states the electrical specifications for the cable. Synchro Excite...
-
Page 14: Place Of Usage
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter. In order to guarantee the performance indicated by the manufacturer, you are advised against using the equipment in zones with high short-wave presence or similar. Synchro Excite... -
Page 15: Moving The Equipment
The equipment has two fixed rear wheels. To move the equipment, lift it up slightly, as shown in the illustration, and push it forwards and backwards. Given the weight of the equipment, we recommend that more than one person be involved in lifting it. If wheels cannot be used on the floor, move the equipment with normal lifting and transport methods. Synchro Excite... -
Page 16: Levelling
Use the two front feet and the central foot to level the equipment: loosen the lock nut (B); screw the front feet (A) in or out until the frame is in a stable position; tighten up the lock nut (B) after adjusting. Synchro Excite... -
Page 17: Electrical Connection (Mains Powered Version)
The wall socket must be located in a place where the plugging and unplugging can be done easily and safely. When plugging in, the switch on the equipment must be in the 0 position (i.e. the equipment must be switched off). Check the state of the power supply cable periodically. Synchro Excite... - Page 18 Do not modify the plug provided with the product; if it will not fit in the outlet, have a proper outlet installed by a qualified electrician. Synchro Excite...
-
Page 19: Connection To Another Device
IEC 60601-1 for medical electrical equipment). Whoever connects additional equipment to the input or output signal ports, configures a medical system and therefore is responsible for the system’s conformity to the IEC 60601-1 standard about systems. Consult the technical support department or your local representative if you have any doubts. Synchro Excite... - Page 20 The wall socket of the aerial cable must be positioned so that the plug can be easily inserted and removed. A network socket can be found next to the aerial socket for the Ethernet connection. Synchro Excite...
-
Page 21: Routine Maintenance
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage and/or wear. For maintenance actions not described in this manual, call in the Technogym Technical Service. Synchro Excite... - Page 22 Warnings The routine maintenance, adjustment and lubrication jobs must be performed by the Technogym Technical Support Service. Before starting any job, turn the equipment off by switching the switch to the 0 position and unplug the power cable from the wall socket.
-
Page 23: Changing The Fuses (Mains Powered Version)
Replace the blown fuse with a new one as supplied (3.15A (F). Fit the fuse holder back into its housing, making sure it clicks in properly. Warning If no more of the supplied fuses are available, use certified fuses with identical electrical specifications (3.15A (F) for the replacement. Synchro Excite... -
Page 24: Recharging The Battery (Battery-Powered Version)
Charger electrical specifications: Input 100÷240 Vac 0,8 A 50/60 Hz Output 15 V dc 24W Class II Warnings Only use devices that comply with applicable standards. Do not use the equipment while the battery is recharging. Synchro Excite... -
Page 25: Troubleshooting
Contact the Technogym Technical Support Service. Installation problems with the power supply cable (mains Check the connection. powered version). To replace the blown fuse with a spare contact Technogym Burnt-out fuses (mains powered version). Technical Support Service. The control panel connector has been accidentally Contact the Technogym Technical Support Service. - Page 26 Worn heart rate monitor chest band. Change the chest band. Chest band transmitter not making proper skin contact. Dampen the inside of the chest band with water. Damaged transmitter. Change the chest band. Synchro Excite...
-
Page 27: Technical Assistance
Via Calcinaro 2861, 47521 Cesena Italy on-site servicing tel: +39 0547 56047 supply of original spare parts. http://www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: model, date of purchase, serial number, precise description of the problem. -
Page 28: Storage
If a long period of non-use is expected, you are advised to store the equipment in the following way: in a clean dry place, with a dust cover; at a room temperature between -10°C and 70°C and relative humidity between 20% and 90%. For better storage, use the original packing materials. Synchro Excite... -
Page 29: Disposal
Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste. - Page 30 Disposal Undo the screws (A) and remove the cover (B). Undo the screws (C) and remove the cover (D). Remove the cover (E). Synchro Excite...
- Page 31 Disposal Disconnect the cable on the red terminal (F) first, then the cable on the black terminal (G). Cut the strap (H). Remove the battery (L). Synchro Excite...
-
Page 32: Switching On And Off
After a quick system check (reset), the equipment is ready for use. In this mode, the following functions are enabled: calculation of heart rate, if measured; reading of access codes for configuration menu (see the Configuration Menu section in the software part). Synchro Excite... - Page 33 The switch is for turning the equipment on and off but does not isolate it completely from the mains voltage, even in the “0” position (off). For complete isolation you must unplug the power supply plug. To turn the battery-powered version of the equipment off, just stop moving. Synchro Excite...
-
Page 34: Monitoring The Heart Rate
80 cm. Heart rate readings will not be accurate near electromagnetic radiation sources (TVs, cellphones, etc.). Should you have any doubts about the accuracy of the readings, contact the Technical Support Service. Synchro Excite... - Page 35 Combined use of fats and sugars Significant improvement of aerobic efficiency. Prevalent use of fats and increased use of sugars Moderate improvement of aerobic efficiency. Prevalent use of fats, and modest use of sugars Limited improvement of aerobic efficiency. Synchro Excite...
- Page 36 The heart rate shown on the display is purely indicative and cannot be considered absolutely certain. You are advised not to use a chest band with heart rate monitor if you have a cardiac support device such as a pacemaker or similar. Synchro Excite...
-
Page 37: Using The Equipment
Any distractions in the area around the equipment may cause the user to lose his/her balance. Synchro is to be used solely for its intended purpose, i.e. for aerobic exercise of the legs and arms. Any other use of the equipment is to be considered improper and therefore dangerous. - Page 38 Synchro_Excite_en-AA 0SM00977...
