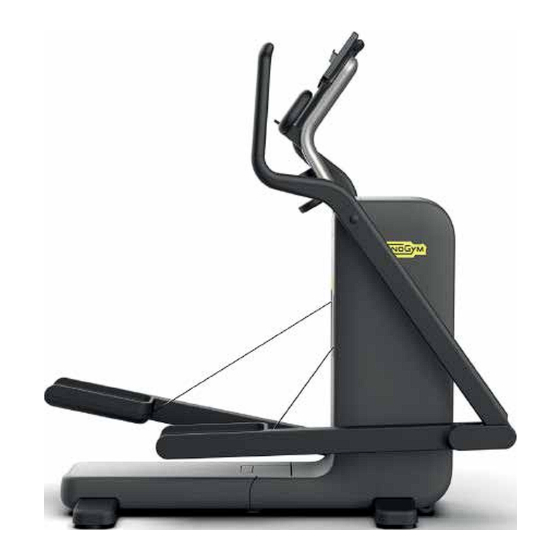

Technogym ELLIPTICAL Technical Service Manual
  1. Manuals
  2. Brands
  3. Technogym Manuals
  4. Elliptical Trainer
  5. ELLIPTICAL
  6. Technical service manual
Technogym ELLIPTICAL Technical Service Manual

Technogym ELLIPTICAL Technical Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

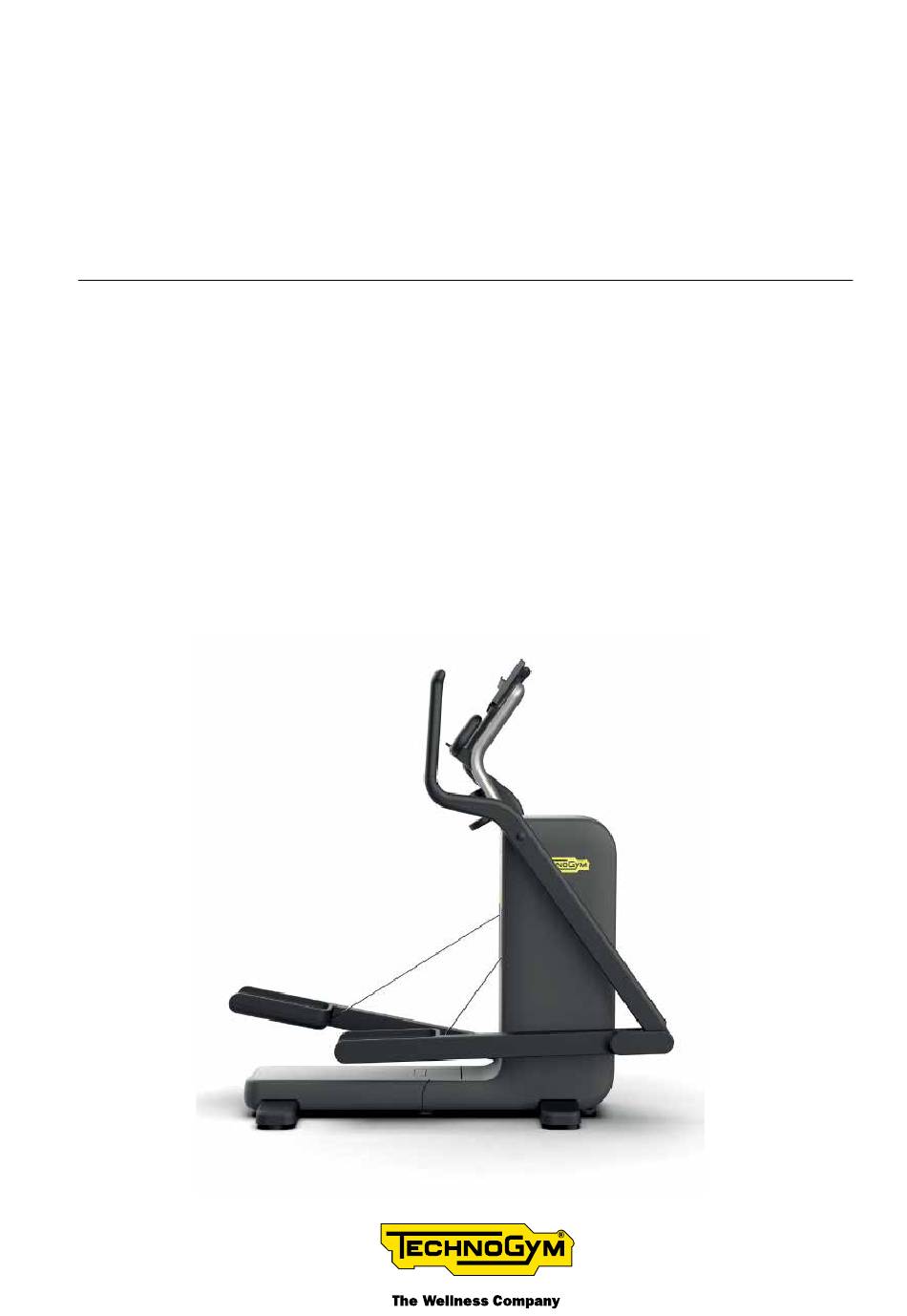

TECHNOGYM ELLIPTICAL
Technical Service Guide
Line: HOME
Equipment Code: DC5
Document Code: TSG-00224-EN
Rev: 1.1
Date: 25-02-2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELLIPTICAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technogym ELLIPTICAL

Summary of Contents for Technogym ELLIPTICAL

  • Page 1 TECHNOGYM ELLIPTICAL Technical Service Guide Line: HOME Equipment Code: DC5 Document Code: TSG-00224-EN Rev: 1.1 Date: 25-02-2022...
  • Page 3 The information in this manual is intended for QUALIFIED TECHNICAL PERSONNEL, who have been specifically trained by TECHNOGYM and are qualified to carry out fine tuning and start-up of the equipment, as well as major maintenance work and repairs, requiring in-depth understanding of the equipment, how it works, its safety devices and maintenance procedures.
  • Page 4 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank Page Uncontrolled copy if printed - 4 -...

  • Page 5: Table Of Contents

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 TABLE OF CONTENTS GENERAL WARNINGS ..................9 INTRODUCTION ......................9 USEFUL ADVICE .......................10 GENERAL REGULATIONS REGARDING SERVICE WORK .........10 1.3.1 PERSONAL PROTECTIVE EQUIPMENT ............10 TECHNICAL SPECIFICATIONS ..............11 TECHNICAL DATA ..................... 11 OVERALL DIMENSIONS AND WEIGHT OF EQUIPMENT ........11 DIMENSIONS AND WEIGHT OF PACKAGING ............12...
  • Page 6 CONFIGURING TECHNOGYM ELLIPTICAL ..........29 SW UPDATE (VIA PC USING THE USB-MICRO USB CABLE) ......29 SW UPDATE (VIA TABLET USING THE APP) ............30 HOW TO CONNECT THE EQUIPMENT TO TECHNOGYM LIVE APP ....31 QUICK EXERCISE DATA SETTINGS ..............34 TROUBLESHOOTING & CONFIGURATION ..........37 PROCEDURE TO FOLLOW WHEN REPLACING COMPONENTS .....37...
  • Page 7 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.16 RESET ERROR LOG (HIGH-KIT) ..............44 6.4.2.17 RESET ERROR LOG (LOW-KIT) ...............45 6.4.2.18 LK ERROR LOG READING ................45 6.4.2.19 HK ERROR LOG READING ................45 6.4.2.20 READING THE CURRENT UNIT OF MEASUREMENT ........46 6.4.2.21 SETTING THE INTERNATIONAL SYSTEM UNIT OF MEASUREMENT (KM) ..
  • Page 8 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.15 DISASSEMBLING BELT TENSIONER ..............113 7.16 DISASSEMBLING THE ELECTROMAGNETIC BRAKE ........115 7.17 DISASSEMBLING THE FLYWHEEL ..............117 7.18 DISASSEMBLING THE LOCKING/UNLOCKING SYSTEM ......... 119 7.19 DISASSEMBLING THE CONNECTING PIN BETWEEN THE REAR FOOT AS- SEMBLY AND THE FRAME ..................125...

  • Page 9: General Warnings

    Rev. 1.1 GENERAL WARNINGS 1.1 INTRODUCTION This document has been prepared specifically for Technogym After Sales Service, with the aim of providing authorised personnel with the information for carrying out maintenance and repair op- erations in the correct manner. A thorough understanding of the technical data contained herein is absolutely fundamental in order for the operator to achieve the highest level in professional training.

  • Page 10: Useful Advice

    Rev. 1.1 1.2 USEFUL ADVICE Technogym advises you to plan your technical assistance task in the following way: Carefully assess the impressions reported by the Customer regarding the equipment’s operating faults and ask questions suitable to clarify the signs of the defect.

  • Page 11: Technical Specifications

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 TECHNICAL SPECIFICATIONS 2.1 TECHNICAL DATA Technical Data- Technogym Elliptical 100-240 Vac 50/60 Hz Power supply 100 VA Maximum power absorption 2x3.15A (F) Fuses 259 W Braking power (100 spm) 130 kg Maximum user weight 0.8 kg...

  • Page 12: Dimensions And Weight Of Packaging

    65 cm 177 cm 128 kg [ 282 lb] Tab. 3 Technogym Elliptical is shipped overseas in cartene bag positioned on a pallet, completely assem- bled but in the closed configuration shown below: Fig. 2 2.4 ENVIRONMENTAL CHARACTERISTICS In operation Between +10°C and +25°C...

  • Page 13: Accessories

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 2.6 ACCESSORIES For details, refer to Marketing material. 2.7 EQUIPMENT CODING Characters Description Values and meaning Line DC = HOME Equipment 5 = ELLIPTICAL A = Standard Version Power 3 = Powered B = LCD...

  • Page 14: Serial Number Structure

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 2.8 SERIAL NUMBER STRUCTURE Characters Description Values and meaning DC5 = Technogym Elliptical 1,2,3,4,5,6 Type of product A = Standard 3 = Powered B = LCD Localization / Certifica- 0= Standard tion Z= Israel...

  • Page 15: Wiring Diagram

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 2.10 WIRING DIAGRAM Fig. 4 Uncontrolled copy if printed - 15 -...

  • Page 16: Wiring Detail

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 2.11 WIRING DETAIL The wiring diagrams shown above list the complete cable codes. The string xx indicates the- generic version. The colour of the cables may change: in particular, refer to the Pin Out.
  • Page 17 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 0WCU1426xx: Display power cable B r a k e Display G r o u n d Board Ground Signal Colour display PIN 5x2 PIN 4x2 Brown RS485_A_Signal Black White RS485 - B Signal...
  • Page 18 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank page Uncontrolled copy if printed - 18 -...

  • Page 19: Operating Principle And Components

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 OPERATING PRINCIPLE AND COMPONENTS 3.1 INTRODUCTION (1): Brake Board; (2): Electromagnetic Brake; (3): Speed sensor. Tab. 11 Uncontrolled copy if printed - 19 -...

  • Page 20: Brake Control

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 3.2 BRAKE CONTROL 3.2.1 CONTROL In order to set up a specific exercise difficulty: the Brake Board communicates with the Display Board, via the RS-485 serial cable, indicating speed value of the exercise in SPM (steps per min- ute).
  • Page 21 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 - the signals displaying the memory of errors detected by the board; - the signals relating to use of the equipment (SPM, WATT, distance etc...) ▪ Generates the current for the winding of the Electromagnetic Brake: when the current varies, the resistance supplied to the Brake itself also varies proportionately.

  • Page 22: Electromagnetic Brake

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 3.4 ELECTROMAGNETIC BRAKE The brake is an electromagnetic eddy current brake, consisting of a flywheel mass and a flat copper disk that rotates in the air gap of a winding. When there is a variation in the current to the winding, the field produced by it also varies and there is a consequent variation in the eddy currents induced in the copper disk and the resistance supplied to the movement of the pedals on the equipment.

  • Page 23: Display (Lcd)

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 3.7 DISPLAY (LCD) Fig. 6 [1]: USB Board; [4]: BLE module [2]: CPU board; [5]: Power connector - digital connection with Low-Kit [3]: BackUp Battery [6]: Joystick connector 3.7.1 CPU BOARD The CPU board contains SW identified with a version number.

  • Page 24: Usb Port

    Technogym Live App. 3.7.5 PAIRING WITH HEART RATE MONITORS On Technogym Elliptical the heart rate monitor pairs directly with the Technogym Live App, installed on the Tablet. For details about Tablets compatibility, refer to the marketing material.

  • Page 25: Moving And Installing The Equipment

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 MOVING AND INSTALLING THE EQUIPMENT 4.1 SHIPPING THE EQUIPMENT For details about the dimensions and weight of packaging, see § “2.3 dimensions and weight of packaging” 4.2 INSTALLING THE EQUIPMENT For details, see the Quick Guide shipped with the equipment / the equipment installation course available on E-learning Platform.

  • Page 26: Electrical Connection

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 4.4 ELECTRICAL CONNECTION Before connecting the product to the mains power supply, ensure that the electrical system spe- cifications comply with current regulations. Check the mains power supply specifications on the identification label.

  • Page 27: Turning The Product On And Off

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 4.5 TURNING THE PRODUCT ON AND OFF The main switch connects and disconnects the power to the product. Turn on the product by pressing the main switch to the I position (ON). The icons on the screen light up. If an exercise is not started within 30 seconds, the icons turn off and the product goes in low-power mode.

  • Page 28: Moving The Product

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 4.6 MOVING THE PRODUCT WARNING: Move the product very carefully, because it may become unstable and tip over. Do not lift or move the product from the arm/pedal levers or display. The product has fixed wheels. To move it, lift the pedal levers up and block them, then lift the prod- uct slightly as shown in the figure below and push it forwards or backwards.

  • Page 29: Configuring Technogym Elliptical

    • Click on SETTINGS and select the right serial port used for the communication between the ma- chine and the laptop; • Click on FIRMWARE WIZARD and select TECHNOGYM ELLIPTICAL equipment by clicking on the relative picture or by flagging the box. Then click on the Next button to proceed;...

  • Page 30: Sw Update (Via Tablet Using The App)

    Remember to set the sleep time to 60 sec after the fw upgrade 5.2 SW UPDATE (VIA TABLET USING THE APP) During the connection of the equipment to iOS/Android Tablet, the Technogym Live App checks if there is a more updated version available to download, from a Network Repository.

  • Page 31: How To Connect The Equipment To Technogym Live App

    5.3 HOW TO CONNECT THE EQUIPMENT TO TECHNOGYM LIVE APP Connect the Technogym Live App to the equipment via iOS Tablet, following the below procedure: ▪ Go to SETTINGS on the Tablet and check that Bluethoot is ON. Otherwise enable it.
  • Page 32 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 the equipment is set as a different equipment (e.g. Technogym Cycle) select “Set as Techno- gym Cycle. Tap to switch equipment” as indicated in the figure. Fig. 13 ▪ Select the relative equipment: “TECHNOGYM ELLIPTICAL” and click > to proceed Fig.
  • Page 33 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 ▪ At the end of connection it’s possible to start the workout or click on the relative sections. Fig. 15 Fig. 16- Workout screen Uncontrolled copy if printed - 33 -...

  • Page 34: Quick Exercise Data Settings

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 If the Tablet finds two or more Technogym Elliptical equipment, the below screen will be dis- played again. Then click on the “NOT CONNECTED” button, select the correct equipment to connect it to the Technogym Live App and start the workout.
  • Page 35 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Fig. 18 Uncontrolled copy if printed - 35 -...
  • Page 36 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank page Uncontrolled copy if printed - 36 -...

  • Page 37: Troubleshooting & Configuration

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 TROUBLESHOOTING & CONFIGURATION To correctly perform the troubleshooting operations, the following is required: Laptop, USB- Micro USB cable. 6.1 PROCEDURE TO FOLLOW WHEN REPLACING COMPONENTS 6.1.1 Replacing the display (High Kit) When replacing the display: 1.

  • Page 38: Procedure For Identifying Equipment Errors If The Customer Does Not Use The Tablet

    Stop the automatic search for the driver on Windows update and select the manual path on your laptop where the file was previously saved, which can be downloaded from Technogym Direct ->Product Release section -> Terminal SW: myrun_usb_driver.inf.

  • Page 39: Structure For Entering Commands

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 ▪ Select Baud rate 19200; ▪ Click DTR; ▪ Click Connect, to the top left and verify that the CTS button has turned green; ▪ The commands can now be entered, writing the string in the provided area.

  • Page 40: Commands

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2 COMMANDS 6.4.2.1 EQUIPMENT SERIAL NUMBER SETTING Name Command/Response Notes Serial number Command @STG_ID <id># where: setting <id>=serial number Response TG_ID:<id> or ERROR ERROR if the length of the serial number is less than 14 characters Tab.

  • Page 41: Firmware Version Reading

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.5 FIRMWARE VERSION READING Command Notes FW version Command @FWVER# reading Response <FW_version> Prints the firmware version. Tab. 17 6.4.2.6 BLUETOOTH FW VERSION READING Command Notes BLE FW version Command @NRFFWVER# reading Response <BLE_FW_version>...

  • Page 42: Forcing Of The System In Stand-By

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.9 FORCING OF THE SYSTEM IN STAND-BY Name Command/Response Notes Forcing Command @FORCESUSPEND# Forces the equipment to the stand-by the system state. Response SUSPENDING... in stand-by Response: SUSPENDING if the equip- ment is in IDLE or RESUME status, even with App connected Tab.

  • Page 43: Operating Data Reading

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.11 OPERATING DATA READING Name Command/Response Notes O p e r a t i n g Command @RSTAT# data reading Response HK TOTAL POWER TIME(10min): < HKpowerTime > =High- < HKpowerTime > kit total power supply time...

  • Page 44: Data Reading In The Low-Kit Memory

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.13 DATA READING IN THE LOW-KIT MEMORY Name Command/Response Notes Data reading Command @READREG# in the low-kit memory Response Reg: <address> Data: <data> Tab. 25 6.4.2.14 LIFE-DATA RESET Name Command/Response Notes Low-kit life-...

  • Page 45: Reset Error Log (Low-Kit)

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Name Command/Response Notes Reset error Command @RESETERRORLOG# Response OK or ERROR OK if reset was successful. ERROR if reset was not successful Tab. 28 6.4.2.17 RESET ERROR LOG (LOW-KIT) Name Command/Response Notes Reset error...

  • Page 46: Reading The Current Unit Of Measurement

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.20 READING THE CURRENT UNIT OF MEASUREMENT Name Command/Response Notes Reading the Command @RUNITS# current unit Response IMPERIAL UNITS or SI SI UNITS if international unit of of measure- UNITS measurement ment IMPERIAL UNITS if imperial unit of measurement Tab.

  • Page 47: Date / Time Reading

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.4.2.24 DATE / TIME READING Name Command/Response Notes D a t e / t i m e Command @GETDATE# Where: reading dd: day; MM: month; Response <Day> - <Month> - <Year> <hour> : <min> : <sec>...

  • Page 48: Resistance Feeling During Exercise

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.5 NO RESISTANCE FEELING DURING EXERCISE No resistance feeling during exercise Start to pedal. Are the Watt and RPM different from 0? Check the RPM sensor. Is the brake board working [1]? Is it working? [4]...
  • Page 49 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Fig. 21 [2]: Disconnect the cable 0WCU1052xx and insert the tips of the tester: - between PIN 1 and PIN 1 (white) Fig. 22 Uncontrolled copy if printed - 49 -...
  • Page 50 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 - between PIN 2 and PIN 2 (grey) Fig. 23 [3]: Check the electromagnetic brake: disconnect the 3x2 pin connector from the brake board. Put the probes of the tester in PIN 1 (inductive brake + - white) and PIN 2 (inductive brake - - grey).
  • Page 51 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 [4]: Find out the connector that connects the brake board to the RPM sensor and the Brake. Dis- connect the connector and put the probes of the tester in PIN 3 (RPM- brown) and PIN 4 (GND RPM- black), pins coming from the RPM sensor.
  • Page 52 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 - between PIN 4 and PIN 4 (black) Fig. 27 Uncontrolled copy if printed - 52 -...

  • Page 53: Wrong Resistance During Exercise

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 WRONG RESISTANCE DURING EXERCISE If the Brake Board is programmed with a wrong FW: it causes communication problems be- tween the High Kit and the Low Kit. If the Brake Board is programmed with a compatible FW but dedicated to a different machine: the equipment functions but with wrong level of resistance during exercise.

  • Page 54: Wrong Speed Signal

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.7 WRONG SPEED SIGNAL Wrong speed during exercise Update the fw of the brake board. Upload the brake table. Is the problem solved? OK. Problem solved. Are the detection screws present and/or assembled in the right way? [1] Reassemble the screws in the right Check the RPM sensor position / replace the RPM sensor.

  • Page 55: The Display Does Not Turn On

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.8 THE DISPLAY DOES NOT TURN ON After a few seconds of inactivity (e.g. 60 sec), the equipment goes into sleep mode, then the display turns off. The display does not turn on Vibrate the equipment.
  • Page 56 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Fig. 31 [2]: Insert the tips of the tester between PIN 3 (GND- black) and PIN 6 (+12Vdc- red) of the 4x2 pin connector, connected to the brake board, coming from the display.
  • Page 57 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 [3]: Turn off the equipment and disconnect the power cable from the brake board. Then insert the tips of the tester between Phase and Neutral. Turn on the equipment and verify the Vac measured.

  • Page 58: Brake Board Error Code List

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 6.9 BRAKE BOARD ERROR CODE LIST ERROR ERROR DESCRIPTION SOLUTION CODE Electrical Overtemperature: This error Swicth OFF the equipment and keep occurs when the internal temperature it OFF to have the cool down of the sensor reaches a specific value.

  • Page 59: Procedures For Disassembly-Reassembly And Replacement Of Components

    The tools required to carry out all the disassembling, adjustment and maintenance oper- ations on the equipment are given in the TG SERVICE TOOLS BOX LIST, available on Technogym Direct and during the training course on the e-learning platform. 2.5mm- 3mm- 4mm- 5mm- 6mm- 8mm- 10mm hexagon key wrench;...

  • Page 60: Personal Protective Equipment

    Strap; Measuring tape. 7.1.2 PERSONAL PROTECTIVE EQUIPMENT For details, see the Health & Safety Procedure, available on Technogym Direct. 7.1.3 ACTION TO DO BEFORE DISASSEMBLING THE EQUIPMENT (WARNING) WARNING: Before disassembling, press the button to turn off the equipment (“O”...

  • Page 61: Disassembling The Protection Casing Of Display

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.3 DISASSEMBLING THE PROTECTION CASING OF DISPLAY Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the pro- tection casing [1] from the display. It’s now possible to access the USB port [2] for sw update.

  • Page 62: Disassembling The Display

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.4 DISASSEMBLING THE DISPLAY Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the pro- tection casing [1] from the display. Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the casing [3].
  • Page 63 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Disconnect the necessary cables that connect the CPU board to the equip- ment. Remove the two nuts [4] with the rel- ative washers. (TOOL: ratchet with 8mm socket) ATTENTION: SUPPORT THE DISPLAY. Lift the display to remove it [5]...

  • Page 64: Disassembling Joystick Cable

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.5 DISASSEMBLING JOYSTICK CABLE Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the pro- tection casing [1] from the display. Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the casing [3].
  • Page 65 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Disconnect the cable that connect the CPU board to the Joystick board as shown in the figure. Remove the casing [6] spreading the teeth shown in the figure. (TOOL: slot- ted screwdriver) Uncontrolled copy if printed...
  • Page 66 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Disconnect the cable and remove it [7]. Uncontrolled copy if printed - 66 -...

  • Page 67: Disassembling The Joystick

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.6 DISASSEMBLING THE JOYSTICK Remove the joystick cable as described in § “7.5 DISASSEMBLING JOYSTICK CABLE” Remove the two screws [8] from each side of equipment (TOOL: 4 mm hex- agon key wrench) and disassemble the central handle grip [9].

  • Page 68: Disassembling The Central Handle Grip

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [11]. (TOOL: 2.5 mm hexagon key wrench) It’s now possible to remove the joy- stick [12]. 7.7 DISASSEMBLING THE CENTRAL HANDLE GRIP Remove the joystick cable as described in §”7.5 DISASSEMBLING JOYSTICK CABLE”...
  • Page 69 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the two screws [8] from each side of equipment (TOOL: 4 mm hex- agon key wrench) and disassemble the central handle grip [9]. During reassembly, tighten the screws [8] with a torque wrench set to 9 Nm [6.6 lbf-ft].

  • Page 70: Disassembling Bottle Holder

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the six screws [13] to disas- semble the upper casing of the handle grip. (TOOL: Medium Phillips screw- driver) 7.8 DISASSEMBLING BOTTLE HOLDER Loosen the screw [14]. (TOOL: 4 mm hexagon key wrench)

  • Page 71: Disassembling The Front Casings

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Lift and extract the bottle holder. 7.9 DISASSEMBLING THE FRONT CASINGS Remove the display as described in § “7.4 DISASSEMBLING THE DISPLAY” Remove the joystick cable as described in §”7.5 DISASSEMBLING JOYSTICK CABLE”...
  • Page 72 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the right casing [16]. (TOOL: slotted screwdriver) Remove the left casing [17]. (TOOL: slotted screwdriver) Uncontrolled copy if printed - 72 -...
  • Page 73 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Unhook the fastening elements and then push the casing as indicated by the arrow to remove the central cas- ing [18]. Remove the two screws [19].(TOOL: key wrench for Torx T25 head screw)
  • Page 74 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [20]. (TOOL: Medi- um Phillips screwdriver) Unhook fastening elements (TOOL: Card like credit card to re- move casings) and remove the casing [21]. Uncontrolled copy if printed - 74 -...
  • Page 75 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [22] . (TOOL: 3mm hexagon key wrench). Then remove the casing [23]. Unhook fastening elements (TOOL: Card like credit card to re- move casings). Uncontrolled copy if printed - 75 -...
  • Page 76 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the left casing [24] from the three teeth detailed in the figure and then move it [24] towards the front un- til it is removed. Before disassembly, move the arm levers to arrange the in- ternal components more fa- vorably.
  • Page 77 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the two screws [26] for each side of equipment. (TOOL: key wrench for Torx T25 head screw) Then remove the two screws [27]. (TOOL: Medium Phillips screwdriver) If necessary, shake the machine...

  • Page 78: Disassembling The Pedal Assembly

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 It’s now possible to remove the casing [28]. 7.10 DISASSEMBLING THE PEDAL ASSEMBLY Before disassembling, bring the pedal to the lowest position and take the distance (d) between the pedal cut and the rear foot casing as shown in the figure.
  • Page 79 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the lever [33] Remove the casing [34]. Remove the screw [34a] ((TOOL: key wrench for Torx T25 head screw). Then unhook the lever and lower the lever of the pedal. Uncontrolled copy if printed...
  • Page 80 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the interlocked casing [29] Remove the three screws [30]. (TOOL: Medium Phillips screwdriver) Remove the casing [31]. Uncontrolled copy if printed - 80 -...
  • Page 81 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Raise up the lever of the pedal and re- move the four nuts [35]. (TOOL: ratch- et with 10mm socket wrench) Remove the pedal [36]. Protect the machine with a cloth as shown in the figure.
  • Page 82 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the nut [37] to disassemble the belt set. (TOOL: 17mm open end wrench) Unhook the lever as indicated by the red arrow and lower the lever of the pedal. Remove the screw [38]. (TOOL: 6mm hexagon key wrench+10 mm hexagon key wrench).
  • Page 83 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Then remove the bushing [39]. Reassemble screw [38] til removing the pin [40] and the two spacers. (TOOL: 6mm hexagon key wrench). It’s now possible to remove the lever [41] of the pedal.
  • Page 84 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the circlip [42]. (TOOL: slot- ted screwdriver/ circlip pliers) Turn the pedal upside down and loos- en the nut [43]. (TOOL: 8mm combi- nation wrench, open and offset ring ends) Then remove the cable from the lever.
  • Page 85 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the lever [44]. Remove the screw [45]. (TOOL: 4mm hexagon key wrench) Uncontrolled copy if printed - 85 -...

  • Page 86: Disassembling The Right/Left Arm Lever

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the pin [46] from the cable [48]. Then remove the spring [47]. During the reassembly procedure: _Grease the pin. (TOOL: MOLYKOTE W2 grease) _Insert the cable [48] into the lever of the pedal. Then reassemble the spring and the pin. Keep the pin pressed and reassemble the screw [45].
  • Page 87 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove all the necessary casings as shown in the figure. For details see §”7.9 DISASSEMBLING THE FRONT CASINGS” Remove the screw [48]. (TOOL: 8mm combination wrench, open and offset ring ends). Uncontrolled copy if printed...
  • Page 88 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the rod [49] as shown in the figure. Remove the washer [49a]. ATTENTION: after remov- ing the rod the arm le- vers move by themselves. Remove the ring nut [50]. (TOOL: socket for ring nut).
  • Page 89 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the pulley [51]. Remove the cap [52]. (TOOL: slotted screwdriver). Uncontrolled copy if printed - 89 -...
  • Page 90 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Unhook the special screw [53]. (TOOL: 8mm hexagon key wrench) It’s now possible to remove the lever [54]. (TOOL: soft-faced hammer) ATTENTION: DURING THE REASSEMBLY PROCE- DURE, FOLLOW AFOREMENTIONED STRUCTIONS IN THE RE- VERSE ORDER.

  • Page 91: Disassembling The Belt Of The Pedal Lever

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.12 DISASSEMBLING THE BELT OF THE PEDAL LEVER Remove all the necessary front cas- ings as shown in the figure. For de- tails see §”7.9 DISASSEMBLING THE FRONT CASINGS” Perform all the necessary steps to remove the belt assembly under the pedal.
  • Page 92 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [57]. (TOOL: 6mm hexagon key wrench) It’s now possible to remove the belt of the pedal lever. Uncontrolled copy if printed - 92 -...

  • Page 93: Disassembling The Pulley

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 During the reassembly procedure: _Reassemble the belt under the pedal. _Reassemble the belt (on the other side) without tighten the screw [55]. _Pedal to bring the pedal to the lowest position _Adjust the belt, loosening/tightening the screw [57] (TOOL: 6mm hexagon key wrench) until the measure between the pedal cut and the rear foot casing is equal to “d”...
  • Page 94 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the rod [59] as shown in the figure. Secure the rod to the equipment with a strap as shown in the figure Uncontrolled copy if printed - 94 -...
  • Page 95 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Loosen the two screws [60]. (TOOL: 5 mm hexagon key wrench) Then remove the crank [61]. During reassembly, tighten the screws [60] with a torque wrench set to 16 Nm [11.8 lbf- ft] ).
  • Page 96 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Raise up the lever of the pedal and secure it to the equipment with a strap. Then remove the crank assembly [62]. (TOOL: Two-leg universal pull- ers) Unhook the fastening elements (TOOL: Card like credit card to remove casings). Then remove the right casing [25] from the three teeth and then move it [25] towards the front until it is removed.
  • Page 97 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [63] on the right side of equipment. (TOOL: 8mm combination wrench, open and offset ring ends). Then remove the rod from the rela- tive end. During reassembly, tighten the screw [63] with a torque wrench set to 5 Nm [3.7 lbf-...
  • Page 98 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Loosen the two screws [65] on the right side of equipment. (TOOL: 5 mm hexagon key wrench) During reassembly, tighten the screws [65] with a torque wrench set to 16 Nm [11.8 lbf- ft] ).
  • Page 99 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Lock the black pulley with a screw- driver and remove the ring nut [67]. (TOOL: socket for ring nut). During reassembly, apply Loc- tite 243 and tighten the ring nut [67] with a torque wrench set to 60 Nm [44.3 lbf-ft] ).
  • Page 100 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [69] with the washer. (TOOL: 6 mm hexagon key wrench). During reassembly, apply Loc- tite 243 and tighten the screw [69] with a torque wrench set to 44 Nm [32.5 lbf-ft]...
  • Page 101 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Lock the pulley on the left side as shown in the figure. (TOOL: strap) Remove the ring nut [71] on the right side. (TOOL: socket for ring nut + metal bar) Then remove the strap.
  • Page 102 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Loosen the nut [72]. (TOOL: 17mm open end wrench) Loosen the screw [73]. (TOOL: 5 mm hexagon key wrench) Uncontrolled copy if printed - 102 -...
  • Page 103 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Rotate the pulley to extract the belt [74]. Remove the pulley [75]. Uncontrolled copy if printed - 103 -...
  • Page 104 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the four nuts [76]. (TOOL: 13mm open end wrench). During reassembly, tighten the nuts [76] with a torque wrench set to 10 Nm [7.4 lbf-ft] . Remove the central component [77] of the pulley.
  • Page 105 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the four screws [78] (TOOL: 6mm hexagon key wrench) to disas- semble the shaft and the connecting rod. During reassembly, apply Loc- tite 243 and tighten the screws [78] with a torque wrench set to 38 Nm [28 lbf-ft] .
  • Page 106 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 _Reassemble the pulley [75] and then lock it to the equipment with a strap _Tighten the ring nut [71] on the right side of equipment. (TOOL: socket for ring nut).Then tighten it with a torque wrench set to 100 Nm [73.8 lbf-ft] ).

  • Page 107: Disassembling The Belt Of The Pulley

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 _Tighten the nut [72]. (TOOL: 17mm open end wrench). _Reassemble the crank assembly and the ring nut [61] on the left side. Apply Loctite 243 and tighten the ring nut [61] with a torque wrench set to 60 Nm [44.3 lbf-ft] _Assemble the crank in the correct direction as shown below.
  • Page 108 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Before disassembling, bring the pedal to the lowest position and take the distance (d) between the pedal cut and the rear foot casing as shown in the figure. The distance “d” should be equal to 127mm. (TOOL: Measur-...
  • Page 109 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [58]. (TOOL: 8mm combination wrench, open and offset ring ends). During reassembly, tighten the screw [58] with a torque wrench set to 5 Nm [3.7 lbf- ft] ). Remove the rod [59] as shown in the figure.
  • Page 110 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [55] and the nut [56]. (TOOL: 2x17mm open end wrench). Remove the screw [57]. (TOOL: 6mm hexagon key wrench) Uncontrolled copy if printed - 110 -...
  • Page 111 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 It’s now possible to remove the belt assembly. Loosen the nut [72]. (TOOL: 17mm open end wrench) Uncontrolled copy if printed - 111 -...
  • Page 112 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Loosen the screw [73]. (TOOL: 5 mm hexagon key wrench) Then remove the belt. During the reassembly procedure: _Position the belt around the pulley, rotating it. _Adjust the belt to the correct frequency, loosening/tightening the screw [73] (TOOL: 5mm hexa- gon key wrench).

  • Page 113: Disassembling Belt Tensioner

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 _Tighten the nut [72]. (TOOL: 17mm open end wrench). _Reassemble the belt assembly and the rod. Then adjust the belt, loosening/tightening the screw [57] (TOOL: 6mm hexagon key wrench) until the measure between the pedal cut and the casing is equal to “d”...
  • Page 114 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the circlip [79]. (TOOL: cir- clip pliers) CAUTION: To perform the procedure wear safety glasses. Remove the belt tensioner [80]. ATTENTION: During the re- assembly procedure apply some grease. Uncontrolled copy if printed...

  • Page 115: Disassembling The Electromagnetic Brake

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.16 DISASSEMBLING THE ELECTROMAGNETIC BRAKE Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT CASINGS” Disconnect the two connectors [81a]- [81b]. (TOOL: Long nose pliers) Uncontrolled copy if printed...
  • Page 116 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the two screws [82]. (TOOL: 8mm combination wrench, open and offset ring ends) Remove the electromagnetic brake [83]. Uncontrolled copy if printed - 116 -...

  • Page 117: Disassembling The Flywheel

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 7.17 DISASSEMBLING THE FLYWHEEL Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT CASINGS” Loosen the belt tensioner. For details, see §”7.15 DISASSEMBLING BELT TENSIONER” Loosen the nut [72]. (TOOL: 17mm open end wrench) Loosen the screw [73].
  • Page 118 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the six screws (highlighted in red in the figure) with the relative washers. (TOOL: 4mm hexagon key wrench) Remove the disk [84] carefully. During reassembly, if neces- sary, straighten up the disk...

  • Page 119: Disassembling The Locking/Unlocking System

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Unscrew clockwise the pulley [86] of the flywheel. Remove the flywheel [87] 7.18 DISASSEMBLING THE LOCKING/UNLOCKING SYSTEM Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT CASINGS” Remove the interlocked casing [88].
  • Page 120 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Keep the unlocking lever pressed and raise up the rear foot assembly. Remove the interlocked casing [89]. Repeat the same procedure on the left side. Then remove the interlocked casing. Remove the screws [91]. (TOOL: key wrench for Torx T25 head screw).
  • Page 121 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screw [93]. (TOOL: key wrench for Torx T25 head screw). Repeat the same procedure also on the left side. Remove the casing [94] on the right side. Repeat the same procedure also on the left side.
  • Page 122 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the pin [96]. (TOOL: slotted screwdriver). During reassembly, apply grease on the pin and insert it into the hole of the casing Lower the rear foot assembly. Then remove the circlip [97]. (TOOL:...
  • Page 123 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the pin [99]. (TOOL: slotted screwdriver). During reassembly, apply grease on the pin. Remove the regulation system as shown in the figure. Remove the screw [1]. (TOOL: key wrench for Torx T25 head screw)
  • Page 124 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Lift the rear foot assembly. To raise the rear foot assem- bly up without the regulation system, push the component highlighted in red in the figure using a slotted screwdriver. Remove the casing [2]. (TOOL: slot- ted screwdriver).

  • Page 125: Disassembling The Connecting Pin Between The Rear Foot Assembly And The Frame

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the pin [4]. (TOOL: ham- mer+slotted screwdriver/pin previ- ously removed [3]) Remove the locking/unlocking sys- tem [5]. 7.19 DISASSEMBLING THE CONNECTING PIN BETWEEN THE REAR FOOT ASSEMBLY AND THE FRAME Remove all the necessary front casings as described in §”7.9 DISASSEMBLING THE FRONT CASINGS”...
  • Page 126 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the interlocked casing [88]. Keep the unlocking lever pressed and raise up the rear foot assembly. Remove the interlocked casing [89]. Repeat the same procedure on the left side. Then remove the interlocked casing.
  • Page 127 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Keep the unlocking lever [92] pressed as shown in figure and raise up the rear foot assembly. Remove the screw [93]. (TOOL: key wrench for Torx T25 head screw). Repeat the same procedure also on the left side.
  • Page 128 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Lower the rear foot assembly. Remove the screw [6] and the rela- tive washers. (TOOL: 17mm open end wrench). Reassemble the screw [6] and re- move the pin [7]. (TOOL: screwdriv- er+ hammer)

  • Page 129: Disassembling The Switch Box

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the rear foot assembly [8]. During reassembly, apply grease MOLYKOTE Then distribute the grease raising/lowering the rear foot assembly. Tighten/loosen the screw [6] so that the rear foot assembly goes down when the angle between the rear foot and the floor is 15°...
  • Page 130 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Disconnect the connectors highlight- ed in the figure. Press the teeth of the switch box (two for each side) as detailed in the fig- ure. (TOOL: slotted screwdriver). Uncontrolled copy if printed - 130 -...

  • Page 131: Disassembling The Brake Board

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the switch box [9] from the equipment. 7.21 DISASSEMBLING THE BRAKE BOARD Remove the screw [22] . (TOOL: 3mm hexagon key wrench). Then remove the casing [23]. Uncontrolled copy if printed - 131 -...
  • Page 132 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Remove the screws [10] and the rel- ative washers. (TOOL: key wrench for Torx T25 head screw). Remove the brake board, discon- necting the relative connectors. Uncontrolled copy if printed - 132 -...

  • Page 133: Tightening Torques - Grease - Adhesive & Sealants - Belt Tensioning - Adjustments

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 TIGHTENING TORQUES - GREASE - ADHESIVE & SEALANTS - BELT TENSIONING - ADJUSTMENTS POLY-V BELT TENSIONING (LEFT SIDE) First Installation : If the belt is replaced with a new one, tension the new belt to the frequency: 190 + 10 Hz.

  • Page 134: Adjusting The Position Of The Speed Sensor

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 8.2 ADJUSTING THE POSITION OF THE SPEED SENSOR The distance between the speed sensor and the closest screw of the copper disk (making a com- plete rotation of the disk using a thickness gauge) must be: d = 0.8 ÷ 1.0 mm.

  • Page 135: Transmission Group

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 8.4 TRANSMISSION GROUP Fig. 39 TIGHTENING TORQUE of the self lock ring nut [A] : 100 Nm [73.8 lbf-ft] To disassemble the component [A] use a socket for ring nut with extension. Uncontrolled copy if printed...
  • Page 136 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Fig. 40 TIGHTENING TORQUE of the screws [A] : 22 Nm [16.2 lbf-ft]. TIGHTENING TORQUE of the screws [B] and [C] : 40 Nm [29.5 lbf-ft]. During the reassembly procedure grease the pin [D] with White Lithium Grease (Molykote –LongTer- mW2).

  • Page 137: Crank Assembly

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 8.5 CRANK ASSEMBLY Fig. 41 During the reassembly procedure apply Loctite 243 on the four screws [A]. Afterwards, tighten the screws with a tightening torque of 38 Nm [ 28 lbf-ft]. TIGHTENING TORQUE of the four nuts [B]: 10 Nm [7.4 lbf-ft].

  • Page 138: Rear Foot Assembly

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 8.6 REAR FOOT ASSEMBLY During reassembly, apply grease MOLYKOTE W2 on [A] and on the pin [B]. Then distribute the grease raising/lowering the rear foot assembly. Fig. 42 Apply the MOLYKOTE W2 also on the blocking seat [C] and on the pin [D].

  • Page 139: Levelling The Product

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 8.7 LEVELLING THE PRODUCT The product must be level for proper operation. Adjust the feet as shown in the illustration in order to level the product. - Loosen the locknut (B); - Screw or unscrew the foot (A) until the frame is in a stable position;...
  • Page 140 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank Page Uncontrolled copy if printed - 140 -...

  • Page 141: Planned Maintenance

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 PLANNED MAINTENANCE To keep the equipment perfectly efficient, planned maintenance work must be periodically per- formed to prevent possible problems. ROUTINE maintenance to be performed during preventive maintenance operations. The ROUTINE maintenance operations: can be performed by the owner of the equipment and do not require any particu- lar technical expertise;...
  • Page 142 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank Page Uncontrolled copy if printed - 142 -...

  • Page 143: List Of Changes For Manual Revision

    TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 10. LIST OF CHANGES FOR MANUAL REVISION The main changes made to this manual, are listed below in chronological order. 10.1 REVISION 1.0 First released version. 10.2 REVISION 2.0 Updated paragraph §8.6 REAR FOOT ASSEMBLY added the application of the MOLYKOTE W2 on the pin and relative blocking system of the rear foot assembly.
  • Page 144 TECHNOGYM ELLIPTICAL Technical Service Guide Rev. 1.1 Blank page Uncontrolled copy if printed - 144 -...
  • Page 146 TECHNOGYM S.p.A. Via Calcinaro, 2861 - 47521 Cesena (FC) - Operational Headquarters ITALY Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: support@technogym.com 0SM01061AA...
