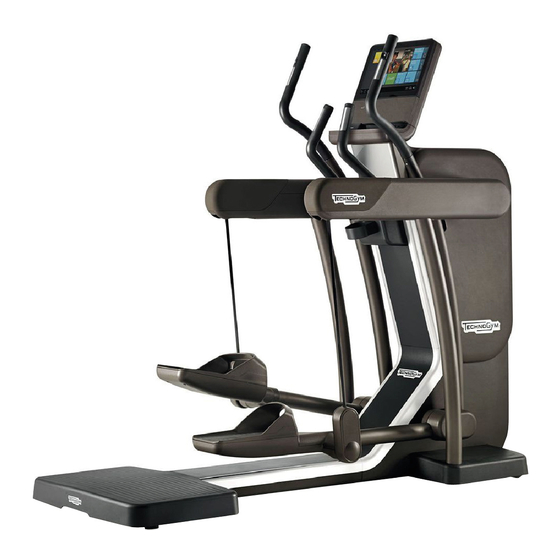

Technogym Artis Vario User Manual

Cardio
Hide thumbs Also See for Artis Vario:
Table of Contents

Advertisement

Quick Links

ARTIS CARDIO
Vario
User manual

Advertisement

Table of Contents
loading

Related Manuals for Technogym Artis Vario

Summary of Contents for Technogym Artis Vario

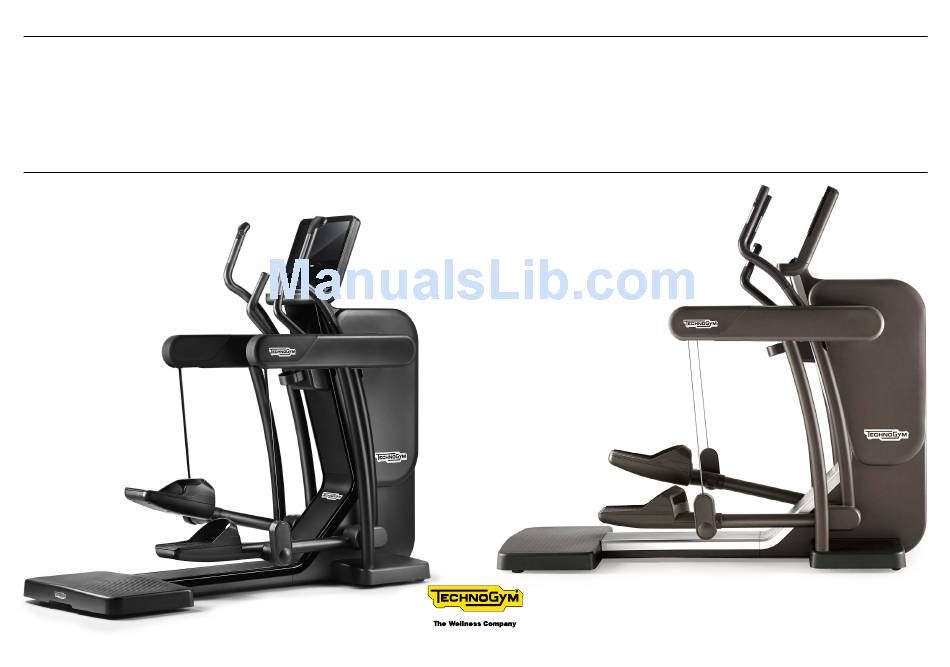

  • Page 1 ARTIS CARDIO Vario User manual...

  • Page 2: Table Of Contents

    Contents Contents ..................... 2 Important safety instruction ..............3 Personal safety ..................5 Manufacturer and equipment identification .......... 7 Description of the equipment ..............8 Technical data .................... 9 Accessories ..................... 13 Safety devices and warnings ..............14 Place of usage ..................16 Moving the equipment ................

  • Page 3: Important Safety Instruction

    Any other use is to be considered improper and therefore dangerous. Do not use attachments not recommended by Technogym. Never operate the equipment if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. In this case, contact the Technogym Technical Support service.
  • Page 4 Important safety instruction Keep the cord away from heated surfaces. Keep hands and feet away from moving parts. Never drop or insert any object into any opening. Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the equipment to water jets. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

  • Page 5: Personal Safety

    Keep all electrical components, such as the power cable and I/0 switch, away from liquids to prevent shock. Maintain the equipment in good working condition. If there are signs of wear, contact the Technogym Technical Support service. Do not attempt to service the equipment yourself other than the maintenance instructions found in the user manual.
  • Page 6 Technogym’s written authorization or for failure on your part to use, operate and maintain the products as set out in this User Manual.

  • Page 7: Manufacturer And Equipment Identification

    The values stated in the illustration are purely indicative; refer to the label attached to the equipment or the data in "Technical data" section for the correct information. Technogym S.p.A. via Calcinaro 2861, Cesena (FC) Made in Italy CLIMB ARTIS Model no.

  • Page 8: Description Of The Equipment

    Control panel (A): it allows you to view and control information, settings and contents both for workouts and for entertainment. The tablet-style touch screen interface allows you to include the contents offered by the Technogym App Store. Please see the control panel's manual to see how it works.

  • Page 9: Technical Data

    Technical data Mains powered Vario Battery-powered Vario Power supply 100÷240 Vac 50/60 Hz Mains power input 100 VA max (160 VA max with Unity) Fuses 2 x 3,15A (F) Braking power (130 spm) 3310 W ± 10% 390 W ± 10% Weight of equipment 200 kg (441 lb) 200 kg (441 lb)
  • Page 10 Technical data Vario Renew - Europe Vario Renew - USA Power supply 100-240 VAC ± 10% 50/60 Hz 120 Vac ± 10% 60 Hz Rated output voltage 230 VAC 100-120 VAC Rated voltage 230 VAC 100-120 VAC Rated output current 0-1.4 A 0-3 A Maximum output current...
  • Page 11 Technical data Vario Renew Minimum resistance at 480 spm 30 W Maximum resistance at 130 spm 401 W Vario Artis...
  • Page 12 Technical data 2040 mm (80") 750 mm (30") 1910 mm (75") 1690 mm (67") Vario Artis...

  • Page 13: Accessories

    Accessories The equipment’s standard outfit comprises: A Set of wrenches B User manual C Warranty certificate D CEE Power Supply cable with SH socket E Cloth for cleaning F Two replacement fuses (2 x 3.15A (F) The charger comes with the battery-powered version. Charger electrical specifications: Input 100÷240 Vac 0,8 A 50/60 Hz...

  • Page 14: Safety Devices And Warnings

    Safety devices and warnings In all versions: A Fixed guard: guards against access to the inside of the equipment. In the mains powered version: B Main switch: turns the equipment’s power on and off. C Fuses: they protect the equipment’s electrical parts. When the current reaches an excessive value, the fuses melt thus protecting the internal electronics.
  • Page 15 Safety devices and warnings E The label affixed close to the main switch states the electrical specifications and safety indications. F The label which can be affixed to the power supply cable states the electrical specifications for the cable. Warning Please read the adhesive labels on the equipment, which provide information about possible risks and hazards.

  • Page 16: Place Of Usage

    Place of usage To ensure that exercising with the equipment is easy, safe and effective, the place where it is used should comply with certain specific requirements; in particular, before choosing the place where the equipment will be installed, please ensure that the following conditions are satisfied: the temperature is between +10°C and +25°C;...

  • Page 17: Moving The Equipment

    Moving the equipment Warnings Take great care when moving the equipment, as it may overbalance. When lifting or moving the equipment, do not take hold of the platforms, levers or the control panel as hand holds. Vario Artis...
  • Page 18 Moving the equipment The equipment has fixed front wheels. To move the equipment, lift it up slightly, gripping the metal part under the plastic platform, as shown in the illustration, and push it forwards and backwards. Given the weight of the equipment, we recommend that more than one person be involved in moving it.

  • Page 19: Levelling

    Levelling Use the three feet shown in the illustration to level the equipment: loosen the lock nut (B); screw the front feet (A) in or out until the frame is in a stable position; tighten up the lock nut (B) after adjusting. Vario Artis...

  • Page 20: Electrical Connection (Mains Powered Version)

    Electrical connection (mains powered version) Before connecting the equipment to the mains power supply, ensure that the electrical system specifications comply to binding regulations. Verify the main power supply specifications on the label affixed close to the main switch. Open panel (A) to reach the label and connector: put a finger in the hole and pull. Warnings The wall socket must be located in a place where the plugging and unplugging can be done easily and safely.
  • Page 21 Electrical connection (mains powered version and Renew) Warning Check the state of the power supply cable periodically. The power supply socket must be grounded . If not, a ground connection must be installed by a qualified electrician before connecting the equipment to the electricity mains.
  • Page 22 Electrical connection (Renew) ARTIS RENEW Artis Renew is a line of cardio training equipment that is able to convert the mechanical energy produced by users when exercising into electric energy. This electric energy produced by exercising is input directly and in real time into the electricity distribution network to which the equipment is connected. The electric energy produced by Artis Renew is processed so that it corresponds to the specifications of the electricity distribution system to which the equipment is connected.

  • Page 23: Connection To Another Device

    Connection to another device The equipment can be connected to an audio/video reception device such as the Cardio Theater, as well as to a network of devices conforming to the CSAFE protocol. Warning The devices connected must comply with international standards.
  • Page 24 Connection to another device If the equipment has TV, connect the aerial cable to the equipment and to the wall socket. Use an RF coaxial cable for the connection with an F type of connector for the equipment. The wall socket of the aerial cable must be positioned so that the plug can be easily inserted and removed. Open panel (A) to reach the aerial socket: put a finger in the hole and pull.

  • Page 25: Routine Maintenance

    The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage and/ or wear. For maintenance actions not described in this manual, call in the Technogym Technical Service. Vario Artis...

  • Page 26: Changing The Fuses (Mains Powered Version And Renew)

    Changing the fuses (mains powered version and Renew) Warnings The fuses must be changed by the Technogym Technical Support Service. Before changing the fuses, switch the equipment off by switching the switch to 0 and unplug the power cable plug from the wall socket.

  • Page 27: Recharging The Battery (Battery-Powered Version)

    Recharging the battery (battery-powered version) In the battery-powered version, the platforms must be kept in motion to ensure that the equipment remains switched on. If, when you stop moving the platforms, the control panel switches off without warning, check that the main switch is on (in position I);...

  • Page 28: Troubleshooting

    Contact the Technogym Technical Support Service. Installation problems with the power supply cable (mains Check the connection. powered version). To replace the blown fuse with a spare contact Technogym Burnt-out fuses (mains powered version). Technical Support Service. The control panel connector has been accidentally Contact the Technogym Technical Support Service.
  • Page 29 Troubleshooting Problem Cause Remedy Move the equipment far enough away to stop signal Other transmitters situated nearby. interference (minimum distance between two units 80 cm). Problems in monitoring heart rate with the chest band Find the interference source (e.g. an electrical domestic Strong interference sources nearby.

  • Page 30: Technical Assistance

    Via Calcinaro 2861, 47521 Cesena Italy on-site servicing tel: +39 0547 56047 supply of original spare parts. http://www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: model, date of purchase, serial number, precise description of the problem.

  • Page 31: Storage

    Storage If a long period of non-use is expected, you are advised to store the equipment in the following way: in a clean dry place, with a dust cover; at a room temperature between -10°C and 70°C and relative humidity between 20% and 90%. For better storage, use the original packing materials.

  • Page 32: Disposal

    Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste.

  • Page 33: Switching On And Off

    Switching on and off To turn the mains powered version of the equipment on, switch the main switch to “I” (ON) position. To turn the battery-powered version of the equipment on, start moving. After a quick system check (reset), the equipment is ready for use. For the battery-powered version: if, when you stop the exercise, the control panel switches off without warning, check that the main switch is on (in position I);...
  • Page 34 Switching on and off To turn the mains powered version of the equipment off, switch the main switch to “0” (OFF) position. The equipment must be switched off only at the end of the exercise, when in standby. If the equipment isn’t going to be used for a long time, as well as turning it off you should also pull the plug out of the wall socket.

  • Page 35: Monitoring The Heart Rate

    Monitoring the heart rate 심박동수 모니터링 The equipment is able to measure heart rate trends, in two different ways: 장비는 심박동수 흐름을 두 가지 방식으로 측정할 수 있습니다. with a device fitted on the fixed handgrips and on the levers (hand sensor), 핸들이나...
  • Page 36 Monitoring the heart rate The table shows the optimum heart rate levels in relation to age and the goal to be achieved. Theoretical maximum heart rate (100%) is calculated on the basis of age using the formula: max H.R. = 220 - age. To read the graph, simply find your age on the horizontal axis and scan up the vertical until you reach the 60%, 70% and 90% values.
  • Page 37 Monitoring the heart rate Warnings During a workout it is very important that your heart rate never goes above 90% of your maximum rate (unless you are an athlete engaged in competitive sport). The sole function of the heart rate monitor is to display the heart rate during exercise and cannot be used for medical cardiac diagnoses of any kind.

  • Page 38: Using The Equipment

    Using the equipment Grip the side support to climb onto the equipment. Get on the platform that is in the lowest position and then place one foot on each platform. While setting the exercise on the control panel with one hand, hold onto one of the fixed handgrips with the other. To perform movements only with your legs, hold onto the fixed handgrips;...
  • Page 39 Using the equipment At the beginning move slowly until you become familiar with the equipment and acquire balance. It is important that you move without leaning forward and assuming unnatural positions. Once you become more confident, gradually increase the effort level. Constantly check your position: head held high, shoulders in line with the hips, abdomen sucked in and trunk erect.
  • Page 40 Vario Artis_uk_AD 0SM00829...
