Summary of Contents for Hunter Stoves Telford Inset 20DB CVWSTI08DBFM

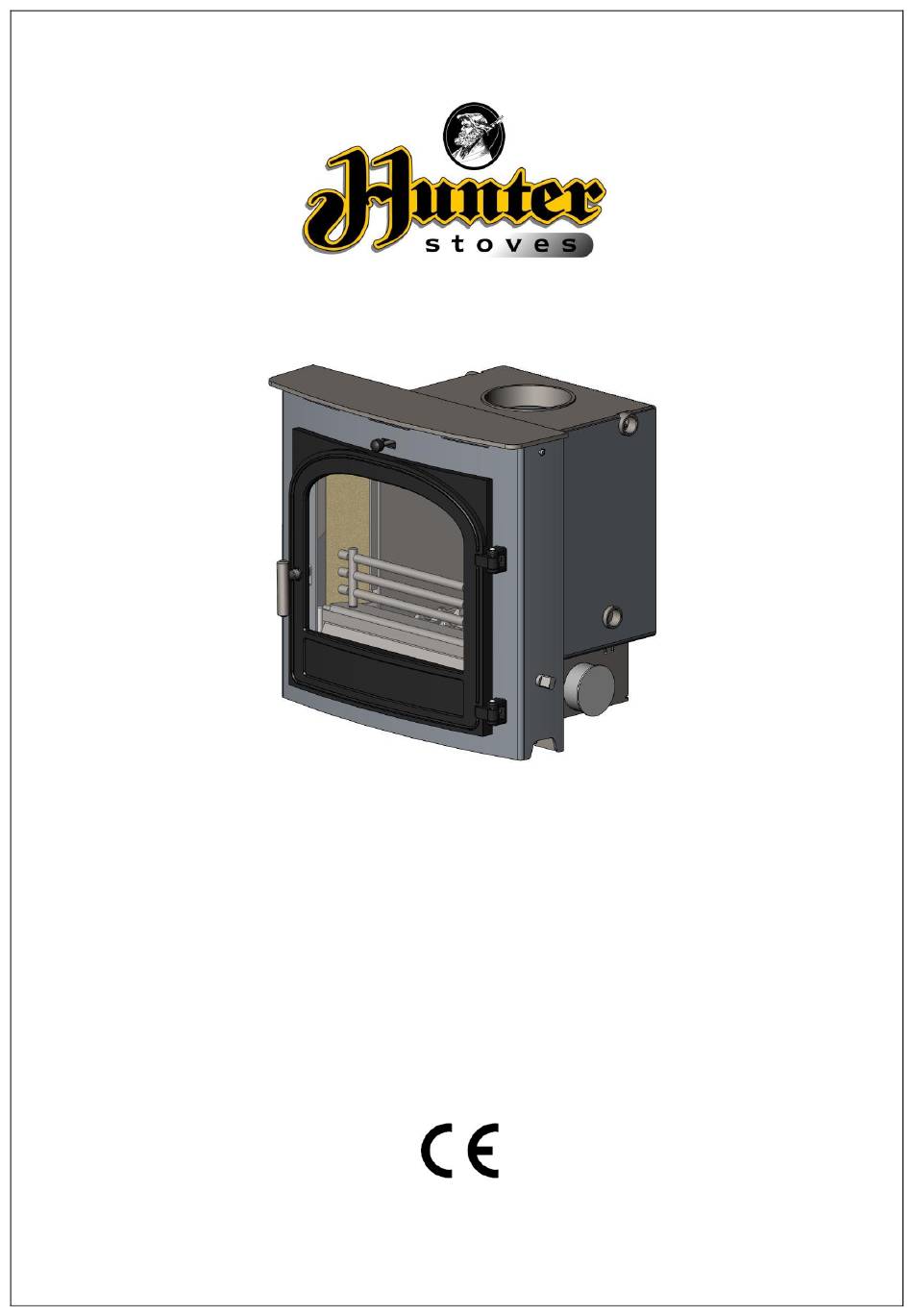

- Page 1 Telford Inset 20DB Multifuel Boiler Stove Model: CVWSTI08DBFM/CVWTI08DBFM Instructions for: Installation/Operating/Maintenance/Servicing JINTDBW09 Rev B 05/03/15...
-
Page 2: Table Of Contents
Building Regulations and/or Local By-Laws and serviced within 12 months of installation. Hunter Stoves will also support an extended 5 year warranty on external Cast Iron components such as Doors, Flue Collars and Covers. -
Page 3: Technical Specification
Inset Telford 20DB Technical Specification INSET TELFORD 20DB Unit 8 Emperor Way, Exeter Business Park, Exeter, Devon, EX1 3QS BS/EN 13229 UKAS# 0692 Stove Mass: 127.67kg NOMINAL OUTPUT: 15.8KW NOMINAL OUTPUT TO WATER: 10.7KW NOMINAL OUTPUT TO SPACE: 5.1KW CO Emission at 13% O : 0.33% Mean Flue Gas Temperature: 385°C EFFICIENCY: 69.9%... -
Page 4: Important Information
KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE AND SERVICING. THIS APPLIANCE WILL BECOME HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS. HUNTER STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY OR INFIRM FROM HARM. - Page 5 ARBON ONOXIDE ETECTOR when it is alight. Hunter Stoves recommend a Carbon Monoxide Detector that conforms to the latest issue of BS IREGUARDS EN 50292 is placed in the same room as the Always use a fireguard in the presence of children, appliance.
-
Page 6: Removing Internal Components
4. Remove the bricks by sliding forward so Removing Internal Components they are clear of their supports and tilting the bottom edge into the fire box. All internal components must be removed prior to fitting the stove. This will make handling the stove easier;... -
Page 7: Appliance Dimensions
7. Remove the cam bar and cam bar cover by lifting the cam bar from the left hand side until clear of the support. Slide the cam bar to the left and remove. SSEMBLING TOVE Refit all the internal parts by following the ‘removing internal components’... -
Page 8: Pre Installation Requirements
the chimney cannot be reached through the Pre Installation Requirements stove (with baffle removed), a soot door must be fitted in a suitable position. LEASE CHECK THE FOLLOWING Any existing chimney/flue system must be LUE OUTLET OSITIONS confirmed as suitable for this appliance as defined in Building Regulations Document J. - Page 9 EGAL EQUIREMENTS Hunter Stoves requests that before installation Scheme Web address Telephone and/or use of this appliance that you read these APHC (Association instructions carefully to ensure that all the of Plumbing and relevant requirements are fully understood. Heating www.aphc.co.uk...
- Page 10 This appliance will fit into a standard 16” fireplace RAUGHT opening if the clay fire back is removed. If the draught exceeds the recommended maximum, a draught stabiliser must be fitted so Any non-combustible walls within 50mm of this that the rate of burning can be controlled and to appliance should be at least 200mm thick and prevent over firing.
-
Page 11: Installation Instructions
2. Make suitable access holes so you can access appliances before installation. the tappings and infill with vermiculite Hunter Stoves cannot be held responsible for any concrete. fault arising through incorrect use or installation. Fire surround back panels suitable for solid fuel are usually in three sections and slabbed. - Page 12 ONNECTION Alternatively a connection can be made using a register plate although it will be necessary to allow N.B. An adjustable flue bend may be required for access for fitting the flue pipe to the register plate, some installations. infilling with vermiculite concrete and sealing all joints.
-
Page 13: Installation Of Heating & Hot Water
Systems using a common flow and return to the Hunter Stoves Ltd cannot accept responsibility for boiler should incorporate an injector tee on the any consequential loss, however caused, due to... - Page 14 Four Tapping System Time Switch Room Thermostat High Limit Thermostat 90°C Circulating Pump Low Limit Thermostat (45°C) Drain Cock Two Tapping System Time Switch Room Thermostat High Limit Thermostat 90°C Circulating Pump Drain Cock Low Limit Thermostat (45°C) Injector Tee Central Heating Control Wiring Diagram for general guidance only All electrical work must be carried out by a...
-
Page 15: Commissioning And Handover
Hunter Stoves also recommend that a CO alarm is If there is a ceiling fan fitted in the room please fitted into the room where the appliance is operate it and ensure that it does not affect the located. -
Page 16: Operating Instructions
Operating Instructions (PRIMARY AIR) HERMOSTAT Read the ‘General Guidance’ Section at the start The thermostat is controlled by the knob on the of these instructions before operating your stove side of the stove with settings from 0 - 10. The for the first time. - Page 17 OCOMOTIVE RATE IGHTING Your Hunter Stove is fitted with a locomotive type Slide the baffle into its open position (see Baffle grate. So that de-ashing can be carried out cleanly Operation below) and open secondary air control and easily, it is riddled from the outside of the fully and light one or two firelighters placed centrally on the grate, allowing the flames to stove with the doors closed.
- Page 18 Baffle Operation) The baffle will be hot when refuelling so due care should be taken. ECOMMENDED UELS Hunter Stoves recommend that approved smokeless fuels are burnt in this appliance. Only authorised smokeless fuels may be used in smoke control areas.
-
Page 19: Maintenance & Servicing
Check the 12mm rope around the door. If rope is dangerous fume emission. If the baffle is removed becoming detached, use Hunter Stoves rope glue the chimney/flue way can be swept through the to reattach it. If the rope is in a poor condition, a appliance. - Page 20 Please consult with your installer if you are NNUAL ERVICE Hunter Stoves recommend that this appliance is concerned in any way about the performance of serviced annually, preferably prior to the start of this appliance. the heating season, thus avoiding any delay in...
-
Page 21: Spares Information
Spares Information INGLE SINGLE DOOR HCE09008 DOOR GLASS HCE09102 DOOR HANDLE ASSEMBLY TDI05ARRT011MB GLASS CLIP HHR08046 SCREW FSJM05008SS ROPE SEALING KIT SCPCB900SDRSK- REVC GLASS GASKET HCE09101 JINTDBW09 Rev B 05/03/15... - Page 22 OUBLE OORS LEFT HAND DOOR TDI05008 GLASS GASKET HCE09030 ROPE SEALING KIT SCPCB900DRSK DOOR GLASS HCE09031 GLASS CLIP HHR08046 SCREW FSJM05008SS DOOR HANDLE AVA08020MB RIGHT HAND DOOR HCE09009 ROPE SEALING SCPCB900DRSK GLASS GASKET HCE09030 DOOR HANDLE ASSEMBLY TDW09ARRT011MB GLASS CLIP HHR08046 SCREW FSJM05008SS...
- Page 23 Body Assembly Spares BAFFLE SUPPORT SLIDER KNOB HCW09ARRT013 HCE05040M BAFFLE HCW09ARRT011 BRICK LEFT: HCW09051A RIGHT: HCW09051B GRATE BARS HINGE UPPER: P112032 HH06050 LOWER: P112033 HINGE PIN FRRE08-1.75 REAR GRATE SUPPORT HDW09012 FUEL RETAINER HCW09ARRT025 OPERATING TOOL HFR07040 CAM BAR ASHPAN HCW09ARRT020 HDW09ARRT007 CATCH BAR...
-
Page 24: Commissioning & Installation Checklist
COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the smoke test? Has this appliance passed the spillage test? -
Page 25: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer...
