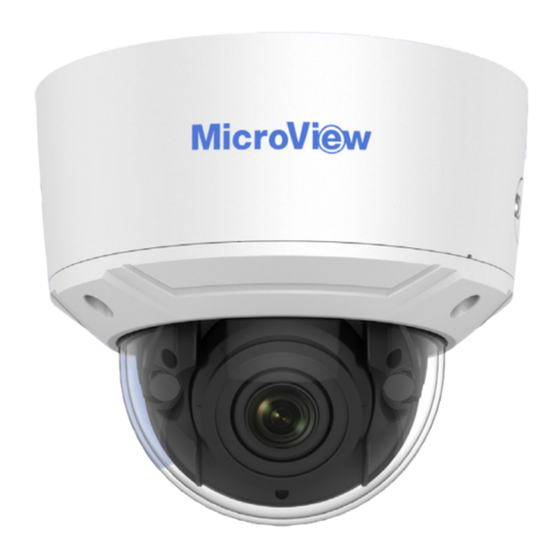

ERNITEC MicroView MVIC-O4IR-E User Manual
  1. Manuals
  2. Brands
  3. ERNITEC Manuals
  4. Security Camera
  5. MicroView MVIC-O4IR-E
  6. User manual

ERNITEC MicroView MVIC-O4IR-E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Cameras
User Manual
MVIB-04IR-E
MVIC-O4IR-E
MVID-04IR-E
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroView MVIC-O4IR-E and is the answer not in the manual?

Questions and answers

Related Manuals for ERNITEC MicroView MVIC-O4IR-E

Summary of Contents for ERNITEC MicroView MVIC-O4IR-E

  • Page 1 Network Cameras User Manual MVIB-04IR-E MVIC-O4IR-E MVID-04IR-E...
  • Page 2 Network Camera User Manual User Manual About this Manual This Manual is applicable to Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 Network Camera User Manual SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
  • Page 4 Network Camera User Manual standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.  To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.
  • Page 5 Network Camera User Manual expose it to high electromagnetic radiation.  To avoid heat accumulation, ensure there is good ventilation to the device.  Keep the camera away from water and any liquids.  While shipping, pack the camera in its original, or equivalent, packing materials. Or packing the same texture.

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 System Requirement ................5 Chapter 2 Network Connection ................6 Setting the Network Camera over the LAN ............6 2.1.1 Wiring over the LAN......................6 2.1.2 Activating the Camera ...................... 7 2.1.3 (Optional) Setting Security Question ................13 Setting the Network Camera over the WAN .............
  • Page 7 Network Camera User Manual Maintenance ....................44 6.3.1 Upgrade & Maintenance ....................44 6.3.2 Log ..........................45 6.3.3 System Service ........................ 46 Security Settings ....................47 6.4.1 Authentication ........................ 47 6.4.2 IP Address Filter ......................48 6.4.3 Security Service ....................... 49 User Management ...................
  • Page 8 Network Camera User Manual 9.1.2 Day/Night Scheduled-Switch ..................87 Configuring OSD Settings ................. 88 Configuring Privacy Mask ................90 Configuring Picture Overlay ................91 Event Settings ................92 Chapter 10 10.1 Basic Events ..................... 92 10.1.1 Configuring Motion Detection ..................92 10.1.2 Configuring Video Tampering Alarm ................
  • Page 9 Network Camera User Manual Application ..................157 Chapter 14 14.1 Face Capture Statistics ..................157 14.2 People Counting Statistics ................157 14.3 Heat Map Statistics ..................158 14.4 Counting Statistics ..................159 Appendix ......................161 Appendix 1 SADP Software Introduction ..............161 Appendix 2 Port Mapping ..................164 0505001070731...

  • Page 10: Chapter 1 System Requirement

    Network Camera User Manual Chapter 1 System Requirement Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version.

  • Page 11: Chapter 2 Network Connection

    Chapter 2 Network Connection Note:  You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

  • Page 12: Activating The Camera

    Network Camera User Manual  Refer to the Figure 2-2 to set network camera over the LAN via a switch or a router. Network Cable Network Camera Computer Connecting Directly Network Camera Computer Connecting via a Switch or a Router Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera.
  • Page 13 Network Camera User Manual Activation via Web Browser 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 14 Network Camera User Manual Select inactive device. Input and confirm password. SADP Interface Note: The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details. 3. Create a password and input the password in the password field, and confirm the password.
  • Page 15 Network Camera User Manual Modify the IP Address 6. Input the password and click the Modify button to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details. ...
  • Page 16 Network Camera User Manual Control Panel 2. Click the Device Management icon to enter the Device Management interface, as shown in the figure below. Device Management Interface 3. Check the device status from the device list, and select an inactive device.
  • Page 17 Network Camera User Manual 4. Click the Activate button to pop up the Activation interface. 5. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 18: Optional) Setting Security Question

    Network Camera User Manual Modifying the Network Parameters 8. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. 9. Input the password to activate your IP address modification. (Optional) Setting Security Question Security question is used to reset the admin password when admin user forgets the password.

  • Page 19: Static Ip Connection

    Network Camera User Manual Static IP Connection Before you start: Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

  • Page 20: Dynamic Ip Connection

    Network Camera User Manual Accessing the Camera with Static IP Directly Dynamic IP Connection Before you start: Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router. ...
  • Page 21 Network Camera User Manual Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.

  • Page 22: Chapter 3 Access To The Network Camera

    Chapter 3 Access to the Network Camera Accessing by Web Browsers Steps: 1. Open the web browser. 2. In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface. Note: The default IP address is 192.168.1.64.

  • Page 23: Accessing By Client Software

    Network Camera User Manual Download and Install Plug-in Note: You may have to close the web browser to finish the installation of the plug-in. 6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login.
  • Page 24 Network Camera User Manual Guarding Expert Control Panel Guarding Expert Main View...

  • Page 25: Chapter 4 Wi-Fi Settings

    Network Camera User Manual Chapter 4 Wi-Fi Settings Purpose: By connecting to the wireless network, you don’t need to use cable of any kind for network connection, which is very convenient for the actual surveillance application. Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module. Configuring Wi-Fi Connection in Manage and Ad- hoc Modes Purpose:...
  • Page 26 Network Camera User Manual Wi-Fi List 3. Click to choose a wireless connection on the list. Wi-Fi Setting- Manage Mode 4. Check the radio button to select the Network mode as Manage, and the Security mode of the network is automatically shown when you select the wireless network, please don’t change it manually.
  • Page 27 Network Camera User Manual Wi-Fi Setting- Ad-hoc 2. Customize a SSID for the camera. 3. Choose the Security Mode of the wireless connection. 4. Enable the wireless connection function for your PC. 5. On the PC side, search the network and you can see the SSID of the camera listed.
  • Page 28 Network Camera User Manual WEP Mode  Authentication - Select Open or Shared Key System Authentication, depending on the method used by your access point. Not all access points have this option, in which case they probably use Open System, which is sometimes known as SSID Authentication.
  • Page 29 Network Camera User Manual TLS or EAP-PEAP. EAP-TLS EAP-TLS  Identity - Enter the user ID to present to the network.  Private key password – Enter the password for your user ID.  EAPOL version - Select the version used (1 or 2) in your access point. ...

  • Page 30: Easy Wi-Fi Connection With Wps Function

    Network Camera User Manual devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
  • Page 31 Network Camera User Manual PBC refers to the Push-Button-Configuration, in which the user simply has to push a button, either an actual or virtual one (as the button on the configuration interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

  • Page 32: Ip Property Settings For Wireless Network Connection

    Network Camera User Manual Use PIN Code If the PIN code is generated from the router side, you should enter the PIN code you get from the router side in the Router PIN code field. 3. Click Connect. You can generate the PIN code on the camera side. And the expired time for the PIN code is 120 seconds.
  • Page 33 Network Camera User Manual Setting WLAN Parameters 3. Customize the IPv4 address, the IPv4 Subnet Mask and the Default Gateway. The setting procedure is the same with that of LAN. If you want to be assigned the IP address you can check the checkbox to enable the DHCP.

  • Page 34: Chapter 5 Live View

    Chapter 5 Live View Live View Page Purpose: The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

  • Page 35: Starting Live View

    Network Camera User Manual selectable. And for Non-IE users, webcomponents, quick time, VLC or MJPEG is selectable if they are supported by the web browser. PTZ Control: Perform panning, tilting and zooming actions of the camera. Control the light and the wiper.

  • Page 36: Recording And Capturing Pictures Manually

    Network Camera User Manual Recording and Capturing Pictures Manually In the live view interface, click on the toolbar to capture the live pictures or click to record the live view. The saving paths of the captured pictures and clips can be set on the Configuration >...

  • Page 37: Setting/Calling A Preset

    Network Camera User Manual Click the zoom/focus/iris buttons to realize lens control. Notes:  There are eight direction arrows ( , ) in the control panel. Click the arrows to realize adjustment in the relative positions.  For the cameras which support lens movements only, the direction buttons are invalid.

  • Page 38: Setting/Calling A Patrol

    Network Camera User Manual Setting a Preset 2. Use the PTZ control buttons to move the lens to the desired position. • Pan the camera to the right or left. • Tilt the camera up or down. • Zoom in or out. •...
  • Page 39 Network Camera User Manual 2. Select a path No., and click to add the configured presets. 3. Select the preset, and input the patrol duration and patrol speed. 4. Click OK to save the first preset. 5. Follow the steps above to add the other presets. Figure 5-6 Add Patrol Path 6.

  • Page 40: Chapter 6 Network Camera Configuration

    Chapter 6 Network Camera Configuration Configuring Local Parameters Purpose: The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.
  • Page 41 Network Camera User Manual streaming under some network environments. MULTICAST: It’s recommended to select MCAST type when using the Multicast function. For detailed information about Multicast, refer to Section 7.1.1 Configuring TCP/IP Settings.  Play Performance: Set the play performance to Shortest Delay or Auto. ...

  • Page 42: Configure System Settings

    Network Camera User Manual Configure System Settings Purpose: Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc. Configuring Basic Information Enter the Device Information interface: Configuration > System > System Settings > Basic Information.
  • Page 43 Network Camera User Manual You can follow the instructions in this section to configure the time synchronization and DST settings. Steps: 1. Enter the Time Settings interface, Configuration > System> System Settings > Time Settings. Time Settings 2. Select the Time Zone of your location from the drop-down menu. 3.

  • Page 44: Configuring Rs232 Settings

    Network Camera User Manual Time Sync by NTP Server Note: If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44).

  • Page 45: Configuring Rs485 Settings

    Network Camera User Manual  Parameters Configuration: Connect a computer to the camera through the serial port. Device parameters can be configured by using software such as HyperTerminal. The serial port parameters must be the same as the serial port parameters of the camera.

  • Page 46: Configuring Dst Settings

    Network Camera User Manual 1. Enter RS-485 Port Setting interface: Configuration > System > System Settings > RS485. RS-485 Settings 2. Set the RS485 parameters and click Save to save the settings. By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and the Parity and Flow Control is None.

  • Page 47: Configuring External Devices

    Network Camera User Manual DST Settings 2. Select the start time and the end time. 3. Select the DST Bias. 4. Click Save to activate the settings. Configuring External Devices Purpose: For the device supported external devices, including the wiper on the housing or the LED light, you can control them via the Web browser.

  • Page 48: Configuring Vca Resource

    Network Camera User Manual the Start Time and End Time. Set Schedule  Auto: The LED will be turned on according to the environment illumination. 5. Click Save to save the settings. Configuring VCA Resource Purpose: VCA resource offers you options to enable certain VCA functions according to actual need when several VCA functions are available.

  • Page 49: Open Source Software License

    Network Camera User Manual Map is enabled, Face Detection interface will not be displayed. The function may not be supported by some camera models. • Open Source Software License Information about the open source software that applies to the IP camera can be checked if required.

  • Page 50: Log

    Network Camera User Manual encryption password is required when you import the file to other cameras. Diagnose Information: click to download log and system information.  Import Config. File Configuration file is used for the batch configuration of the cameras. Steps: 1.

  • Page 51: System Service

    Network Camera User Manual Log Searching Interface 2. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time. 3. Click Search to search log files. The matched log files will be displayed on the log list interface.

  • Page 52: Security Settings

    Network Camera User Manual IR LED, ABF (Auto Back Focus), Auto Defog, or Status LED, you can select to enable or disable the corresponding service according to the actual demands. ABF: When ABF function is enabled, you can click on PTZ control panel to realize auxiliary focus.

  • Page 53: Ip Address Filter

    Network Camera User Manual Digest is the recommended authentication method for better data security. You must be aware of the risk if you adopt basic as the authentication method. 3. Click Save to save the settings. IP Address Filter Purpose: This function makes it possible for access control.

  • Page 54: Security Service

    Network Camera User Manual (3) Click the OK to finish adding.  Modify an IP Address Steps: (1) Left-click an IP address from filter list and click Modify. (2) Modify the IP address in the text filed. Modify an IP (3) Click the OK to finish modifying.

  • Page 55: User Management

    Network Camera User Manual Note: If the IP address is rejected, you can try to login the device after 30 minutes. User Management User Management  As Administrator The admin user can add, delete or modify user accounts, and grant them different permissions.
  • Page 56 Network Camera User Manual ● Users of different levels own different default permissions. Operator and user are selectable. STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 57: Security Question

    Network Camera User Manual Security Question Purpose: Security question is used to reset the admin password when admin user forgets the password. Set Security Question: You can set the security questions during camera activation. Or you can set the function at user management interface.

  • Page 58: Online Users

    Network Camera User Manual Online Users Purpose: You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list. View the Online Users...

  • Page 59: Chapter 7 Network Settings

    Chapter 7 Network Settings Purpose: Follow the instructions in this chapter to configure the basic settings and advanced settings. Configuring Basic Settings Purpose: You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section. Configuring TCP/IP Settings Purpose: TCP/IP settings must be properly configured before you operate the camera over...
  • Page 60 Network Camera User Manual TCP/IP Settings 2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address. 3. (Optional) Check the checkbox of Enable Multicast Discovery, and then the online network camera can be automatically detected by client software via private multicast protocol in the LAN.

  • Page 61: Configuring Ddns Settings

    Network Camera User Manual multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.  A reboot is required for the settings to take effect. Configuring DDNS Settings Purpose: If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.
  • Page 62 Network Camera User Manual Figure 7-2 DynDNS Settings  NO-IP: Steps: (1) Choose the DDNS Type as NO-IP. Figure 7-3 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password. (5) Click Save and then you can view the camera with the domain name.

  • Page 63: Configuring Pppoe Settings

    Network Camera User Manual Configuring PPPoE Settings Steps: Enter the PPPoE Settings interface: Configuration > Network > Basic Settings > PPPoE PPPoE Settings 2. Check the Enable PPPoE checkbox to enable this feature. 3. Enter User Name, Password, and Confirm password for PPPoE access. Note: The User Name and Password should be assigned by your ISP.

  • Page 64: Configure Nat (Network Address Translation) Settings

    Network Camera User Manual You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port. Steps: 1. Enter the Port Settings interface, Configuration > Network > Basic Settings > Port Port Settings 2. Set the HTTP port, RTSP port, HTTPS port and server port of the camera. HTTP Port: The default port number is 80, and it can be changed to any port No.

  • Page 65: Configure Advanced Settings

    Network Camera User Manual UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router. Steps: 1.
  • Page 66 Network Camera User Manual You can set the SNMP function to get camera status, parameters and alarm related information, and manage the camera remotely when it is connected to the network. Before you start: Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port.
  • Page 67 Network Camera User Manual SNMP Settings 2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly. 3. Configure the SNMP settings. Note: The settings of the SNMP software should be the same as the settings you...

  • Page 68: 7.2.2 Configuring Ftp Settings

    Network Camera User Manual configure here. 4. Click Save to save and finish the settings. Notes: A reboot is required for the settings to take effect. • To lower the risk of information leakage, you are suggested to enable SNMP v3 •...
  • Page 69 Network Camera User Manual FTP server login.  For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

  • Page 70: 7.2.3 Configuring Email Settings

    Network Camera User Manual anonymous access to the FTP server. Note: The anonymous access function must be supported by the FTP server. 6. Click Save to save the settings. 7.2.3 Configuring Email Settings Purpose: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.
  • Page 71 Network Camera User Manual The SMTP port should be set as 465 for this encryption method. When you select SSL or TLS and enable STARTTLS, emails will be sent after encrypted by STARTTLS, and the SMTP port should be set as 25. Note: If you want to use STARTTLS, make sure that the protocol is supported by your e-mail server.

  • Page 72: Platform Access

    Network Camera User Manual Email Settings 4. Click Save to save the settings. Platform Access Purpose: Platform access provides you an option to manage the devices via platform. Steps: 1. Enter the Platform Access settings interface: Configuration > Network > Advanced Settings >...

  • Page 73: Wireless Dial

    Network Camera User Manual 1) Click and read "Terms of Service" and "Privacy Policy" in pop-up window. 2) Create a verification code or change the verification code for the camera. Note: The verification code is required when you add the camera to Guarding Vision •...

  • Page 74: Https Settings

    Network Camera User Manual selectable. If Auto is selected, the network selection priority comes as: 4G > 3G > Wired Network. 4) Input the offline time if Manual is selected as the dial mode. 5) Input the UIM Number (Mobile Phone Number). 6) Click the Edit button to set the arming schedule if Auto is selected as the dial mode.
  • Page 75 Network Camera User Manual E.g., If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser. Steps: 1. Enter the HTTPS settings interface. Configuration > Network > Advanced Settings >...

  • Page 76: Configuring Qos Settings

    Network Camera User Manual is grayed out.  Create the authorized certificate (1) Select Create the certificate request first and continue the installation as the Installation Method. (2) Click Create button to create the certificate request. Fill in the required information in the popup window.

  • Page 77: Configuring 802.1X Settings

    Network Camera User Manual QoS Settings 2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the priority is. Note: DSCP refers to the Differentiated Service Code Point;...

  • Page 78: Integration Protocol

    Network Camera User Manual case letters, lower case letters, numbers and special characters) in order to increase the security of your product.  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: 1.

  • Page 79: Bandwidth Adaptation

    Network Camera User Manual 2. Add ONVIF users. Up to 32 users are allowed. Set the user name and password, and confirm the password. You can set the user as media user, operator, and administrator. Note: ONVIF user account is different from the camera user account. You have set ONVIF user account independently.

  • Page 80: Chapter 8 Video/Audio Settings

    Chapter 8 Video/Audio Settings Purpose: Follow the instructions below to configure the video setting, audio settings, ROI, and Display info. on Stream. Configuring Video Settings Steps: 1. Enter the Video Settings interface, Configuration > Video/Audio > Video Video Settings 2. Select the Stream Type of the camera to main stream (normal), sub-stream or third stream.
  • Page 81 Network Camera User Manual Enable Third Stream to reboot the system and enable the third stream. The main stream is usually for recording and live view with good bandwidth, • and the sub-stream can be used for live view when the bandwidth is limited. To enable the third stream, go to System>Maintenance>System Service>...
  • Page 82 Network Camera User Manual selectable. H.265 is a new encoding technology. Compared with H.264, it reduces the transmission bitrate under the same resolution, frame rate and image quality. Note: Selectable video encoding types may vary according to different camera modes. H.264+ and H.265+: H.264+: If you set the main stream as the stream type, and H.264 as the video •...

  • Page 83: Configuring Audio Settings

    Network Camera User Manual monitoring scene. Max. Average Bitrate: When you set a maximum bitrate, its corresponding recommended maximum average bitrate will be shown in the Max. Average Bitrate box. You can also set the maximum average bitrate manually from 32 Kbps to the value of the set maximum bitrate.

  • Page 84: Configuring Roi Encoding

    Network Camera User Manual Audio Settings 2. Configure the following settings. Note: Audio settings vary according to different camera models. Audio Encoding: G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2 and PCM are selectable. For MP2L2, the Sampling Rate and Audio Stream Bitrate are configurable.
  • Page 85 Network Camera User Manual Region of Interest Settings Steps: 1. Enter the ROI settings interface: Configuration > Video/Audio > ROI. 2. Select the Stream Type for ROI encoding. 3. Check the checkbox of Enable under Fixed Region item. 4. Set Fixed Region for ROI. (1) Select the Region No.

  • Page 86: Display Info. On Stream

    Network Camera User Manual (3) Click Drawing. Click and drag the mouse on the view screen to draw a red rectangle as the ROI region. You can click Clear to cancel former drawing. Click Stop Drawing when you finish. (4) Select the ROI level. (5) Enter a region name for the chosen region.
  • Page 87 Network Camera User Manual You can specify a target area on the live video, and then the specified video area can be displayed via the third stream in certain resolution, providing more details of the target area if needed. Note: Target cropping function varies according to different camera models.

  • Page 88: Chapter 9 Image Settings

    Chapter 9 Image Settings Purpose: Follow the instructions in this chapter to configure the image parameters, including display settings, OSD settings, privacy mask, and picture overlay. Configuring Display Settings Purpose: Configure the image adjustment, exposure settings, day/night switch, backlight settings, white balance, image enhancement, video adjustment, and other parameters in display settings.
  • Page 89 Network Camera User Manual 2. Set the image parameters of the camera. Note: In order to guarantee the image quality in different illumination, it provides two sets of parameters for users to configure.  Image Adjustment Brightness describes bright of the image, which ranges from 1 to 100. Contrast describes the contrast of the image, which ranges from 1 to 100.
  • Page 90 Network Camera User Manual Day/Night Switch Day: the camera stays at day mode. Night: the camera stays at night mode. Auto: the camera switches between the day mode and the night mode according to the illumination automatically. The sensitivity ranges from 0 to 7, the higher the value is, the easier the mode switches.
  • Page 91 Network Camera User Manual image as the BLC area. WDR: Wide Dynamic Range can be used when there is a high contrast of the bright area and the dark area of the scene. HLC: High Light Compression function can be used when there are strong lights in the scene affecting the image quality.

  • Page 92: Day/Night Scheduled-Switch

    Network Camera User Manual function when you use the camera in a narrow view scene. When installing, turn the camera to the 90 degrees or rotate the 3-axis lens to 90 degrees, and set the rotate mode as on, you will get a normal view of the scene with 9:16 aspect ratio to ignore the needless information such as the wall, and get more meaningful information of the scene.

  • Page 93: Configuring Osd Settings

    Network Camera User Manual Day/Night Scheduled-Switch Configuration Interface Steps: 1. Click the calendar icon to select the start time and the end time of the switch. Notes: The start time and end time refer to the valid time for day mode. •...
  • Page 94 Network Camera User Manual OSD Settings Steps: 1. Enter the OSD Settings interface: Configuration > Image > OSD Settings. 2. Check the corresponding checkbox to select the display of camera name, date or week if required. 3. Edit the camera name in the text field of Camera Name. 4.

  • Page 95: Configuring Privacy Mask

    Network Camera User Manual 8. Click Save to save the settings. Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1.

  • Page 96: Configuring Picture Overlay

    Network Camera User Manual you set without saving them. 6. Click Save to save the settings. Configuring Picture Overlay Purpose: Picture overlay enables you to overlay a picture on the image. This function enables a certain enterprise or users to overlay their logo on the image. Steps: 1.

  • Page 97: Chapter 10 Event Settings

    Chapter 10 Event Settings This section explains how to configure the network camera to respond to alarm events, including basic event and smart event. Basic Events You can configure the basic events by following the instructions in this section, including motion detection, video tampering, alarm input, alarm output, and exception, etc.
  • Page 98 Network Camera User Manual 3. Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles. Note: Select Disable for rules if you don’t want the detected objected displayed with the green rectangles. Select disable rules from Configuration > Local Configuration >...
  • Page 99 Network Camera User Manual Task 2: Set the Arming Schedule for Motion Detection Arming Schedule Steps: 1. Click Arming Schedule to edit the arming schedule. 2. Click on the time bar and drag the mouse to select the time period. Arming Schedule Note: Click on the selected time period, you can adjust the time period to the...
  • Page 100 Network Camera User Manual 4. Move the mouse to the end of each day, a copy dialogue box pops up, and you can copy the current settings to other days. 5. Click Save to save the settings. Note: The time of each period can’t be overlapped. Up to 8 periods can be configured for each day.
  • Page 101 Network Camera User Manual Capture the image when an alarm is triggered and upload the picture to a FTP server. Notes: ● Set the FTP address and the remote FTP server first. Refer to Section 7.2.2 Configuring FTP Settings for detailed information. ●...
  • Page 102 Network Camera User Manual Expert Mode of Motion Detection  Day/Night Switch OFF Steps: 1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported. 2. Select OFF for Switch Day and Night Settings. 3.

  • Page 103: 10.1.2 Configuring Video Tampering Alarm

    Network Camera User Manual Day/Night Scheduled-Switch 3. Select the start time and the end time for the switch timing. 4. Select the area by clicking the area No.. 5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime.

  • Page 104: 10.1.3 Configuring Alarm Input

    Network Camera User Manual 10.1.1. 5. Click Save to save the settings. 10.1.3 Configuring Alarm Input Steps: 1. Enter the Alarm Input Settings interface: Configuration > Event > Basic Event > Alarm Input. 2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed).

  • Page 105: 10.1.4 Configuring Alarm Output

    Network Camera User Manual 6. Click Save to save the settings. 10.1.4 Configuring Alarm Output Alarm Output Settings Steps: 1. Enter the Alarm Output Settings interface: Configuration> Event > Basic Event > Alarm Output. 2. Select one alarm output channel in the Alarm Output drop-down list. You can also set a name for the alarm output (optional).

  • Page 106: 10.1.5 Handling Exception

    Network Camera User Manual 5. You can copy the settings to other alarm outputs. 6. Click Save to save the settings. 10.1.5 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras. Steps: 1.
  • Page 107 Network Camera User Manual 1. Enter the Wireless Alarm Settings interface: Configuration > Advanced Configuration> Basic Event > Wireless Alarm Setting Wireless Alarm 2. Select the wireless alarm number. Up to 8 channels of external wireless alarm input are supported. 3.
  • Page 108 Network Camera User Manual  PIR Alarm Purpose: A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's field of view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs, cats, etc., can be detected. Steps: 1.

  • Page 109: Smart Events

    Network Camera User Manual Arming PIR Alarm  Emergency Alarm Purpose: You can press the Emergency button on the remote control to trigger the Emergency Alarm in case of an emergency. Note: The remote control is required for the Emergency Alarm. Go to Configuration >...

  • Page 110: Configuring Audio Exception Detection

    Network Camera User Manual including audio exception detection, defocus detection, scene change detection, intrusion detection, and line crossing detection, etc. These events can trigger the linkage methods, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc. Configuring Audio Exception Detection Purpose: Audio exception detection function detects the abnormal sounds in the surveillance scene, such as the sudden increase/decrease of the sound intensity, and some certain...

  • Page 111: Configuring Defocus Detection

    Network Camera User Manual the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise. 4. Check the checkbox of Sudden Decrease of Sound Intensity Detection to detect the sound steep drop in the surveillance scene. You can set the detection sensitivity and threshold for sound steep drop.

  • Page 112: Configuring Scene Change Detection

    Network Camera User Manual Configuring Defocus Detection 2. Check the checkbox of Enable to enable the function. 3. Click-and-drag the slider to set the detection sensitivity. The sensitivity value ranges from 1 to 100, and the higher the value is, the more easily the defocus image can trigger the alarm.

  • Page 113: Configuring Face Detection

    Network Camera User Manual Scene Change Detection 2. Check the checkbox of Enable to enable the function. 3. Click-and-drag the slider to set the detection sensitivity. The sensitivity value ranges from 1 to 100, and the higher the value is, the more easily the change of scene can trigger the alarm.
  • Page 114 Network Camera User Manual Enter the Face Detection settings interface, Configuration > Event > Smart Event > Face Detection. Check the Enable Face Detection checkbox to enable the function. Check the checkbox of Enable Dynamic Analysis for Face Detection, and then the detected face is marked with green rectangle on the live video.

  • Page 115: Configuring Intrusion Detection

    Network Camera User Manual Configuring Intrusion Detection Purpose: Intrusion detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered. Note: Intrusion detection function varies according to different camera models. Steps: 1.
  • Page 116 Network Camera User Manual 3. Select a region number from the drop-down list of Region. Region: A pre-defined vertexes area on the live view image. Targets, such as, people, vehicle or other objects, who enter and loiter in the region will be detected and trigger the set alarm.

  • Page 117: Configuring Line Crossing Detection

    Network Camera User Manual can click the Clear button to clear all pre-defined regions. 11. Click Arming Schedule to set the arming schedule. 12. Click Linkage Method to select the linkage methods for intrusion detection, including Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Channel and Trigger Alarm Output.
  • Page 118 Network Camera User Manual Line Crossing Detection 2. Check the checkbox of Enable to enable the function. 3. Select the line from the drop-down list. 4. Click Area Settings tab and click Draw Area button, and a virtual line is displayed on the live video.
  • Page 119 Network Camera User Manual Max. Size: The maximum size of a valid target. Targets with larger sizes would not trigger detection. Min. Size: The minimum size of a valid target. Targets with smaller sizes would not trigger detection. 7. Select the direction for line crossing detection. And you can select the directions as A<->B, A ->B, and B->A.

  • Page 120: Configuring Region Entrance Detection

    Network Camera User Manual Configuring Region Entrance Detection Purpose: Region entrance detection function detects people, vehicle or other objects which enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered. Steps: 1.

  • Page 121: Configuring Region Exiting Detection

    Network Camera User Manual click to complete drawing. 6. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than the valid target size are not able to trigger detection. Max. Size: The maximum size of a valid target. Targets with larger sizes would not trigger detection.
  • Page 122 Network Camera User Manual Steps: 1. Enter the Region Exiting Detection settings interface, Configuration > Event > Smart Event > Region Exiting Detection. Region Exiting Detection 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4.

  • Page 123: Configuring Unattended Baggage Detection

    Network Camera User Manual 6. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than the valid target size are not able to trigger detection. Max. Size: The maximum size of a valid target. Targets with larger sizes would not trigger detection.
  • Page 124 Network Camera User Manual 1. Enter the Unattended Baggage Detection settings interface, Configuration > Event > Smart Event > Unattended Baggage Detection. Unattended Baggage Detection 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4.

  • Page 125: Configuring Object Removal Detection

    Network Camera User Manual 7. Click Stop Drawing when finish drawing. 8. Set the time threshold and detection sensitivity for unattended baggage detection. Threshold: Range [5-100s], the threshold for the time of the objects left over in the region. If you set the value as 10, alarm is triggered after the object is left and stay in the region for 10s.
  • Page 126 Network Camera User Manual Object Removal Detection 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4. Click Area Settings and click Draw Area button to start the area drawing. 5.

  • Page 127: Vca Configuration

    Network Camera User Manual the region. If you set the value as 10, alarm is triggered after the object disappears from the region for 10s. 9. Drag the slider to set the sensitivity value. Sensitivity: Range [1-100]. It stands for the percentage of the body part of an acceptable target that leaves the pre-defined region.
  • Page 128 Network Camera User Manual Behavior Analysis  Overlay & Capture Display information includes the display on picture and display on stream. Display VCA info. on Stream: The green frames will be displayed on the target if in a live view or playback. Display Target info.
  • Page 129 Network Camera User Manual more accurate if the camera calibration is configured. Steps: 1. Check the checkbox of Camera Calibration to enable this function. 2. Select the calibration mode as Input Basic Data or Draw on Live View Video. Input Basic Data: Input the mounting height, viewing angle, and horizon ratio of the camera manually.
  • Page 130 Network Camera User Manual 4. You can click to delete the drawn lines. 5. Click Save to save the settings.  Shield Region The shield region allows you to set the specific region in which the behavior analysis will not function. Up to 4 shield regions are supported. Steps: 1.
  • Page 131 Network Camera User Manual Configure the Rule Filter type: Pixels and Actual Size are selectable. If Pixels is selected, draw the area of maximum size and minimum size on the live video for each rule. If Actual Size is selected, input the length and width of the maximum size and minimum size.
  • Page 132 Network Camera User Manual finish the area drawing. Note: If the live view is stopped, the detection area / line cannot be draw and the rules cannot be set. 4. Check the checkbox of the combined rule to enable the rule for behavior analysis.
  • Page 133 Network Camera User Manual Advanced Configuration Detection Sensitivity [0~4]: Refers to the sensitivity of the camera detects a target. The higher the value, the easier a target be recognized, and the higher the misinformation is. The default value of 3 is recommended. Background Update Rate [0~4]: It refers to the speed of the new scene replaces the previous scene.

  • Page 134: Face Capture

    Network Camera User Manual 1. Check the checkbox of Global Size Filter to enable the function. 2. Select the Filter Type as Actual Size or Pixel. Actual Size: Input the length and width of both the maximum size and the minimum size.
  • Page 135 Network Camera User Manual Snapshot Setting: Select the picture quality for the captured picture. Good, better, and best are selectable. Background Upload: Check the checkbox of background upload if you want to upload the background picture as well.  Shield Region The shield region allows you to set the specific region in which the face capture will not function.
  • Page 136 Network Camera User Manual The minimize pupil distance refers to the minimum square size composed by the area between two pupils, and it is the basic standard for a camera to identify a target. 3. Click the hexagons sign to draw the detection area you want the face capture to take effect.

  • Page 137: People Counting

    Network Camera User Manual recommended. Capture Times [1~10]: Refers to the capture times a face will be captured during its stay in the configured area. The default value is 1. Sensitivity [1~5]: The sensitivity to identify a target. The higher the value, the easier a face will be recognized, and the higher misinformation is.
  • Page 138 Network Camera User Manual configured area and it is widely applied to the entrances or exits. Notes: It is recommended to install the camera as right above the entrance/exit as possible, and make sure it is horizontal to improve the counting accuracy. ：...
  • Page 139 Network Camera User Manual Note:  The detection line should be drawn at the position right below the camera, and it should cover the whole entrance/exit.  Don’t draw the line at the place where people may linger. 4) You can click to delete the detection line.
  • Page 140 Network Camera User Manual Figure 10-32 People Counting Configuration-Advanced 5. Counting data setting and display. 1) Check Enable OSD Overlay checkbox, and the real-time number of people entered and exited is displayed on the live video. 2) You can drag the OSD text frame to adjust its position according to the actual needs.

  • Page 141: Counting

    Counting Counting function helps to calculate the number of people entered or exited a certain configured area and is widely applied to the entrances or exits. Compared with the people counting function supported by iDS camera, counting function needs no camera calibration. Notes: It is recommended to install the camera as right above the entrance/exit as possible, and make sure it is horizontal to improve the counting accuracy.

  • Page 142: Heat Map

    Network Camera User Manual 4. Set the detection line. An orange line, named as detection line can be set on the live video, and the object entering or exiting through the line will be detected and counted. 1) Click to draw a detection line, and an orange detection line will appear on the image.
  • Page 143 Network Camera User Manual Heat Map Configuration 2. Check Enable Heat Map checkbox to enable the function. 3. Go to Area Settings to draw detection area. Draw area by left click the end- points in the live view window, and right click to finish the area drawing. Up to 8 areas are configurable.

  • Page 144: Road Traffic

    Network Camera User Manual camera treats the cabinet (on which the good removed) as a new scene. The default value of 50 is recommended. Scene Change Level [0~100]: It refers to level of the camera responses to the dynamic environment, e.g., a swaying curtain. The camera may treat the swaying curtain as a target.
  • Page 145 Network Camera User Manual  Detection Configuration Steps: 1. Select the detection type from the list. Vehicle Detection and Mixed-traffic Detection are selectable. Note: Reboot the device to activate the new settings when switching the detection type of road traffic. 2.
  • Page 146 Network Camera User Manual triggered and upload the picture to a FTP server. And save the picture on the local SD card or connected NAS. 9. Click the Save button to activate the settings.

  • Page 147: Chapter 11 Storage Settings

    Chapter 11 Storage Settings Before you start: To configure record settings, please make sure that you have the network storage device or local storage device configured. Configuring Record Schedule Purpose: There are two kinds of recording for the cameras: manual recording and scheduled recording.
  • Page 148 Network Camera User Manual Record Parameters  Pre-record: The time you set to start recording before the scheduled time or the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5s, 10s, 15s, 20s, 25s, 30s or not limited.
  • Page 149 Network Camera User Manual refer to the Task 1: Set the Motion Detection Area in the Section 10.1.1.  Record Triggered by Alarm If you select Alarm, the video will be recorded when the alarm is triggered via the external alarm input channels. Besides configuring the recording schedule, you have to set the Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input Settings interface.

  • Page 150: Configure Capture Schedule

    Network Camera User Manual Configure Capture Schedule Purpose: You can configure the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage. Steps: 1. Enter the Capture Settings interface: Configuration > Storage > Storage Settings > Capture.

  • Page 151: Configuring Net Hdd

    Network Camera User Manual 5. Go to Capture Parameters tab to configure the capture parameters. (1) Check the Enable Timing Snapshot checkbox to enable continuous snapshot. (2) Select the picture format, resolution, quality and capture interval. (3) Check the Enable Event-triggered Snapshot checkbox to enable event- triggered snapshot.
  • Page 152 Network Camera User Manual store the recorded files, log files, pictures, etc. Steps: 1. Add Net HDD. (1) Enter the Net HDD settings interface, Configuration > Storage > Storage Management > Net HDD. Add Network Disk (2) Enter the IP address of the network disk, and enter the file path. (3) Select the mounting type.
  • Page 153 Network Camera User Manual space, status, type and property of the disk. Storage Management Interface (2) If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk. When the initialization completed, the status of disk will become Normal.

  • Page 154: Memory Card Detection

    Network Camera User Manual Quota Settings Note: Up to 8 NAS disks can be connected to the camera. Memory Card Detection Purpose: With memory card detection, you can view the memory card status, lock your memory card, and receive notification when your memory card is detected abnormal. Note: Memory card detection function is only supported by certain types of memory cards and camera models.
  • Page 155 Network Camera User Manual Memory Card Detection 2. View the memory card status on Status Detection tab. Remaining Lifespan: It shows the percentage of the remaining lifespan. The lifespan of a memory card may be influenced by factors such as its capacity and the bitrate.

  • Page 156: Configuring Lite Storage

    Network Camera User Manual card, and click the Unlock button shown next to the Format button. Then input the correct password to unlock it. Notes: The memory card can only be read and written in when it is unlocked. • If the camera, which adds a lock to a memory card, is restored to the factory •...
  • Page 157 Network Camera User Manual card on the page. 4. Click Save to save the settings.

  • Page 158: Chapter 12 Playback

    Chapter 12 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks or memory cards. Steps: 1. Click Playback on the menu bar to enter playback interface. Playback Interface 2. Select the date and click Search. Search Video 3.
  • Page 159 Network Camera User Manual The toolbar on the bottom of Playback interface can be used to control playing process. Playback Toolbar Table 12-1 Description of the buttons Button Operation Button Operation Play Capture a picture Start/Stop clipping video Pause files Audio on and adjust Stop volume/Mute...

  • Page 160: Chapter 13 Picture

    Chapter 13 Picture Click Picture to enter the picture searching interface. You can search, view, and download the pictures stored in the local storage or network storage. Notes:  Make sure HDD, NAS or memory card are properly configured before you process the picture search.
  • Page 161 Network Camera User Manual Up to 4000 pictures can be displayed at one time.

  • Page 162: Chapter 14 Application

    Chapter 14 Application Click Application to enter the statistics counting interface. You can search, view, and download the counting data stored in the local storage or network storage. Note: Application function varies according to the different camera models. Face Capture Statistics After you enable the face capture function, you can view and download the captured face data from application tab.

  • Page 163: Heat Map Statistics

    Network Camera User Manual counting data from application tab. To get more intuitional results, you can display the data in different charts. Steps: 1. Select the report type. Daily report, weekly report, monthly report, and annual report are selectable. Note: Daily report calculates the data on the date you selected;...

  • Page 164: Counting Statistics

    Network Camera User Manual Note: Daily report calculates the data on the date you selected; weekly report calculates for the week your selected date belongs to; monthly report calculates for the month your selected date belongs to; and the annual report calculates for the year your selected date belongs to.
  • Page 165 Network Camera User Manual different charts. Steps: 1. Select the report type. Daily report, weekly report, monthly report, and annual report are selectable. Note: Daily report calculates the data on the date you selected; weekly report calculates for the week your selected date belongs to; monthly report calculates for the month your selected date belongs to;...

  • Page 166: Appendix

    Appendix Appendix 1 SADP Software Introduction  Description of SADP SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices. You can also modify the basic network information of the devices using this software.
  • Page 167 Network Camera User Manual You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 168 Network Camera User Manual Figure A.1.2 Modify Network Parameters...

  • Page 169: Appendix 2 Port Mapping

    Network Camera User Manual Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-WR641G). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
  • Page 170 Network Camera User Manual camera as 81, 8001, 555, 8201 with IP 192.168.1.24. Refer to the steps as below: Steps: 1. As the settings mentioned above, map the port 80, 8000, 554 and 8200 for the network camera at 192.168.1.23 2.
  • Page 171 Network Camera User Manual...
