Figure D; Figure E - Dynojet Power Commander V Installation Instructions
For suzuki king quad 750
Hide thumbs
Also See for Power Commander V:
- Installation instructions manual (9 pages) ,
- Installation manual (9 pages) ,
- Installation instructions and owner's manuals (8 pages)
Table of Contents
Advertisement
FIG.D
FIG.E
IFC20031.01
www.powercommander.com
6

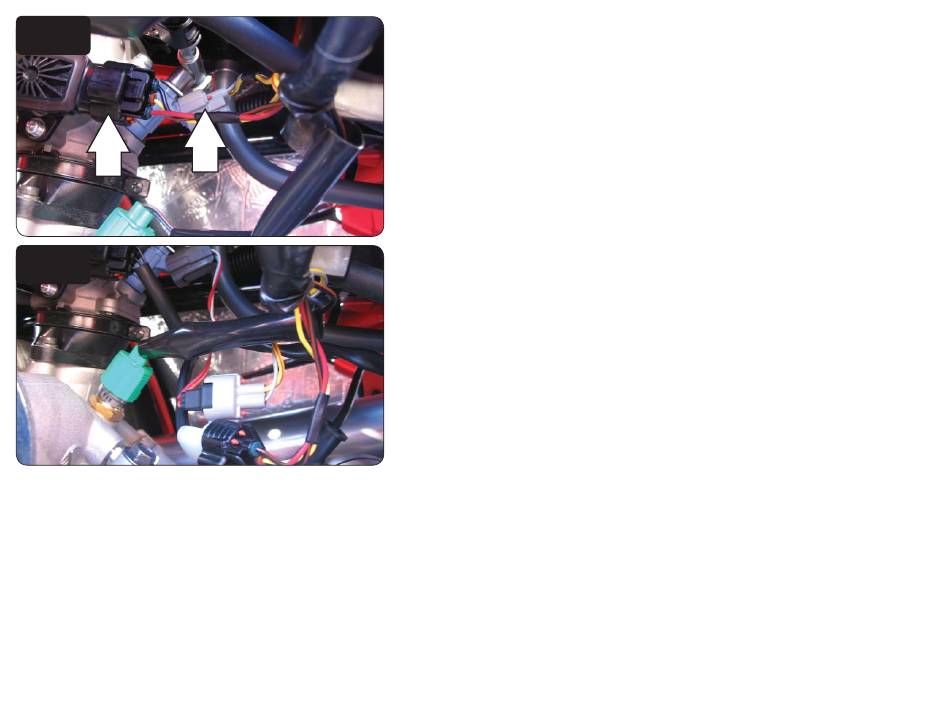

Unplug the stock wiring harness from the fuel injector as shown in Figure D.
7
Unplug the stock wiring harness from the Throttle Position Sensor (TPS) as
shown in Figure D.
8
Attach the connectors from the PCFC to the stock wiring harness and injector
as shown in Figure E.
9
Attach the connectors from the PCFC to the stock wiring harness and the TPS
as shown in Figure E.
10
Reinstall the covers.
11
Reinstall the seat.
2008-2014 Suzuki King Quad 750 - 4
