Installation Steps; Figure A; Figure B; Figure C - Dynojet Power Commander V Installation Instructions

FIG.A
FIG.B
FIG.C
harness
ground
IFC20031.01 www.powercommander.com
1 Remove the seat.

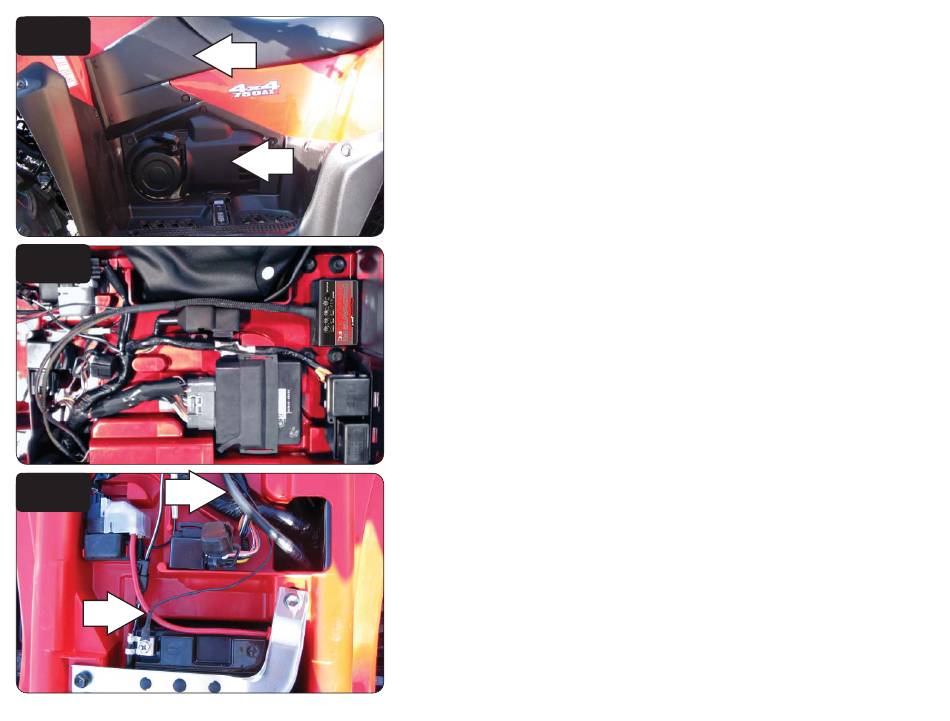

2 Remove the covers on the left hand side of the quad as shown in Figure A.
3 Using the supplied velcro, secure the PCFC under the seat as shown in

Figure B.

Make sure to clean both surfaces with the alcohol swab before attaching.
4 Route the PCFC harness to the left side of the quad and go through the hole
in the rear fender as shown in Figure C.
5 Attach the ground wire from the PCFC to the negative side of the battery as
shown in Figure C.
2008-2014 Suzuki King Quad 750 - 3
