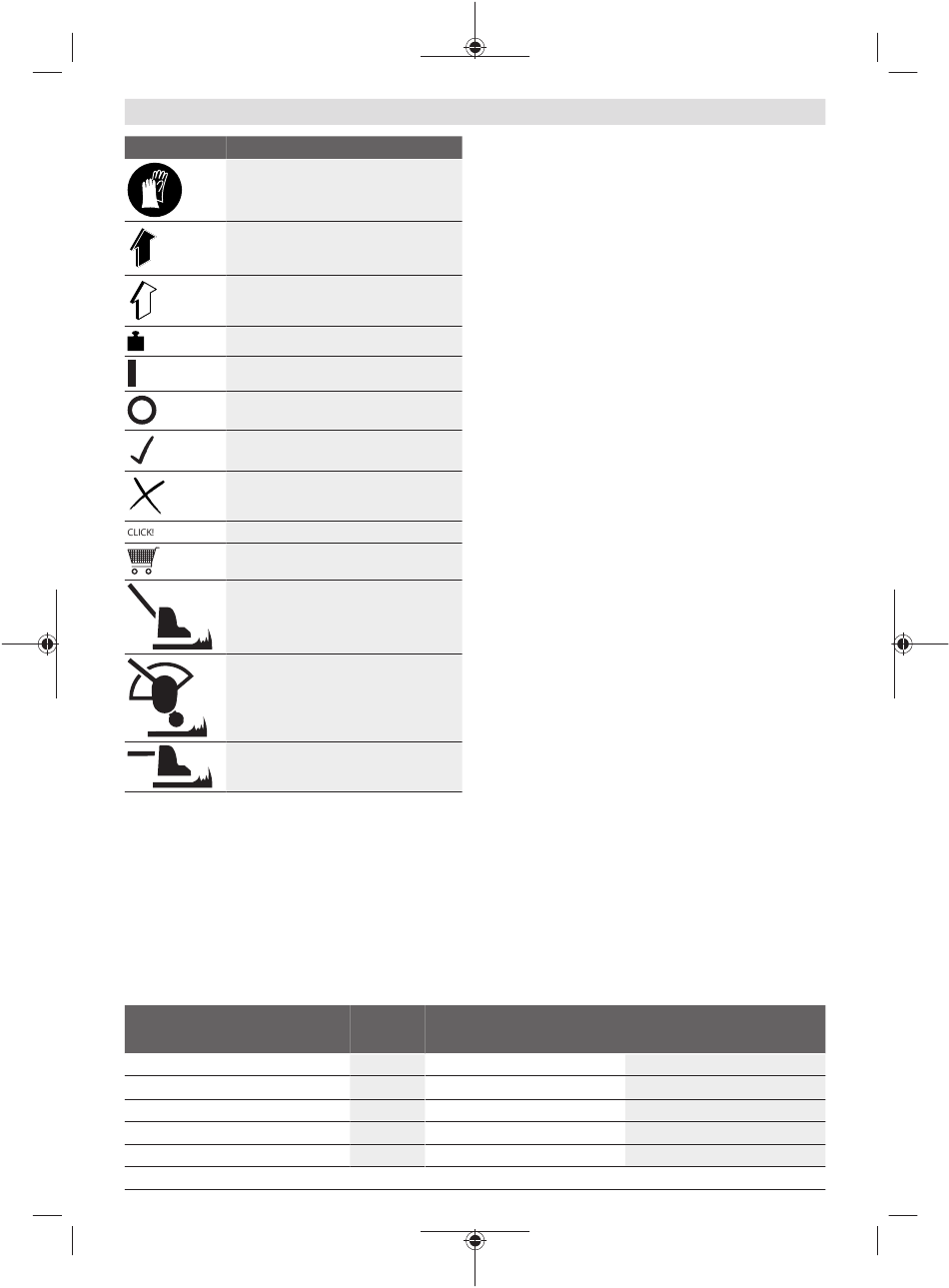

10 | English
Symbol
Meaning
Wear protective gloves
Movement direction
Reaction direction
Weight
Switching On
Switching Off
Permitted action
Prohibited action
Audible noise
Accessories/Spare Parts
Recommended position for grass cutting
Recommended position for edge trim-
ming
Recommended position for cutting under
bushes

Intended Use

The garden tool is intended for domestic use, for trimming
grass, weeds and nettles. It is designed for trimming grass
growing on slopes, under obstacles and lawn edges that can-
not be reached by the lawn mower. The garden tool is not
designed for use as a brush cutter. The garden tool is not in-
tended for commercial or industrial use.

Technical Data

Lawn Trimmer/Lawn Edge Trimmer
Article number
Rated voltage
No-load speed
Cutting line diameter
Cutting diameter
F 016 L81 804 | (28.02.2019)
Deliver scope (see figure B)
Carefully remove the garden tool from its packaging and
check if the following parts are complete:
– Grass trimmer
– Protection guard
– Wheel
– Battery**
– Charger**
– Original instructions
When parts are missing or damaged, please contact your
dealer.
** country specific
Product Features (see figure A)
The numbering of the product features refers to the illustra-
tion of the product on the graphics pages.
(1) Battery unlocking button
A)
(2) Battery
(3) Folding handle
(4) Foot pedal for adjusting the working angle for lawn
trimming/edge cutting
(5) Protection guard
(6) Wheel
(7) Handle-adjustment release
(8) On/Off switch
(9) Lock-off button for On/Off switch
(10) Button for adjustment of the working height
(11) Lever
A)
(12) Charger
(13) Spool cover
(14) Spool
(15) Hole for line wind-up
(16) Clamping ring
(17) Hook for threading-in the cutting line
(18) Slot for line guiding
(19) Hole for line guiding
A) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.
UniversalGrassCut 18
UniversalGrassCut 18-260
3 600 HC1 D..
V=
-1
min
mm
cm
UniversalGrassCut 18-26
3 600 HC1 E..
18
7300
1.6
26
Bosch Power Tools
18
7300
1.6
26
