BH: Calibration
BI: Input Voltage
BJ: Actual Output Voltage
BK: Actual Output Current
BL: Actual Output Power
BM: System Temperature(℃)
BN: System Temperature(℉)
BO: Constant Voltage/ Constant Current Status
BP: Protection Status Indication
BQ: Screen Brightness Setting
BR: Synchronize System Time
BS: Output Current Preset value
BT: Output Voltage Preset value
BU: Firmware Version
BV: Serial Number
BW: Product Model

3.3.1 Basic Functions

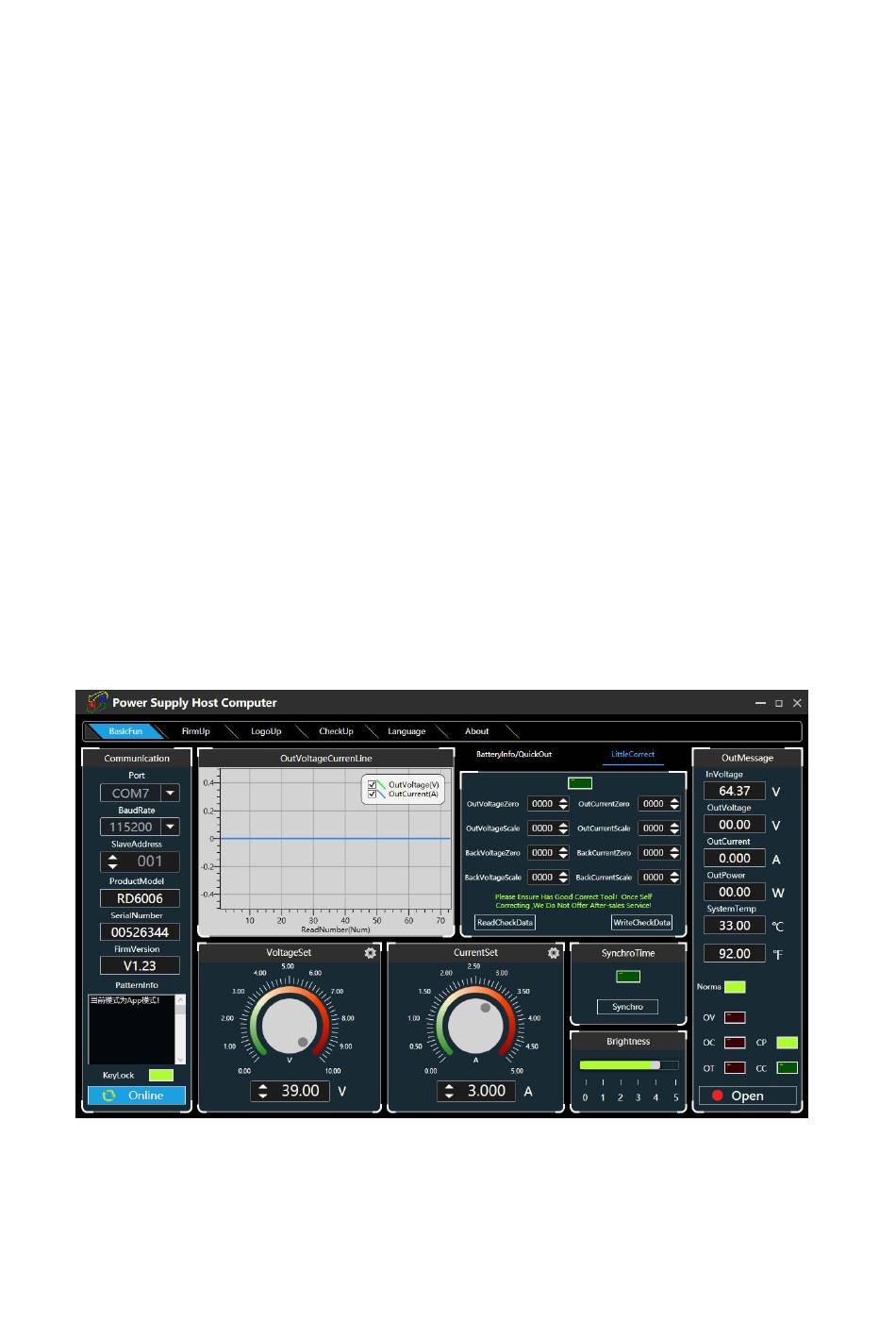

The basic functions of PC software: voltage/current preset, data group quick call out,
calibration fine tuning, brightness setting, voltage and current curve exporting. You can rotate the
wheel or type numbers to set the voltage and current, the graph above the button shows the
real-time voltage and current curve.

3.3.2 Firmware Upgrade

Press and hold "ENTER" and power on RD6006, enter the boot mode, then connect it to
computer, there will be "boot mode" in the mode information text box, then click "FirmUp", a
firmware upgrade prompt will pop up on the interface, and click "Upgrade Now" to upgrade. (You
