Constant Voltage and Constant Current
DC Power Supply Instruction

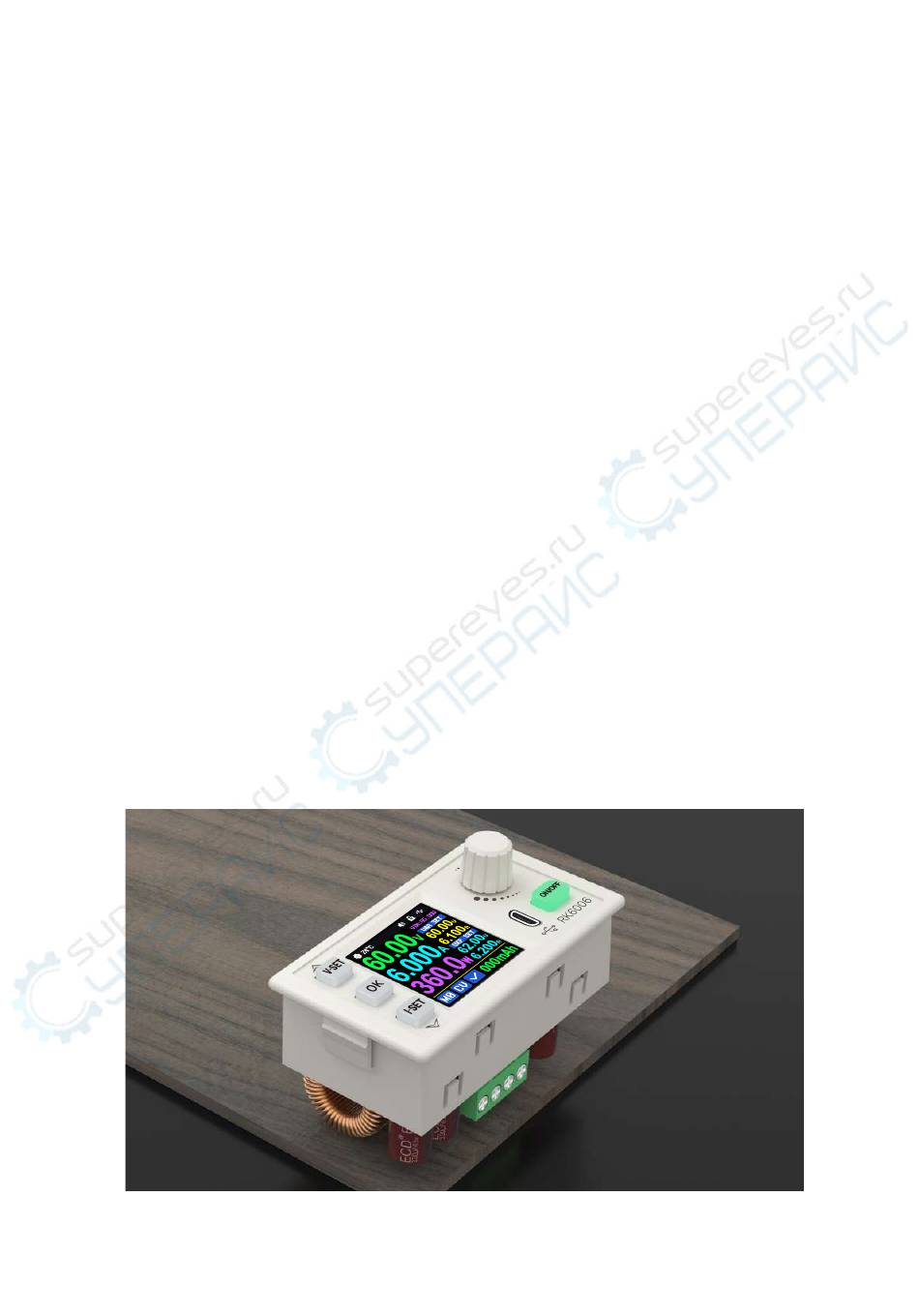

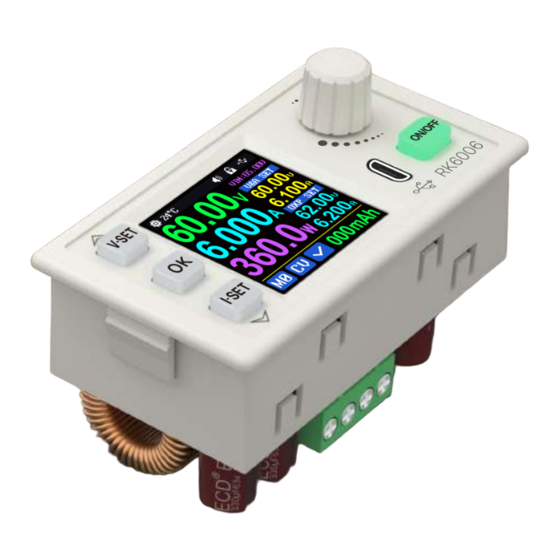

Model: RK6006/ RK6006-BT
Date: 2023.6.7
Dear users, thank you for purchasing the constant voltage constant current DC
power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you
know more about the full function of this product, get a better experience and avoid
misuse. Please read this instruction carefully before using it. Keep it for future
reference.
Note: This instruction is corresponding to firmware V1.07, the page and
operation may be different under different firmware versions, please pay attention
when using it. We do recommend you to download the latest firmware for better
experience.
Advertisement
Table of Contents
Related Manuals for Riden RK6006
Summary of Contents for Riden RK6006
-
Page 1: Constant Voltage And Constant Current
Constant Voltage and Constant Current DC Power Supply Instruction Model: RK6006/ RK6006-BT Date: 2023.6.7 Dear users, thank you for purchasing the constant voltage constant current DC power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse. -
Page 2: Table Of Contents
Constant Voltage and Constant Current .....................1 DC Power Supply Instruction ......................1 1.1 Technical Parameter ......................3 1.2 Core Function ........................4 1.3 Panel Instruction ........................5 1.3.1 Front Panel .........................5 1.3.2 Back Panel ........................5 1.4 Operation Instruction ......................6 1.4.1 Main Page ........................6 1.4.2 Operation Introduction ....................8 1.4.2.3 System Setting ...................... -
Page 3: Technical Parameter
1.1 Technical Parameter Model RK6006 Input voltage range 12-68.00V Output voltage range 0-60.00V Output current range 0-6.000A Output power range 0-360.0W Input voltage measurement resolution 0.01V Output voltage setting measurement resolution 0.01V Output current setting measurement resolution 0.001A Input voltage measurement accuracy ±(1%+5 digits) -
Page 4: Core Function
· Firmware update, support more functions later · 10 data groups for storage and call out · supports PC software · 1.54 inch HD color display · Supports Bluetooth communication(RK6006-BT) /USB communication · Support Android/ IOS APP · Embedded design, convenient to use... -
Page 5: Panel Instruction
1.3 Panel Instruction 1.3.1 Front Panel A: Voltage setting/Up Arrow B: Confirm Button/Set Menu Current setting / Down Arrow D: Encoder Potentiometer E: Screen F: Micro USB port G: Output Power Button 1.3.2 Back Panel H: External temperature sensor interface I: External fan interface J: Input fuse K: Input and Output terminal... -
Page 6: Operation Instruction
NOTE: This device input terminals must be connected to 12-68V constant DC power source. When the input voltage is greater than 72V, the output will be automatically turned off and an alarm (as shown in the right picture) will be automatically prompt. - Page 7 When the actual value of output current > 4A or system temperature > 45℃, the external fan socket output 5V, turn on external cooling fan, when the actual value of output current < 3.9A and system temperature < 40℃, the external fan socket stop output, fan stop, when the system temperature is greater than 90℃, protection status indication display and close output.
-
Page 8: Operation Introduction
1.4.2 Operation Introduction In the menu operation, the icon in red or cursor is the currently selected menu, press the encoder potentiometer to switch the menu, press to confirm or enter, press the direction button to move the cursor, rotate the encoder potentiometer to change the setting, press the button again to save the setting. -
Page 9: System Setting
1.4.2.2 Data Group Quick Storage and Call out Data group quick store and call out operation video：youtube/7bW9UcJY17o you can store the output voltage value, output current Long press button, value, over voltage protection value, over current protection value(as shown in Figure 1), rotate the encoder potentiometer to change the data group, press the encoder potentiometer and then press button to confirm, it will show... - Page 10 Settings Sub-menu(figure 3,4): System language is set to English by default. You can also set Simplified Chinese, French, Germany and Russian language; Take Out is set to OFF by default, when call out a data Figure 3 group, it will keep the previous output status, when set it ON, it will output directly when call out a data group.
-
Page 11: Main Page Display Style Setting
Communication Sub-menu(figure 5): Interface is set to USB by default, you can also set it to Bluetooth/TTL/RS485, USB means the micro USB port, you can see on the top when set it USB, and when the communication starts, it will show ;... -
Page 12: Storage Data Setting
1.4.2.5 Storage Data Setting Data group setting in manual operation video: youtube/7GYv6B40dGk Press to enter the system setting menu, then press encoder potentiometer and it will be twice Figure 10 switched to data group menu(as shown in figure 10): Press to enter the menu and choose the data group, press the encoder potentiometer to setting page, you can see there is cursor on the digit, rotate the... -
Page 13: Android App Instruction
Android APP Instruction 2.1 Mobile Phone APP Installation Only RK6006-BT supports Bluetooth connection. This App only supports Android 5.0 to Android 12.0 operating system, and there may be incompatibilities problems between APP and operating system, please install and test the software before buying the product. -
Page 14: App Operation
2.2.3.1 APP operation Click “BA”, you can set the language and device address in the sidebar. Click “BB”, you can add RK6006, search and add, the code is 1234, after matching, you can return to the main interface to choose RK series. - Page 15 the “BQ”, “BR” “BS” to change the position of cursor, click to set the parameter. . Click “BL”: Output on/off key, can control the power supply output, the function is equivalent to the output on/off button of the product. Click “BT”: Backlight brightness, you can set the backlight brightness of the product screen Click “BV”: Quick call out can quickly call out the data group 1-9.
-
Page 16: Ios App Instruction
IOS APP Instruction 3.1 Mobile Phone APP Installation Bluetooth connection only supported for RK6006-BT. 3.1.1 APP Download Apple APP only supports IOS10.0-14.3, iphone6 and above models, search for "Ruideng tech" in the Apple store to download. If you must use the software function, please pre-install the test first. -
Page 17: App Operation
It will show RK6006-BT automatically, You can see the user interface as shown in Picture below. DA: connect/disconnect DJ: output ON/OFF button DB: export data to mobile phone DK: protection status indication DC: data curve DL: constant voltage/ constant current status... -
Page 18: Pc Software Installation And Operation Instruction
CH341SER to install the driver, right click PC-management-device management-port, see if there is USB-SERIAL CH340(COMXX), if you see that, it means installation is successfully, then insert a Micro USB cable into RK6006 and wait for the computer to install the driver. -
Page 19: Functions Introduction
Choose the right communication port, baud rate, slave address (default 001), click “CONNECT” to start communication. If the communication succeeds, the power supply button will be locked automatically, the buttons will automatically unlock after 3 seconds of accidental disconnection, and the “CONNECT” turns to “DISCONNECT”;... -
Page 20: Basic Functions
Set the output voltage at 1V and calibrate the actual output voltage zero point to make the actual output voltage displayed on RK6006 close to the value on multimeter. You can set 30V and calibrate the proportional value of actual output... -
Page 21: Advanced Function
voltage. In the same way you can set 0.1A and 3A to calibrate the zero point and proportional value of the actual output current. (This section does not provide technical support. If you do not understand, please check the related information). -
Page 22: Firmware Update
4.3.4 Firmware Update Press and hold and power on RK6006, enter the boot mode, then connect it to computer, there will be “boot mode” in the mode information text box, then click “Firmware Update”, a firmware update prompt will pop up on the interface, and click “Now”... -
Page 23: Version Update Detection
4.3.6 Version Update Detection Click “FF”(“Software Update”), the software will automatically detect if there is a new version, if so, an update prompt will pop up on the interface. 4.3.7 Language Setting Click “FE”(“Language”), a language setting prompt will pop up on the interface, you can choose Simplified Chinese, English, France and German. -
Page 24: About
4.3.8 About Click “FG”(“About”), you can check the version number, publish time and copyright Information...
