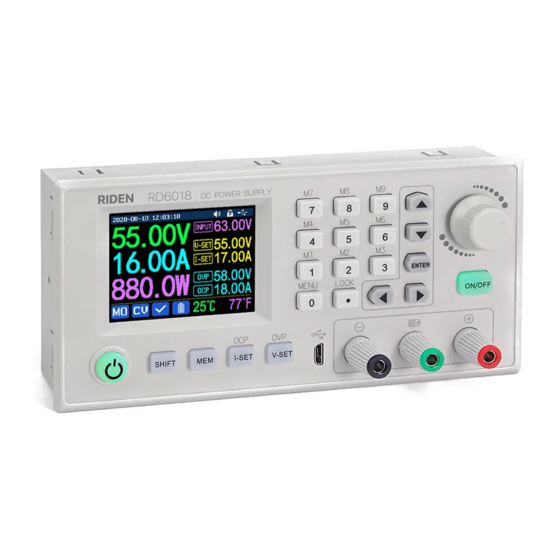

Riden RD6018W Instructions Manual
Constant voltage and constant current dc power supply
Hide thumbs
Also See for RD6018W:
- Instruction manual (68 pages) ,
- Instructions manual (67 pages) ,
- Manual (62 pages)
Table of Contents
Advertisement
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
Constant Voltage and Constant Current DC
Power Supply Instruction
Model: RD6006/RD6006W/ RD6012/RD6012WRD6018/RD6018W
Date: 2020.9.14
Dear users, thank you for purchasing the constant voltage constant current DC
power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you
know more about the full function of this product, get a better experience and avoid
misuse. Please read this instruction carefully before using it. Keep it for future
reference.
Note: This instruction is corresponding to firmware V1.30, the page and
operation may be different under different firmware versions, please pay attention
when using it. We do recommend you to download the latest firmware for better
experience.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Riden RD6018W
Summary of Contents for Riden RD6018W
-
Page 1: Constant Voltage And Constant Current Dc Power Supply Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Constant Voltage and Constant Current DC Power Supply Instruction Model: RD6006/RD6006W/ RD6012/RD6012WRD6018/RD6018W Date: 2020.9.14 Dear users, thank you for purchasing the constant voltage constant current DC power supply produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse. -
Page 2: Table Of Contents
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Content CONSTANT VOLTAGE AND CONSTANT CURRENT DC POWER SUPPLY INSTRUCTION......1 CONTENT..............................2 ..........................4 1.1 T ECHNICAL ARAMETER 1.2 C ...........................5 UNCTION 1.3 P ..........................5 ANEL NSTRUCTION 1.3.1 Front Panel..........................5 1.3.2 Back Panel..........................6 1.4 O ........................7 PERATION NSTRUCTION 1.4.1 Main Page..........................8 1.4.2 Operation Introduction......................8 ANDROID APP INSTRUCTION........................ - Page 3 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 4.3.2 Calibration..........................25 4.3.3 Advanced Function......................... 26 4.3.4 RS485 Multiple Devices Communication................26 4.3.5 Firmware Update........................27 4.3.6 Boot Logo Update........................28 4.3.7 Version Update Detection...................... 29 4.3.8 Language Setting........................30 4.3.9 About............................30 APPENDIX..............................32 ............... 32 1: C PPENDIX OMMON ATTERY OLTAGE OMPARISON ABLE...
-
Page 4: Technical Parameter
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 1.1 Technical Parameter Model RD6006- RD6012- RD6018- RD6006 RD6012 RD6018 Input voltage range 6-70.00V Output voltage range 0-60.00V Output current range 0-6.000A 0-12.00A 0-18.00A Output power range 0-360W 0-720W 0-1080W Input voltage measurement resolution 0.01V Output voltage setting measurement 0.01V resolution Output current setting measurement... -
Page 5: Core Function
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Cooling fan shut down condition when Output voltage <40V working and Output current Output current <7.9A and System temperature <3.9A and System <45℃ temperature <45℃ Over temperature protection System temperature >80℃ Screen brightness setting 0-5(6 level in total) Screen 2.4 inch color HD display Weight(with package) About 0.58kg... -
Page 6: Back Panel
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 A: Power button B: SHIFT Second function button C: Quick storage button D: Current/Over current protection setting E: Voltage/Over voltage protection setting F: Micro USB port G: Power supply output negative terminal/ H: Battery charging positive terminal Battery charging negative terminal (Dedicated terminal for battery charging) I: Power supply output positive terminal J: Output switch... -
Page 7: Operation Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 P: Input fuse Q: Output fuse R: Power source input interface S: External temperature sensor interface T: CR1220 battery socket U: Communication module interface V: Fan interface NOTE: Power source input interface must connected to 6-70V constant DC power source. The external sensor cable (as shown on right) must be connected to the external temperature sensor interface. -
Page 8: Main Page
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 1.4.1 Main Page W: Time AF: Protection status indication X: Button tune AG: Battery charging indication Y: Button lock status AH: Battery related information display area Z: Communication interface AM: Input voltage AA: Actual output voltage value AL: Output voltage preset value AB: Actual output current value AK: Output current preset value AC: Output power... - Page 9 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 The green terminal is connected to the positive pole of the battery, and the black terminal is connected to the negative pole of the battery. After the battery is correctly connected, the battery charging indicator turns red and the battery is connected.
- Page 10 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 or press the encoder potentiometer to cancel. Press “SHIFT”+ keypad button 1-9 to quick call out the saved data (as shown above). Press “ENTER” to confirm, or press the encoder potentiometer to cancel. 1.4.2.4 Keypad lock and unlock Keypad lock operation video： https://youtu.be/zxpmasJyQ6Y Press “SHIFT”+”LOCK”...
- Page 11 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Turn on the “Logo”, it will display Logo first and then enter the main page when boot RD6006. If you turn it off, you will enter the main page directly. The system language supports Simplified Chinese, English, German and France for the time being;...
- Page 12 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 1.4.2.6 Main Page Display Style Setting Main interface display style setting operation video： https://youtu.be/f51VDiY2VHE You can press SHIFT + MENU to enter the system setting menu, and then press the right button to enter the main page style setting menu as shown above. Press ENTER and then use direction button to set classic style or curve style.
- Page 13 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 1.4.2.8 System Information System information operation video： https://youtu.be/Um4NQObeeJE You can press SHIFT + MENU to enter the system setting menu, and then press the right button three times to enter the system information menu as shown above. You can view the SN number, firmware version and system temperature here.
-
Page 14: Android App Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Android APP Instruction 2.1 Mobile Phone APP Installation This App only supports Android 5.0 to Android 10.0 operating system, and there may be incompatibilities problems between APP and operating system, please install and test the It will apply for location service, please agree and software before buying the product. -
Page 15: App Operation
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 BN: call out/ shut down sidebar CB: set button BO: connection button CC: keypad lock indication BP: export data to mobile phone folder CD: protection status indication BQ: data curve CE: constant voltage/ constant current status BR: actual output current CF: screen brightness BS: actual output voltage CG: system temperature... - Page 16 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Picture 5 Picture 6 Picture 7 Picture 8...
- Page 17 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Connect Wi-Fi for the first time, please insert the WiFi board to the right place, then power on RD6012, you will see the blue LED blinks once. Set the communication interface to WIFI, restart RD6012, then place the RD6012 and the mobile phone close to the 2.4G router (the mobile phone must also be under the same 2.4G network, and the router must disable the AP isolation function and the WMM function).
-
Page 18: Ios App Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 IOS APP Instruction 3.1 Mobile Phone APP Installation 3.1.1 APP Download IOS APP can only supports IOS10.0-13.4 system, please search “RDPower” in the APP store to download, or search “RD6006” to find the APP ， and there may be incompatibilities problems between APP and operating system.The software opened under IOS13 will apply for location service for the first time. -
Page 19: App Operation
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 AZ: input voltage measurement value BM: personal center 3.2.3 APP Operation 3.2.3.1 Network Distribution Picture 9 Picture 10... - Page 20 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Picture 11 Picture 12 Picture 13 Picture 14 Connect Wi-Fi for the first time, please insert the WiFi board to the right place, then power on RD6012, you will see the blue LED blinks once. Set the communication interface to WIFI, restart RD6012, then place the RD6012 and the mobile phone close to the 2.4G router (the mobile phone must also be under the same 2.4G network, and the router must disable the AP isolation function and the WMM function).
- Page 21 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 successful, return to the main interface and click “AN”(Connection). If the distribution network fails, please power off the module and re-operate in the same way (multiple networking failures you can watch the video and try to use the hotspot of the mobile phone to test).
-
Page 22: Pc Software Installation And Operation Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 PC Software Installation and Operation Instruction Requirement: Win 7-Win10 system and the computer has Internet connection. This PC software is designed by Hangzhou Ruideng technology CO., LTD, it has no virus, if your anti-virus software prompts for a virus warning, please allow all its features, otherwise it will affect the normal operation of the software. -
Page 23: Software Operation
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 4.2 Software Operation 4.2.1 Software Connection Double click RidenPowerSupply.exe to run the PC software. WiFi connection is a test function, due to poor compatibility with some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback. -
Page 24: Functions Introduction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 4.3 Functions Introduction The PC software interface mainly has basic functions, firmware upgrade, Logo upgrade, version update detection and language setting... CP: Voltage-Current Curve DA: System Temperature(℃) CQ: Battery information/ DB: System Temperature(℉) Data Group Quick Call Out CR: Calibration DC: Constant Voltage/ Constant Current Status CS: RD/DPS series switch DD: Protection Status Indication... -
Page 25: Basic Functions
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 CU: Software Update DF: Synchronize System Time CV: About DG: Output Current Preset value CW: Input voltage DH: Output Voltage Preset value CX: Actual Output Voltage DI: Firmware Version CY: Actual Output Current DJ: Serial Number CZ: Actual Output Power DK: Product Model 4.3.1 Basic Functions PC software operation video:... -
Page 26: Advanced Function
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 technical support. If you do not understand, please check the related information). 4.3.3 Advanced Function You can set the output voltage and current by chart in the advanced function page, you can set every step between 1 and 9999 seconds, you can set 200 steps max, it can output automatically or manually. -
Page 27: Firmware Update
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Multi-device communication is to control multiple power supplies through the 485 bus, and can control up to 32 units at the same time. It is suitable for industrial control field. USB to 485 and 485 modules need to be purchased separately. The output voltage and current of all power supplies can be controlled by one software, or they can be set separately. -
Page 28: Boot Logo Update
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 During the firmware upgrade process, the interface is displayed as follows: 4.3.6 Boot Logo Update Boot logo setting video: https://youtu.be/vuVhBsohWts Click “Start Logo Update”, a Logo upgrade prompt will pop up on the page, please select a picture with a size of 320x240 and a resolution of 96dpi. Some logo samples can be used in the installation package. -
Page 29: Version Update Detection
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Click “Picture Import” and RD6006 will reboot automatically. 4.3.7 Version Update Detection Click “Software Update”, the software will automatically detect if there is a new version, if so, an update prompt will pop up on the interface. -
Page 30: Language Setting
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 4.3.8 Language Setting Click “Language”, a language setting prompt will pop up on the interface, you can choose Simplified Chinese, English, France and German. 4.3.9 About Click “About”, you can check the version number, publish time and copyright Information... - Page 31 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
-
Page 32: Appendix
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Appendix Appendix 1: Common Battery Voltage Comparison Table Nominal Battery Voltage Voltage Voltage Application Characteristics Type LiCoMn High capacity, Digital Device NiO2 rechargeable Lithium Electric bike Large discharge Phosp 3.65 current, hate Ba electric tool rechargeable ttery Lead Inexpensive Storage 1.75 rechargeable... -
Page 33: Appendix 2: Common Battery Voltage Comparison Table
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Appendix 2: Common Battery Voltage Comparison Table Number of Discharge Battery batteries Charging limit Nominal Voltage termination Type connected in voltage(V) voltage(V) series LiCoMnNiO2 Lithium Phosph 87.6 ate Battery Lead Storage 86.4 Battery Lithium Phosph 52.5 76.6 ate Battery LiCoMnNiO2 71.4 Lithium Phosph...
