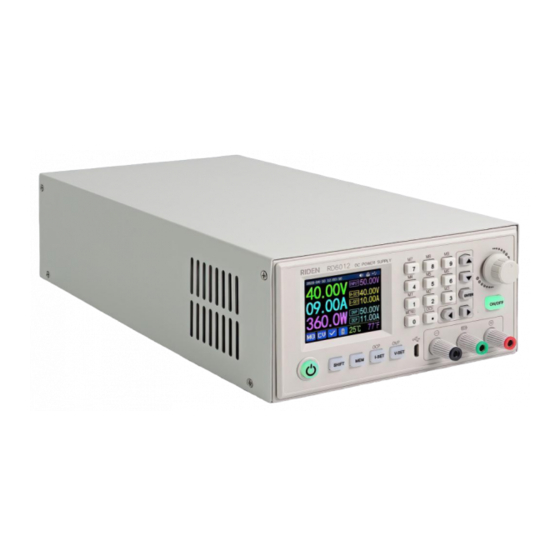

Digital power supply case (s800)
Hide thumbs
Also See for RD6012:
- Manual (77 pages) ,
- Instruction manual (68 pages) ,
- Instructions manual (67 pages)
Advertisement
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。
Digital power supply case (S800) assembly instruction
This case is suitable for
RD6012/RD6012W/RD6018/RD6018W
Date: 2020.7.24
Dear users, thank you for purchasing the digital power supply accessory-metal case
produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about
the full function of this product, get a better experience and avoid misuse. Please read this
instruction carefully before assembly. Keep it for future reference.
ATTENTION: Since the assembly process involves voltage that exceeds the human body's
safety, non-professionals should not operate, you must do insulation and protective
measures during the assembly process, and check the wiring several times for safety, please
place the product at a place that children and old people cannot get.
1
Advertisement
Related Manuals for Riden RD6012
Summary of Contents for Riden RD6012
-
Page 1: Digital Power Supply Case (S800) Assembly Instruction
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Digital power supply case (S800) assembly instruction This case is suitable for RD6012/RD6012W/RD6018/RD6018W Date: 2020.7.24 Dear users, thank you for purchasing the digital power supply accessory-metal case produced by Hangzhou Ruideng Technology Co., Ltd. In order to let you know more about the full function of this product, get a better experience and avoid misuse. -
Page 2: Table Of Contents
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 目录|Content Digital power supply case (S800) assembly instruction..............1 1. Notes............................3 2. Product Dimension........................3 3. Accessory List.......................... 4 4. Accessory Picture........................5 5. Assembly Procedure........................6 5.1 Assembly Preparation....................6 5.2 Assembly step........................6... -
Page 3: Notes
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 1. Notes ● Read this instruction carefully before assembly, if you still have any questions, please contact us. Since the assembly process involves voltage that exceeds the human body's safety, non-professionals should not operate, you must do insulation and protective measures during the assembly process, don’t forget to check the wiring several times for safety, and place the product at a place where children and old people cannot touch. -
Page 4: Accessory List
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 3. Accessory List NAME SPECIFICATION QUANTITY PICTURE Upper Board S800 upper board Lower Board S800 lower board Brown 32cm：1 Brown 10 cm：1 Yellow Green 32cm：1 Connection Blue 32cm：1 Cables Red 17cm： 2 Black 17cm： 2 Temperature sensor extension board :1 Rocker switch KCD3 AC power socket... -
Page 5: Accessory Picture
声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Screws for fixing mats, extension board and M3*4 round head switch power supply Screws for fixing case and AC M3*6 flat head(white) power socket 4. Accessory Picture... -
Page 6: Assembly Procedure
①Check the accessories: check if the accessories of S800 are same as accessories list or accessory picture. ②Check RD60XX: Adjust input power supply to 12v/1A to power on RD6012, and set 5V/1A output on RD60XX, turn on the output to see if the output is normal. - Page 7 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 supply; then use short brown cable to connect the rocker switch and the live wire (L) of the AC power socket; Use the blue cable to connect the neutral wire (N) of AC power socket and the neutral wire (N) of switch power supply; Use a yellow-green two-color cable to connect the ground wire (E) of AC power socket and the ground wire (〨) of switch power supply.
- Page 8 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 switch power supply test: ⑥ Check the wring again and power on the switch power supply, and use test pencil to check the power and insulation status. Then use multimeter to check if the 60V output is normal, then use screw driver to adjust the output of the switch power supply to about 68V.
- Page 9 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 Connect the rest cables: insert the external temperature sensor cable, insert the ⑧ green terminal and sort out the cables. ⑨Install the screws of the case...
- Page 10 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。 ⑩ Install the foot pads. ⑪ If you need to use external temperature detect, you can insert the external temperature sensor cable to be back end of the case, and do final test.
- Page 11 声明：本说明书著作权归杭州睿登科技有限公司所有，未经允许任何单位或个人不得用于商业用途。...
