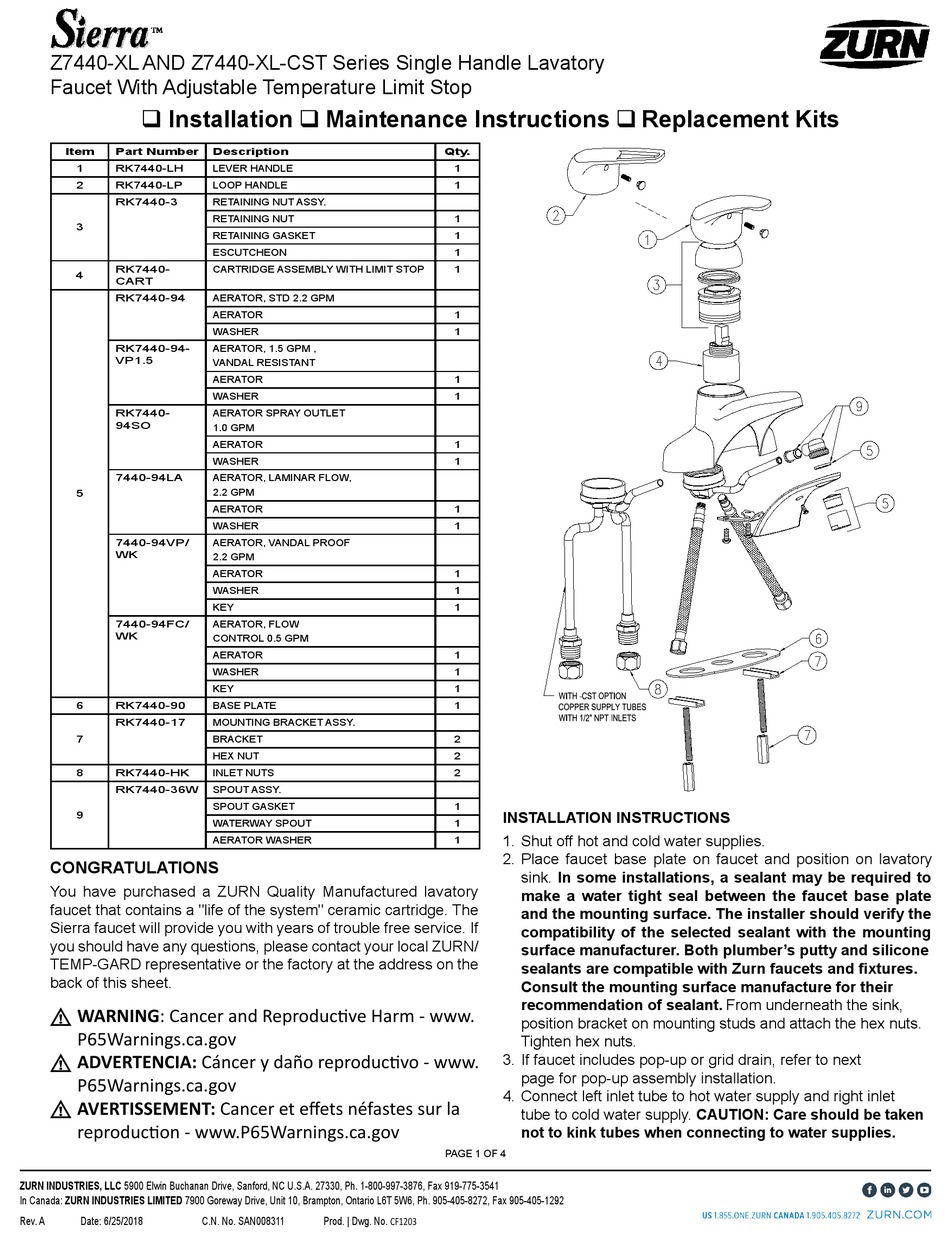

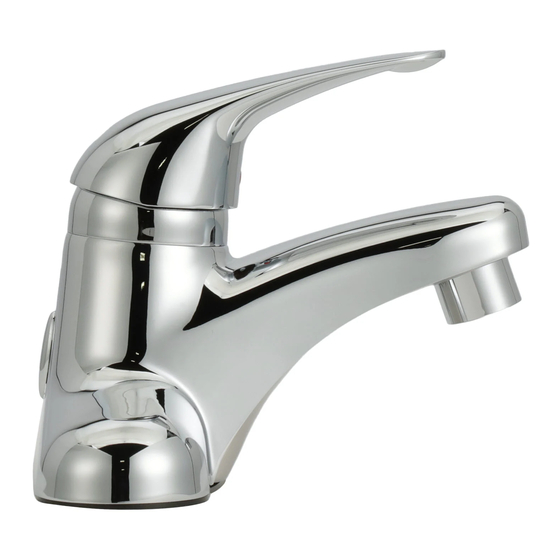

Z7440-XL AND Z7440-XL-CST Series Single Handle Lavatory
Faucet With Adjustable Temperature Limit Stop
 Installation  Maintenance Instructions  Replacement Kits
Item
Part Number
1
RK7440-LH
2
RK7440-LP
RK7440-3
3
RK7440-
4
CART
RK7440-94
RK7440-94-
VP1.5
RK7440-
94SO
7440-94LA
5
7440-94VP/
WK
7440-94FC/
WK
6
RK7440-90
RK7440-17
7
8
RK7440-HK
RK7440-36W
9
CONGRATULATIONS
You have purchased a ZURN Quality Manufactured lavatory
faucet that contains a "life of the system" ceramic cartridge. The
Sierra faucet will provide you with years of trouble free service. If
you should have any questions, please contact your local ZURN/
TEMP-GARD representative or the factory at the address on the
back of this sheet.
WARNING: Cancer and Reproductive Harm - www.
P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.
P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la
reproduction - www.P65Warnings.ca.gov
ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541
In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292
Rev. A
Date: 6/25/2018
Description
LEVER HANDLE
LOOP HANDLE
RETAINING NUT ASSY.
RETAINING NUT
RETAINING GASKET
ESCUTCHEON
CARTRIDGE ASSEMBLY WITH LIMIT STOP
AERATOR, STD 2.2 GPM
AERATOR
WASHER
AERATOR, 1.5 GPM ,
VANDAL RESISTANT
AERATOR
WASHER
AERATOR SPRAY OUTLET
1.0 GPM
AERATOR
WASHER
AERATOR, LAMINAR FLOW,
2.2 GPM
AERATOR
WASHER
AERATOR, VANDAL PROOF
2.2 GPM
AERATOR
WASHER
KEY
AERATOR, FLOW
CONTROL 0.5 GPM
AERATOR
WASHER
KEY
BASE PLATE
MOUNTING BRACKET ASSY.
BRACKET
HEX NUT
INLET NUTS
SPOUT ASSY.
SPOUT GASKET
WATERWAY SPOUT
AERATOR WASHER
C.N. No. SAN008311
Prod. | Dwg. No. CF1203
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
1. Shut off hot and cold water supplies.
1
2. Place faucet base plate on faucet and position on lavatory
sink. In some installations, a sealant may be required to
make a water tight seal between the faucet base plate
and the mounting surface. The installer should verify the
compatibility of the selected sealant with the mounting
surface manufacturer. Both plumber's putty and silicone
sealants are compatible with Zurn faucets and fixtures.
Consult the mounting surface manufacture for their
recommendation of sealant. From underneath the sink,
position bracket on mounting studs and attach the hex nuts.
Tighten hex nuts.
3. If faucet includes pop-up or grid drain, refer to next
page for pop-up assembly installation.
4. Connect left inlet tube to hot water supply and right inlet
tube to cold water supply. CAUTION: Care should be taken
not to kink tubes when connecting to water supplies.
PAGE 1 OF 4
