Z7440-XL-BA Series Single Handle Lavatory Faucet
With Adjustable Temperature Limit Stop
Installation Maintenance Instructions Replacement Kits
INSTALLATION INSTRUCTIONS
1. Shut off hot and cold water supplies.
2. Place faucet base plate on faucet and position on lavatory
sink. In some installations, a sealant may be required to
make a water tight seal between the faucet base plate
and the mounting surface. The installer should verify the
compatibility of the selected sealant with the mounting
surface manufacturer. Both plumber's putty and silicone
sealants are compatible with Zurn faucets and fixtures.
Consult the mounting surface manufacture for their
recommendation of sealant. From underneath the sink,
position bracket on mounting studs and attach the wing nuts.
Hand tighten wing nuts.
3. If faucet includes pop-up or grid drain, refer to next p a g e f o r
pop-up assembly installation.
4. Connect left inlet tube to hot water supply and right inlet
tube to cold water supply. CAUTION: Care should be taken
not to kink tubes when connecting to water supplies.
CAUTION: DO NOT APPLY SOLDER OR BRAZE TO INLET
TUBES. EXCESSIVE HEAT MAY DAMGE COMPONENTS OF
THE SIERRA FAUCET!
CONGRATULATIONS
You have purchased a ZURN Quality Manufactured lavatory
faucet that contains a "life of the system" ceramic cartridge. The
Sierra faucet will provide you with years of trouble free service. If
you should have any questions, please contact your local ZURN/
TEMP-GARD representative or the factory at the address on the
back of this sheet.
WARNING: Cancer and Reproductive Harm - www.
P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.
P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la
reproduction - www.P65Warnings.ca.gov
ZURN INDUSTRIES, LLC 5900 Elwin Buchanan Drive, Sanford, NC U.S.A. 27330, Ph. 1-800-997-3876, Fax 919-775-3541
In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292
Rev. A
Date: 6/25/2018
C.N. No. SAN008311
PAGE 1 OF 4

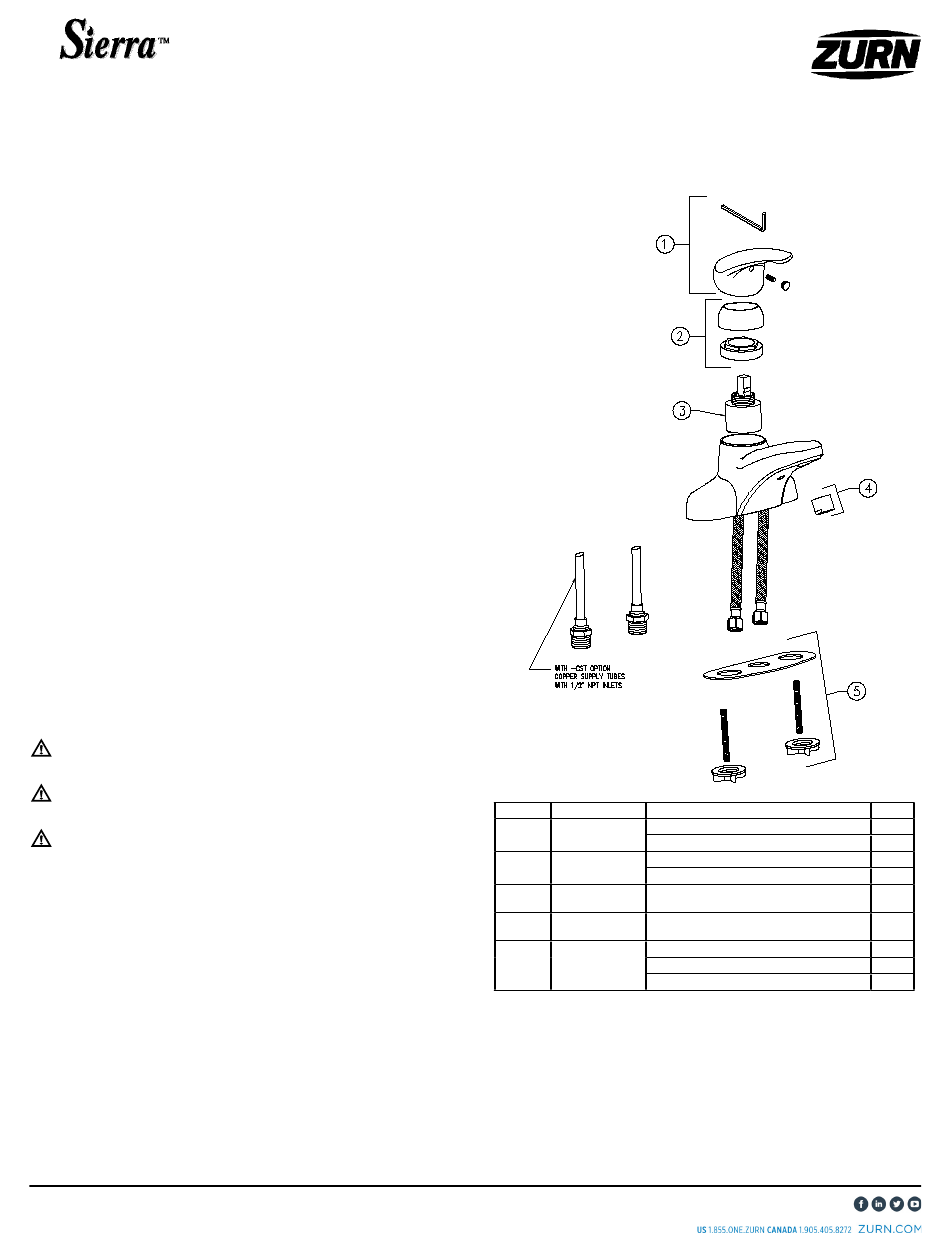

Prod. | Dwg. No. CF1448
Item
Part Number
Description
RK7440-XL-
LEVER HANDLE ASS'Y
1
BA-LH
ALLEN WRENCH
RK7440-XL-
RETAINING NUT
2
BA-3
ESCUTCHEON
RK7440-XL-
CARTRIDGE ASSEMBLY WITH LIMIT STOP
3
BA-CART
RK7440-XL-
AERATOR
4
BA-94
RK7440-XL-
BASE PLATE
BA-90
5
STUD
WING NUT
Qty.
1
1
1
1
1
1
1
2
2
