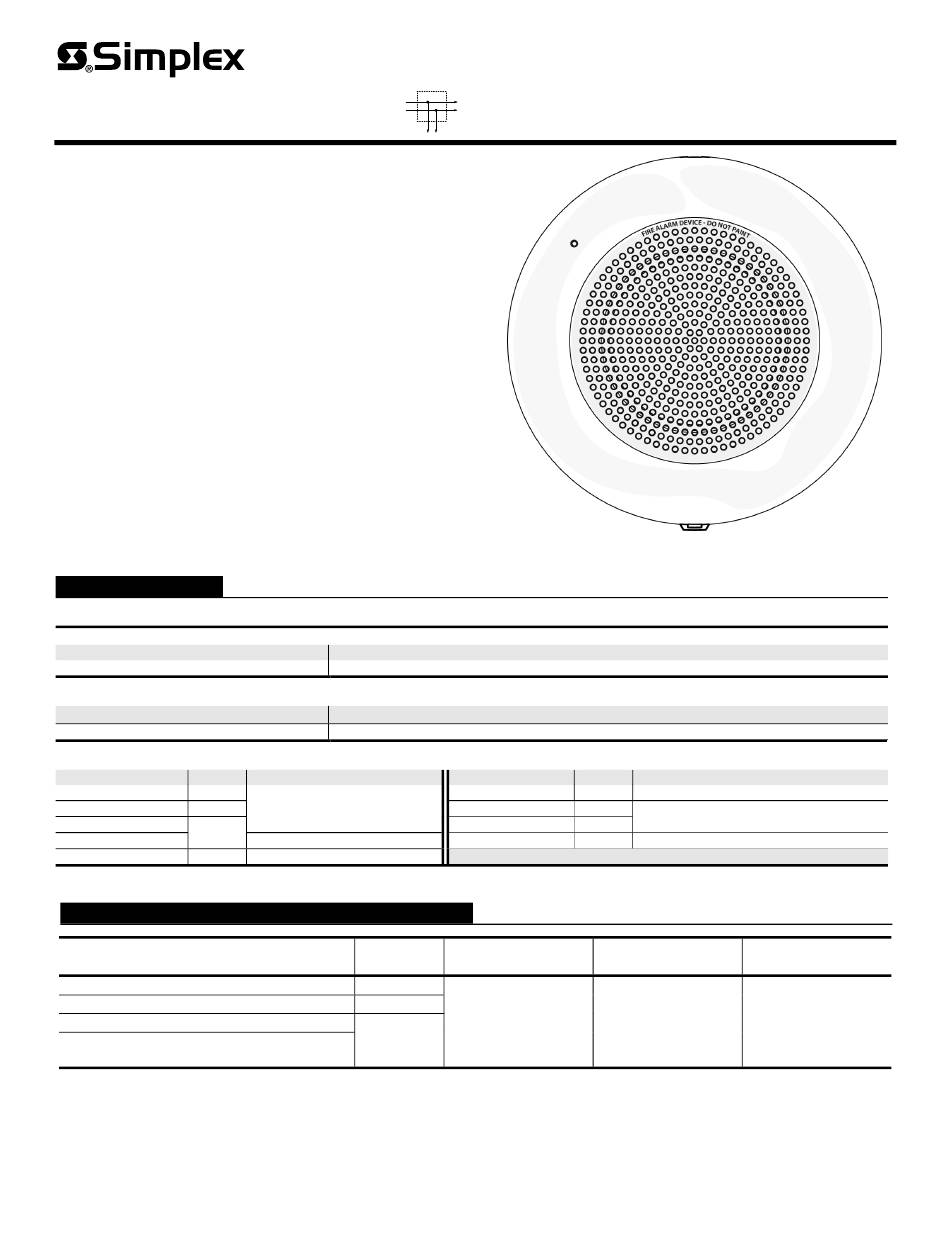

Simplex TrueAlert 49SOC-CK Instructions

UL, ULC Listed*
Ceiling mount Addressable Speaker (S/O)
Notification Appliances are individually powered,
addressed, and controlled from a Simplex fire alarm
control panel IDNAC Signaling Line Circuit (SLC). S/O
notification appliances use a multi-tapped speaker for
audio/tone notification.
Speakers are wired separately allowing for convenient
installation to standard electrical boxes with extensions
Wiring supervision is electronically monitored and allows
audio wiring to be T-tapped for class B wiring, reducing
wiring costs and wiring distances.
Ceiling mount S/O appliances are available in a
400 - 4000 Hz model and high fidelity model capable of
operating between 200 - 10000 Hz.
Separate appliance and cover selection greatly simplifies
the ordering and installation process.
For more detailed information, please consult datasheet
S49SWC-0001.
Product Selection

Ceiling Mount S/O Appliances

TrueAlert ES Addressable Ceiling Mount S/O appliance dimensions with cover:7 ⅛" H x 7 ⅛" W x 1 ¼" D ( 180 mm x 180 mm x 32 mm)
Model*
49SO-APPLC(-BA)

High Fidelity Ceiling Mount S/O Appliances

Model*
49HF-APPLC(-BA)

S/O Ceiling Mount Covers

Model Color
49SOC-CK Black
49SOC-CR Red
49SOC-CW
White
49SOC-CWALT
49SOC-CWFIRE White
* Note: (-BA) indicates model is available either with or without the -BA suffix. Model numbers ending in –BA are assembled in the USA

IDNAC SLC Controller Compatibility Reference

Compatible Controllers
4100ES with EPS+ or EPS Power Supply
4009 IDNAC Repeater
4100ES Flex 50 Amplifiers
4100ES Constant Supervision and Signal
Cards
* Additional listings may be applicable. Listings and approvals under Simplex Time Recorder Co. are the property of Tyco Fire Protection Products.
TrueAlert Addressable Notification Appliances
Description
S/O Appliance only. Select cover separately.
Description
High fidelity ceiling mount S/O appliance only. Select cover separately.
(Required when ordering APPLC models)
Wording
No logo or label
ALERT
FIRE
Data Sheet
Reference
S4100-0100
S4009-0004
S4100-0034
Ceiling Mount Addressable Speaker
(S/O) Notification Appliances
Ceiling Mount Addressable Speaker
Notification Appliance
Model Color Wording
49SOC-CRFIRE Red FIRE
49SOC-CRS Red
Simplex
49SOC-CWS White
49SOC-CRALT Red Alert
IDNAC SLC Output
Controller Output
IDNAC SLC
(regulated)
Appliance Voltage
Voltage Design Reference
29 VDC 23 VDC
(with 6 VDC drop)
S49SOC-0001-1 11/2015
