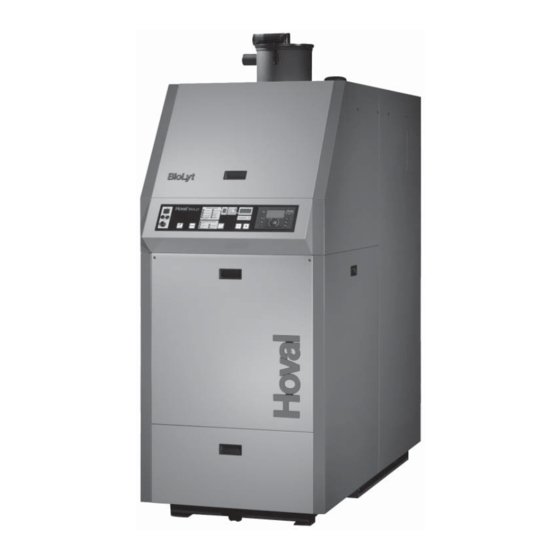

Hoval BioLyt 50 Technical Data Manual
Wood pellet boiler, output range 50 - 160 kw
Hide thumbs
Also See for BioLyt 50:
- Operating instructions manual (66 pages) ,
- Operating instructions manual (24 pages) ,
- Technical information installation instructions (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hoval BioLyt 50
Summary of Contents for Hoval BioLyt 50
- Page 1 BioLyt Wood pellet boiler Hoval BioLyt wood pellet boilers Output from 50 to 160 kW Working pressure to 3 bar Technical Data Output range 50 - 160 kW...
-
Page 2: Technical Data
1 A combined draught stabiliser and pressure relief damper is provided with each BioLyt boiler for fitting by the installer. 2 Min. 13 A protection because of operating current. Pellet transportation system basis kit RAS41 (BioLyt 50 & 70 only) Delivery tube length [m]... - Page 3 Hoval BioLyt (50-160) Dimensions BioLyt (50 & 70) Measurements and space requirements for maintenance (all measurements in mm) Boiler flow connection R 1¼" System flow connection R 1¼“ Boiler return conection R 1¼" System return connection R 1¼“ Pellet feed system / transfer box / RAS 51 Optional RAS 41 pellet transportation 50 mm ∅ system centrifugal separator Safety heat exchanger connections 2 x R ½"...
- Page 4 Hoval BioLyt (50-160) Dimensions BioLyt (110,130 &160) Measurements and space requirements for maintenance (all measurements in mm) Boiler flow connection DN 50 System flow connection DN 50 Boiler return connection DN 50 1b,10,11 System return connection DN 50 Pellet feed system / transfer box / RAS 51 Safety heat exchanger connections 2 x R ½" Drain R 1" Flue gas outlet External Ø 180 mm Induced draught fan Control panel (can be fitted right or left side)
- Page 5 Hoval BioLyt (50-160) Dimensions BioLyt (50-160) Boiler without casing and insulation (all measurements in mm) Pallet included for delivery purposes BioLyt Assembly and delivery: Type The BioLyt boiler is supplied as a kit of parts. We include for (50) 1790 1220 1430 subsequent assembly on site by our engineering team. (70)
-
Page 6: Regulations And Guidelines
- A safety valve and automatic air vent must Boiler size of maximum filling quantity without demineralisation be fitted to all boilers. individual boiler - A Hoval safety valve and automatic air vent up to 50 kW NO REQUIREMENT 20 l/kW set (c/w pressure gauge) is included with the... -
Page 7: Boiler Operation
The design of the intended fuel pellet storage room, is particularly important on any horizontal section. usage. silo or bunker must be approved by Hoval prior to confirm ation of an order being given. - Flues should be supported independently to prevent Boiler Cleaning Regime... - Page 8 2. Estimated Fuel consumption. into the BioLyt 3. The required frequency of delivery - or the size of delivery boiler from the anticipated. flexible auger into the boiler storage Hoval can offer a number of silo based fuel store options or advise on container. most appropriate use of available space for a bespoke build fuel store.
-
Page 9: Typical Plantroom Layouts
Hoval BioLyt (50-160) Typical plantroom layouts General arrangement of a BioLyt and fabric silo pellet storage Fabric silo Fabric silo Flexible auger BioLyt wood pellet boiler Maintenance area... - Page 10 Hoval BioLyt (50-160) Typical plantroom layouts General arrangement of a BioLyt and GRP silo pellet storage GRP Silo Flexible auger BioLyt wood pellet boiler Silo fill pipe Silo vent pipe Maintenance area...
-
Page 11: Included Accessories
Type RH 50-44 - BioLyt (110- 160) for BioLyt (110-160) Biral A401-1 pump 6021 793 6019 235 is supplied as standard with the BioLyt 50 6021 256 is supplied as standard with the BioLyt 70 6021 793 is supplied as standard with the BioLyt 110-160... -
Page 12: Other Accessories
H x B x T = 710 x 500 x 354 mm 6018 717 Store extract auger complete including auger, motor and connectors for vacuum pipes. For Hoval BioLyt (50,70). Consisting of auger, auger channel, auger bearing, head piece with drive (geared motor) and connectors ∅50 mm for vacuum pipes with integrated fire protection sleeves. - Page 13 For solid fuel / buffer vessel installation and solar plants. Function key 6, 1 collector panel sensor, 4 immersion sensors, 6 loose plugs. 6012 159 Key-Module 7 For 2 mixing circuits, solid fuel / buffer vessel installation and solar plants. Function key 7, 1 flow sensor, 1 collector panel sensor, 4 immersion sensors, 8 loose plugs. 6012 160 Sensor type Immersion / calorifier sensor: TypeKVT20/5/6 (L = 5m) without immersion sleeve. Consult Hoval for specific applications flow sensor : Type VF204S with plug collector sensor : Type PT1000 (Silicon)
- Page 14 Hoval BioLyt (50-160) Other Accessories Accessories for Heating regulator TopTronic ® Room station RS-T For remote control of circuits. Includes room sensor, information and advanced program keys. 2034 939 Remote control RFF-T For simple remote control of circuits. Includes room sensor, simple program keys and temperature adjustment. 2022 239 Additional outdoor sensor AF 200 For one mixing circuit or for average value (2 outdoor temperature sensors possible per TopTronic ®...
- Page 15 Hoval BioLyt (50-160) Typical hydraulic schematics ® BioLyt boiler with - Buffer vessel - Free standing calorifier - 1 or 2 mixed heating circuits TopTronic T VF 1 VF 2 VF 2 DHWS RS-T M K 1 M K 2...
- Page 16 Hoval BioLyt (50-160) Typical hydraulic schematics / Hoval Service ® 2 x BioLyt boilers with - Buffer vessel - Free standing calorifier - 2 mixed heating circuits TopTronic T SB-R3K TopTronic T SB-R3K VF 1 VF 2 VF 2 DHWS M K 1 M K 2...
- Page 17 We are happy to assist you and your planning partners in developing inteligent systems, allowing you to take advantage of our expertise and the experience of our specialists. After sales For specialist commissioning and maintenance of your Hoval equipment, contact our service and spares department. Hoval Ltd Northgate Newark-on-Trent Nottinghamshire NG24 1JN United Kingdom Phone 01636 672 711 01636 673 532 email boilersales@hoval.co.uk...
