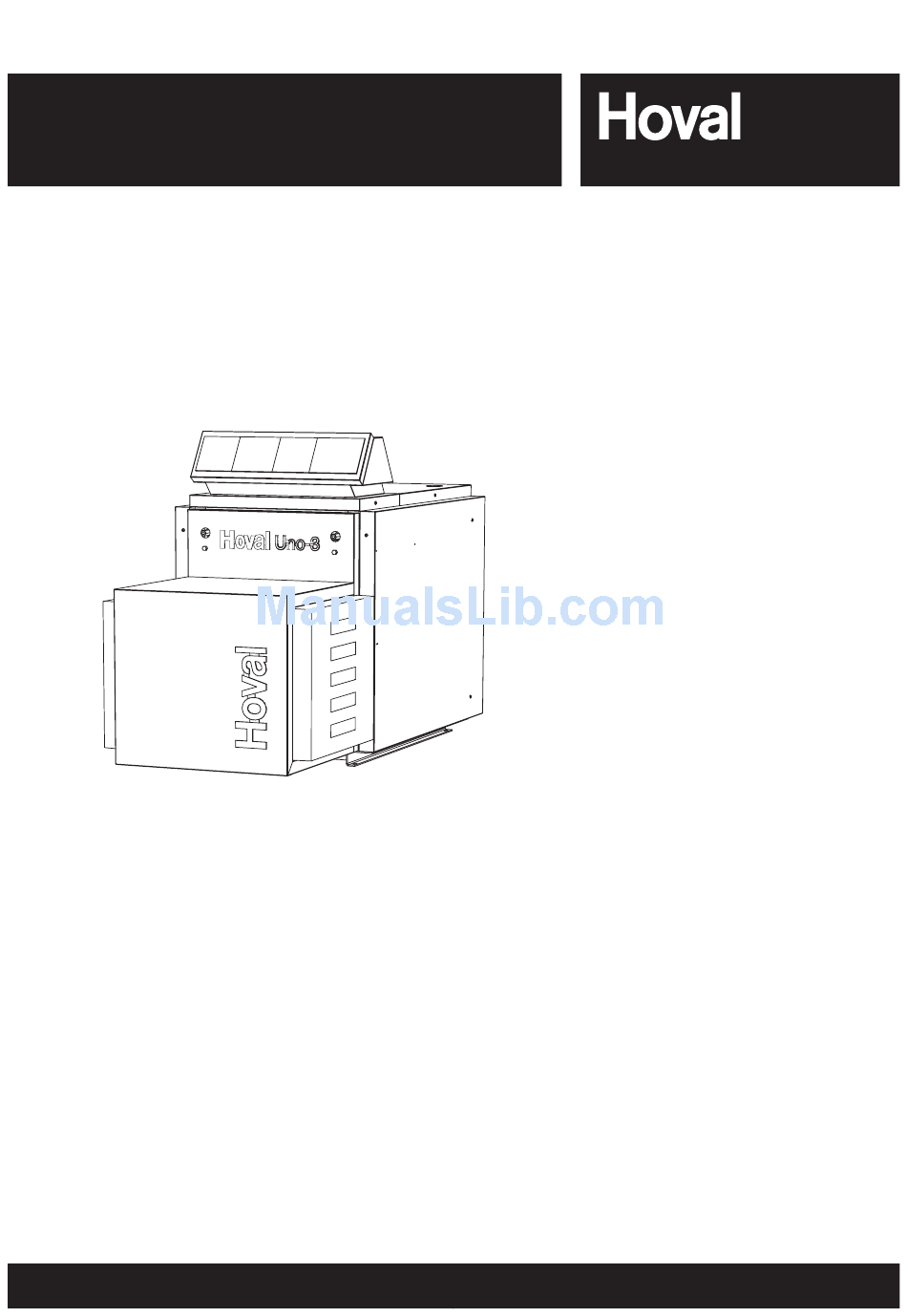

Technical information
Assembly instructions
Uno-3 (95-125)
Oil/gas boilers
Hoval products must be installed and commissioned only
by appropriately qualified experts. These instructions
are intended exclusively for the specialist. Electrical
installations may only be carried out by a qualified
electrician.
Subject to modifi cations
|
4 205 116 / 02 - 02/14
These instructions are applicable to the
following types:
7-Uno-3 (95,110,125)
7-Uno-3 b-i* (95,110,125)
* = Burner integrated
Uno-3 (95-125) boilers are suitable and licensed for
use as heat generators for hot water heating systems
with a permissible flow temperature of up to 100 °C
They are designed for closed-circuit systems, but can
also be installed in open systems as per EN 12828.
See technical data
1)
.
1)
EN
