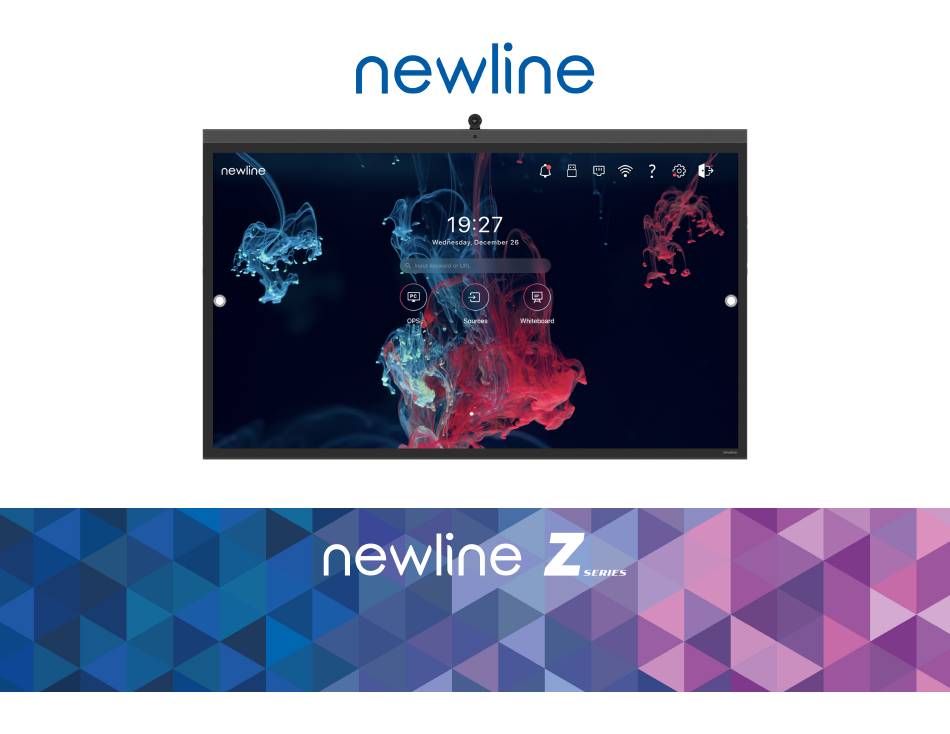

- Page 1 QUICK START GUIDE SUMMER 2022...
- Page 2 Z Series Quick Start Guide Z Series Panel Buttons Power Button Turns the display on/off. Back Shortcut Goes back one screen or to the previous app. Brightness Up Button Volume Down Button Volume Up Button Quick Settings Menu Button Brightness Down Button Adjusts the brightness of 1.
- Page 3 Z Series Quick Start Guide The Home Screen Shortcuts Alerts Flash Drive LAN Settings Wifi Settings When clicked, it will direct you to any Will display if a flash Pulls up the Pulls up the Wifi notifications you have received...
- Page 4 Z Series Quick Start Guide The Home Screen Shortcuts If you swipe from right to left on the home screen, it will take you to the most common apps such as Newline Broadcast and Newline Cast.
- Page 5 Z Series Quick Start Guide The Quick Settings Toolbar The Quick Access Toolbar can be accessed by tapping the Quick Settings button on the front of the panel or by swiping up with two fingers from the bottom of the touch display.
-
Page 6: The Quick Access Toolbar
Z Series Quick Start Guide The Quick Access Toolbar OPS/Sources Shortcut Takes you to the on-board computer (OPS). The Quick Access Toolbar can be Tap and hold to pull up additional icons that accessed by tapping the white circle can take you to the Sources menu, letting you on either the left or right side of the easily switch between available sources. - Page 7 Z Series Quick Start Guide Accessing the Built-In OPS Computer Turn on the display. Touch the “Tap to Start” message on the first screen. Tap the “OPS” button on the home screen. You will now be viewing and using the built-in OPS Computer.
-
Page 8: Switching Sources
Z Series Quick Start Guide Switching Sources The Front Ports Connecting a Computer with USB & HDMI There are five ports located on the side of the panel on the bottom left: USB Touch, You will need an HDMI cable and a USB cable to connect a HDMI, USB 3.0, USB Type-C, and mic-in. - Page 9 Z Series Quick Start Guide Insert the Wi-Fi Module into the port on the rear of the panel until Unscrew the 2 screws on the Wi-Fi Module port and remove the shielding cover. firmly seated, using the 2 screws to secure it.
-
Page 10: Changing The Settings
Z Series Quick Start Guide Changing the Settings Changing Panel Themes In the Settings menu select “Display & Theme” In the upper right hand corner of the home screen select the Choose “Theme” from the menu options. icon. Choose the theme you would like to set on the panel Home Screen. -
Page 11: Whiteboard Tools
Z Series Quick Start Guide Whiteboard Tools Insert shape Add whiteboard Lasso to page select items QR Code for saving & Whiteboard page Highlighter tool sharing whiteboard navigation Eraser Google account More options sign-in & tools Clear whiteboard Pen tool... - Page 12 On the Apps Screen, tap on the “Apps” button In the App Store, select the App you want to download. In the Apps Menu, tap “Newline App Store” to launch. On the App details screen, tap Install. Once installed, the App will appear in the Apps menu on the Home...
- Page 13 Z Series Quick Start Guide Using Newline Cast Using Newline Broadcast Connecting to Newline Cast Using the DisplayNote Windows App Share your Panel Screen to Student Devices Open the Newline Cast app on your display Turn on the display. Begin a session by opening the Broadcast application and pressing the “Start broadcast”...
- Page 14 350 W Bethany Dr 1-888-233-0868 Suite 330 info@newline-interactive.com Allen, TX 75013 To learn more, visit: www.newline-interactive.com...
