GREISINGER GFTH200 Operating Manual

H53.0.02.6C-13

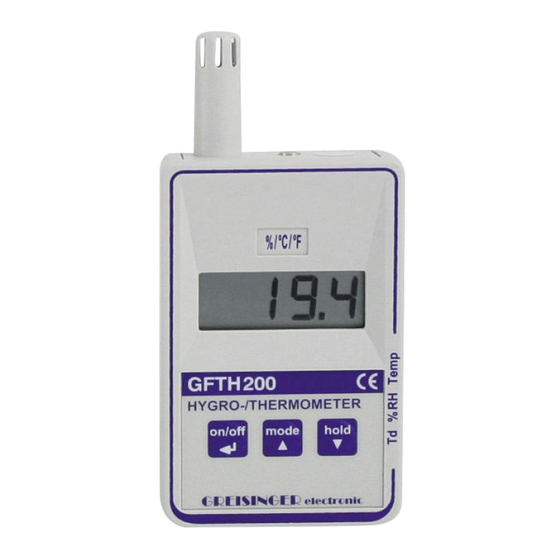

Operating Manual For Hygro-/Thermometer

Application range:

Quick-response measurement of atmospheric humidity, temperature and dew point temperature (resp. wet bulb temperature) in
EDP rooms, museums, churches, administrative and residential buildings, storage rooms, green houses, pools, production rooms,
for cooling technology and air conditioning as well as for building engineers and for the evaluation of damage to buildings etc.

Specification:

Measuring range:
Resolution:
Accuracy:
(±1 digit)
(at nominal temperature = 25°C)
Measuring probe:
Response time:
Terminal for external probe: for connection on any Pt1000 probe with 3.5 mm mono plug.
Offset- and scale:
Display:
Operation elements:
Nominal temperature:
Operating conditions:
Power supply:
Power consumption:
(for standard type)
Low battery warning:
Auto off function:
Min-/Max-value memory: Min and max measured values are stored for all 3 measuring ranges.
Hold key:
Housing:
Weight:
EMC:
GREISINGER
GFTH 200
temperature: -25,0°C ... +70,0°C resp. -13,0 ... +158,0°F
humidity: 0,0 ... 100,0 %RH (recommended range for application: 11 to 90 %RH)
dew point temperature: -40,0 ... +70,0 °C resp. -40,0 ... +158,0°F
wet bulb temperature: -27,0 ... +70,0 °C resp. -16,6 ... +158,0°F
temperature: 0,1°C or 0,1°F (selectable)
humidity: 0,1 %RH
dew point temperature: 0,1°C or 0,1°F
wet bulb temperature: 0,1°C or 0,1°F
temperature (internal): ± 0,5% of m. v. ± 0,1°C (same as Pt1000 1/3 DIN)
temperature (external): ± 0,1°C (device) ± probe accuracy
humidity: ± 2,5% RH (range: 11 to 90 %RH)
temperature: Pt1000
humidity: capacitive polymer humidity sensor
T = 10 sec.
90
(measuring range: -25.0 ... +70.0°C)
digital offset and scale adjustment
approx. 13 mm high, 3½-digit LCD-display
3 keys for ON/OFF, min-/max-value display, hold
Slide switch for selection of measuring range
25°C
electronics: -25 to 70°C; 0 to 80 %RH (non-condensing)
sensors: -25 to 70°C; 0 to 100 %RH.
9V battery type JEC 6F22 (in scope of supply)
approx. 100µA at 1 measuring / s (mode FAST)
approx. 55µA at 1 measuring / 2s
approx. 20µA at 1 measuring / 10s
approx. 9µA at 1 measuring / 60s
"BAT" automatically displayed if battery is low
when the Auto Off Function is activated, the device switches
automatically off, if keypad is not attended for a longer time
(selectable 1..120min).
the current measuring will be „frozen" (for all 3 ranges).
impact resistant ABS-housing: approx.106 x 67 x 30 mm (HxWxD), in addition, sensor head
protruding vertically, length 35 mm, diameter 14 mm, overall length 141 mm.
approx. 135g incl. battery
The device corresponds to the essential protection ratings established in the Regulations of the
Council for the Approximation of Legislation for the member countries regarding electromagnetic
compatibility (2004/108/EG).
Additional fault: <1%
(GFTH200 – standard)
(only for option: GFTH200 / FK)
WEEE-Reg.-Nr. DE93889386
electronic GmbH
page 1 of 4
