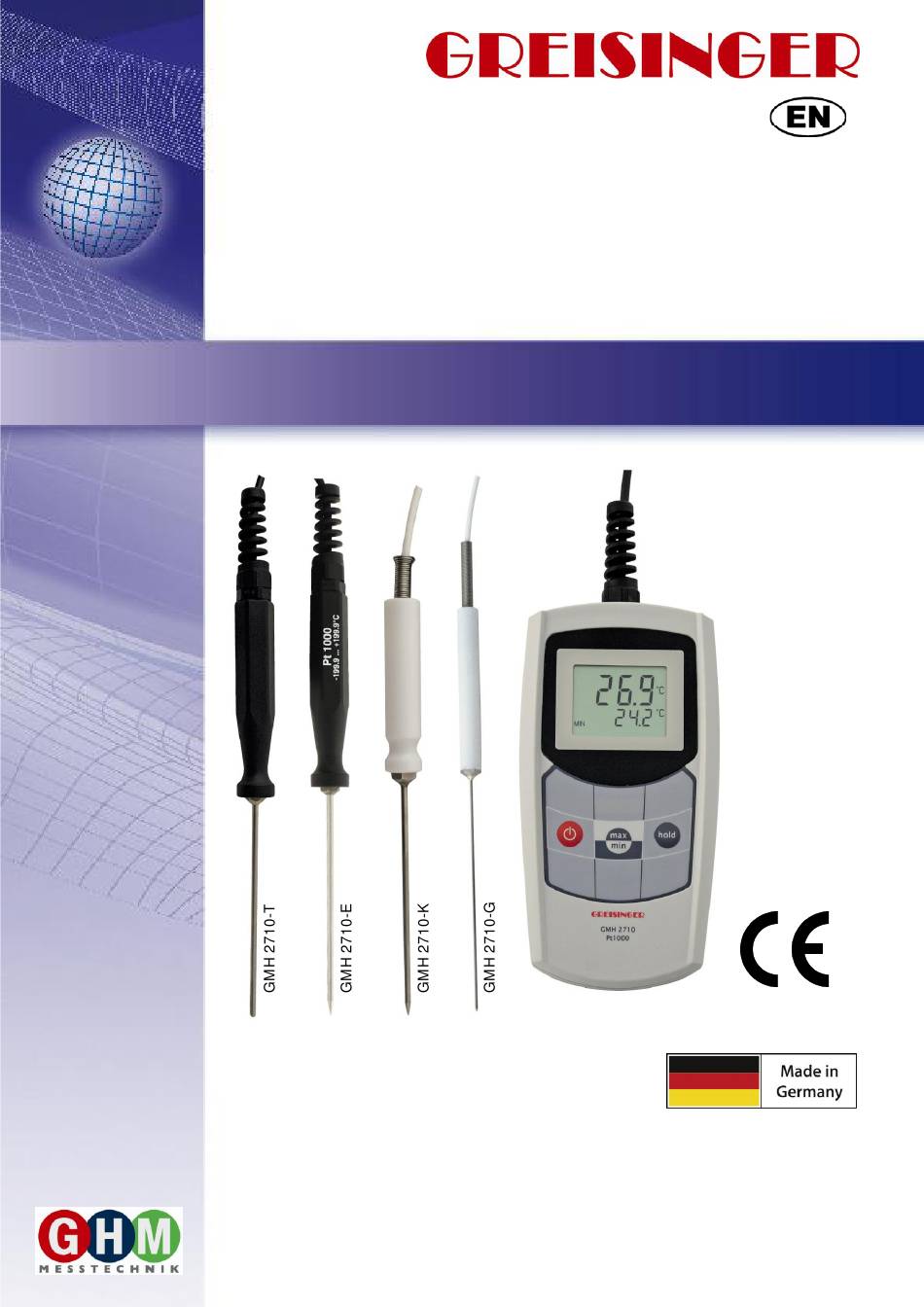

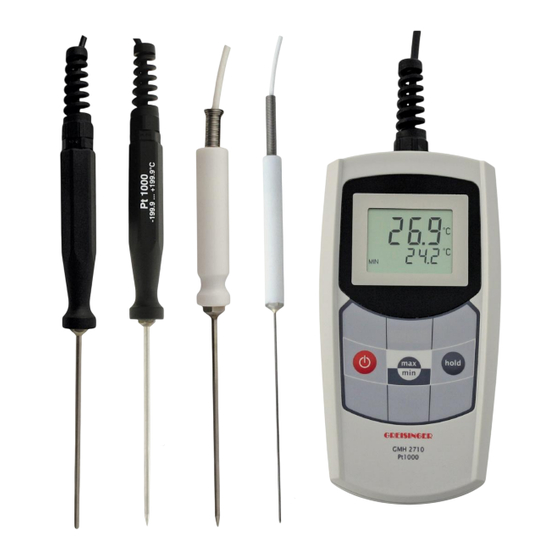

- Page 1 H81.0.01.6C-07 Operating Manual Pt100 Precision Thermometer GMH 2710 - … as of version V1.0 WEEE-Reg.-Nr. DE 93889386...
-
Page 2: Table Of Contents
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 2 of 8 _____________________________________________________ _____________________________________________________________________________ Index DESIGNATED USE ............................2 GENERAL NOTE ............................2 SAFETY REQUIREMENTS ........................3 DISPLAY AND CONTROL ELEMENTS ....................3 ..........................3 ISPLAY ELEMENTS ..........................3 ONTROL ELEMENTS .............................4 UP CLIP START OF OPERATION ..........................4 BASICS .................................5 CONFIGURATION OF THE DEVICE ....................5 ADJUSTMENT ............................6... -
Page 3: Safety Requirements
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 3 of 8 _____________________________________________________ _____________________________________________________________________________ 3 Safety Requirements This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 4: Pop-Up Clip
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 4 of 8 _____________________________________________________ _____________________________________________________________________________ 4.3 Pop-up clip Handling: • Pull at label “open” in order to swing open the pop-up clip. • Pull at label “open” again to swing open the pop-up clip further. Pop-up clip closed Pop-up clip at position 90°... -
Page 5: Basics
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 5 of 8 _____________________________________________________ _____________________________________________________________________________ 6 Basics Probe Precision/Device Precision The device has a very good system accuracy (please refer to technical data). This is due to the calibration of the probe acc. To the connected instrument plus the use of precise measurement electronics and premium Pt1000 sensor elements Heat loss caused by probe construction: Especially when measuring temperatures which deviate very much from the ambient temperature, measuring... -
Page 6: Adjustment
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 6 of 8 _____________________________________________________ _____________________________________________________________________________ 8 Adjustment The instrument can be adjusted, assuming that: Reliable references are available, such as ice- water regulated precision water baths or similar. Displayed value °C =(measured value °C - OFFS) * (1 + slope correction / 100 ) Displayed value °F =(measured value °F - 32 °F - OFFS) * (1 + slope correction / 100 ) Follow these instructions to adjust the device: Switch the device on. -
Page 7: Error And System Messages
Operating Manual GMH 2710 - … H81.0.01.6C-07 page 7 of 8 _____________________________________________________ _____________________________________________________________________________ 10 Error and System Messages ERR. 1 Value exceeding measuring range, value too high or cable/sensor broken ERR. 2 Value exceeding measuring range, value too low or cable/sensor shorted System error –... - Page 8 Operating Manual GMH 2710 - … H81.0.01.6C-07 page 8 of 8 _____________________________________________________ _____________________________________________________________________________ The device corresponds to the essential protection ratings established in the Regulations of the Council for the Approximation of Legislation for the member countries regarding electromagnetic compatibility (2004/108/EG), additional error: <...
