GREISINGER GFTH 95 Operating Manual

H53.0.X1.6C-06

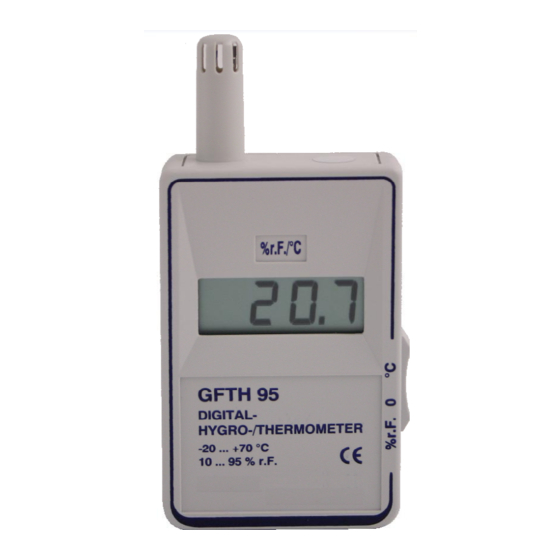

Operating Manual For Hygro-/Thermometer

Application range:

Quick-response measurement of atmospheric humidity and temperature in EDP rooms, museums, churches, administrative and
residential buildings, storage rooms, green houses, pools, production rooms, for cooling technology and air conditioning as well as
for building engineers and for the evaluation of damage to buildings etc.
Specification:
Measuring range:
Resolution:
Accuracy:
(±1 digit)
(at nominal temperature = 25°C)
Measuring probe:
Response time:
Display:
Operation elements:
Nominal temperature:
Operating conditions:
Power supply:
Power consumption:
Low battery warning:
Housing:
Weight:
EMC:
Disposal instructions
The device must not be disposed in the regular domestic waste.
Send the device directly to us (sufficiently stamped), if it should be disposed. We will dispose the de-vice appropriate and
environmentally sound.
GREISINGER
D - 93128 Regenstauf, Hans-Sachs-Straße 26
Fon: 0049 9402 / 9383-0, Fax: 0049 9402 / 9383-33, e-mail: info@greisinger.de
GFTH 95
temperature: -20,0°C ... +70,0°C
humidity: 10,0 ... 95,0 %RH (recommended range for application: 30 to 80 %RH)
temperature: 0,1°C
humidity: 0,1 %RH
temperature: ± 0,5% of m. v. ± 0,1°C (same as Pt1000 1/3 DIN)
humidity: ± 3%RH (range: 30 to 80 %RH)
temperature: Pt1000
humidity: capacitive polymer humidity sensor
T = 15 sec.
90
approx. 13 mm high, 3½-digit LCD-display
Slide switch for selection of measuring range
25°C
electronics: -20 to 70°C; 0 to 80 %RH (non-condensing)
sensors: -20 to 70°C; 0 to 100 %RH.
9V battery type JEC 6F22 (in scope of supply)
approx. 0.1 mA
"BAT" automatically displayed if battery is low
impact resistant ABS-housing: approx.106 x 67 x 30 mm (HxWxD),
in addition, sensor head protruding vertically, length 35 mm,
diameter 14 mm, overall length 141 mm.
approx. 135g incl. battery
The device corresponds to the essential protection ratings
established in the Regulations of the Council for the Approximation
of Legislation for the member countries regarding electromagnetic
compatibility (2004/108/EG).
Additional fault: <1%
WEEE-Reg.-Nr. DE93889386
electronic GmbH
page 1 of 2
