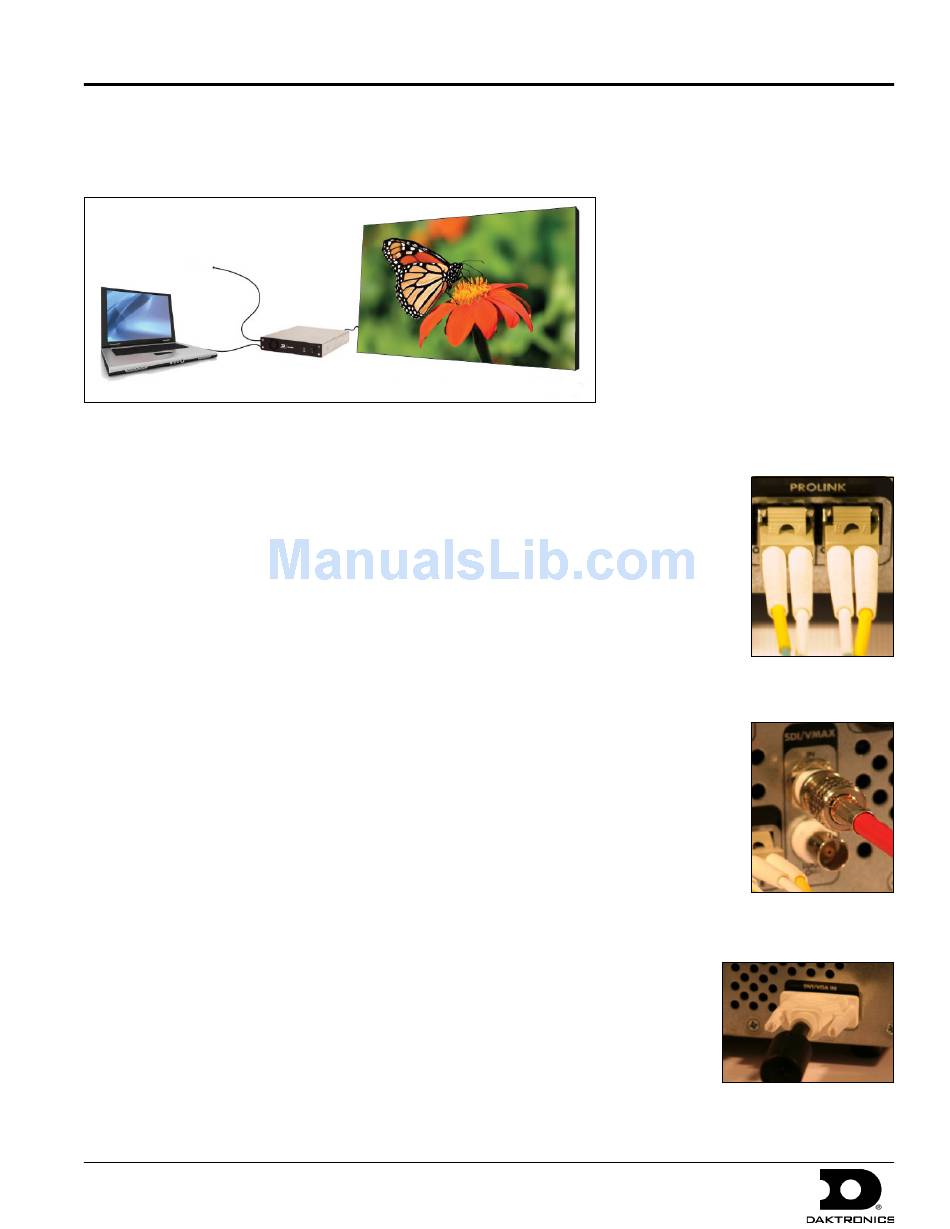

VIP-4060 Quick Guide
The VIP-4060 is the interface that drives video to the display and meets operational needs such as dimming,
displaying test patterns, and adjusting gamma and color controls. This quick guide explains basic VIP-4060
connections and setup as shown in Figure 1.
Video Source
VIP-4060
Computer
Figure 1: VIP-4060 Connections

Hardware Setup

Connecting to LED Display
1.
Locate fiber-optic Port A and Port B on the VIP-4060.
Insert duplex LC fiber-optic cables into their corresponding ports. The cables will
2.
click into place when seated properly. Refer to Figure 2.
Note: Remove fiber dust covers from the cables prior to inserting into ports.
Connecting Video Source – SDI or V-Max
1.
Connect the BNC cable to the top SDI/V-Max
2. Rotate the connector
3. Ensure that a 75 ohm terminator is connected to the bottom BNC.
Note: The bottom BNC does not function as a loop out.
Connecting Video Source – DVI
1.
Insert the male plug into the female jack.
Turn the screws on the male plug clockwise to lock. Refer to Figure 4.
2.
DD1733958 Rev 05
02 March 2015
Daktronics LED Video Display
Signal
/
turn clockwise to lock.
1
4
201 Daktronics Dr. P.O. Box 5128 Brookings, SD 57006
tel: 800-325-8766 fax: 605-697-4700
www.daktronics.com
input. Refer to Figure 3.
1 of 6
Figure 2: Fiber-Optic
Ports
Figure 3: SDI/V-Max
4
Input
Figure 4: DVI Input

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP-4060 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daktronics VIP-4060

  • Page 1: Hardware Setup

    VIP-4060 Quick Guide 1 of 6 The VIP-4060 is the interface that drives video to the display and meets operational needs such as dimming, displaying test patterns, and adjusting gamma and color controls. This quick guide explains basic VIP-4060 connections and setup as shown in Figure 1.
  • Page 2: Connecting Power

    Note: If multiple displays are found, use the IP address or name to confirm the identity of the correct display. Figure 9: Daktronics Display Finder DD1733958 Rev 05 201 Daktronics Dr. P.O. Box 5128 Brookings, SD 57006 02 March 2015 tel: 800-325-8766 fax: 605-697-4700 www.daktronics.com...
  • Page 3 ® 1. Click the Java is not installed notification. 2. Follow the instructions on the page to complete the installation. The JavaScript application must be enabled to use the VIP-4060 Configuration Utility. If the JavaScript application is ® ® not enabled, follow the steps below to enable it on a specific web browser:...
  • Page 4: System Configuration

    This includes basic identifying information such as the table’s author, ED number, contract, title, and task. Refer to Figure 15. Contact Daktronics Technical Services before uploading a translation table. Navigate to the Configuration tab and click the Display sub-tab.
  • Page 5: Configuring Video

    1. Click the Load Display Configuration Backup icon. Refer to Figure 18. 2. Navigate to the file’s storage location. Select the file and click Open to reload the configuration. DD1733958 Rev 05 201 Daktronics Dr. P.O. Box 5128 Brookings, SD 57006 02 March 2015 tel: 800-325-8766 fax: 605-697-4700 www.daktronics.com...
  • Page 6 Contact Info and Where to Get Help Access the VIP-4060 Operator’s Manual via the blue question mark button in the top-left corner of the configuration utility screeen. Refer to Figure 19. If further assistance is required, Daktronics Customer Service is also available 24/7 via phone or online connection.
