Sportsound Announcer's Interface Gen II Quick Guide
1

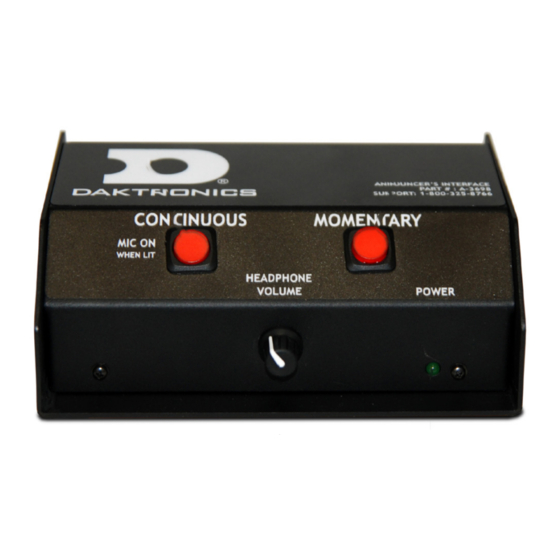

1. Announcer's Interface (part # A-3698)
2. 2' (610 mm) XLR Cable (part # W-1917)
3. Microphone (part # A-2790)
4. Stand (part # A-1954)
5. Headphones (part # A-1962)
6. Power Supply (included with Announcer's Interface;
part # A-3838825 may be ordered as a replacement)
7. 15' (4.6 m) Dual XLR Interface Harness (part # W-2074)
DD3083838
Rev 01
16 April 2018
3
4
2
5
201 Daktronics Drive Brookings, SD 57006
www.daktronics.com/support
6
Optional Single-Muff Headset
(part # A-2382) Replaces the mic,
stand, XLR cable, and headphones.
Keeps the microphone at a consistent
distance from the mouth to ensure
announcements are clear and even
in level while making it easy to listen
to the main audio feed as well as
spotters. Contact Daktronics for more
information about this option.
800.325.8766
Page 1 of 2
1
5
2
7

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sportsound Gen II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daktronics Sportsound Gen II

  • Page 1 Contact Daktronics for more part # A-3838825 may be ordered as a replacement) information about this option. 7. 15' (4.6 m) Dual XLR Interface Harness (part # W-2074) DD3083838 201 Daktronics Drive Brookings, SD 57006 Rev 01 www.daktronics.com/support 16 April 2018 800.325.8766...
  • Page 2 Use the tab above the power jack as a strain relief for the power 10. MIC 1 OUT – XLR output jack to audio mixer cord. 11. AUX 1 INPUT – XLR input jack from audio mixer DD3083838 201 Daktronics Drive Brookings, SD 57006 Rev 01 www.daktronics.com/support 16 April 2018 800.325.8766...
