INSTALLATION MANUAL
TECHNICAL SPECIFICATIONS
Input Voltage: 16.0VDC Plug-In Transformer
Backup Battery: 12VDC 5AH Max (not included)
Dimensions: 16" X 14" X 3"
Operating Temperature: 32 to 122F (0 to 50C)
EOL Supervision: 4.7k Ohm fixed or 1k-10k Ohm
depending on Resistor Mode
Input Zones: 15 N/O or N/C
Smoke Zone: 1 two-wire smoke loop, 10 detectors
max. Support for System Sensor® 2W-B, 2WT-B,
2WTA-B*
*Detector models should not be mixed
Auxiliary Voltage Output: 12VDC @ 500mA Max
Tamper Zone: Used for case tamper, no resistor
Relay Contact: 60VDC/1A Max drives siren

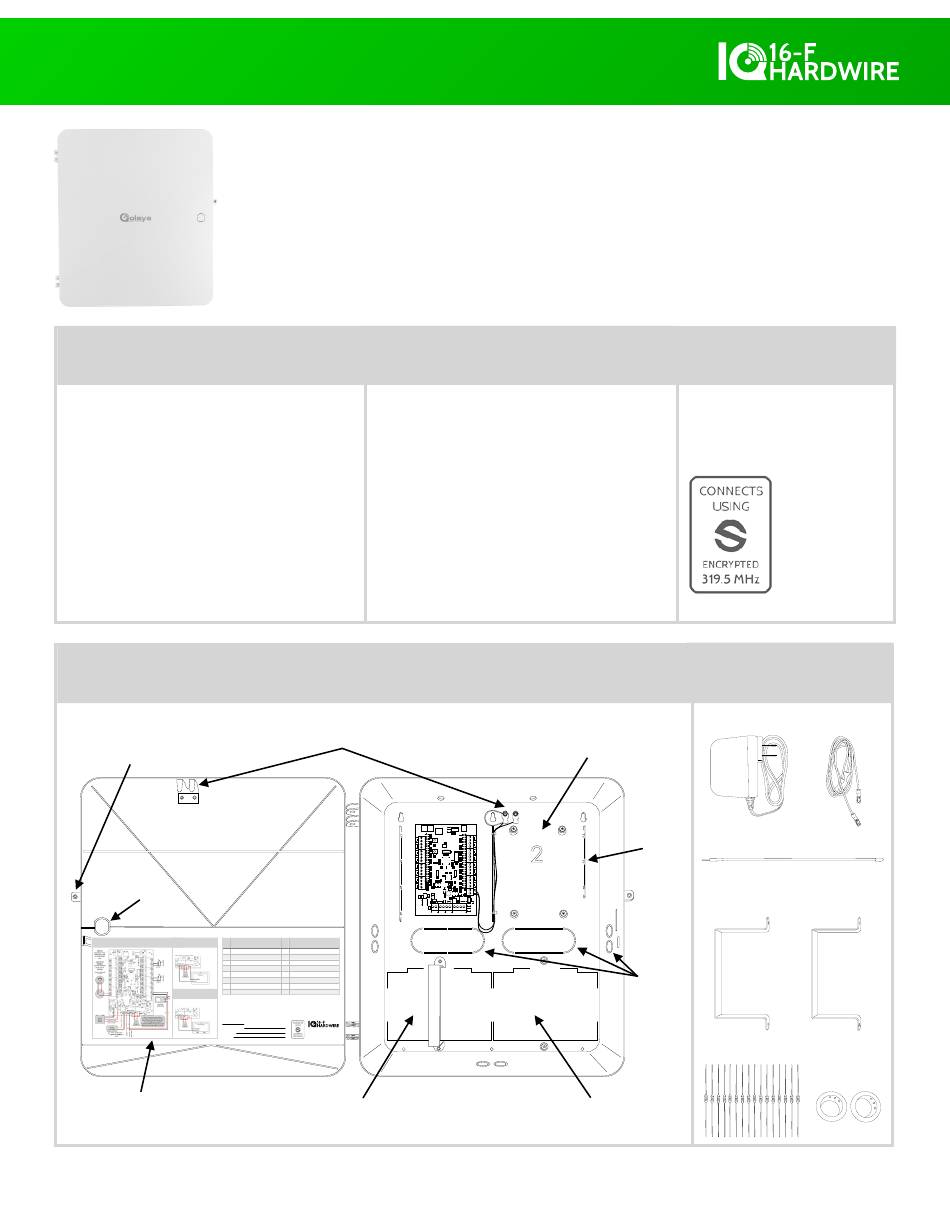

ENCLOSURE OVERVIEW
Locking
Screw
Optional
Cam Lock
WIRING DIAGRAM
ALT SIREN WIRING - A
#
Optional Siren Relay wiring using GND (-)
1
and IQ Panel 2 "EXT Siren" output*
2
3
4
5
6
*
7
Not intended for UL Installations
8
ALT SIREN WIRING - B
Optional Siren Relay wiring using 12v (+)
and IQ Panel (GEN1) "Buzzer" output*
For Service Contact
COMPANY NAME:
ADDRESS:
*
PHONE:
Not intended for UL Installations
Door
Label
The IQ Hardwire 16-F offers a cost effective way of integrating hardwired security &
smoke detector zones with the IQ Panel 2. It includes a large enclosure with ample
wire routing room, backup battery charging, 500mA of 12volt auxiliary power, an
onboard siren relay, built-in status LED' s for each zone and support for up to 10
two-wire smoke detectors. Normally Open and Normally Closed contacts are
supported as well as powered zones like motion sensors and glass break detectors.
Note: Not for use with CO detectors
UL REQUIREMENTS
Compatible Control Panel: The IQ Hardwire 16-F
is for use with the Qolsys IQ Panel 2 only. Refer to
the full IQ Panel 2 installation manual for typical
installation layout, including recommended
locations of the control unit, detectors and
notification appliances.
Enclosure: For UL Installations, Qolsys enclosure
QR0073-840 shall be used.
Listed Resistor: For UL Installations, Qolsys 4.7K
Fire Resistor Part # QR0072-840 shall be used on
the 2-wire fire loop at the end of line.
Wiring: For UL Installations, recognized limited
energy cable shall be used.
Tamper
ZONE LIST
#
ZONE LIST
9
10
11
12
13
14
15
2W
SMK
Document #: IQHW16FDL
Revision Date: 5/21/19
Qolsys Part #: QS7134-840
Battery Compartment
(5aH & 8aH compatible)
Page of 4 Qolsys Confidential and Proprietary.
1
INFORMATION
Document #: IQHW16FEQG
Revision Date: 10/7/19
Qolsys Part #: QS7134-840
ACCESSORIES
Power Supply
Expansion
Slot
Zip Tie
Rails
Knock
Outs
Expansion Battery
Compartment
Confidential &
Proprietary.
Made in Taiwan.
Battery Cables
RF Antenna (x1)
5aH Battery
8aH Battery
Bracket (x2)
Bracket (x2)
Resistors (x16)
Knock Out
Bushings (x2)
Advertisement
Table of Contents
Related Manuals for QOLSYS IQ Hardwire 16-F
Summary of Contents for QOLSYS IQ Hardwire 16-F
-
Page 1: Technical Specifications
INSTALLATION MANUAL The IQ Hardwire 16-F offers a cost effective way of integrating hardwired security & smoke detector zones with the IQ Panel 2. It includes a large enclosure with ample wire routing room, backup battery charging, 500mA of 12volt auxiliary power, an onboard siren relay, built-in status LED’... - Page 2 STEP 1: INSTALL THE HARDWARE 1. Mount the IQ Hardwire 16-F enclosure vertically in your desired location 2. Install the provided antenna through the hole in the top of the enclosure and into the “ANT” terminal at the top of the unit, keeping it free from obstructions 3.
-
Page 3: Troubleshooting
Processor, RF Xmit and Mode” unless a zone is open, then EOL CAL LED’ s will begin to flash ON or if a zone is tampered, then rapidly indicating that the mode has FLASHES been changed Page of 4 Qolsys Confidential and Proprietary. -
Page 4: Wiring Diagram
(1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil. Page of 4 Qolsys Confidential and Proprietary. FCC ID: 2ABBZ-RF-CHW-FIRE IC: 11817A-RFCHWFIRE...
