QOLSYS IQ Hardwire 16-F Installation Manual

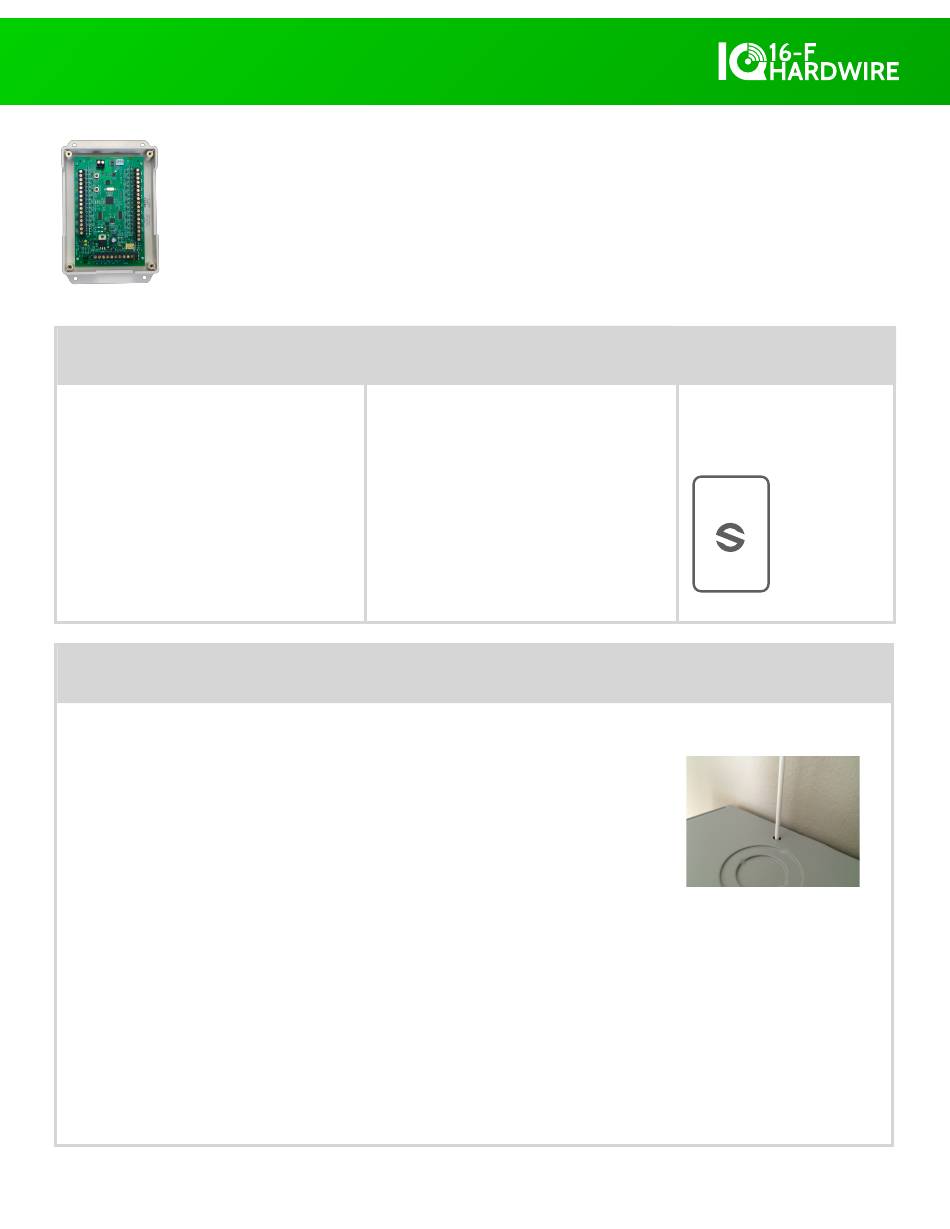

INSTALLATION MANUAL

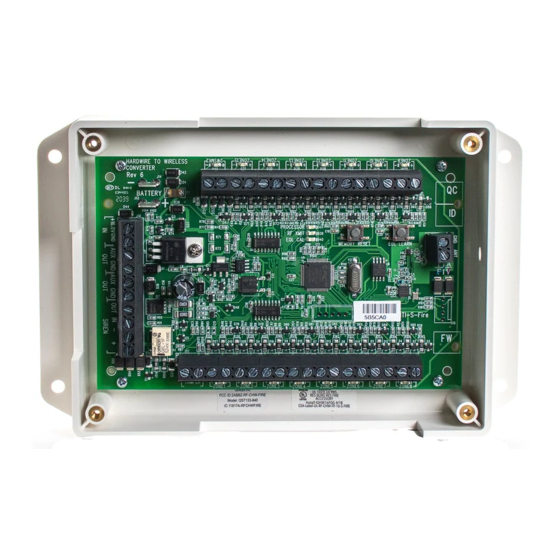

The IQ Hardwire 16-F offers a cost effective way of integrating hardwired security & smoke
detector zones with the IQ Panel 2/2+. It includes backup battery charging, 500mA of
12volt auxiliary power, an onboard siren relay, built-in status LED' s for each zone and
support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed
contacts are supported as well as powered zones like motion sensors and glass break
detectors.
Note: Not for use with CO detectors
TECHNICAL SPECIFICATIONS
Input Voltage: 16.0VDC Plug-In Transformer
Backup Battery: 12VDC 5AH Max (not included)
Dimensions: 5.5" X 3.5"
Operating Temperature: 32 to 122F (0 to 50C)
Humidity: 95% RH Max
EOL Supervision: 4.7k Ohm
Input Zones: 15 N/O or N/C
Smoke Zone: 1 two-wire smoke loop, 10 detectors
max. Support for System Sensor® 2W-B, 2WT-B,
2WTA-B*
*Detector models should not be mixed
Auxiliary Voltage Output: 12VDC @ 500mA Max
Tamper Zone: Used for case tamper, no resistor
Relay Contact: 60VDC/1A Max drives siren
STEP 1: INSTALL THE HARDWARE
1. Mount the IQ Hardwire 16-F vertically in your desired location
2. Install the provided antenna into the "ANT" terminal at the top of the unit free from
obstructions
3. Wire all hardwired sensors into the terminals marked Zone 1-15. Zone 16 is reserved
for two-wire smoke detectors:
a. All zones must have a 4.7k resistor (included) installed in either the N/O
(parallel) or N/C (series) position
b. Wire the positive and negative leads from powered devices, such as motion
sensors and glass break detectors, into the "AUX" (+) and "GND" (-) terminals to
power the devices.
c. Wire a tamper switch into the tamper terminals without using a resistor. If a
tamper switch is not being used, permanently shunt the zone with a piece of
wire.
d. Optional: Wire the hardwired siren (60VDC/1A Max, see wiring diagram)
4. Plug in a 5Ah lead acid backup battery with included battery leads (battery not
included)
5. Using the provided 16vDC power supply, connect the leads to the terminals marked
"+16.0V" & "GND", then plug then supply into a wall outlet. (Note: dashed wire is
positive)
UL REQUIREMENTS
Compatible Control Panel: The IQ Hardwire 16-F
is for use with the Qolsys IQ Panel 2/2+ only.
Refer to the full IQ Panel 2/2+ installation manual
for typical installation layout, including
recommended locations of the control unit,
detectors and notification appliances.
Enclosure: For UL Installations, Qolsys enclosure
QR0073-840 shall be used.
Listed Resistor: For UL Installations, Qolsys 4.7K
Fire Resistor Part # QR0072-840 shall be used on
the 2-wire fire loop at the end of line.
Wiring: For UL Installations, recognized limited
energy cable shall be used.
Page of 3 Qolsys Confidential and Proprietary. 1
INFORMATION
Document #: IQHW16FQG
Revision Date: 10/16/18
Qolsys Part #: QS7133-840
Confidential &
CONNECTS
Proprietary.
USING
Made in Taiwan.
ENCRYPTED
319.5 MHz
If mounting inside a
metal can, the antenna
must extend outside the
enclosure to ensure RF
communication
