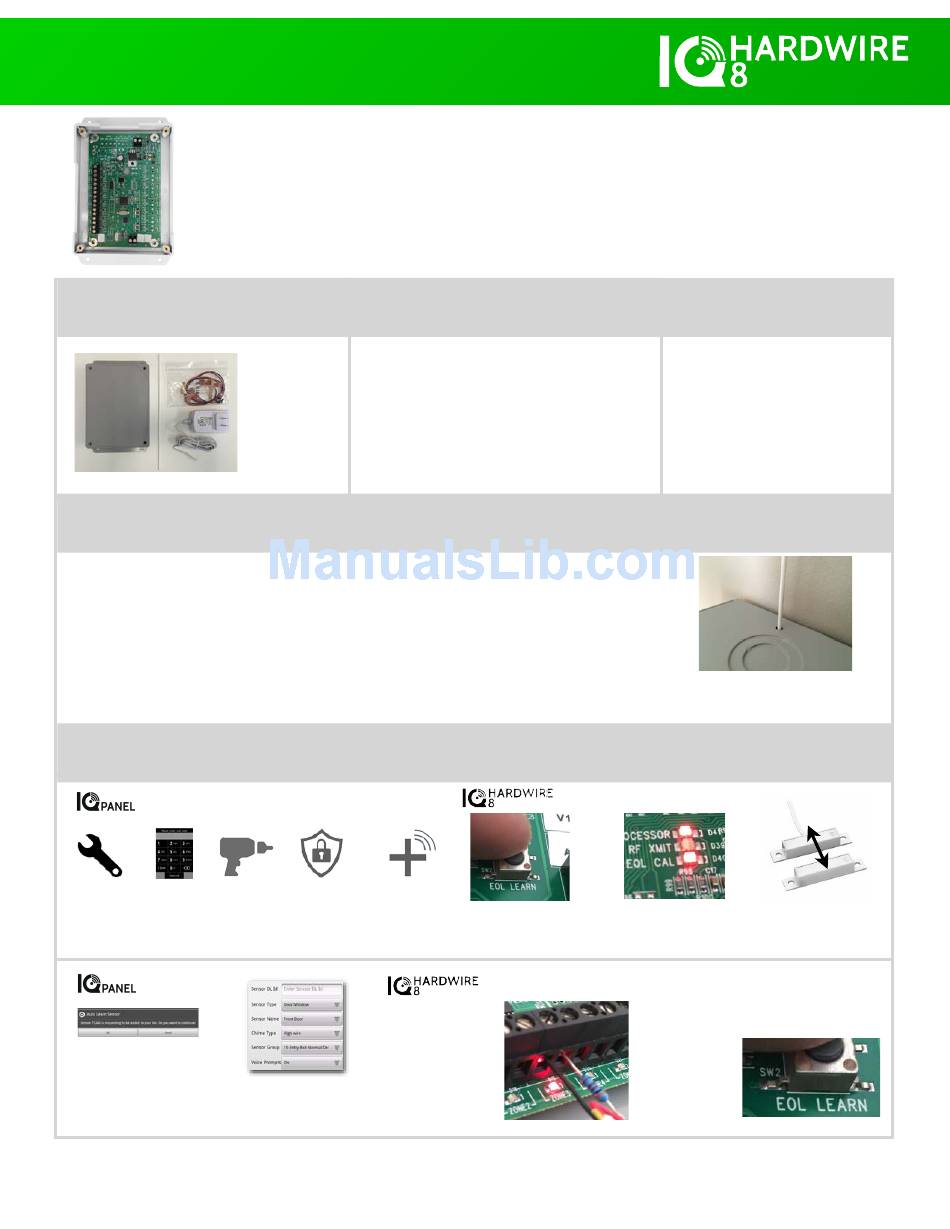

QOLSYS IQ Hardwire 8 Quick Manual

QUICK GUIDE
The IQ Hardwire 8 offers a cost effective way of integrating hardwired security zones
with the IQ Panel. It includes backup battery charging and features end-of-line resistor
learning, making rewiring different resistor values a thing of the past.
Note: Not for use with life safety devices, such as Smoke or CO detectors

IN THE BOX

STEP 1: INSTALL THE HARDWARE

1. Mount the IQ Hardwire 8 vertically in your desired location.
2. Install provided antenna into the "ANT" terminal at the top of the unit free from
obstructions
3. Wire all hardwired sensors/leads into the terminals marked "Zone 1-8"
a. All sensors must have a resistor installed between 1k-10k Ohm in either the N/O or N/C position
4. Plug in a 5Ah Max backup battery with included battery leads (battery not included).
5. With provided transformer, connect power supply leads into the terminals marked +16.0V
GND then plug in the IQ Hardwire 8' s power supply. (IMPORTANT: dashed wire is positive)

STEP 2: PAIRING INDIVIDUAL ZONES/SENSORS

Settings Enter installer Installation
code
(Default is 1111)
The IQ Panel will "chime"
indicating it has found a
new sensor. Touch Customize sensor type
"Okay" to proceed. and settings as desired.
Repeat for each zone.

TECHNICAL SPECIFICATIONS

Input Voltage: 16.0VDC Plug-In Transformer
IQ Hardwire 8
Backup Battery: 12VDC 5AH Max (optional)
Cover
Dimensions: 5.5" X 3.5"
Antenna
Operating Temperature: 32 to 122F (0 to 50C)
Power Supply
Humidity: 95% RH Max
4 Screws
EOL Supervision: 1K to 10K Ohm
8 Resistors (3K)
Input Zones: 8 (must have resistor)
Battery cables
Zone Type: N/O or N/C compatible
Security Auto Learn
Sensors Sensor
When a sensor has
been tripped, the
resistor value is
calibrated and the
Zone LED will
illuminate and stay
on until you exit
enroll mode.
Page of Qolsys Confidential and Proprietary. 1 2
EOL Cal LED will turn ON.
Press and hold "EOL Learn"
all Zone LED' s This puts the module into
for 1-2 secs. (
flash and then turn off) "Enroll Mode".

INFORMATION

Document #: IQHW8QG
Revision Date: 8/10/17
Qolsys Part #: QS7120-840
Confidential & Proprietary.
Made in Taiwan.
Full installation manual and other
documentation available at
Qolsys.com.
If mounting inside a metal can, the
antenna must extend outside the
enclosure to ensure RF communication
Trip (Open/Close)
each hardwired zone
one at a time
Once all desired zones have been learned,
press the "EOL Learn" button to exit
"Enroll Mode". The EOL Cal LED will turn
OFF indicating
you are no
longer in "Enroll
Mode" and all
zone LED' s will
turn OFF.
