Chapter 3: System Setup

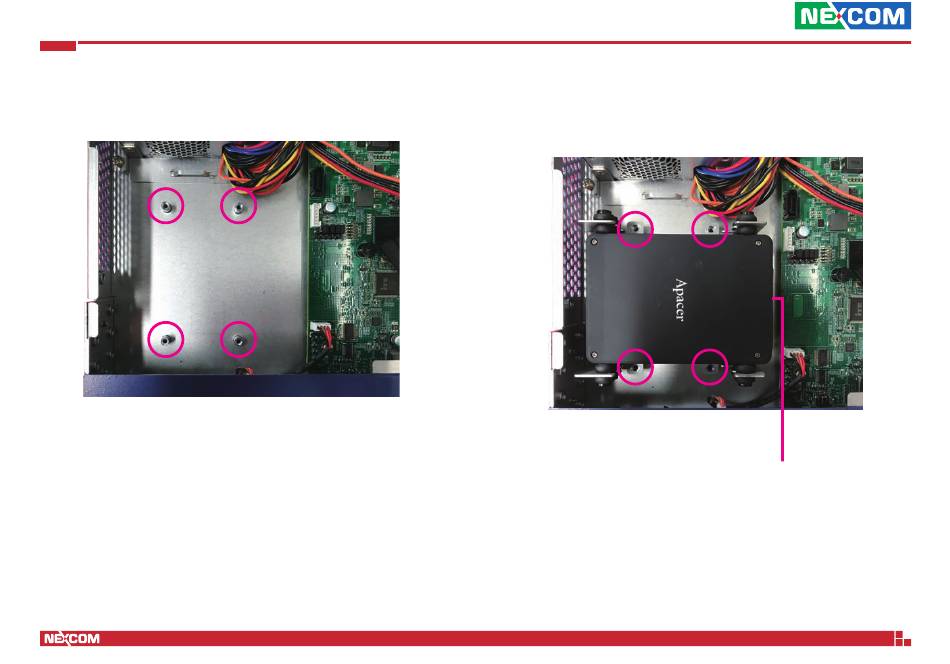

5. Locate the four mounting holes inside the chassis. This is where the
storage bracket will be installed.
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
6. Place the storage bracket into the chassis with the connector side
facing the board, and the mounting holes on the bracket aligned to the
mounting holes inside the chassis.
28
Connector Side
NSA 3180HA User Manual
