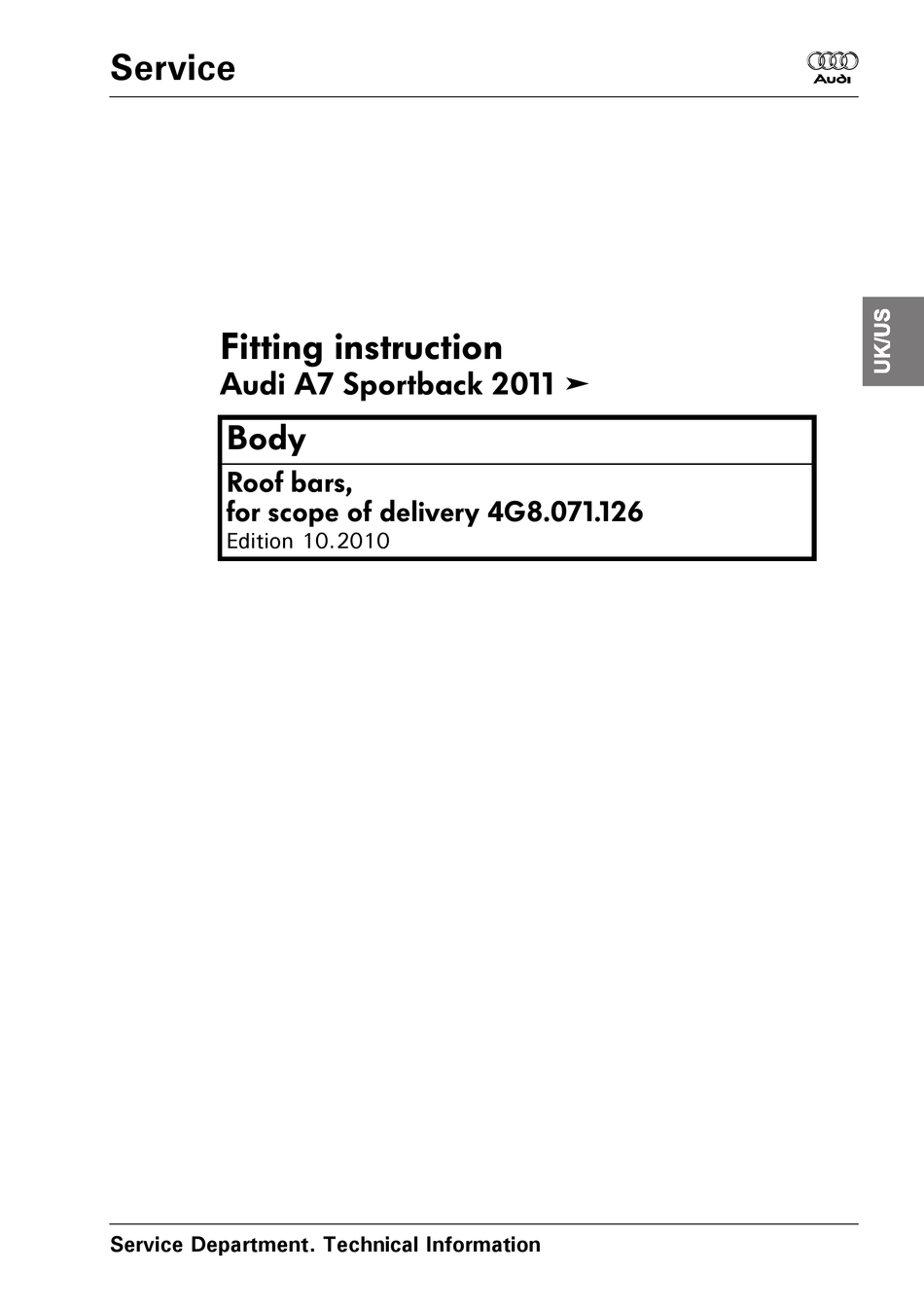

  • Page 1 Service Fitting instruction Audi A7 Sportback 2011 Body Roof bars, for scope of delivery 4G8.071.126 Edition 10.2010 Service Department. Technical Information...

  • Page 2: Table Of Contents

    Setting the roof bar width ............... . . All rights reserved. No reproduction without prior agreement from publisher. Printed in Germany Copyright © 2010 Audi AG, Ingolstadt...

  • Page 3: General Notes

    Text with this symbol indicates the risk of damage to your vehicle. Note Text with this symbol contains additional information. Audi AG shall not accept responsibility in the event of failure to comply with these assembly instructions. 1 General notes...

  • Page 4: Safety Notes

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 Safety notes Permissible roof load WARNING! Do not exceed the permissible roof load of 90 kg (198 lbs.) — risk of accident! Do not exceed the gross vehicle weight rating of roof bars, add-on components and load of 90 kg (198 lbs.).
  • Page 5 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 Load — Do not tension roof bars against each other WARNING! Do not tension roof bars against each other — risk of accident! ZUB-0220 Load — install the roof bars first, then install the add-on...
  • Page 6 Repairs or the replacement of parts must only be performed by a qualified workshop. It is recommended that genuine spare parts available from your Audi partner are used. Caution! The height of the vehicle will change as a result of installing the roof bars with/without add-on components.

  • Page 7: Parts

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 Parts Scope of delivery – Before installing the roof bars, check parts for completeness. Units Description Information Roof bar, front Label on the underside in direction of travel left Roof bar, rear...
  • Page 8 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 12 - Claw fastener Front left Front right rear left rear right 13 - Tensioning bolt (4x) 14 - Assembly tool 15 - 4-Nm torque wrench 16 - Cover flap (4x)

  • Page 9: Installing/Removing Roof Bars On Vehicle

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 Installing/removing roof bars on vehicle Installing roof bars on vehicle Preparing roof bars for installation – Open the lock -17- using the key -18-. – Note the key number of your roof bars. This will facilitate replacement in the event of loss.
  • Page 10 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 – ...then twist out the claw fasteners -12- as far as they will go... ZUB-0797 – ...and hook the “lugs” of the claw fasteners into the base bracket. Note When in the installation position, the claw fasteners -12- are a clear distance from the support brackets.
  • Page 11 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 Installing the roof bars – Carefully position both roof bars on the vehicle roof in the area of the positioning bolts -X- and -Y-. The claw fasteners must be in the installation position when positioning the roof bars.
  • Page 12 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 – Insert the claw fastener -12- over the positioning bolts -Y- above the installation aid and slide on the claw fastener carefully as far as it will go. Note The illustration shows the installation of the rear roof bars.

  • Page 13: Installing Add-On Components

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 The gap -a- must not exceed 1 mm. If the rubber supports on the support bracket housing are not flush to the surface, we recommend that you have the width adjustment checked by a qualified workshop ⇒...

  • Page 14: Removing The Roof Bars From The Vehicle

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 – To install the add-on components, remove the profile cap -1- from the profile tube -5- -arrow A-. – Insert the add-on components in the T groove -arrow B-. – Slide the profile cap -1- back on -arrow C-.

  • Page 15: General Notes

    Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 – Unhook the claw fasteners -12- from the installation position and swivel downward. – Turn bolt -13- approx. 10 times to screw in. – Close the cover flap -16- and lock the lock with the key.
  • Page 16 Audi A7 Sportback 2011 No. 122, Body, Edition 10.2010 – Adjust the roof bar so that the rubber support on the right-hand support bracket housing sits flush with the roof edge -arrow-. ZUB-0345 The gap -a- must not exceed 1 mm.
