Festo CPX-P User Manual

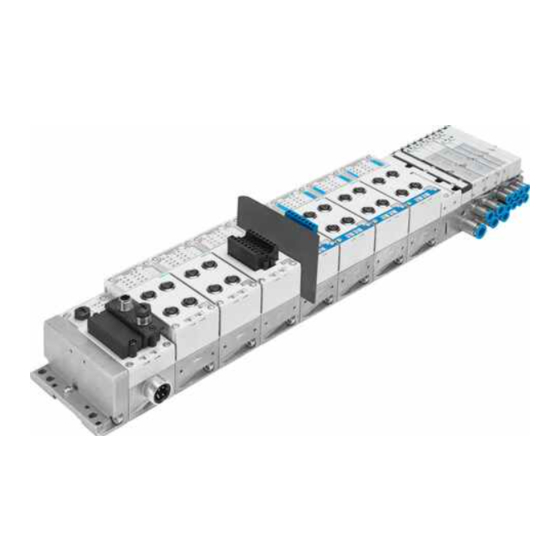

Modular electrical terminal
Hide thumbs

Advertisement

Quick Links

Download this manual
Modular electrical terminal CPX-P

Advertisement

loading
Need help?

Need help?

Do you have a question about the CPX-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Festo CPX-P

Summary of Contents for Festo CPX-P

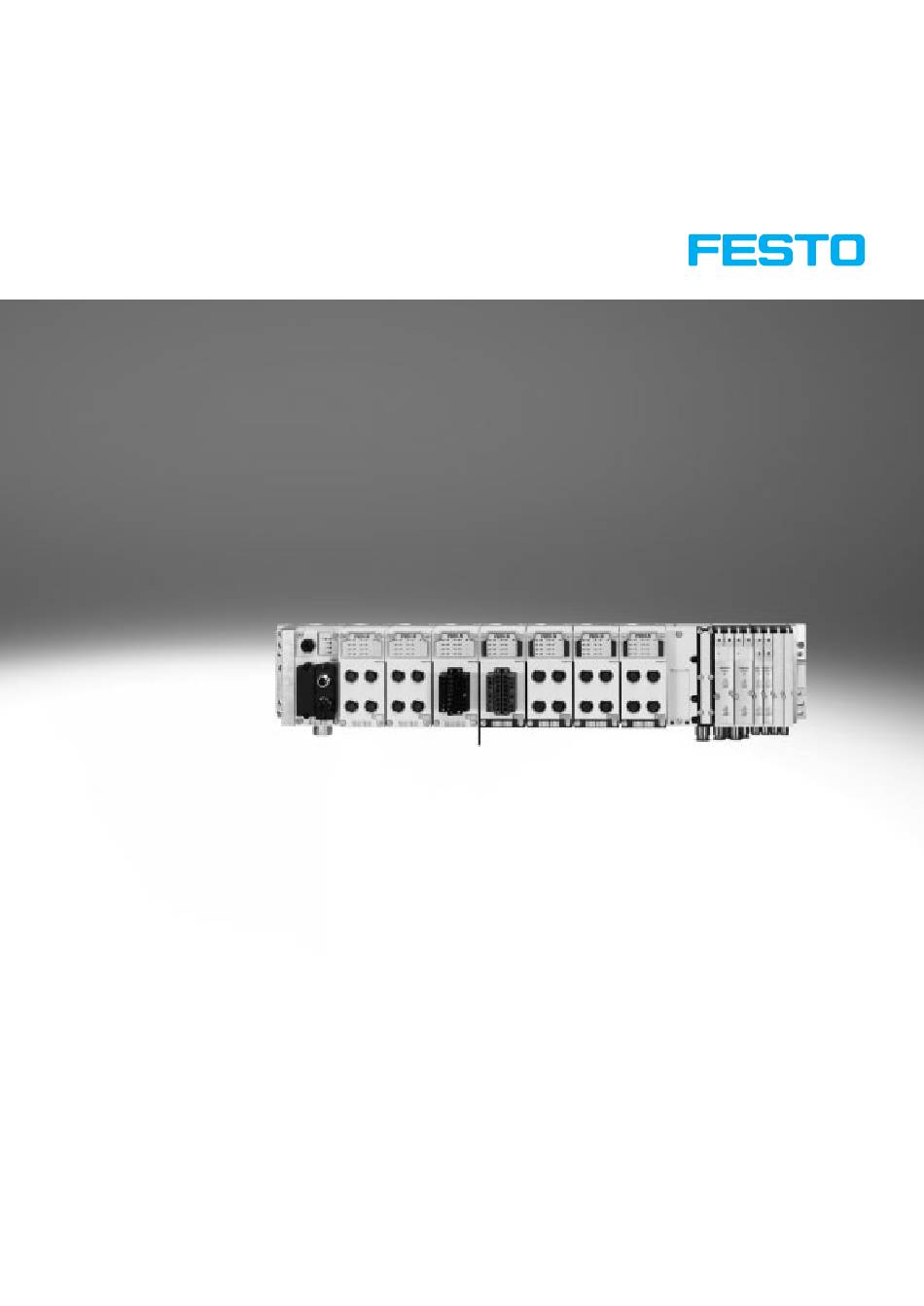

  • Page 1 Modular electrical terminal CPX-P...
  • Page 2 • Choice of connection technology for • Innovative diagnostic support with with individual channel diagnostics the central CPX-P terminal • Analogue inputs and outputs, • Choice of pneumatic components technically and economically integrated web server/web monitor...
  • Page 3 Terminal CPX-P Key features Variants for controlling the CPX-P terminal (with bus node, without preprocessing) Bus node Different bus nodes are used to Integration in universal networks terminal, text message/e-mail alerts, level in the production environment, integrate the terminal in the control based on Ethernet opens up new etc.
  • Page 4 Terminal CPX-P Key features Connection of inputs and outputs to the CPX-P terminal Digital and analogue CPX I/O modules Electrical connection • M12, 5-pin The connection technology for • M12, 5-pin, with quick lock and sensors and additional actuators offers a wide range of digital and metal thread •...
  • Page 5 Terminal CPX-P Key features Pneumatic variants of the CPX-P terminal With valve terminal MPA-S – centralised The electrical CPX-P terminal is a The modular system design lets you modular peripheral system for valve configure the number of valves, terminals. inputs and additional outputs to The system is specifically designed suit the application.
  • Page 6 Terminal CPX-P Peripherals overview Complete overview of modules End plate Bus node Control block Input/output modules • Mounting holes for wall mounting • Fieldbus/Industrial Ethernet • Remote unit CPX-CEC Combination of • Functional earth connection • Connection via Ethernet TCP/IP or •...
  • Page 7 Terminal CPX-P Peripherals overview Complete overview of modules Input/output modules Pneumatic interface 1 Interlinking block 2 Electronics module 3 Connection block • Internal linking of the power supply • Digital inputs for connecting the • Choice of connection technology • MPA-S •...
  • Page 8 Terminal CPX-P Peripherals overview Individual overview of modules è 66 Bus node Bus node for • PROFIBUS DP • DeviceNet • EtherNet/IP (integrated web server) • PROFINET (integrated web server) Plastic connection block Metal connection block Direct machine mounting Direct machine mounting...
  • Page 9 Terminal CPX-P Peripherals overview Individual overview of modules è 53 Connection block for NAMUR sensors and HART input/output module Digital electronics module for NAMUR sensors Direct machine mounting Digital inputs • 8 digital inputs for NAMUR sensors (connection block to IP65) •...
  • Page 10 CPX-4AE-4AA-H Terminal CPX-P Peripherals overview General basic data and guidelines • Address capacity max. 512 inputs • The connection blocks can, with a Max. 11 modules in total: • One bus node and/or one control and 512 outputs, depending on...
  • Page 11 Terminal CPX-P Key features – Electrical components Electrical connection – Connection block with M8, 3-pin connection CPX-AB-8-M8-3POL • Compact for pre-assembled individual connection Note • 8 sockets Festo delivers pre-assembled • 3-pin design for connecting M8/M12 connecting cables 1 channel per socket (NEBU modular system) on request: •...
  • Page 12 Terminal CPX-P Key features – Electrical components Electrical connection – Connection block with M8, 4-pin connection CPX-AB-8-M8X2-4POL • Compact for pre-assembled individual connection • 8 sockets • 4-pin design for connecting 2 channels per socket Combination of connection block and electrical connection technology...
  • Page 13 Terminal CPX-P Key features – Electrical components Electrical connection – Connection block with M12, 4-pin connection CPX-P-AB-4XM12-4POL-8DE-N-IS • Pre-assembled and sturdy with 2 channels per connection • 4 sockets • 4-pin design per socket • With two channels per connection,...
  • Page 14 Terminal CPX-P Key features – Electrical components Electrical connection – Connection block with M12, 5-pin connection CPX-AB-4-M12x2-5POL and CPX-AB-4-M12x2-5POL-R, plastic design • Pre-assembled and sturdy with 2 channels per connection • 4 sockets • 5-pin design per connection • Version …-R with quick lock techno­...
  • Page 15 Terminal CPX-P Key features – Electrical components Combination of connection block and electrical connection technology Connection block Connection Plug connector/connecting Connection technology Plug connector/ Connection technology technology cable connecting cable 2 SEA-GS-7 Socket, M12, Screw terminals – – 2 SEA-4GS-7-2,5...
  • Page 16 1 CPX-AB-8-KL-4POL 2 AK-8KL (cover) Spring-loaded terminals, 32-pin – Electrical connection – Connection block with clamping connector CPX-P-AB-2XKL-8POL and CPX-P-AB-2XKL-8POL-8DE-N-IS • Quick connection technology for use in control cabinets • Spring-loaded terminals or screw terminals • Wire cross sections 0.2 … 2.5 mm...
  • Page 17 Terminal CPX-P Key features – Electrical components Electrical connection – Connection block with Sub-D connection CPX-AB-1-SUB-BU-25POL • Multi-pin plug connection for I/O distributor or console • One socket, Sub-D • 25-pin design Combination of connection block and electrical connection technology...
  • Page 18 Points to note when using the CPX hood • Impact protection (min. 7 J) for the • Protection against disconnection of • CPX-P power supply via angled • No MPA vertical stacking • Use of larger QS fittings (for tubing...
  • Page 19 The connection blocks This reduces the likelihood of a socket CPX-P-AB-2XKL-8POL, being inserted in the wrong slot after CPX-P-AB-2XKL-8POL-8DE-N-IS and it is removed from the CPX-P terminal the sockets NECU-L3G8 can be (protection against incorrect matched to one another using the insertion).
  • Page 20 H-rail mounting The rear profile of the CPX-P interlink­ then swivelled onto the H-rail and For H-rail mounting you will need the ing block has a preformed H-rail secured in place with the clamping following mounting kit: •...
  • Page 21 Terminal CPX-P Key features – Power supply Power supply concept General information The use of decentralised devices on concept. A valve terminal with CPX-P A distinction is made between supply Connection technology: • 7/8" the fieldbus – particularly with high can, in principle, supply all voltages •...
  • Page 22 Terminal CPX-P Key features – Power supply Interlinking blocks With system supply • CPX-M-GE-EV-S-7/8-5POL • For CPX-P terminal modules and • For actuators that are connected to • CPX-M-GE-EV-S-7/8-5POL-VL connected sensors output modules of the CPX-P • For valves that are connected to the...
  • Page 23 A further 4 CPX-P-specific LEDs 4 fieldbus-specific LEDs display provide non-fieldbus-specific the fieldbus communication information about the status of status of the CPX-P terminal with the CPX-P terminal, for example the higher-order controller. – Power system – Power load – System fault –...
  • Page 24 1 LCD graphical display for on-site plain-text diagnostics – Fault location and type – Without programming Display on a PC 1 CPX-P terminal with valve Maintenance Tool (CPX-FMT) soft­ terminal ware 2 Adapter diagnostic interface to – Fault location and type –...
  • Page 25 (e.g. pneumatic interface MPA-S rules in the technical data for CPX the fieldbus systems. with up to 16 MPA manifold bus nodes. sub-bases) Overview – Allocated addresses for CPX-P modules Inputs [bit] Outputs [bit] CPX-P-8DE-N CPX-P-8DE-N (inputs configured as counter)
  • Page 26 The data given here apply to the plugs or covers (which must also con­ component with the lowest protection CPX-P system. If components that form to IP65). If components with a level, for example CageClamp connec­ conform to lower values are used in lower protection class are used, the tion block with IP20 protection.
  • Page 27 Terminal CPX-P Technical data General technical data Module No. 562818 Parameterisation Module-specific and entire system, for example: • Diagnostic behaviour • Condition monitoring • Profile of inputs • Fail-safe response of outputs and valves Commissioning support Forcing of inputs and outputs...
  • Page 28 DNV 15.0193 X For information about the applicability of the component see the manufacturer’s EC declaration of conformity at: www.festo.com/sp è Certificates. If the component is subject to restrictions on usage in residential, office or commercial environments or small businesses, further measures to reduce the emitted interference may be necessary.
  • Page 29 Terminal CPX-P Accessories Ordering data – Accessories Designation Part No. Type Mounting Attachment for wall mounting (for long valve terminals, 2 mounting brackets and 550217 CPX-M-BG-RW-2x 4 screws) Mounting for H-rail 526032 CPX-CPA-BG-NRH Interlinking block Without power supply – 550206...
  • Page 30 Hood Mounting rail for securing the hood 1,000 mm 572256 CAFC-X1-S Mounting kit for CPX hood 572257 CAFC-X1-BE Hood section for CPX-P terminal including mounting 200 mm 572258 CAFC-X1-GAL-200 attachments for connecting several hood sections in series 300 mm 572259...
  • Page 31 Instructions on assembly, installation, commissioning and diagnostics of the MPA-S pneumatic components. Electronic components P.BE-CPX-SYS-… System description, installation and Overview of the design, components and mode of operation of the CPX-P commissioning terminal; installation and commissioning instructions as well as basic principles of parameterisation. P.BE-CPX-EA-…...
  • Page 32 The operator unit is a small, conveni­ Width ent commissioning and service device 81 mm for the CPX-P terminal. It provides data polling, configuration and diag­ nostic functions for CPX-P terminals. Its extremely flexible application range means that data can be read in or out at any location.
  • Page 33 Terminal CPX-P Technical data – Operator unit CPX-MMI-1 Connection The operator unit is connected to the CPX-P terminal using pre-assembled cables. Function examples System overview • Overview of configured modules and current diagnostic messages Diagnostics • Fast access to the diagnostic history...
  • Page 34 –5 <= Ta <= +50 For information about the applicability of the component see the manufacturer’s EC declaration of conformity at: www.festo.com/sp è Certificates. If the component is subject to restrictions on usage in residential, office or commercial environments or small businesses, further measures to reduce the emitted interference may be necessary.
  • Page 35 10.6 – – 84.3 – Ordering data Designation Part No. Type Operator unit Provides data polling, configuration and diagnostic functions for CPX-P terminals 529043 CPX-MMI-1 Connecting cable Connecting cable M12-M12, specially for CPX-MMI 1.5 m 529044 KV-M12-M12-1,5 3.5 m 530901...
  • Page 36 CPX-P terminal. The USB-to-M12 adapter features built-in galvanic isolation (between CPX-P and PC) and enables a PC to be connected to the diagnostic interface of the CPX-P terminal.
  • Page 37 Terminal CPX-P Technical data – CPX Maintenance Tool Display components Creating a device configuration using the editor The device configuration can be con­ veniently generated, parameterised and saved using the drag & drop feature. You can insert and move modules.
  • Page 38 Download CAD data è www.festo.com Dimensions Adapter 1 Mini B 5P USB port 2 Plug M12x1, 5-pin Ordering data Designation Part No. Type CPX-P Maintenance Tool (CPX-FMT), software and USB-to-M12 adapter 547432 NEFC-M12G5-0.3-U1G5 è Internet: www.festo.com/catalogue/... Subject to change – 2018/04...
  • Page 39 The bus node is provided with system supply via the interlinking block and processes communication with the I/O modules. The status of the CPX-P terminal is displayed as a common message via four CPX-P-specific LEDs. The fieldbus communication status is displayed via the three DeviceNet- specific LEDs.
  • Page 40 Terminal CPX-P Technical data – Bus node CPX-FB11 General technical data Type CPX-FB11 Fieldbus interface Either • Micro Style bus connection: 2xM12 with IP65/IP67 protection • Open Style bus connection: 5-pin terminal strip, IP20 Baud rate [kbps] 125, 250, 500 Addressing range 0 …...
  • Page 41 Terminal CPX-P Technical data – Bus node CPX-FB11 Connection and display components 1 Bus-specific LEDs 2 CPX-P-specific status LEDs 3 Selectable fieldbus connection Micro Style Open Style 4 DIL switch cover Pin allocation for the DeviceNet interface Pin allocation Signal-specific...
  • Page 42 Terminal CPX-P Technical data – Bus node CPX-FB11 Ordering data Designation Part No. Type Bus node DeviceNet bus node 526172 CPX-FB11 Bus connection Sub-D plug 532219 FBS-SUB-9-BU-2x5POL-B Connection block, 9-pin Sub-D socket, 5-pin 7/8" plug 571052 CPX-AB-1-7/8-DN Micro Style bus connection, 2xM12...
  • Page 43 Terminal CPX-P Technical data – Bus node CPX-FB11 Ordering data Designation Part No. Type User documentation User documentation for bus node CPX-FB11 German 526421 P.BE-CPX-FB11-DE English 526422 P.BE-CPX-FB11-EN Spanish 526423 P.BE-CPX-FB11-ES French 526424 P.BE-CPX-FB11-FR Italian 526425 P.BE-CPX-FB11-IT Software Adapter from 5-pin M12 to mini USB socket and controller software 547432 NEFC-M12G5-0.3-U1G5...
  • Page 44 The bus node is provided with system supply via the interlinking block and processes communication with the I/O modules. The status of the CPX-P terminal is displayed as a common message via four CPX-P-specific LEDs. The fieldbus communication status is displayed via the PROFIBUS-specific error LED.
  • Page 45 Terminal CPX-P Technical data – Bus node CPX-FB13 General technical data Type CPX-FB13 Fieldbus interface Sub-D socket, 9-pin (EN 50170) Galvanically isolated 5 V Baud rate [Mbps] 0.0096 … 12 Addressing range 1 … 125 Set using DIL switch Product range 4: Valves Ident.
  • Page 46 Terminal CPX-P Technical data – Bus node CPX-FB13 Connection and display components 1 Bus status LEDs/bus fault 2 CPX-P-specific status LEDs 3 Fieldbus connection (9-pin Sub-D socket) 4 DIL switch cover Pin allocation for PROFIBUS DP interface Pin allocation Signal...
  • Page 47 Terminal CPX-P Technical data – Bus node CPX-FB13 Ordering data Designation Part No. Type Bus node PROFIBUS bus node 195740 CPX-FB13 Bus connection Sub-D plug, straight 532216 FBS-SUB-9-GS-DP-B Sub-D plug, angled 533780 FBS-SUB-9-WS-PB-K Bus connection, adapter from 9-pin Sub-D plug to 5-pin M12 plug/socket, B-coded...
  • Page 48 Terminal CPX-P Technical data – Bus node CPX-FB13 Ordering data Designation Part No. Type User documentation User documentation for bus node CPX-FB13 German 526427 P.BE-CPX-FB13-DE English 526428 P.BE-CPX-FB13-EN Spanish 526429 P.BE-CPX-FB13-ES French 526430 P.BE-CPX-FB13-FR Italian 526431 P.BE-CPX-FB13-IT Software Adapter from 5-pin M12 to mini USB socket and controller software 547432 NEFC-M12G5-0.3-U1G5...
  • Page 49 The bus node is provided with system supply via the interlinking block and processes communication with the I/O modules. The status of the CPX-P terminal is displayed as a common message via four CPX-P-specific LEDs. The fieldbus communication status is displayed via three bus-specific LEDs.
  • Page 50 Terminal CPX-P Technical data – Bus node CPX-FB33 General technical data Type CPX-FB33 Fieldbus interface 2x M12 socket, D-coded, 4-pin Baud rate [Mbps] Protocol PROFINET RT PROFINET IRT Max. address capacity Inputs [byte] Outputs [byte] LED displays (bus-specific) = Maintenance/PROFIenergy...
  • Page 51 Terminal CPX-P Technical data – Bus node CPX-FB33 Connection and display components 1 Bus-specific status LEDs 2 CPX-P-specific status LEDs 3 Fieldbus connection (4-pin socket M12, D-coded) 4 Transparent cover for DIL switch and memory card Pin allocation for the fieldbus interface...
  • Page 52 Memory card for PROFINET bus node, 2 MB 568647 CPX-SK-2 Screws Screws for attaching an inscription label holder to the bus node (12 pieces) 550222 CPX-M-M2,5X8-12X User documentation Electronics manual, CPX-P bus node, type CPX-FB33 German 548759 P.BE-CPX-PNIO-DE English 548760 P.BE-CPX-PNIO-EN Spanish 548761 P.BE-CPX-PNIO-ES...
  • Page 53 Terminal CPX-P Technical data – Input module, digital, NAMUR Function Applications • Input modules for 24 V DC sensor Digital input modules enable the con­ nection of up to eight NAMUR sensors supply voltage • Module features can be (or wired mechanical contacts). In...
  • Page 54 The above-mentioned certifications additional safety measures for pos­ interface or another module in in­ must be mounted between a module for the CPX-P-8DE-N-IS module do sible faults such as non-resettable trinsically safe design are permitted in intrinsically safe design not apply if the module is used out­...
  • Page 55 For allocation to inputs è Pin allocation for module 2 Channel-related error LEDs (red) 3 Error LED (red, module error) 4 Marking for intrinsically safe variant, CPX-P-8DE-N-IS (blue) Connection block/digital input module combinations Connection blocks Part No. Digital input module...
  • Page 56 Coding element Ensures that a coded socket NECU-L3G8 can only be inserted in For NECU-L3G8 565713 CPX-P-KDS-AB-2XKL the matching coded connection block CPX-P-AB-2XKL (96 pieces of each) Screening plate Insulating plate for safe separation of intrinsically safe and non-intrinsically safe 565708...
  • Page 57 Terminal CPX-P Technical data – Input module, digital, 8 inputs Function Area of application • Input modules for 24 V DC sensor Digital input modules enable the connection of two-wire and three-wire supply voltage • PNP or NPN logic sensors (proximity sensors, inductive •...
  • Page 58 Terminal CPX-P Technical data – Input module, digital, 8 inputs Connection and display components CPX-8DE CPX-8NDE 1 Status LEDs (green) For allocation to inputs è Pin allocation for module For allocation to outputs è Pin allocation for module 2 Error LED (red, module error)
  • Page 59 Terminal CPX-P Technical data – Input module, digital, 8 inputs Pin allocation Connection block inputs CPX-8DE and CPX-8NDE CPX-AB-8-KL-4POL X1.0: 24 V X5.0: 24 V SEN x+4 X1.1: 0 V X5.1: 0 V SEN x SEN x+4 X1.2: Input x X5.2: Input x+4...
  • Page 60 Terminal CPX-P Accessories – Input module, digital, 8 inputs Ordering data Description Part No. Type Input module, digital 8 digital inputs, positive logic (PNP) 195750 CPX-8DE 8 digital inputs, negative logic (NPN) 543813 CPX-8NDE Connection block Plastic 8x socket M8, 3-pin...
  • Page 61 Terminal CPX-P Accessories – Input module, digital, 8 inputs Ordering data Description Part No. Type Cover Cover for CPX-AB-8-KL-4POL (IP65, IP67) 538219 AK-8KL – 8 cable throughfeeds M9 – 1 cable throughfeed for multi-pin plug Fittings kit 538220 VG-K-M9 Screening plate...
  • Page 62 Terminal CPX-P Technical data – Input module, digital, 16 inputs Function Applications • Input modules for 24 V DC sensor Digital input modules enable the connection of two-wire and three-wire supply voltage • PNP logic sensors (proximity sensors, inductive • Module features can be or capacitive sensors, etc.).
  • Page 63 Terminal CPX-P Technical data – Input module, digital, 16 inputs Connection and display components 1 Status LEDs (green) For allocation to inputs è Pin allocation for module 2 Error LED (red, module error) Connection block/digital input module combinations Connection blocks Part No.
  • Page 64 Terminal CPX-P Technical data – Input module, digital, 16 inputs Pin allocation Connection block inputs CPX-16DE CPX-AB-8-KL-4POL X1.0: Input x+8 X5.0: Input x+12 X1.1: 24 V X5.1: 0 V X1.2: Input x X5.2: Input x+4 X1.3: FE X5.3: FE X2.0: Input x+9 X6.0: Input x+13...
  • Page 65 Terminal CPX-P Technical data – Input module, digital, 16 inputs Ordering data Designation Part No. Type Input module, digital 16 digital inputs, internal electronic fuse for each module 543815 CPX-16DE Connection block Plastic 8x socket, M8, 4-pin 541256 CPX-AB-8-M8X2-4POL Spring-loaded terminal, 32-pin...
  • Page 66 Terminal CPX-P Technical data – Analogue module for inputs Function Applications • Analogue module for 0 … 10 V, Analogue modules control devices with a standardised analogue inter­ 0 … 20 mA or 4 … 20 mA • Supports connection blocks with...
  • Page 67 Terminal CPX-P Technical data – Analogue module for inputs General technical data Electrical isolation Channel – channel Channel – internal bus Yes, with external sensor supply LED displays Group diagnostics Channel diagnostics Diagnostics Wire break per channel Limit value violation per channel...
  • Page 68 Terminal CPX-P Technical data – Analogue module for inputs Connection and display components CPX-4AE-U-I 1 Error LED (red, module error) 2 Channel-related error LEDs (red) Connection block/analogue module combinations Connection blocks Part No. Analogue module CPX-4AE-U-I CPX-AB-4-M12X2-5POL 195704 CPX-AB-4-M12X2-5POL-R 541254...
  • Page 69 Terminal CPX-P Technical data – Analogue module for inputs Pin allocation Connection block inputs CPX-4AE-U-I CPX-AB-1-SUB-BU-25POL Input 0– Input 2– Input 0+ Input 2+ Input 1– Input 3– Input 1+ Input 3+ n.c. 24 V n.c. n.c. n.c. 24 V n.c.
  • Page 70 Terminal CPX-P Technical data – Analogue module for inputs Ordering data Designation Part No. Type Input module, analogue 4 analogue current or voltage inputs 573710 CPX-4AE-U-I Connection block Plastic 4x socket, M12, 5-pin 195704 CPX-AB-4-M12X2-5POL 4x socket, M12 with quick-lock technology, 5-pin...
  • Page 71 Terminal CPX-P Technical data – Output module, digital Function Applications • Output module for 24 V DC supply Digital outputs control actuators such as individual valves, hydraulic valves, voltage • PNP logic heating controllers and many more. • Module features can be Separate circuits are created using an additional power supply.
  • Page 72 Terminal CPX-P Technical data – Output module, digital Connection and display components CPX-4DA CPX-8DA 1 Status LEDs (yellow) For allocation to outputs è Pin allocation for module 2 Channel-related error LEDs (red) 3 Error LED (red, module error) Connection block/digital output module combinations Connection blocks Part No.
  • Page 73 Terminal CPX-P Technical data – Output module, digital Pin allocation Connection block outputs CPX-4DA CPX-8DA CPX-AB-8-M8X2-4POL X1.1: 0 V X5.1: 0 V X1.1: 0 V X5.1: 0 V X1.2: Output x+1 X5.2: n.c. X1.2: Output x+1 X5.2: n.c. X1.3: 0 V X5.3: 0 V...
  • Page 74 Terminal CPX-P Technical data – Output module, digital Pin allocation Connection block outputs CPX-4DA CPX-8DA CPX-AB-1-SUB-BU-25POL Output x Output x+2 Output x Output x+4 Output x+1 Output x+3 Output x+1 Output x+5 Output x+1 Output x+3 Output x+2 Output x+6 n.c.
  • Page 75 Terminal CPX-P Technical data – Output module, digital Ordering data Designation Part No. Type Output module, digital 4 digital outputs, power supply 1 A per channel 195754 CPX-4DA 8 digital outputs, power supply 0.5 A per channel 541482 CPX-8DA Connection block...
  • Page 76 Terminal CPX-P Technical data – Output module, digital Ordering data Designation Part No. Type Cover Hood for CPX-AB-8-KL-4POL (IP65/67) 8 cable through-feeds M9 538219 AK-8KL 1 cable through-feed for multi-pin plug Fittings kit for hood AK-8KL 538220 VG-K-M9 Cover cap for sealing unused connections...
  • Page 77 Terminal CPX-P Technical data – Analogue module for outputs Function Applications • Analogue module for 0 … 10 V, Analogue modules control devices with a standard analogue interface 0 … 20 mA or 4 … 20 mA • Supports connection blocks with such as proportional valves, etc.
  • Page 78 Terminal CPX-P Technical data – Analogue module for outputs General technical data Type CPX-2AA-U-I Voltage output Current output Response time For ohmic load [ms] For capacitive load [ms] – For inductive load [ms] – Data format 15 bits + prefix, linear scaling...
  • Page 79 Terminal CPX-P Technical data – Analogue module for outputs Pin allocation Connection block outputs CPX-2AA-U-I CPX-AB-4-M12X2-5POL, CPX-AB-4-M12X2-5POL-R , CPX-M-AB-4-M12X2-5POL X1.1: 24 V X3.1: 24 V X1.2: Output U0+ X3.2: Output U1+ X1.3: 0 V X3.3: 0 V X1.4: Output GND X3.4: Output GND...
  • Page 80 Terminal CPX-P Technical data – Analogue module for outputs Ordering data Designation Part No. Type Output module, analogue 2 analogue current or voltage outputs 526170 CPX-2AA-U-I Connection block Plastic 4x socket, M12, 5-pin 195704 CPX-AB-4-M12X2-5POL 4x socket, M12 with quick-lock technology, 5-pin...
  • Page 81 Basic error limit at 25 °C ±0.1 Operating error limit related to the ambient temperature range ±0.3 Repetition accuracy 0.05% at 20ºC LED indicators Group diagnostics Channel diagnostics Channel status Control elements DIL switch è Internet: www.festo.com/catalogue/... 2018/04 – Subject to change...
  • Page 82 For information about the applicability of the component see the manufacturer’s EC declaration of conformity at: www.festo.com/sp è Certificates. If the component is subject to restrictions on usage in residential, office or commercial environments or small businesses, further measures to reduce the emitted interference may be necessary.
  • Page 83 33 or 34 (in the case of CPX-FB13). Combinations of manifold blocks with HART input/output module Manifold blocks Part No. HART input/output module CPX-4EA-4AA-H CPX-P-AB-4XM12-4POL 565706 CPX-P-AB-2XKL-8POL 565704 è Internet: www.festo.com/catalogue/... 2018/04 – Subject to change...
  • Page 84 X1.8: 0 V X2.8: 0 V Note In the case of mixed operation of inputs and outputs in one module, the connections are first assigned input signals and then output signals, in ascending order. è Internet: www.festo.com/catalogue/... Subject to change – 2018/04...
  • Page 85 Cover cap for sealing unused ports M12x1 (10 pieces) 165592 ISK-M12 Coding element Ensures that a coded socket NECU-L3G8 can only be inserted in the For NECU-L3G8 565713 CPX-P-KDS-AB-2XKL matching coded manifold block CPX-P-AB-2XKL (96 pieces of each) è Internet: www.festo.com/catalogue/... 2018/04 – Subject to change...
  • Page 86 Function Applications • 24 V DC supply voltage for Interlinking blocks ensure the electrical supply of all other CPX-P electronics of the CPX-P terminal • 24 V DC supply voltage for inputs modules. They have contact rails, from • 24 V DC supply voltage for valves which the other CPX-P components on •...
  • Page 87 Terminal CPX-P Technical data – Interlinking block with system supply Ordering data Designation Part No. Type Interlinking block with system supply 7/8" connection, metal interlinking block 5-pin – 550208 CPX-M-GE-EV-S-7/8-5POL For ATEX environment 8022165 CPX-M-GE-EV-S-7/8-5POL-VL 7/8" connection sockets Power supply socket...
  • Page 88 Technical data – Interlinking block Function Applications • All voltages are fed through to the Interlinking blocks ensure the electrical supply of all other CPX-P next module by means of modules. They have contact rails, from interlinking blocks. • The connected electronics module...
  • Page 89 Terminal CPX-P Technical data – Interlinking block Ordering data Designation Part No. Type Interlinking block without supply Metal interlinking block 550206 CPX-M-GE-EV Mounting accessories Screws for mounting the bus node/connection block on Bus node/plastic connection 550219 CPX-M-M3x22-4x an interlinking block...
  • Page 90 Technical data – Interlinking block with additional power supply for outputs Function Applications • 24 V DC supply voltage for outputs Interlinking blocks ensure the electrical supply of all other CPX-P modules. They have contact rails, from which the other CPX-P components on the interlinking modules are supplied with current.
  • Page 91 Terminal CPX-P Technical data – Interlinking block with additional power supply for outputs Ordering data Designation Part No. Type Interlinking block with additional power supply for outputs 7/8" connection, metal interlinking block 5-pin – 550210 CPX-M-GE-EV-Z-7/8-5POL 5-pin For ATEX environment 8022158 CPX-M-GE-EV-Z-7/8-5POL-VL 7/8"...
  • Page 92 MPA-S via the integrated CPX-P fieldbus communication being bus. The bus signal for activation of interrupted (fail-safe), individual the solenoid coils is converted in the channel diagnostics can be acti­...
  • Page 93 Terminal CPX-P Technical data – Pneumatic interface VMPA‐FB Overview – Pneumatic interface VMPA-FB 1 Pneumatic interface VMPA‐FB 2 Inscription label 3 Flat plate silencer 4 Exhaust plate for ducted exhaust air 5 Fittings Ordering data Designation Part No. Type Pneumatic interface...
  • Page 94 Terminal CPX-P Technical data Download CAD data è www.festo.com Dimensions – Metal interlinking block With bus nodes and connection blocks 1 Left-hand end plate 5 Connection block 8 Connection block aJ Mounting bracket for wall 2 Bus node CPX-AB-8-KL-4POL CPX-P-AB-4XM12-4POL...
  • Page 95 Terminal CPX-P Technical data Download CAD data è www.festo.com Dimensions With bus nodes and valve terminal MPA-S 1 Solenoid valve MPA1 6 H-rail aA Earthing screw Number of sub-bases in a grid 2 Solenoid valve MPA2 7 H-rail mounting aB Electrical supply plate...
  • Page 96 Terminal CPX-P Accessories Ordering data – Accessories Designation Part No. Type Plug connectors Sub-D socket, 9-pin For DeviceNet 532219 FBS-SUB-9-BU-2x5POL-B Sub-D plug, 9-pin For PROFIBUS DP 532216 FBS-SUB-9-GS-DP-B Sub-D plug, angled For PROFIBUS DP 533780 FBS-SUB-9-WS-PB-K Bus connection, Sub-D plug, 9-pin...
  • Page 97 Terminal CPX-P Accessories Ordering data – Accessories Designation Part No. Type Plug connectors RJ45 plug 534494 FBS-RJ45-8-GS Socket, 8-pin Spring-loaded Black 565712 NECU-L3G8-C1 terminal Gentian blue 565711 NECU-L3G8-C1-IS Screw terminal Black 565710 NECU-L3G8-C2 Gentian blue 565709 NECU-L3G8-C2-IS Sub-D plug, 25-pin...
  • Page 98 Hood Mounting rail for attaching the hood 1,000 mm 572256 CAFC-X1-S Mounting kit for CPX hood 572257 CAFC-X1-BE Hood section for CPX-P terminal including mounting 200 mm 572258 CAFC-X1-GAL-200 attachments for connecting several hood sections in series 300 mm 572259...
  • Page 99 Terminal CPX-P Accessories Ordering data – Accessories Designation Part No. Type Covers and attachments Hood for CPX-AB-8-KL-4POL (IP65/67) 8 cable through-feeds M9 538219 AK-8KL 1 cable through-feed for multi-pin plug Fittings kit for hood AK-8KL 538220 VG-K-M9 Screening plate for connection block...
