Consolidate - Parceltools C190 CubetapePRO Technical Manual

2.
Figure 2-9

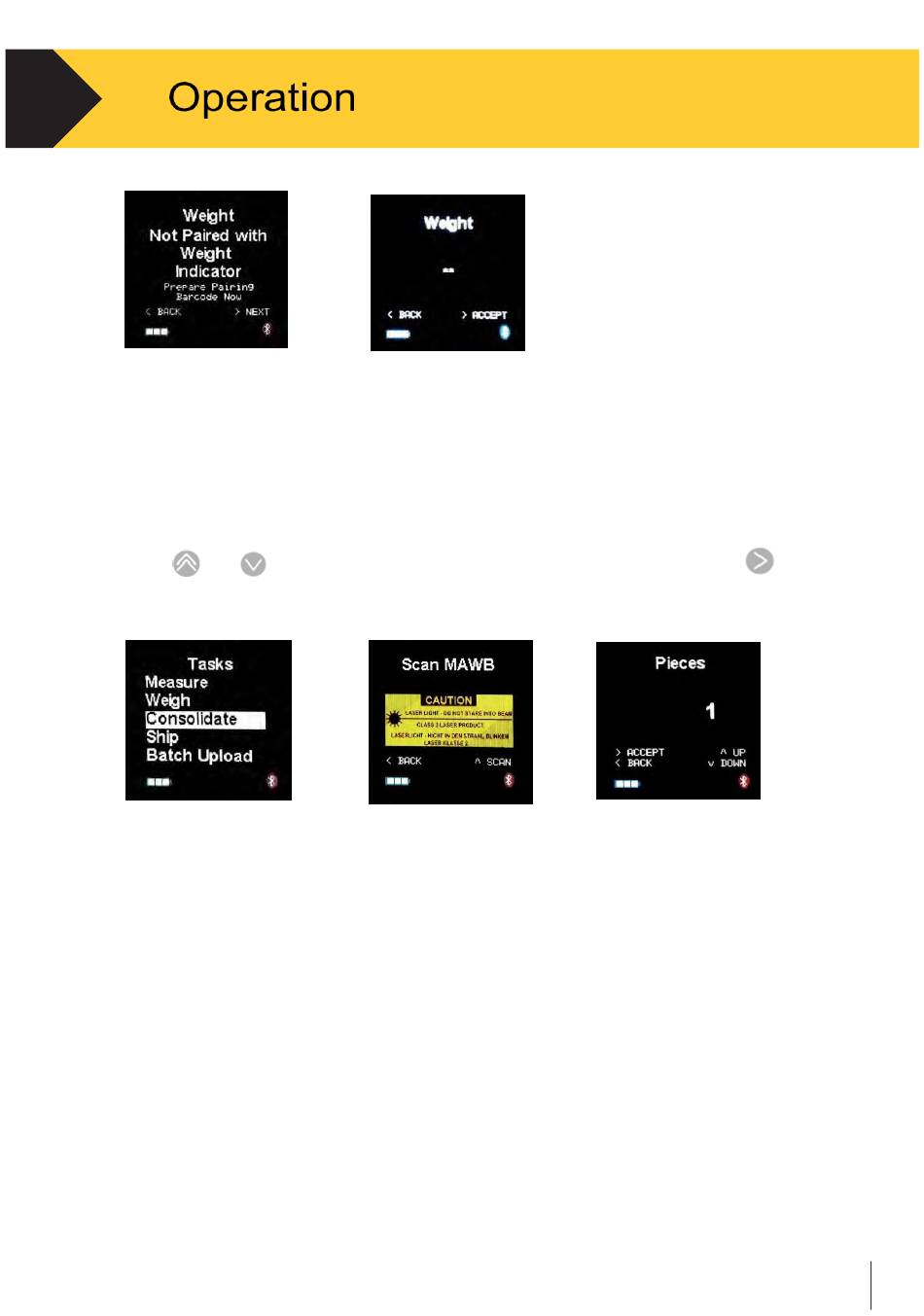

2.4.3 Consolidate

C190Cubetape can consolidate multiple items under one barcode. This application also works
in "batch" mode. The records needs be uploaded by the Batch Upload operation to a host.
• Use
and to scroll, when the cursor is on the Consolidate tab, press
select. See Figure 2-11.
Figure 2-11
• The display will be redirected to the first step in the Consolidate workflow. The
process is similar to the "Measure" Task. See Section 2.4.1 for more details.
• After the dimensioning measurements, the workflow loops back to collect data for
the next item (see Figure 2-13).
• After the dimensioning measurements, the record is saved automatically.
Figure 2-10
Figure 2-12
Technical manual-C190CubetapePRO
to
Figure 2-13
14
