Summary of Contents for Corghi ARTIGLIO 50

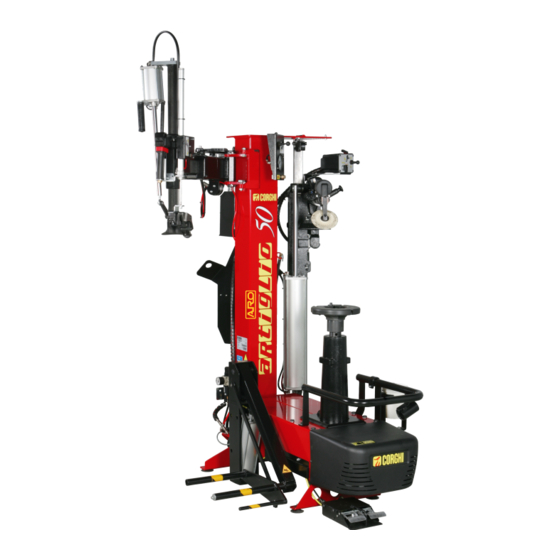

  • Page 2 30”, cuyo nombre -ARTIGLIO 50- evoca de manera ine- rior technical characteristics. The ARTIGLIO 50 is an evolution of the au- quívoca la tradición y la historia de quién ha inventado el servicio a la rueda, proponiendo tomatic tire changer featuring the “leva...
  • Page 3 > Ergonomic wheel lift allows easy positioning of all wheels on the turntable (optional accessory). Elevador ergonómico. Permite posicionar fácilmente todas las ruedas en el autocentrante (accesorio bajo pedido). > Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).
  • Page 4 > Bead breaking unit with automatic single arm featuring 180° tilting (Patent Pending): quick, accurate, repetitive bead breaking on both sides of tire. Grupo destalonador monobrazo automático giratorio en la medida de 180° (Patent Pending): preciso, repetitivo y rápido durante la aplicación del procedimiento de destalonadura en ambos lados.
  • Page 5 > Top bead demounting procedure. Procedimiento de desmontaje del talón superior. > Head unit: - the demounting procedure uses the same working movements but abso- lutely no effort is required from the operator thanks to the “Leva la leva” technology incorporated in the mount/demount head (Patent pending) - the mounting procedure is exactly as before, and just as quick and conven- ient.
  • Page 6 > Adjustable grease ring Anillo porta grasa regulable > Intelligent motoin- verter drive system: the right torque at the right speed (7- 18 RPM). Motorización con sistema inteligente convertidor: el par correcto a la veloci- dad adecuada (7/18 RPM). > Machine working height designed for perfect ergonomics with all kind of wheels: ideal for all operators.
  • Page 7 >>> Accessories on request - Accesorios bajo pedido > > > Pick-up rim kit Universal flange for close center rims Reverse wheel flange Kit llantas furgón Brida universal para llantas sin agujero central Brida para ruedas de canal invertido > Pax system kit Kit para ruedas Pax System >...
  • Page 8 116 PSI (8 bares) weight (with wheel lift) 683,4 lbs (310 kg) peso (con elevador) 683,4 lbs (310 kg) 37,6” 62,2” 50,8” 47,2” Corghi Usa Inc. 9325 Sutton Place Hamilton, 45011 - OHIO Local number (513) 874-5958 Toll free 1-800-260-0968 www.corghiusa.us e-mail: info@corghiusa.us...
