- Page 1 Installation & Operating Manual 3001806 03.02 BESF Box Ventilator READ AND SAVE THESE INSTRUCTIONS 1200 Northmeadow Parkway, STE 180 • Roswell, GA 30076 (770) 587-3238 (800) 255-2923 Fax (770) 587-4731 info@exhausto.com us.exhausto.com...
-
Page 2: Symbol Legend
System design documentation is available from any accidentally. authorized EXHAUSTO representative. 3. Installation work and electrical wiring must be done by a qualified Accessories, fans and variable frequency drives are not covered by person(s) in accordance with applicable codes and standards. -
Page 3: Product Information

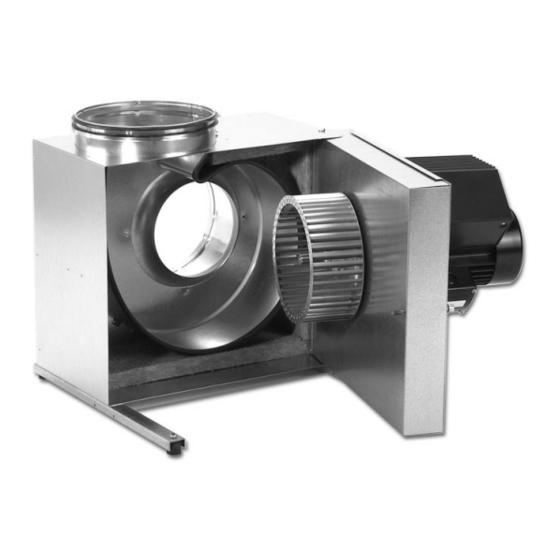

1. Product Information Function EXHAUSTO Model BESF is a box ventilator that can be used for the movement of air in exhaust and air supply systems where no explosive gases are present. The ventilator cannot be used for transport of large particles. - Page 4 Shipping Protection The ventilator is protected by a corrugated box. Do not place other products or items on top of the box. After unpacking, the product must be handled in a way to prevent damaging the collars and the ventilator housing. Fig.
-
Page 5: Specifications
2. Specifications Dimensions & Capacities Model BESF 146 BESF 160 BESF 180 Fan Type Centrifugal Impeller (F-Wheel) Motor Type TEFC Voltage V AC 1x120 Amperage Amps Motor Output 0.08 0.16 0.35 1600 Weight Duct Connection Dimensions 13.60 14.57 16.15 11.62 12.60 13.98 7.88... -
Page 6: Installation
3. Installation Positioning The ventilator can be installed in many different positions. However, it should always be possible to open the access door at least 80 degrees, and the locking bolts should always be accessible. Acceptable ventilator positions are shown below in Fig. 3. Note that the ventilator motor can never point straight down as this could cause condensation build-up around the shaft, which can shorten the product life. -
Page 7: Ceiling Mounting
For all other positions, the legs should be placed in a proper position and holes should be drilled prior to securing the legs to the ventilator by means of the enclosed sheet metal screws. When placing the ventilator, make sure the access door can open approximately 80°. See Fig. 5. Fig. -
Page 8: Electrical Requirements
Field Wiring (14AWG) The above diagram shows the Connection (wire nut) wiring of the capacitor in the junction box. Fan speed control Neutral 1 x 120 VAC, 60 Hz * Use only EXHAUSTO supplied Fan Speed Control 8/16... - Page 9 Fig. 8 and the distances observed. If transfer of vibrations is a major concern special vibration dampening connectors (FLF) should be installed. These are available from EXHAUSTO. If a duct is not connected, a safety screen (accessory), as shown in Fig. 9, must be installed. Make sure the sizing of the ventilator takes the resulting static pressure loss into account.
- Page 10 6. Service & Maintenance Cleaning Intervals The ventilator is designed for prolonged use. It must be inspected and cleaned at least every 12 months. The need for cleaning is dependent on the type of application and how the ventilator is operated.
-
Page 11: Troubleshooting
7. Troubleshooting Problem Probable Cause What to do Fan is making too much noise. Ducting is too small for the volume of Resize ducts. air. Ducts/Filters are dirty/clogged. Clean and inspect ducts and filters. Fan inlet or outlet is too close to the Relocate duct or fan. -
Page 12: Spare Parts
8. Spare Parts Parts Ordering When ordering spare parts, please have the model number and part position number available.* Fig. 11 Motor Impeller Shaft extension Support legs with vibration dampers (2) Motor housing plate (outside housing) * Some parts shown are not in all fans. 12/16... -
Page 13: Warranty Disclaimer
9. Warranty Warranty EXHAUSTO products are warranted for a period of two (2) years following the date of invoice. Replacement or repair will be at EXHAUSTO’s discretion, provided factory inspection shows a defect in material or workmanship. In addition, The EXHAUSTO Models RS and RSV Chimney Fans are warranted against corrosion perforation for a period of 10 years following the invoice date. - Page 14 Notes 14/16...
- Page 15 Notes 15/16...
- Page 16 3001805 03.02 1200 Northmeadow Parkway, STE 180 • Roswell, GA 30076 (770) 587-3238 (800) 255-2923 Fax (770) 587-4731 info@exhausto.com us.exhausto.com...
