Schematic; Terms And Definitions - Wittkopp Remote 3000 Installation Instructions

3 Schematic

not secure

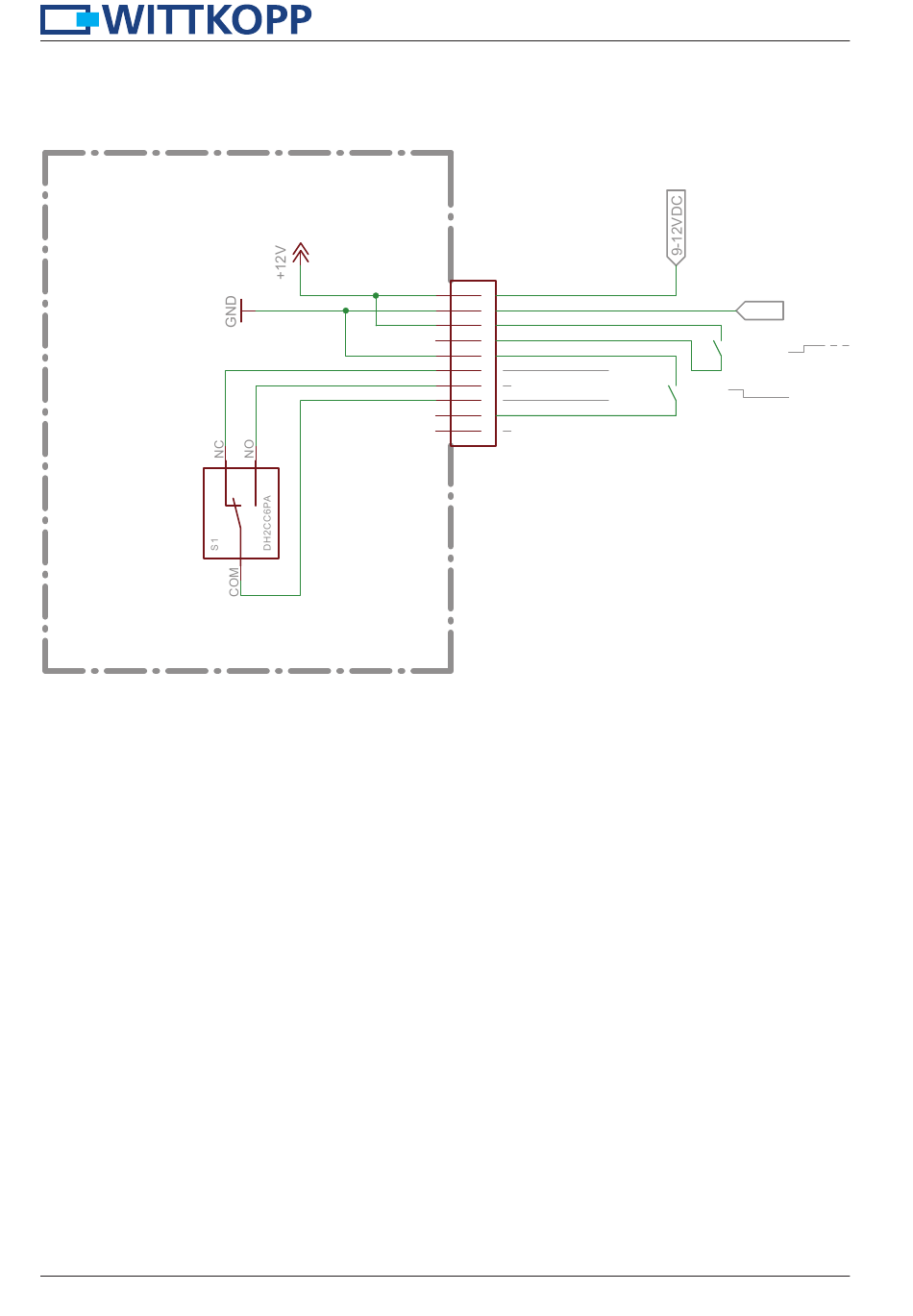

Abb. 4: Schematic
26.07.2011 09:16:53 f=2.00 C:\Users\naumann.WITTKOPP\Documents\01 Produkte-Einzelprojekte\03 Elostar Remote\02 Bedienungsanleitungen\Anschlussbelegung.sch (Sheet: 1/1)

4 Terms and definitions

Pulse mode:
A closed lock can be opened by a single impulse and closed again by a succeeding one.
Hold mode:
If the opening signal is not turned off before the bolt reaches the opening position, the lock stays opened until the signal is
removed again. When the signal is then removed, the lock closes automatically.
Opening and closing is carried out by a signal input. The lock can be operated in pulse or hold-mode via this signal input.
4
Installation instructions Remote 3000 / 3010
X101
Vcc
1
power supply
2
3
4
5
6
7
secure / not secure
8
9
10
n.c.
RIACON-AST072-10
GND
open/close
blocking
