Summary of Contents for BlackVue DR490-2CH

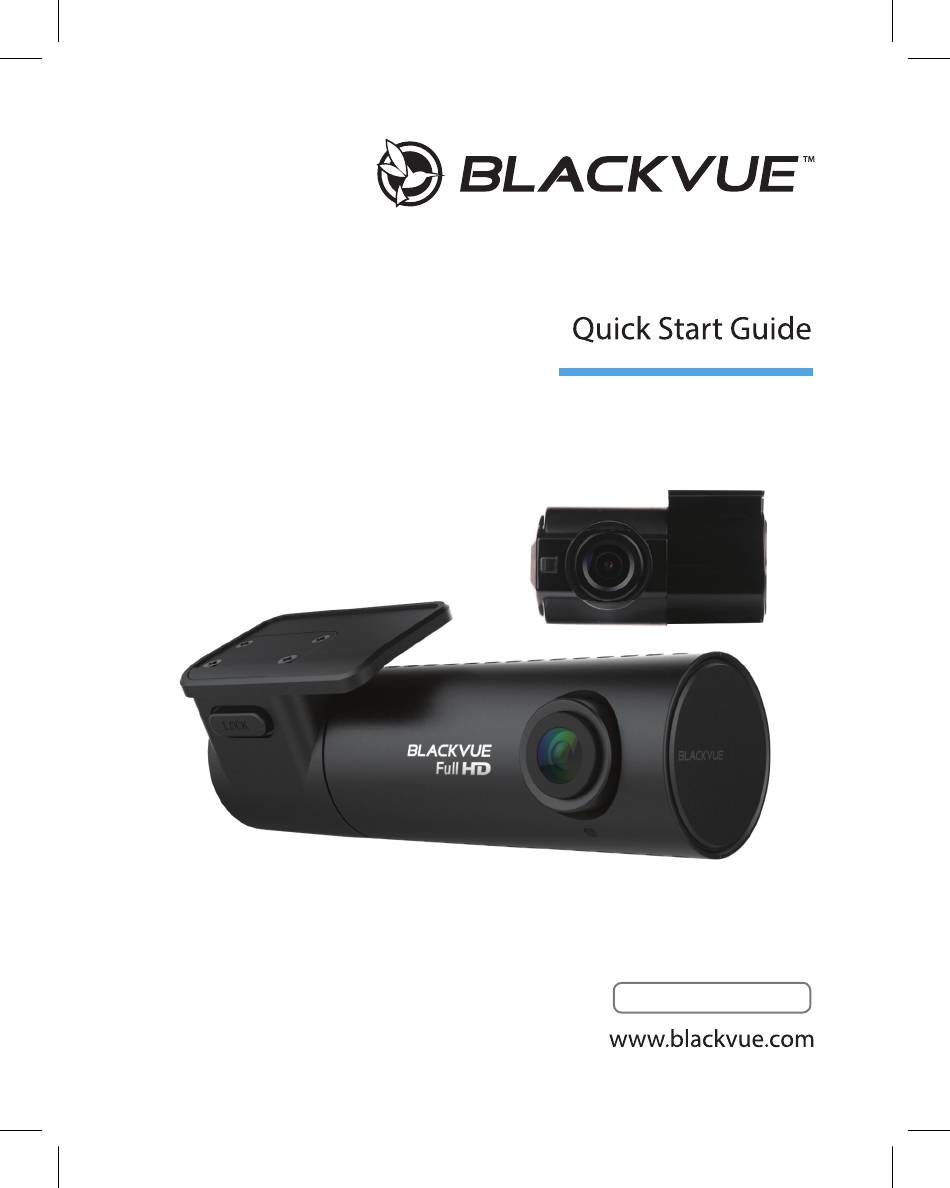

- Page 1 DR490-2CH ENGLISH / NORSK...
- Page 2 BLACKVUE DR490-2CH For manuals, customer support and FAQs go to www.blackvue.com Besøk www.blackvue.com for håndbøker, kundestøtte og spørsmål og svar...
-
Page 3: Important Safety Information
If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. The data can be damaged or malfunctions may occur. DR490-2CH... -
Page 4: Fcc Compliance Information
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user's authority to operate such equipment. BLACKVUE... - Page 5 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health. 3. For more detailed information about disposal of your BlackVue dashcam, please contact your city office, waste disposal service or the shop where you purchased the product.
-
Page 6: Need Help
In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera Quick start guide Power cord microSD Card microSD card adapter Rear camera Rear camera Cable clips (5 EA) connection cable External GPS (Optional) Need help? Download the manual and the latest firmware from www.blackvue.com... -
Page 7: Front Camera

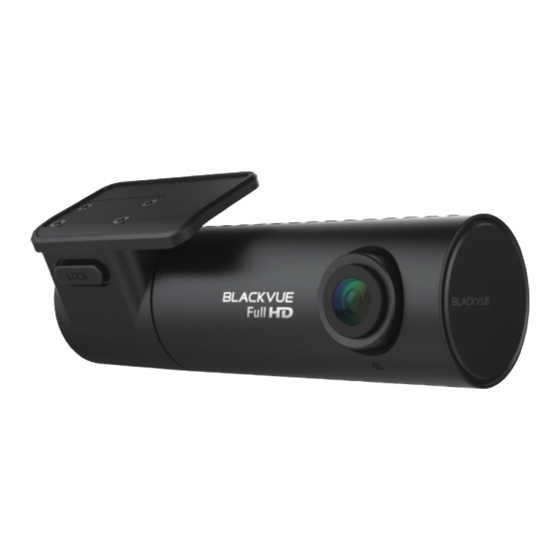

At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera Lock button Camera lens 111.8 mm Mounting bracket Front security LED : Blinks slowly in normal and parking mode. : Blinks quickly when an event is being recorded (Impact detected) or motion is detected in parking mode. - Page 8 Self-format function: To format the microSD card press the button for 10 seconds until the dashcam beeps. Rear camera Rear security LED : Blue LED blinks when rear and front cameras are connected. Front camera Camera lens Mounting bracket connection port 51.3 mm 29.2 mm BLACKVUE...
- Page 9 Do not install the product in a location where it can obstruct the driver's field of vision. Turn off the engine. Open the cover of the microSD card slot, gently push the card into the slot until it locks into place and close the cover. DR490-2CH...
- Page 10 Tuck the cable into the windshield trim using the pry tool. Adjust the angle of the lens by rotating the body of the front camera. We recommend pointing the lens slightly downwards (≈10° below horizontal), so as to record video with a 6:4 road to background ratio. 10 BLACKVUE...
- Page 11 Connect the front camera (‘Rear’ port) and the rear camera using the rear camera connection cable. Use the pry tool to lift the edges of the rubber window sealing and molding and tuck in the rear camera connection cable. Rear camera connection cable DR490-2CH 11...
- Page 12 Power cord Rear camera connection cable Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. When the microSD card fills up, the newest video files will start to replace the oldest video files (called loop recording) – so you will always have the most recent video files.
- Page 13 Remove the microSD card from the dashcam. Open side cover To remove Use the included microSD card adapter to connect the card to a computer. Download BlackVue Viewer from www.blackvue.com > Support > Downloads and install it on your computer. DR490-2CH 13...
- Page 14 Run BlackVue Viewer. Windows Viewer Mac Viewer 14 BLACKVUE...
-
Page 15: Change The Time Zone
Settings button (Windows) or the menu (mac OS) to open the BlackVue settings panel. You will be able to change most of the BlackVue settings to customize its operation. The settings that can be adjusted include: y Time (Time zone): Manual time and time zone setting... -
Page 16: Tips For Optimal Performance
Tips for optimal performance Format the microSD card once a month, or when the BlackVue dashcam tells you the card needs maintenance. Formatting the card in the BlackVue: Press the Mic/Format button for 10 seconds until the dashcam beeps. Format using BlackVue Viewer (Windows): Insert the microSD card into the microSD card adapter and connect it to your computer. -
Page 17: Product Specifications
Full HD (1920x1080) @ 30 fps - Full HD (1920x1080) @ 30 fps Image Quality Highest/High/Normal Video Compression Mode External (Optional) Microphone Built-in Speaker (Voice Guidance) Built-in Front: Front Security(WHITE), REC(RED), GPS(BLUE) LED Indicators Rear: Rear Security(BLUE) Sensor 3-Axis Acceleration Sensor DR490-2CH 17... - Page 18 -20 °C–80 °C (-4 °F–176 °F) High Temperature Approx. 70 °C (158 °F ) Cut-Off Certifications FCC, CE, RoHS, WEEE BlackVue Viewer Software * Windows XP or higher and Mac Yosemite OS X (10.10) or higher Other Features Format-Free Technology for Stable Recording...
-
Page 19: Innholdet I Esken
Innholdet i esken Kontroller at esken inneholder alt det følgende før du installerer dashbordkameraet BlackVue. Frontkamera Hurtigstartguide Strømledning microSD-kort microSD-kort-adapter Bakkamera Kabel til bakkamera Kabelklemmer (5 stk.) Ekstern GPS (valgfritt) Trenger du hjelp? Last ned håndboken og den nyeste fastvaren fra www.blackvue.com Eller kontakt en kundestøtteekspert på... - Page 20 Introduksjon Følgende diagrammer forklarer delene til BlackVue-dashbordkameraet. Frontkamera Låseknapp Kameralinse 111,8 mm Monteringsbrakett Frontsikkerhet-LED : Blinker sakte i normal modus og parkeringsmodus. : Blinker raskt når en hendelse blir tatt opp (støt registrert) eller det registreres bevegelse i parkert modus.
- Page 21 Selvformateringsfunksjon: Hold inne knappen i 10 sekunder, helt til dashbordkameraet piper, for å formatere microSD-kortet. Bakkamera Bakre sikkerhets-LED : Blått LED-lys blinker når bakre og fremre kamera er tilkoblet. Kameralinse Monteringsbrakett Kontakt til frontkamera 51,3 mm 29,2 mm DR490-2CH 21...
- Page 22 Advarsel y Installer ikke produktet der det kan forstyrre sjåførens synsfelt. Skru av motoren. Åpne dekselet til microSD-kort-sporet, skyv kortet forsiktig inn i sporet til det låses på plass og lukk dekselet igjen. 22 BLACKVUE...
- Page 23 Valgfri GPS-mottaker: Koble til GPS-mottakeren og fest den i hjørnet av frontruten. Skjul kabelen bak vinduslisten ved å bruke vippeverktøyet. Juster linsevinkelen ved å dreie på kamerakroppen. Vi anbefaler at linsen rettes svakt nedover (≈10° under vannrett) for å ta opp video med 6:4 vei til bakgrunn-rate. DR490-2CH 23...
- Page 24 Fjern beskyttelsesfilmen fra den dobbeltsidige teipen, og fest bakkameraet til bakruten. Juster linsevinkelen ved å dreie på kamerakroppen. Koble sammen frontkameraet ("Rear"-porten) og bakkameraet med tilkoblingsledningen for bakkameraet. Bruk vippeverkøyet til å løfte kanten av listen rundt frontruten forsiktig og dytte inn ledningen. Kabel til bakkamera 24 BLACKVUE...
- Page 25 Strømledning Kabel til bakkamera Skru på motoren. BlackVue-dashbordkameraet skrus på og starter opptaket. Videofilene lagres på microSD-kortet. Når microSD-kortet er fullt, vil de nyeste videofilene lagres over de eldste videofilene (dette kalles en opptakssløyfe), så du alltid beholder de nyeste videofilene.
- Page 26 TRINN 2 Avspilling Ta ut microSD-kortet fra dashbordkameraet. Åpne sidedekselet For å fjerne Bruk den inkluderte microSD-kort-adapteren for å koble kortet til en datamaskin. Last ned BlackVue Viewer fra www.blackvue.com > Support > Downloads og installer den på datamaskinen. 26 BLACKVUE...
- Page 27 Kjør BlackVue Viewer. Windows Viewer Mac Viewer DR490-2CH 27...
- Page 28 Åpne BlackVue Viewer og klikk på innstillingsknappen (Windows) eller -menyen (MacOS) for å åpne BlackVue-innstillingene. Du kan endre de fleste av BlackVue-innstillingene for å tilpasse bruken. Blant annet disse innstillingene kan justeres: y Tid (Tidssone): Manuell innstilling av tid og tidssone y Videoinnstillinger: Bildekvalitet, nattsyn, lysstyrke, metning, normalt opptak av/ på, automatisk parkeringsmodus av/på, taleopptak, tekstoverlegg, bakkamera-...
- Page 29 Formatere med BlackVue Viewer (Windows): Sett inn microSD-kortet i microSD-kortadapteren og koble den til datamaskinen. Last ned BlackVue Viewer fra www.blackvue.com > Support > Downloads og installer den på datamaskinen. Start BlackVue Viewer, Klikk på Format -knappen, velg kortstasjonen og klikk på OK.
- Page 30 Produktspesifikasjoner Modellnavn DR490-2CH Foran: Svart/Bredde 111,8 mm x høyde 34 mm/58 g Farge/størrelse/vekt Bak: Svart/Bredde 51,3 mm x høyde 29,7 mm x tykkelse 29,2 mm/18 g Minne microSD-kort (16 GB/32 GB/64 GB/128 GB) Normalt opptak, hendelsesopptak (støtdeteksjon), parkeringsmodusopptak (bevegelses- og støtdeteksjon)
- Page 31 -20 °C – 80 °C (-4 °F – 176 °F) Høy temperatur-avstenging Ca. 70 °C (158 °F) Sertifikater FCC, CE, RoHS, WEEE BlackVue Viewer Programvare * Windows XP eller høyere og Mac Yosemite OS X (10.10) eller høyere. Andre funksjoner Formatteringsfri teknologi for stabile opptak DR490-2CH 31...
-
Page 32: Product Warranty
Product Warranty The term of this product warranty is 1 year from the purchase date. (Accessories such as Battery/microSD Card : 6 Months) We, PittaSoft Co., Ltd., provide the product warranty according to Consumer Dispute Settlement Regulations (drawn up by the Fair Trade Commission). PittaSoft or designated partners will provide the service upon request. - Page 33 Notes...
- Page 34 Notes...
- Page 35 Notes...
- Page 36 DR490-2CH...
