- Page 1 SMS 40 Installer manual Communications module IHB 1120-3 031502...

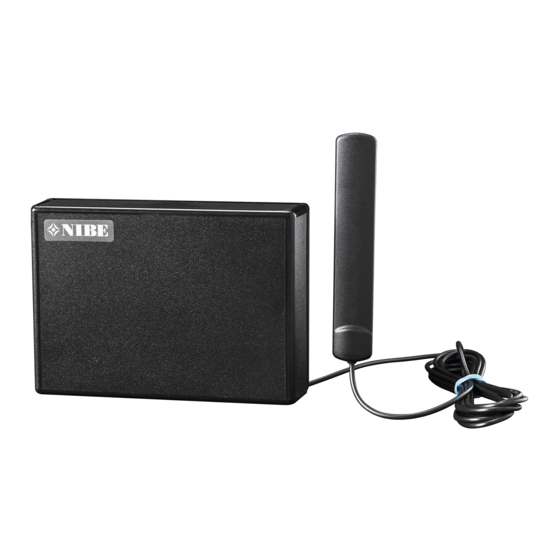

- Page 2 With SMS 40 you can control and monitor your NIBE heat pump using a mobile telephone via SMS messaging. For Antenna (2,5 m) this to work, SMS 40 must be equipped with a valid GSM Wall bracket subscription. There is no special GSM subscription requirement. A pay as you go card or a normal subscription work equally well.
- Page 3 Mounting antenna section has a piece of self-adhesive tape that SMS 40 can be positioned lying on a flat surface or wall- can be used to secure the antenna, for example to a mounted. Where SMS 40 is wall-mounted, use the sup- window if coverage in the installation location is poor.
-
Page 4: Electrical Connection
The wiring diagram is at the end of these installation in- structions. Connecting communication Terminal block X1 on the SMS card (AA9) in SMS 40 is connected to terminal block X4:9-12 on the input card F1245 (AA3) in the heat pump. - Page 5 Then slide the SIM card into the cover. 2. If you want SMS 40 to send SMSs in the event of a power cut, carry out the following: Install a 9V battery on the circuit board in SMS Position the jumper according to the image be- low.
-
Page 6: Download The App
”NIBE Mobile App” can be used. In the event of an alarm, SMS 40 can send an SMS to the programmed 1. Start the heat pump and select SMS 40 in menu recipient and present it graphically. - Page 7 SMS commands F370/F470/F750/F1145/F1245 SMS 40 sends an SMS in the event of a power cut, when F370/F470/F750/F1145/F1245 starts after a power cut and in the event of a constant alarm. These messages are only sent to the alarm recipient (menu 5.3.5).
- Page 8 Command Parameter Answer Description !opmode ?status Change operating mode Auto/add. heat only !tluxhw 0/3/6/12 ?status Temporary lux, hot water. 0/3/6/12 hours. !reg1 -10-+10 ?status Temperature (offsetting the heat curve in systems without room sensors) !reg2 -10-+10 ?status Temperature (offsetting heat curve in systems without room sensor), climate systems 2* !reg3 -10-+10...
-
Page 9: Troubleshooting
Troubleshooting SMS 40 has no contact with the GSM network SMS 40 does not reply to the SMS command and a sym- bol for lost connection to GSM network appears in heat pump menu 5.3.5. Check that the SIM card is correctly installed. -
Page 10: Technical Data
Technical data Technical specifications Rated voltage 12 VDC 45-80 mA (MHz) 850/900/1800/1900 Part No. 067 073... -
Page 11: Données Techniques
Données techniques Caractéristiques techniques Tension nominale 12 VCC 45-80 mA (MHz) 850/900/1800/1900 Référence RSK 625 06 77 Référence 067 073... - Page 12 Elschema/Wiring diagram/Elektrischer schaltplan /Sähkökytkentäkaavio/Schéma du circuit électrique...
- Page 13 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd Phone +46 433 73 000 Telefax +46 433 73 190 info@nibe.se www.nibe.se...
