INSTALLATION AND WIRING

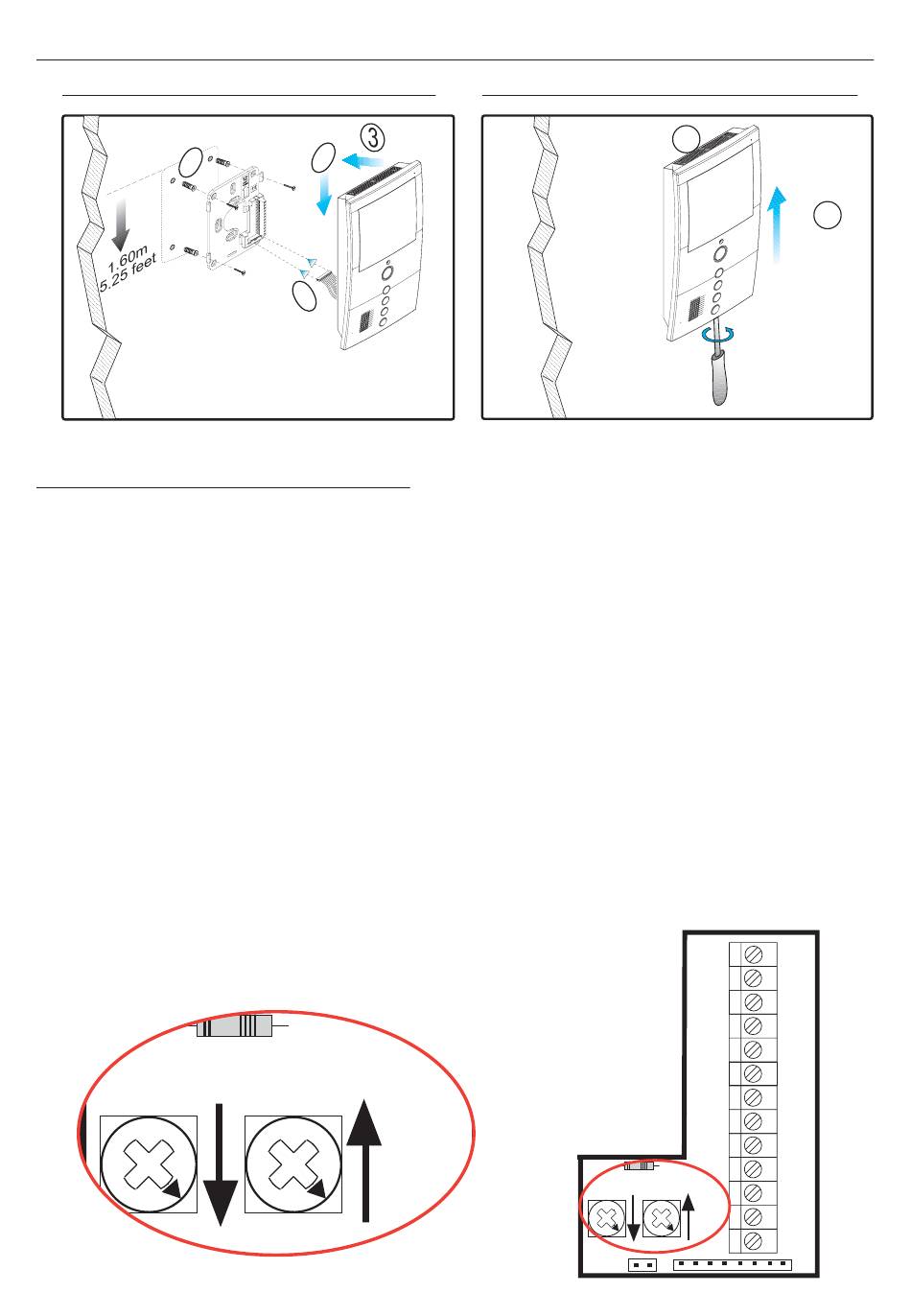

Assembly
1
Monitor Connector
Features:
The monitor's connections module incorporates 2 potentiometers to adjust the
system's audio levels.
Operation:
The connector will leave the factory with the potentiometers set to the maximum levels
by default, both in terms of high and low audio settings (the clock hands on the
potentiometers set to maximum levels).
To reduce possible acoustic overlaps the two potentiometers allow you to reduce the
audio levels in both directions (the volume is reduced turning the potentiometers anti-
clockwise).
·
P2: adjust low volume levels
·
P6: adjust high volume levels
P2
T A
Pag 14
4
2
V
P6
Ct
F1
F2
