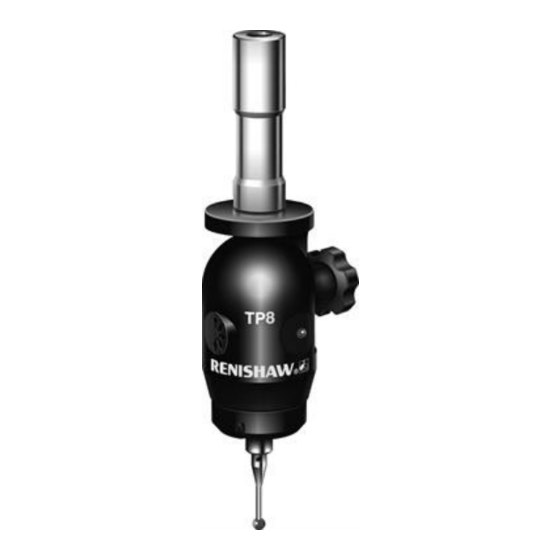

- Page 1 TP8 user's guide www.renishaw.com TP8 user's guide Documentation part number: H-1000-5118-04-B Issued 10 2019...
-
Page 2: General Information
Renishaw distributor. Warranty Renishaw plc warrants its equipment for a limited period (as set out in our Standard Terms and Conditions of Sale) provided that it is installed exactly as defined in associated Renishaw documentation. Prior consent must be obtained from Renishaw if non-Renishaw equipment (e.g. interfaces and/or cabling) is to be used or substituted. Failure to comply with this will invalidate the Renishaw warranty. - Page 3 Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to Renishaw products Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Packaging...
-
Page 4: Eu Declaration Of Conformity
TP8 user's guide www.renishaw.com Product compliance EU declaration of conformity Contact Renishaw plc or visit www.renishaw.com/EU for the full EU declaration. EMC conformity This equipment must be installed and used in accordance with this installation guide. This product is intended for industrial use only and should not be used in a residential area or connected to a low voltage power supply network which supplies buildings used for residential purposes. - Page 5 TP8 user's guide www.renishaw.com Probe trigger force adjustment NOTE: Only increase the stylus trigger force if you encounter unexpected probe triggers. The probe trigger force can be adjusted using a 2.5 mm hexagonal wrench. A clockwise rotation increases the trigger force from 0.1 N to 0.3 N approximately.
- Page 6 TP8 user's guide www.renishaw.com Dimensions Issued 10 2019...
- Page 7 ±1 μm ﴾±0.00004 in﴿ Weight (without shank) 95 g (3.36 oz) Stylus range Stylus force range (adjustable) 0.11 N - 0.3 N Stylus force (set by Renishaw) 0.11 N - 0.13 N Stylus overtravel (typical) XY plane: ±22° +Z axis: 5.5 mm (0.22 in) @ 0.11 N...
- Page 8 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge, +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 10 2019...
