- Page 1 Installation guide TS34 - tool setting probe www.renishaw.com/ts34 #renishaw...
- Page 2 Compliance information for this product is available by scanning the QR code or visiting www.renishaw.com/mtpdoc...
-
Page 3: Table Of Contents
Recommended connection diagram for TS34 with HSI interface . . . . . . . . . . . . . . . . - Page 4 This page intentionally is left blank . TS34 - tool setting probe...
-
Page 5: Before You Begin
Renishaw office. Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. -
Page 6: Patents
Patents None applicable. Intended use The TS34 tool setting probe is an on-machine compact 3D tool setter with hard-wired signal transmission used for broken tool detection and rapid measurement of tool length and diameter on a wide range of tools. -
Page 7: Safety
Information to the equipment installer All Renishaw equipment is designed to comply with the relevant UK, EU and FCC regulatory requirements . It is the responsibility of the equipment installer to ensure that the following guidelines are adhered to, in order for the product to function in accordance with these regulations: •... - Page 8 This page intentionally is left blank . TS34 - tool setting probe: Before you begin...
-
Page 9: Ts34 Tool Setting Probe Basics

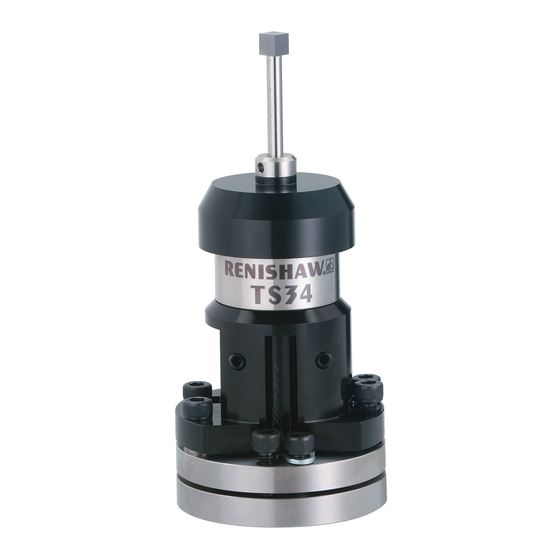

Plinth Introduction The TS34 tool setting probe is used for tool setting on CNC machining centres and its cable is available as a rear or side exit version. For tool length measurements and broken tool detection, the tool is driven against the probes stylus in the Z axis. -
Page 10: Operation
Software routines Software routines for tool setting are available from Renishaw for various machine controllers, see the Probe software for machine tools – programs and features data sheet (Renishaw part no . H-2000-2298) . TS34 - tool setting probe: TS34 basics... -
Page 11: Specification
. Trigger force is measured with a 50 mm (1 .97 in) stylus . These are the factory settings, manual adjustment is not possible . NOTE: For stylus recommendations, refer to the Styli and accessories technical specifications (Renishaw part no . H-1000-3200) . -
Page 12: Dimensions
3 off M4 screws Ø38 (0 .59) 15 (0 .59) 3 off M4 x 0 .7 equispaced as shown. M4 fixings supplied (3 A/F wrench) 60° 2 off base plate clamping screws Dimensions in mm (in) TS34 - tool setting probe: TS34 basics... -
Page 13: System Installation
. NOTE: The cable screen is connected to the machine via a 100 nF capacitor inside the TS34 to prevent possible earth loops . Ensure the cable screen is connected to the appropriate input on the interface . -
Page 14: Recommended Connection Diagram For Ts34 With Hsi Interface
Recommended connection diagram for TS34 with HSI interface HSI interface NOTE: When connecting Machine tool the TS34 probe to the Standard connector (3-way) HSI interface, use the TS34 tool setter connection labelled 1 Probe Input + STANDARD PROBE . TS34 probe 2 Probe Input −... -
Page 15: Stylus Level Setting
CAUTION: Do not tighten screw X . Coarse adjustment of the stylus is provided by using the 2 off M3 grub screws and fine adjustment of the stylus is provided by using the 2 off M5 grub screws, see page 2-4 . www.renishaw.com/ts34... - Page 16 This page intentionally is left blank . TS34 - tool setting probe: System installation...
-
Page 17: Service And Maintenance
Service You may undertake the maintenance routines described in this handbook . Further dismantling and repair of Renishaw equipment is a highly specialised operation, which must be carried out at authorised Renishaw Service Centres . Equipment requiring repair, overhaul or attention under warranty should be returned to your supplier . -
Page 18: Diaphragm Maintenance
. Refit the spring and metal eyelid (the springs widest diameter is against the metal eyelid). Refit the remaining components. TS34 - tool setting probe: Service and maintenance... -
Page 19: Parts List
. C spanner A-2008-0332 C spanner for removing the probes front cover . Publications . These can be downloaded from our website at www.renishaw.com . TS34 H-2197-8500 Installation guide: for set-up of the TS34 tool setting probe system . - Page 20 © 2010 –2022 Renishaw plc . All rights reserved . This document may not be copied or reproduced in whole or in part, or transferred to any other media or language by any means, without the prior written permission of Renishaw .
