CIO-DDA06/16 User's Guide

Cabling

1
19
1
19

Field wiring, signal termination, and conditioning

You can use the following cabling, screw termination, and signal conditioning products with the CIO-DDA06.
DFCON37 – Connector kit that includes a 37-pin female D-connector, D-shell, 37 crimp pins, and cable
termination kit to construct your own cable.
CIO-MINI37 – 37-pin screw terminal board.
CIO-TERMINAL – 37-pin screw terminal board with on-board prototyping area.
CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.
SCB-37 – 37-conductor, shielded signal connection/screw terminal box.
SSR-RACK24 – 24-channel, solid-state relay mounting rack for digital signal conditioning.
ENC-MINI37– Enclosure for the MINI37.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

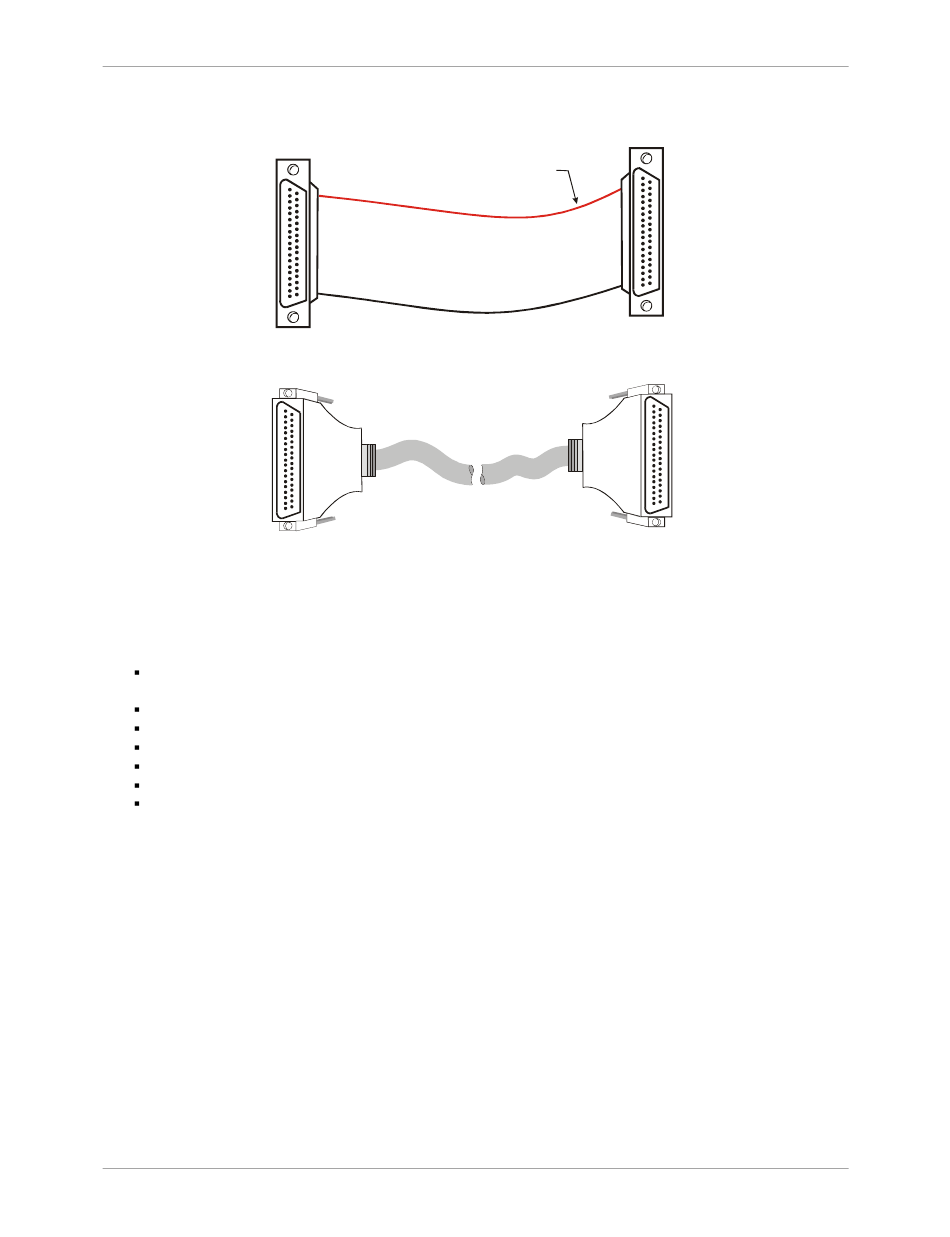

The red stripe
identifies pin # 1
20
37
Figure 6. C37FF-x cable
20
37
Figure 7. C37FFS-x cable
1
Installing the CIO-DDA06/16
1
20
37
19
1
20
37
19
