Package Dimensions

Following shows the Mechanical dimensions of SIM900D (top view, side view and bottom view).

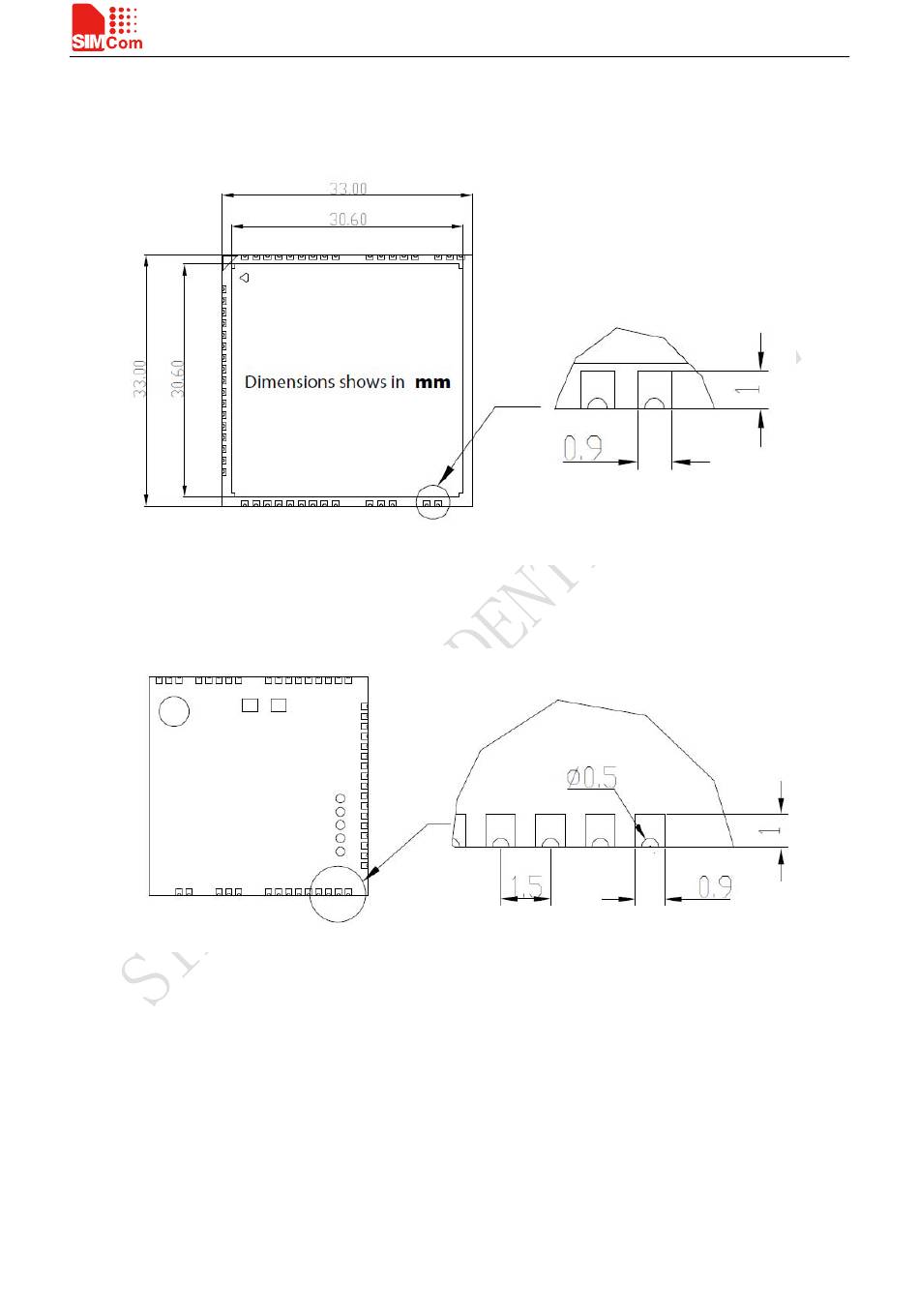

Figure 3: SIM900D top mechanical dimensions (Unit: mm)

Figure 4: SIM900D bottom mechanical dimensions (Unit: mm)

7

SIM900_Hardware Design_V2.02

2012-05-07
