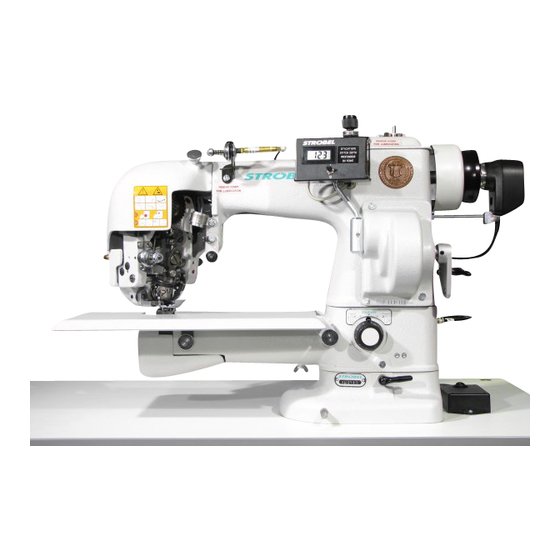

Strobel 218D-TP-R Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Strobel Manuals
  4. Sewing Machine
  5. 218D-TP-R
  6. Operating instructions manual

Strobel 218D-TP-R Operating Instructions Manual

Hide thumbs Also See for 218D-TP-R:
Table of Contents

Advertisement

Quick Links

Download this manual
For the professional user
Für den professionellen Anwender
Operating Instructions
Betriebsanleitung
Class:
Klasse:
Model:
Ausführung:
Dated:
Stand:
218D-TP-R
4
S p e z i a l m a s c h i n e n G m b H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 218D-TP-R and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel 218D-TP-R

Summary of Contents for Strobel 218D-TP-R

  • Page 1 For the professional user Operating Instructions Für den professionellen Anwender Betriebsanleitung Class: 218D-TP-R Klasse: Model: Ausführung: Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 Justify your trust. If you wish to profit from the performance and efficiency of your Strobel machine as long as possible, exact handling and thorough care is necessary. For this reason we kindly request that you read the operating instructions closely.
  • Page 5 BA_218D-TP-R_A4_180619_en...
  • Page 6 BA_218D-TP-R_A4_180619_en...

  • Page 7: Table Of Contents

    Operating instructions STROBEL class 218D-TP-R Contents General notes on safety .................... 5 General ........................7 Operating instructions ..................7 Class description, machine number and reference position ......7 Machine applications ..................7 Technical data ....................8 Set-up and commissioning ..................9 Unpacking of the machine ................
  • Page 8 Operating the sewing machine (Fig. 14) ..............25 Switch-on ...................... 25 Inserting and removing the sewn item ............26 Sewing ......................27 5.3.1 Blindstitch hemming ................. 27 5.3.2 Seam appearance ................28 Problems during sewing and possible solutions ........... 29 Missed stitches (Fig.

  • Page 9: General Notes On Safety

    General notes on safety Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine. Failure to comply with the following safety instructions can lead to bodily injury or damage to the machine.
  • Page 10 14. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol. Warning instructions given in the operating instructions that pertain to special injury hazards for operating personnel or technicians must be indicated at these positions using a safety symbol.

  • Page 11: General

    General Operating instructions Any person involved in the installation, operation, maintenance and repair of the machine must have read and understood the operating instructions and mainly the safety instructions before starting the machine. Class description, machine number and reference position For side-referenced descriptions, the operating side of the machine is the starting base.

  • Page 12: Technical Data

    Technical data Recommanded rated speed 1300 min Motor power 550 W Toothed belt pulley/machine z = 38 Toothed belt profile HTD 5M-9 Stitch length 2 - 6 mm (depend on fabric) Kind of stitch: two thread blindstitch lockstitch Stitch type Needle system GROZ-BECKERT 1717 VRUE Needle size...

  • Page 13: Set-Up And Commissioning

    Set-up and commissioning Unpacking of the machine Strobel machines are supplied either complete as upper part only. The cotton stand and another machine accessories are located in the packaging. Prior to disposing of the packing material it must be carefully checked whether all accessories parts have been unpacked.
  • Page 14 Fig. 1 BA_218D-TP-R_A4_180619_en...
  • Page 15 The cotton stand is mounted at the back on the right on the table plate after assembly of the individual parts. (Fig. 1) Check all screws at the frame for tight fit and retighten if necessary. Mount the position transmitter and adjust corresponding to point “3.4.2 Positions of the machine.

  • Page 16: Sense Of Rotation (Fig. 3)

    Sense of rotation (Fig. 3) The correct sense of rotation of the handwheel is clockwise. Fig. 3 Motor drive via toothed belt 3.4.1 Tension of the timing belt (Fig. 4) CAUTION! Danger of injury! To check the tension of the toothed belt, switch off the machine electrically, pull the mains plug and ensure the machine has actually stopped by pressing the motor pedal.

  • Page 17: Positions Of The Machine

    Fig. 4 3.4.2 Positions of the machine C A U T I O N ! Danger of injury! Danger of pulling in parts of clothing and of hair and danger of crushing fingers and stitching fingers with needles! When checking positions with switched-on machine keep fingers and hands away from moving parts.

  • Page 18: Intermediate Venting (Fig. 5)

    Intermediate venting (Fig. 5) If, for a machine with pneumatic venting facility, it is necessary to proceed with intermediate venting by operating the knee lever, the latter may be fitted to shaft (1) in the usual position. Fig. 5 BA_218D-TP-R_A4_180619_en...

  • Page 19: Instructions For Use

    Instructions for use Needles and threads The sewing quality can be influenced to a considerable extent by choosing the most suitable needles and threads for the material to be sewn. It is recommended to use controlled GROZ-BECKERT needles system 1717 VRUE only.

  • Page 20: Threading And Thread Course (Fig. 6)

    Fig. 6 Threading and thread course (Fig. 6) A T T E N T I O N ! Danger of bodily injuries! Switch off machine electrically and confirm that the machine is really in standstill position by operating the treadle for the motor control before threading. Fig.

  • Page 21: Filling The Bobbin (Fig. 7)

    Filling the bobbin (Fig. 7) Fig. 7 shows how the thread should run when the bobbin is filled. Take care to avoid too much thread being wound on the bobbin or the upper and lower discs of the bobbin being forced apart. Fig.

  • Page 22: Thread Tension

    Fig. 8 Thread tension Depending on the quality, condition and thickness of the thread and the fabric , the thread tension is adjusted by means of the thread tension to the desired seam pattern . 4.5.1 Thread tensioning spring - needle thread (Fig. 9) The range of movement of the thread tensioning spring (3) can be limited or extended by slackening the right threaded pin (1) and turning the empty bobbin (2).

  • Page 23: Thread Tension - Bobbin Thread (Fig. 10)

    4.5.2 Thread tension - bobbin thread (Fig. 10) The leaf spring (2) regulates the bobbin thread tension. By turning the flat-head screw with catch (1), the leaf spring must be adjusted in such a way that when the bobbin is inserted, and the thread is correctly pulled under the leaf spring and the bobbin case is released, the latter, together with the bobbin drops slowly down.

  • Page 24: Setting The Stitch Length (Fig. 7 + Fig. 11)

    Setting the stitch length (Fig. 7 + Fig. 11) A T T E N T I O N ! Switch off machine electrically and confirm that the machine is really in standstill position by operating the treadle for the motor control before changing the needle. Otherwise danger of finger bruises and needle throughstitches.

  • Page 25: Stitch Depth

    Stitch depth Stitch depth means the distance between the highest plunger position and the outer radius of the needle. The plunger forces the sewn item from underneath into the needle plate opening, so that the needle penetrates the layers of material to the desired depth.

  • Page 26: Changing The Battery (Fig. 12)

    Fig. 12 4.7.3 Changing the battery (Fig. 12) Bring the switch to 0 position. Open cover on the backside of the housing Change the battery - ATTENTION! Observe the polarity! Close cover. Plunger limit stop When felling fabrics, it is often necessary to sew through layers of material of varying thickness on the same article, while the depth of penetration of the needle as seen from the upper side of the fabric should remain the same.

  • Page 27: Thread Spreader

    4.10 Thread spreader Some of our felling machines are fitted with a thread spreader, permitting the formation of a cross-stitch (overcast stitch). When sewing without this device, a standard seam as shown in Fig. 16 is produced. If inserting points of thread spreader need to be changed and/or adapted to the machine, take care to bend the points only above the center, as the bottom half is hard.

  • Page 28: Inserting Thread Spreader (Fig. 13)

    4.10.2 Inserting thread spreader (Fig. 13) Place needle lever into highest position by turning hand-wheel. Introduce thread spreader from the left into sleeve (6). Take care that cylinder pin (7) catches into groove of piece (8). Push knurled screw from the right into sleeve (6) and tighten it firmly. Slip bolt (1) trough (2) and (4) and clamp it by means of screw (3).

  • Page 29: Operating The Sewing Machine (Fig. 14)

    Operating the sewing machine (Fig. 14) A T T E N T I O N ! Switch off machine electrically and confirm that the machine is really in standstill position by operating the treadle for the motor control before changing the needle. Otherwise danger of finger bruises and needle throughstitches.

  • Page 30: Inserting And Removing The Sewn Item

    Inserting and removing the sewn item If, with the machine switched off, the needle is roughly 3 mm beyond its upper dead point, the gripping plate and plunger can move downwards by operating the knee lever. The needle thread tension is simultaneously vented. For pneumatic venting - see also point “4.12 Sewing drive”.

  • Page 31: Sewing

    Sewing 5.3.1 Blindstitch hemming If there are no experience values available, the best thing to do is to carry out the following settings in sequence: Adjust required stitch length Adjust material guide (if available) Adjust stitch depth Check plunger stop and if necessary adjust Check presser plate lift.

  • Page 32: Seam Appearance

    5.3.2 Seam appearance very small triangle small triangle Standard triangle big triangle 281.0030 281.0032 281.0033 381.0166 Plunger Ø3 mm Plunger Ø5 mm Plunger Ø4 mm Plunger set BA_218D-TP-R_A4_180619_en...

  • Page 33: Problems During Sewing And Possible Solutions

    Problems during sewing and possible solutions A T T E N T I O N ! Switch off machine electrically and confirm that the machine is really in standstill position by operating the treadle for the motor control. Otherwise danger of finger bruises and needle throughstitches.
  • Page 34 • Uneven stitching Possible causes: frequently worn or damaged needles height of needle plate or needle slide plate incorrectly adjusted unsuitable needle thickness (too thin) Remedy: Replace damaged needle. Check adjustments and correct if necessary. Use correct needle thickness. • Missing loops Possible causes: incorrectly adjusted or badly adjusted shuttle...
  • Page 35 • The sewing result does not come up to your expectations Possible causes: Damaged sewing tools or wear caused by improper use or natural wear following long use of machine. The machine has become mechanically misadjusted Unsuitable needle thickness (see “4.1 Needles and threads”) Unsuitable sewing thread (see “4.1 Needles and threads”).

  • Page 36: Missed Stitches (Fig. 15, Fig. 16, Fig. 17, Fig. 18)

    Missed stitches (Fig. 15, Fig. 16, Fig. 17, Fig. 18) The correct double thread blind stitch with thread spreader is shown in Fig. 15. If the spreader does not hold, then the seam has the appearance of one from a double thread straight stitch machine. (Fig. 16) If the thread spreader does not hold correctly, in other words, it misses a stitch every now and again, then the stitch looks like the one illustrated in Fig.

  • Page 37: Maintenance Of The Machine

    Maintenance of the machine A T T E N T I O N ! Switch off machine electrically and confirm that the machine is really in standstill position by operating thetreadle for the motor control before changing the needle. Otherwise danger of finger bruises and needle throughstitches.

  • Page 38: Variable Sewing Tool

    Variable sewing tool A T T E N T I O N ! Switch off machine electrically and confirm that the machine is really in standstill position by operating the treadle for the motor control before changing the needle. Otherwise danger of finger bruises and needle throughstitches.
  • Page 39 Cl. 218D-TP-R Standard 380.0246 Needle plate 7,0 mm Öffnung without spreader with spreader straight stitch zigzag stitch Stitch formation Standard Optional 182.0293 182.0315 Feed dog BA_218D-TP-R_A4_180619_en...
  • Page 40 Cl. 218D-TP-R Plunger 381.0166 Set Plunger set supplied 281.0030 Ø3 mm Plunger supplied 281.0032 Ø4 mm Plunger integrated 281.0033 Ø5 mm Plunger supplied BA_218D-TP-R_A4_180619_en...

  • Page 41: Optional Extras

    Optional extras The following devices are available as optional extras and can be ordered together with the machine or as separate kits. BA_218D-TP-R_A4_180619_en...
  • Page 43 Und wir können noch mehr für Sie tun! Unser Lieferprogramm bietet für jede Branche und jegliche Anforderung genau die richtige Problemlösung. And we can do a lot more for you! Our range offers the correct problem solution for every branch and for all requirements. Für die Bekleidungs- Für die Schuh- Für die Polster-...
  • Page 44 Then phone, write or simply come and see us. You can have further information about our products at any time, or experience the Strobel machines live in our show room. We’re looking forward to meeting you! Spe zi a l ma s c hine n G m bH...
