Rockwell Automation Allen-Bradley Compact GuardLogix 5370 Controller Application Technique page 9

Door locking and monitoring with access box and an integrated safety controller safety function, safety modules

Table of Contents

Door Locking and Monitoring with a 442G Access Box and an Integrated Safety Controller Safety Function

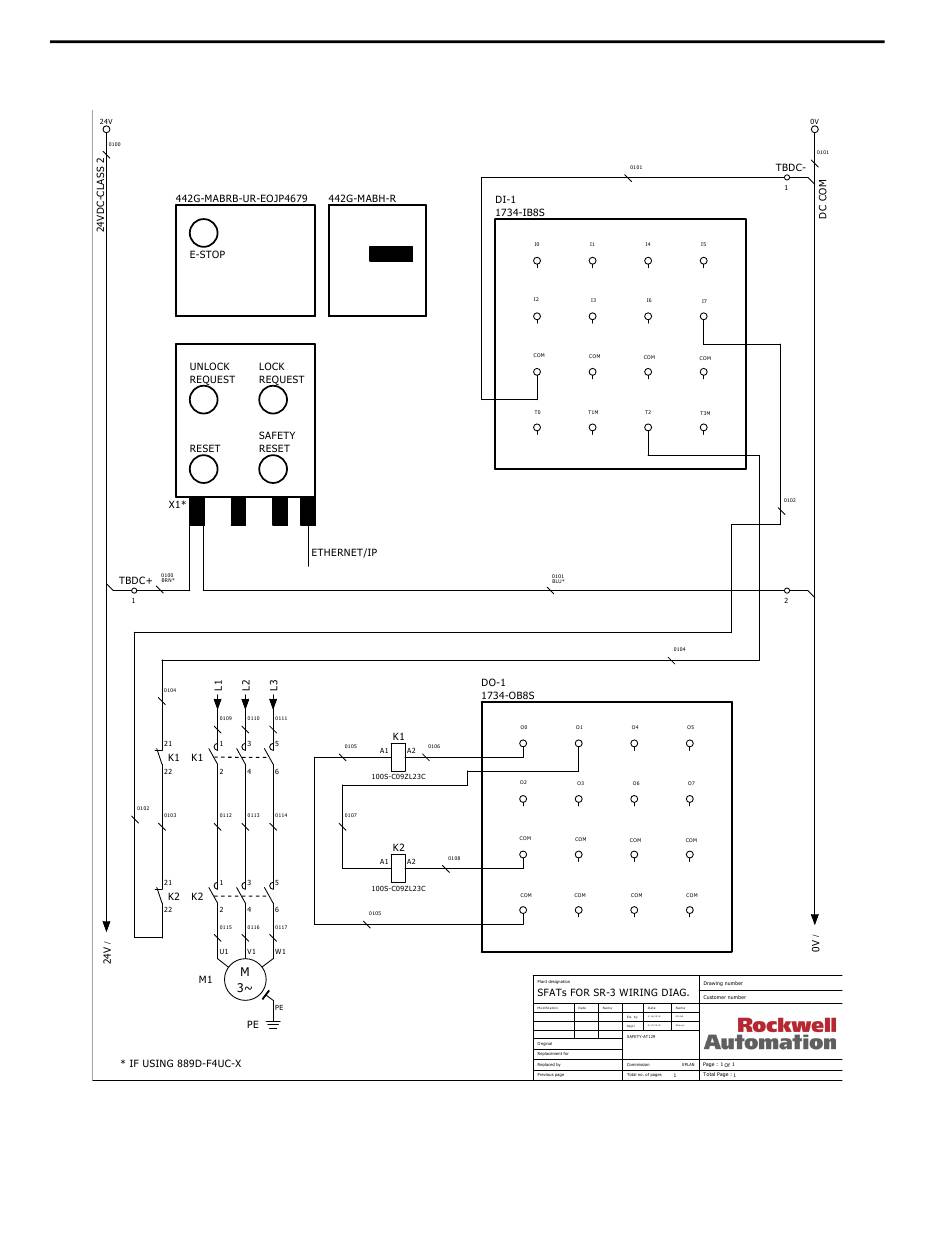

Electrical Schematic

For an electrical schematic in AutoCAD or EPLAN format, see the attached files.

Rockwell Automation Publication SAFETY-AT129B-EN-P - November 2018
